S08B-PUDSS-1

Description
10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector
File Size296KB,4 Pages
ManufacturerETC2
Download Datasheet Parametric View All

S08B-PUDSS-1 Overview

10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

S08B-PUDSS-1 Parametric

Parameter NameAttribute value
Contact materialsCOPPER ALLOY
Terminal spacing2 mm
Total number of contacts10
stateACTIVE
OptionsGENERAL PURPOSE
Manufacturer SeriesPUD
Contact surface matchingTIN OVER COPPER
Contact coated terminalsTIN OVER COPPER
Connection TypeTWO PART BOARD CONNECTOR
Connector male and femaleMALE
collocation informationMULTIPLE MATING PARTS AVAILABLE
Installation methodSTRAIGHT
Installation typeBOARD
Number of load rows1
Terminal typeSOLDER
UL flammability code94V-0

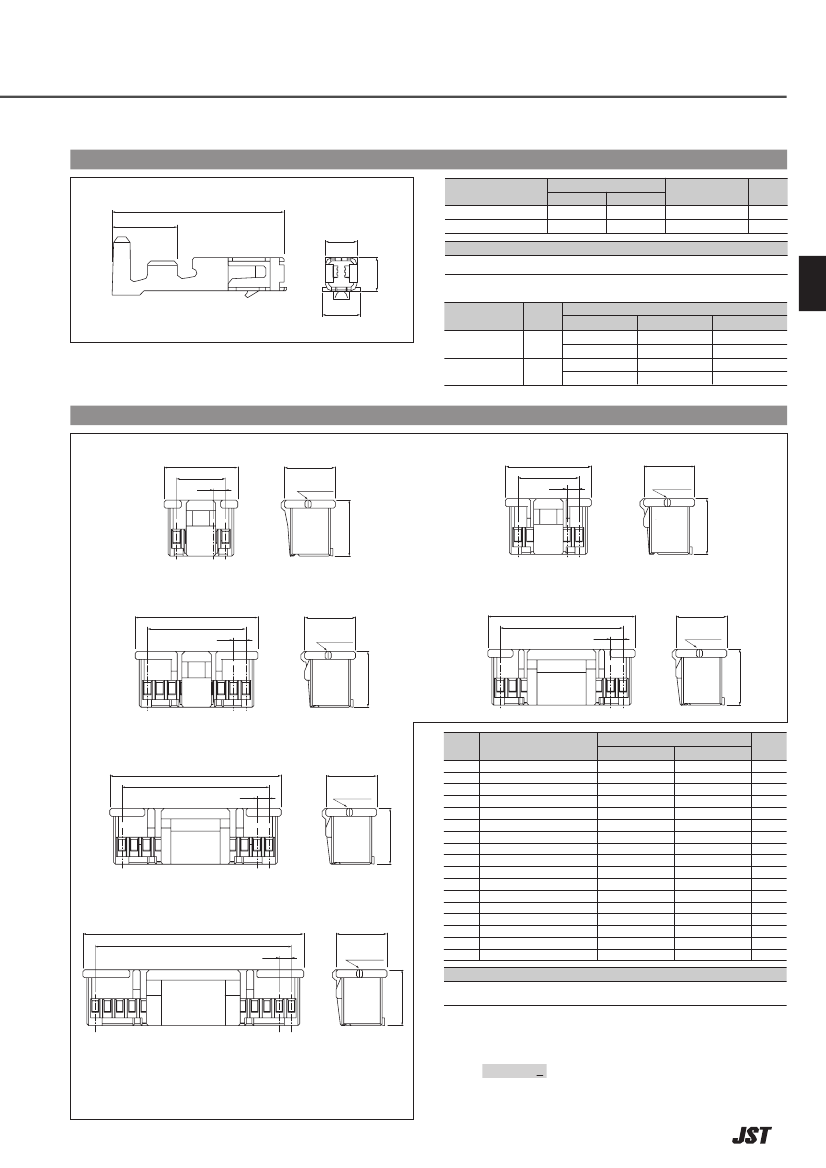

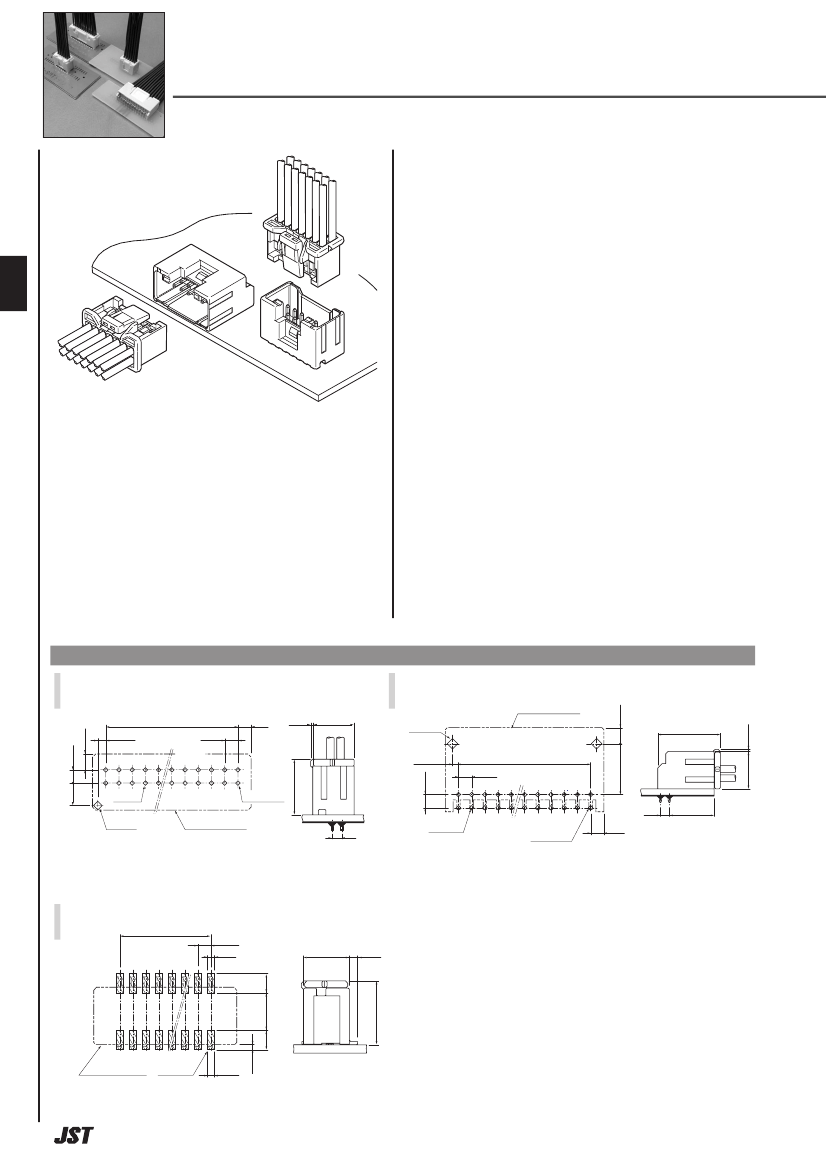

PUD
CONNECTOR
2.0mm pitch/Disconnectable Crimp style connectors
• High reliability contact
• Superior operability
• Secure locking structure
• Polarizing key for mounting on PC board
Specifications –––––––––––––––––––
• Current rating: 3A AC, DC (AWG#22)
• Voltage rating: 250V AC, DC
• Temperature range:
-
25˚C to
+
85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance: 1,000M
Ω
min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: 001 type/AWG #26 to #22
002 type/AWG #28 to #24
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
This is a board-to-wire connector with
secure locking device that has been
designed to 2.0mm pitch, crimping style
and double-row. In spite of realizing low
insertion force, the stable electric
connection is demonstrated against the
condition such as vibration, pinching and
dry circuit. It is possible to unfasten the
locking even if the header is surrounded
with a case wall within height of header
because the tip of locking device in
receptacle does not protrude from its area.
Standards
––––––––––––––––––––––
0
Recognized E 60389
PC board layout (viewed from component side) and Assembly layout
Top entry type
(0.4)
8.3
Side entry type
(2.4)
Connector outline
A
±0.05
(2.4)
φ1.6
+0.1
0
1.2
±0.05
Even
number
circuits
2
±0.05
7.7
±0.05
0.9
±0.05
2
±0.05
2
±0.05
11
A
±0.05
Even number
circuits
(14.1)
2
±0.05
3.4
±0.05
φ0.7
+0.1
0
Odd
number
circuits
Circuit No.1
2
2
φ0.7
+0.1
0
10.1
φ1.3
+0.1
0
Connector outline
Odd number
circuits
Circuit No.1
(2)
Note: 1.Tolerances are non-cumulative:
±
0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method.
The dimensions above should serve as a guideline. Contact JST for details.
SMT type
A
±0.1
2
±0.05
1min
Even number circuits
3min
8.8
(1.6)
5.7
±0.1
Odd number circuits
Connector outline
Circuit No.1
1min
Note: 1.Tolerances are non-cumulative:
±
0.05mm for all centers.
2.The dimensions above should serve as a guideline. Contact JST for details.
1
(0.8)
3min
(12.3)
8.5
(0.4)
(2)
