TS19603

Description
400mA High Voltage Adjustable Current Regulator
File Size138KB,6 Pages
ManufacturerTaiwan Semiconductor
Websitehttp://www.taiwansemi.com/
Download Datasheet Compare View All

TS19603 Overview

400mA High Voltage Adjustable Current Regulator

TS19603
400mA High Voltage Adjustable Current Regulator
With Enable Control

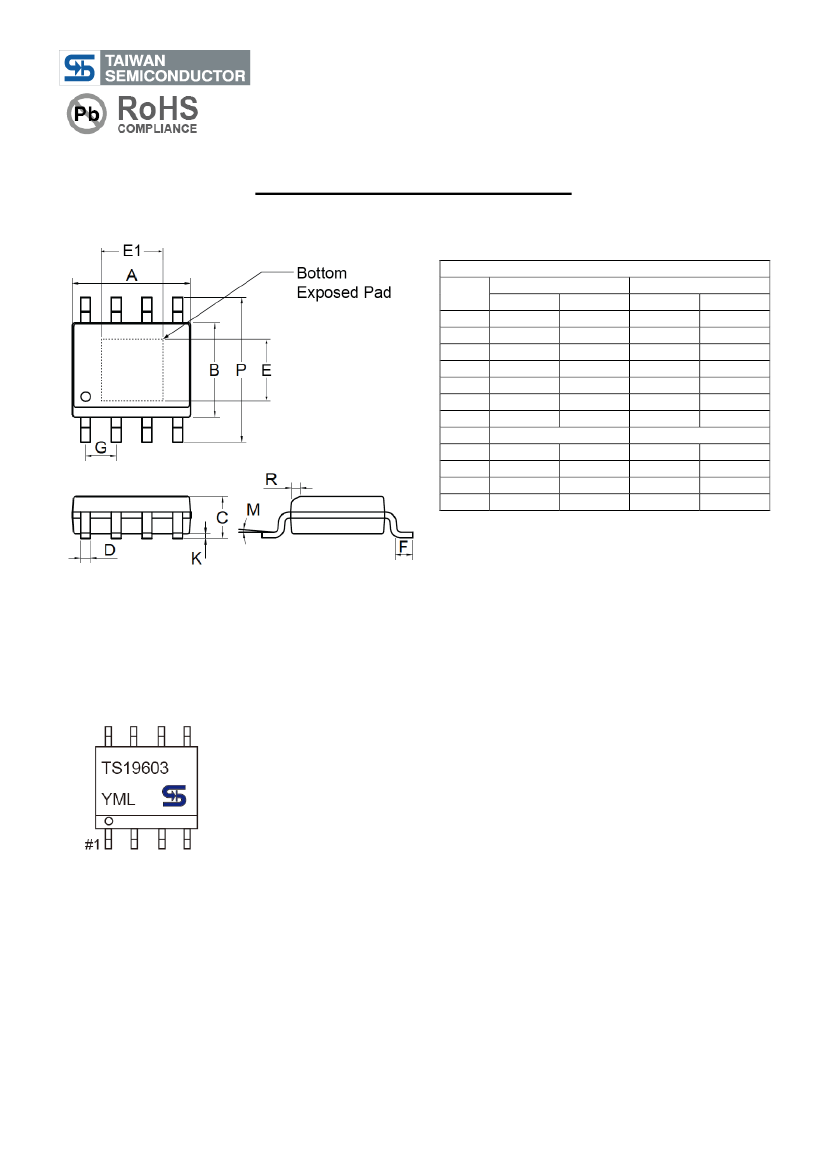

SOP-8EP
Pin Definition:
1. GND
8. OUT
2. GND
7. OUT
3. VDD
6. NC
4. ISET
5. OE
General Description
The TS19603 is a high voltage, low dropout current regulator of maximum output current up to 400mA. The output
current is decided by an external resistor, and the output sink current could be disabled via OE pin. TS19603
internally also build-in thermal protection to prevent the chip over heat damage.
Features
0.28V V
DROP
@ 400mA
400mA Maximum Output Current
Output Current Controlled by External Resistor
3µs Fast Response Output Stage Enable Control
Wide Supply Voltage Range: 5~50V

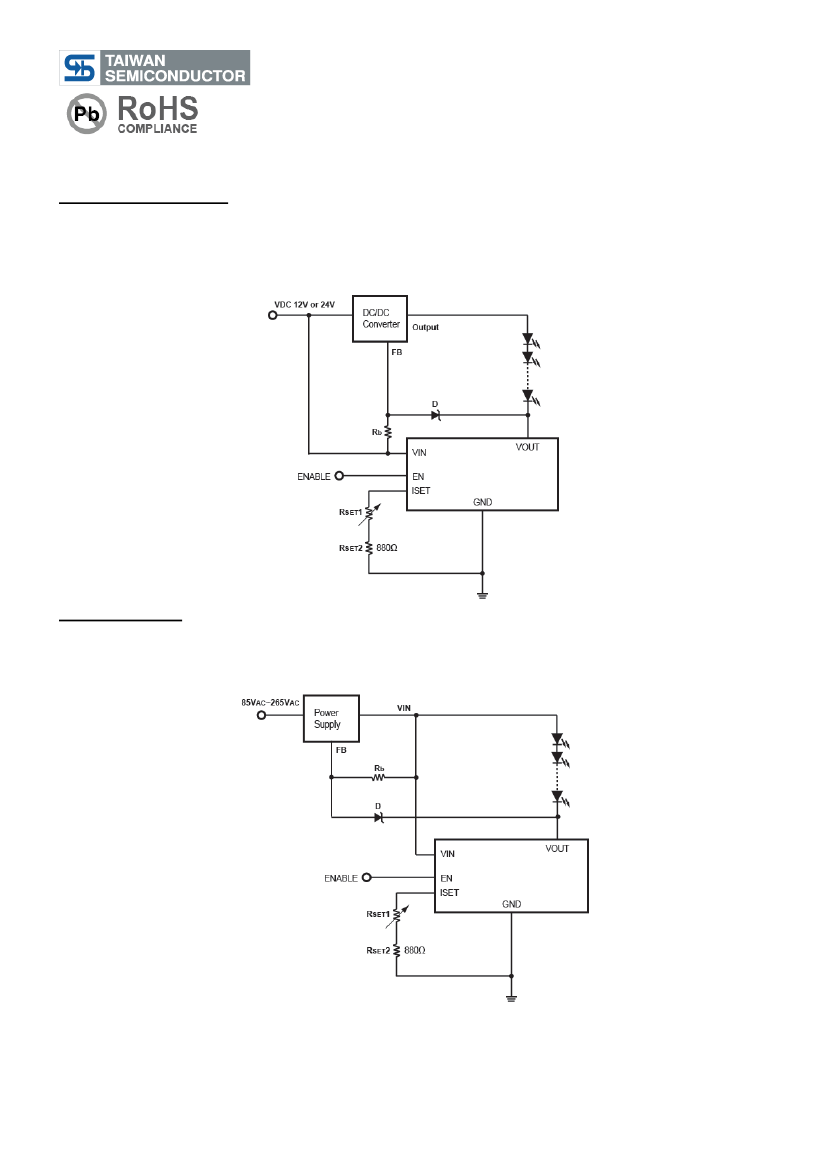

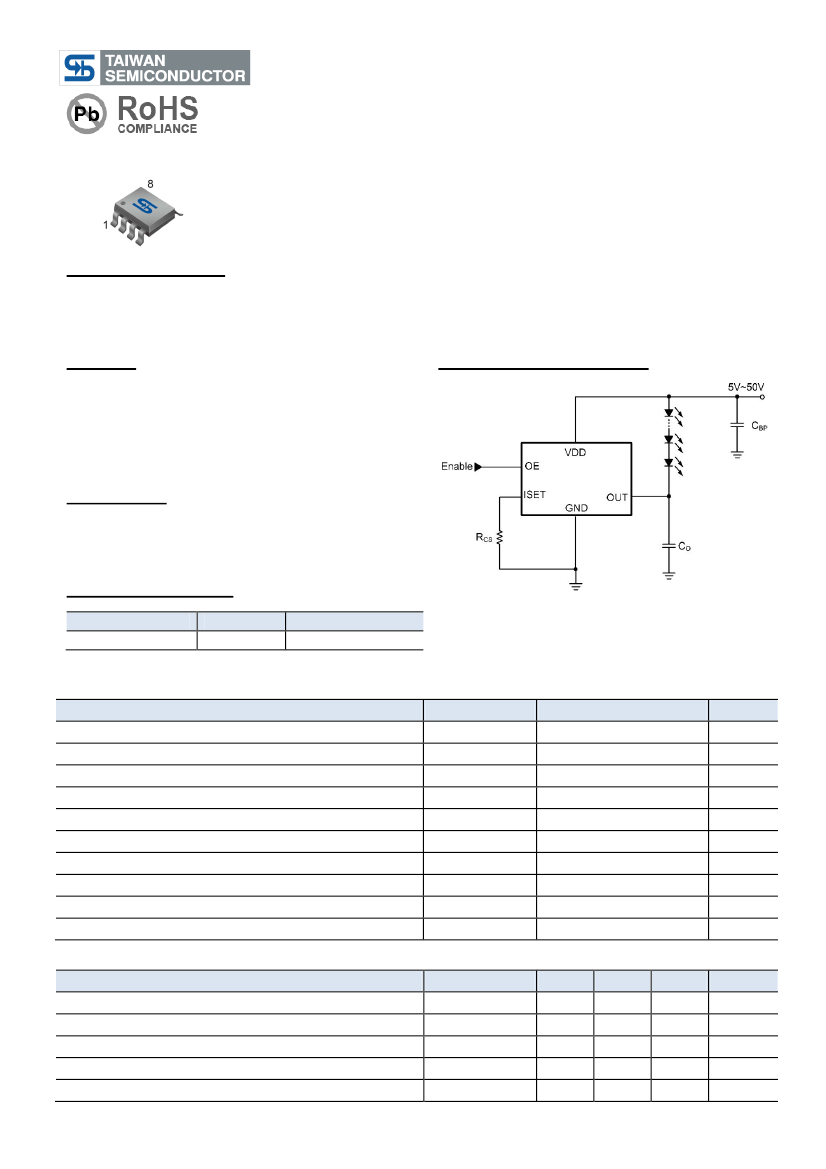

Typical Application Circuit
TS19603
Applications
High Power LED Driver
RGB Full Color Power LED Driver
LCD Monitor/TV LED Backlight Driver
Ordering Information
Part No.
TS19603CS RLG
Package
SOP-8EP
Packing
2.5Kpcs / 13” Reel
Note:
“G” denotes Halogen Free Product.
Absolute Maximum Rating
Parameter
Input Voltage
Output Sink Current
Output Enable Voltage
Operating Junction Temperature Range
Storage Temperature Range
Thermal Resistance Junction to Air
Power Dissipation P
D
@ T
A
=25°C (Note 2)
Thermal Resistance - Junction to Ambient
Thermal Resistance - Junction to Case
ESD Rating (Human Body Model) (Note 4)
Symbol
V
IN
I
OUT
V
EN
T
OPR
T
STG
θ
JA
P
D
θ
JA
θ
JC
ESD
Value
55
450
13.2
-40 ~ +150
-65 ~ +150
80
1
36
5.5
2
Unit
V
mA
V
ºC
ºC
ºC/W
W
ºC/W
ºC/W
kV
Recommend Operating Conditions
Parameter
Input Voltage
Output Enable Voltage
Output Sink Current
Operating Junction Temperature Range
Operating Free-Air Temperature Range
Symbol
V
IN
V
EN
I
OUT
T
OPR
T
A
Min
5
0
200
-20
-20
Typ
--
--
--
--
--
Max
50
12
400
+125
+85
Unit
V
V
mA
ºC
ºC
1/6
Version: A13
