DIP Adapters
Table of Models
Molded DIP Adapters
Dual In-Line Adapters / Discrete Component Carriers
Description:

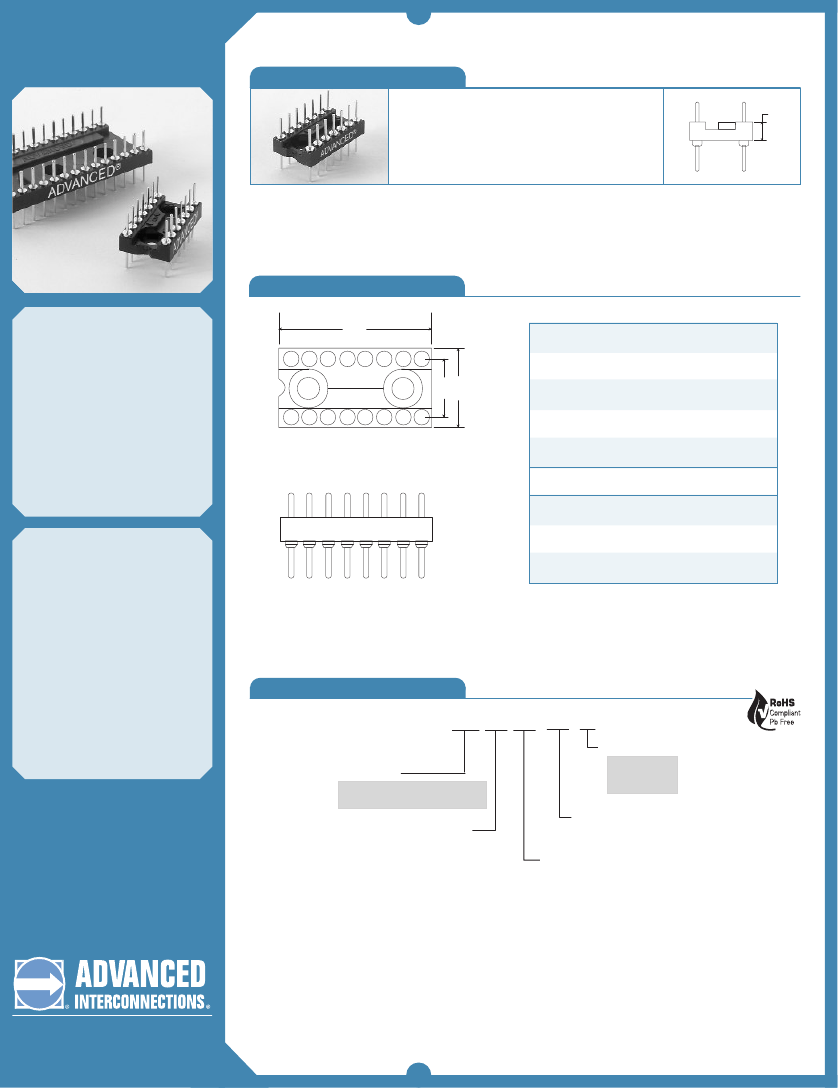

Molded DIP Adapter (RDA)
Mat’l: High Temp. Liquid Crystal Polymer (LCP)
Index: -40°C to 260°C (-40°F to 500°F)
.125
(3.18)
RDA replaces DA and HDA.
Dimensional Information
Features:
• Low profile.
• Design allows for stacking on
.100/(2.54mm) grid.
• Board to Board applicable.
• Easily customized to fit your
applications.
• Mating sockets available in Open
Frame or Closed Frame molded
designs and Peel-A-Way
®
Removable Terminal Carriers.
Terminal Type -09 Shown
C
# of Pins
8
14
ADVANCED
A
B
16
18
20
22
24
28
Specifications:
Terminals:
Brass - Copper Alloy
(C36000) ASTM-B-16
Plating:
G - Gold over Nickel
M - Matte Tin over Nickel
T - Tin/Lead over Nickel
Gold per ASTM-B-488
Matte Tin per ASTM545-97
Tin/Lead per MIL-P-81728
Nickel per QQ-N-290
Body Type
RoHS Compliant:
40
A
.300
(7.62)
.300
(7.62)
.300
(7.62)
.300
(7.62)
.300
(7.62)
.400
(10.16)
.600
(15.24)
.600
(15.24)
.600
(15.24)
B
.400
(10.16)
.400
(10.16)
.400
(10.16)
.400
(10.16)
.400
(10.16)
.500
(12.70)
.700
(17.78)
.700
(17.78)
.700
(17.78)
C
.400
(10.16)
.700
(17.78)
.800
(20.32)
.900
(22.86)
1.000
(25.40)
1.100
(27.94)
1.200
(30.48)
1.400
(35.56)
2.000
(50.80)
How To Order
RDA 3
16 - 09
M
Terminal Plating
RoHS Compliant:
RDA - Hi-Temp Molded LCP
DIP Spacing
3 - .300/(7.62mm)
4 - .400/(10.16mm)
6 - .600/(15.24mm)
*Open frame only
from DIP Spacing
G - Gold
M - Matte Tin
T - Tin/Lead
Terminal Type
See options on next page
Number of Pins
(8 to 40)
Note: Quick-Turn delivery is not available on products with Matte Tin plating.
5 Energy Way, West Warwick, RI 02893 USA
Tel: 800.424.9850 | 401.823.5200
Fax: 401.823.8723
info@advanced.com | www.advanced.com
Catalog 16
rev. Sept. 07
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
inch/(mm)
Molded DIP Adapters
Dual In-Line Adapters / Discrete Component Carriers
Standard Quick-Turn Terminals
Type -08
.025 Dia.
(.64)
.166
(4.22)
.018 Dia.
(.46)
.166
(4.22)
.100
(2.54)
QU
K-TU
IC
DIP Adapters
RN
Additional standard and custom terminals available.
See Terminals section or consult factory.
Type -68
.018 Dia.
(.46)
.125
(3.18)
AY
D
E
LI
V
Type -09
Type -43
.018 Dia.
(.46)
.125
(3.18)
.052
(1.32)
.103
(2.62)
.156
(3.96)
.018 Dia.
(.46)
.052
(1.32)
.103
(2.62)
.156
(3.96)
.210
(5.33)
.335
(8.51)
.100
(2.54)
.125
(3.18)
.018 Dia.
(.46)
.018 Dia.
(.46)
.018 Dia.
(.46)
.125
(3.18)
Type -185
.018 Dia.
(.46)
.125
(3.18)
Type -42
.018 Dia.
(.46)
.125
(3.18)
Type -71
.018 Dia.
(.46)
.125
(3.18)
.500
(12.70)
.100
(2.54)
.100
(2.54)
.585
(14.86)
.100
(2.54)
.835
(21.21)
.018 Dia.
(.46)
.125
(3.18)
.018 Dia.
(.46)
.125
(3.18)
.018 Dia.
(.46)
.125
(3.18)

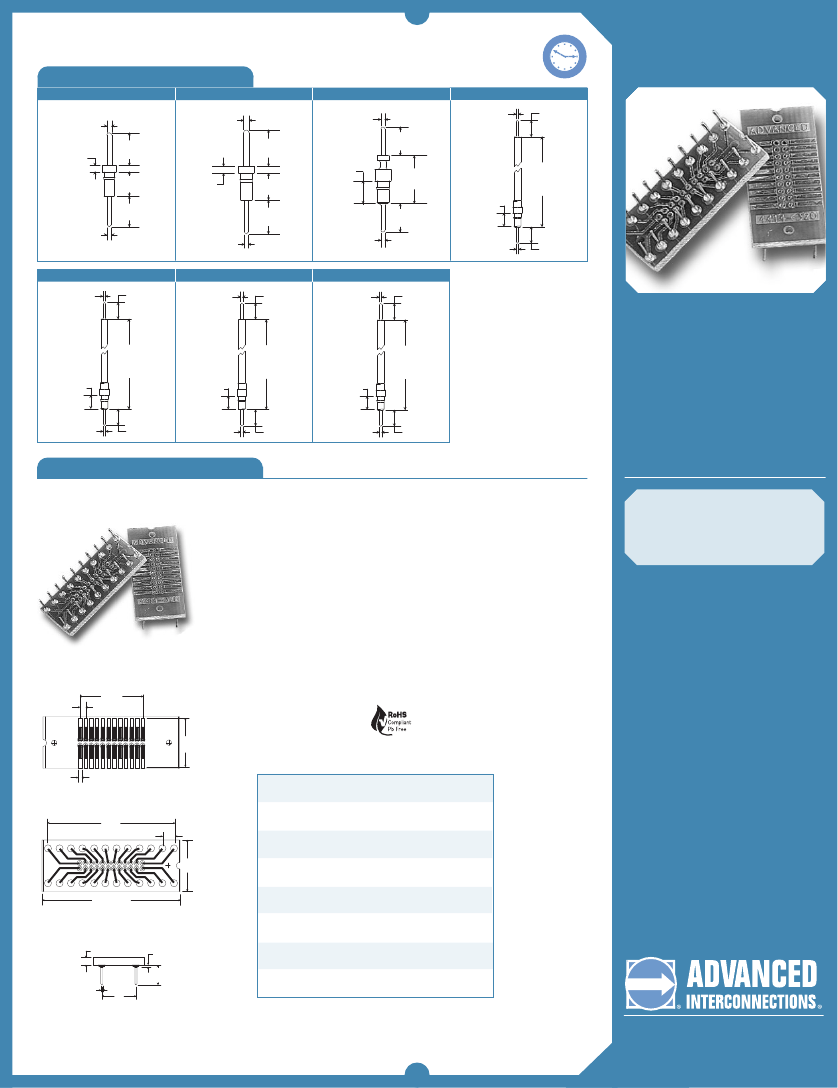

Package Conversion Applications
SOIC to DIP Adapters
See page 58 for complete details.
ER
Y
5
5D
Available Online:
• Wide variety of package conversion adapters available
including these standard SOIC to DIP adapters.
• Adapter allows present Gull Wing devices to be solderable
or socketable in a thru-hole application.
• Pin spacing allows space for conductor runs on PCB.
• Saves space (X, Y & Z) when used with Advanced sockets.
• Radius ends of adapter pins to improve socketing.
• Allows testing with standard test clips.
• See page 58 for complete details.
• RoHS Qualification Test Report
• CAD Drawings
C
.050 / (1.27)
Typ. Pitch
ADVANCED
4414-324
D
.030 / (.76)
Typ. Pad Width
Standard
Lead-free
Part Numbers Part Numbers
4414-308
4414-308LF
4414-314
4414-316
4414-314LF
4414-316LF
4414-320LF
4414-324LF
4414-328LF*
4414-628LF*
4414-632LF*
# of
Pins
8
14
16
20
24
28
28
32
Top View
.062
B
.100 / (2.54)
F
4414-320
4414-324
4414-328
A
Bottom View
.062
(1.57)
.017
(0.43)
.175
(4.45)
4414-628*
4414-632*
.018 / (.46)
Typ. Dia.
E
Side View
* Consult factory for availability.
5 Energy Way, West Warwick, RI 02893 USA
Tel: 800.424.9850 | 401.823.5200
Fax: 401.823.8723
info@advanced.com | www.advanced.com
Catalog 16
rev. Sept. 07
inch/(mm)
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
