D8742 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> D8742

D8742: DescriptionMicrocontroller, 8-Bit, UVPROM, 0.8MHz, NMOS, CDIP40, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，13 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

D8742 Overview

Microcontroller, 8-Bit, UVPROM, 0.8MHz, NMOS, CDIP40, DIP-40

D8742 Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP-40
Reach Compliance Code	unknown
Has ADC	NO
Other features	ADDITIONAL SUPPLY VDD = 5V+/-10%
Address bus width
bit size	8
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-GDIP-T40
length	52.325 mm
Number of I/O lines	16
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
ROM programmability	UVPROM
Maximum seat height	5.72 mm
speed	0.8 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

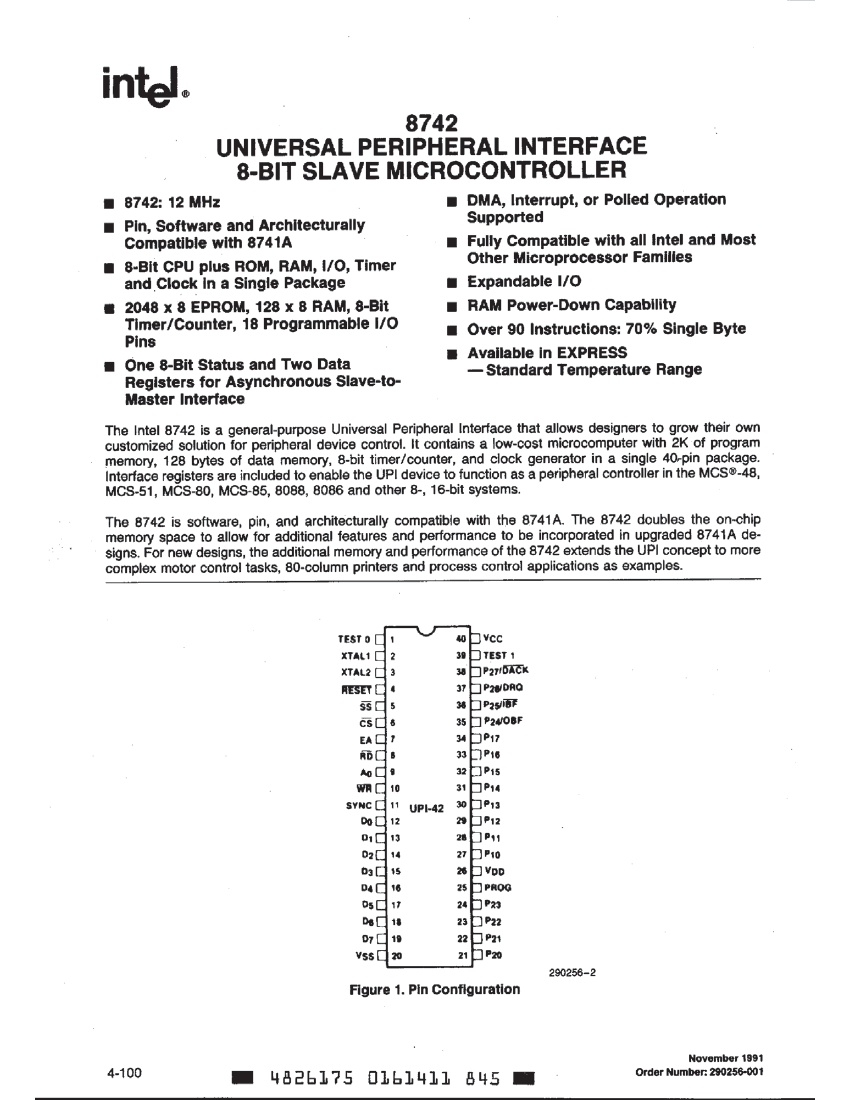

REI Datasheet

8742

Universal Peripheral Interface 8-Bit Slave Microcontroller

The Intel 8742 is a general-purpose Universal Peripheral Interface that allows designers to grow their

own customized solution for peripheral device control. It contains a low-cost microcomputer with 2K

of program memory, 128 bytes of data memory, 8-bit timer/counter, and clock generator in a single

40-pin package. Interface registers are included to enable the UPI device to function as a peripheral

controller in the MCS-48, MCS-80, MCS-85, 8088, 8086, and other 8-, 16-bit systems.

The 8742 is software, pin, and architecturally compatible with the 8741A. The 8742 doubles the on-

chip memory space to allow for additional features and performance to be incorporated in upgraded

8741A designs. For new designs, the additional memory and performance of the 8742 extends

the UPI concept to more complex motor control tasks, 80-column printers and process control

applications as examples.
