XR-5534M datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> XR-5534M

Preview

XR-5534M: DescriptionOperational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size332KB，5 Pages; ManufacturerExar

Download Datasheet Parametric Compare View All

XR-5534M Overview

Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8

XR-5534M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Exar
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	1.5 µA
Maximum bias current (IIB) at 25C	0.8 µA
Nominal Common Mode Rejection Ratio	100 dB
frequency compensation	YES (AVCL>=3)
Maximum input offset voltage	3000 µV
JESD-30 code	R-CDIP-T8
JESD-609 code	e0
low-dissonance	NO
Negative supply voltage upper limit	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Nominal slew rate	13 V/us
Maximum slew rate	6.5 mA
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	10000 kHz
Minimum voltage gain	25000

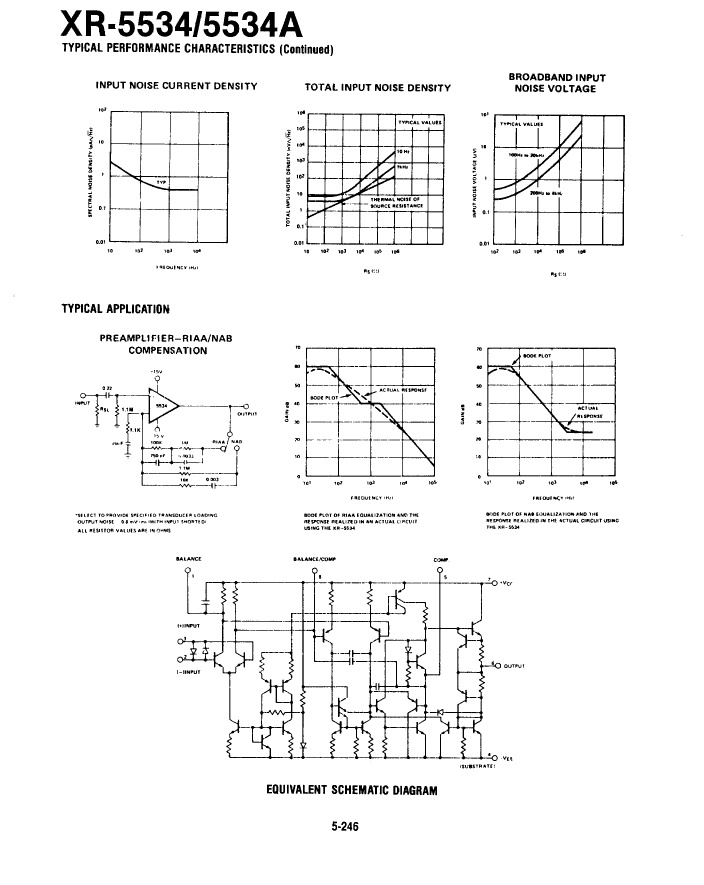

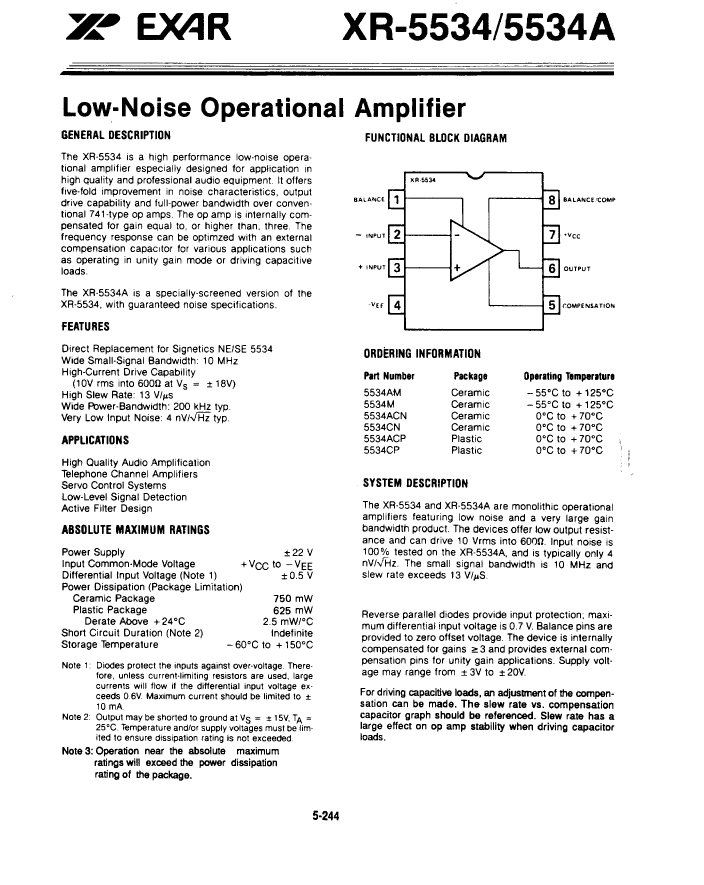

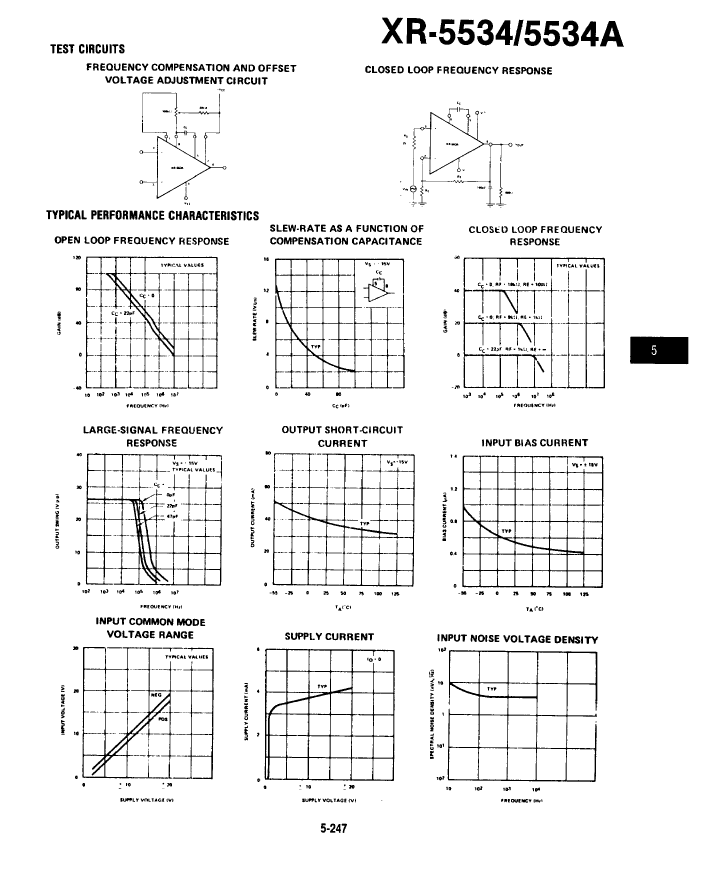

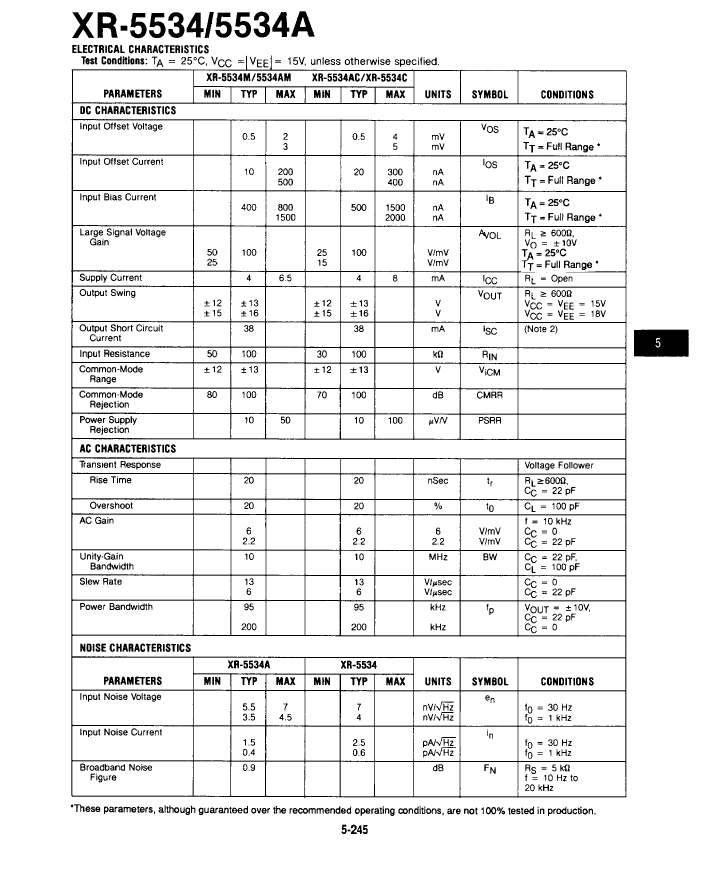

XR-5534M Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

XR-5534M Related Products

	XR-5534M	XR-5534ACP	XR-5534AM	XR-5534CN	XR-5534CP	XR-5534ACN
Description	Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8	Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, PDIP8, PLASTIC, DIP-8	Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8	Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8	Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, PDIP8, PLASTIC, DIP-8	Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Exar	Exar	Exar	Exar	Exar	Exar
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3
Contacts	8	8	8	8	8	8
Reach Compliance Code	compliant	compliant	compliant	compliant	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	1.5 µA	2 µA	1.5 µA	2 µA	2 µA	2 µA
Maximum bias current (IIB) at 25C	0.8 µA	1.5 µA	0.8 µA	1.5 µA	1.5 µA	1.5 µA
Nominal Common Mode Rejection Ratio	100 dB	100 dB	100 dB	100 dB	100 dB	100 dB
frequency compensation	YES (AVCL>=3)	YES (AVCL>=3)	YES (AVCL>=3)	YES (AVCL>=3)	YES (AVCL>=3)	YES (AVCL>=3)
Maximum input offset voltage	3000 µV	5000 µV	3000 µV	5000 µV	5000 µV	5000 µV
JESD-30 code	R-CDIP-T8	R-PDIP-T8	R-CDIP-T8	R-CDIP-T8	R-PDIP-T8	R-CDIP-T8
JESD-609 code	e0	e0	e0	e0	e0	e0
low-dissonance	NO	NO	NO	NO	NO	NO
Negative supply voltage upper limit	-22 V	-22 V	-22 V	-22 V	-22 V	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8
Maximum operating temperature	125 °C	70 °C	125 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal slew rate	13 V/us	13 V/us	13 V/us	13 V/us	13 V/us	13 V/us
Maximum slew rate	6.5 mA	8 mA	6.5 mA	8 mA	8 mA	8 mA
Supply voltage upper limit	22 V	22 V	22 V	22 V	22 V	22 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Nominal Uniform Gain Bandwidth	10000 kHz	10000 kHz	10000 kHz	10000 kHz	10000 kHz	10000 kHz
Minimum voltage gain	25000	15000	25000	15000	15000	15000
