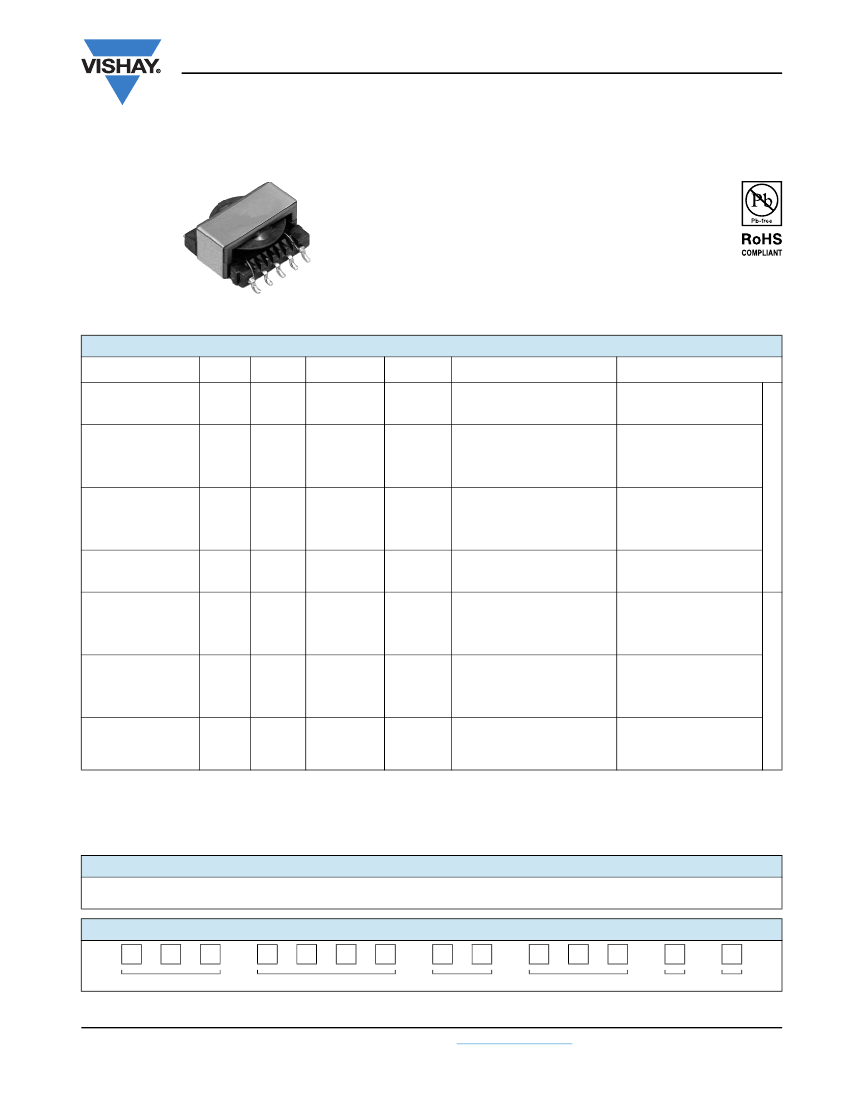

LPE-6562
Vishay Dale
Surface Mount Transformers/Inductors,
Gapped and Ungapped, Custom Configurations Available
FEATURES
• Compliant to RoHS directive 2002/95/EC
ELECTRICAL SPECIFICATIONS
(multiple winds are connected in parallel)
Inductance Range:
10 μH to 330 000 μH, measured
at 0.10 V
RMS
at 10 kHz without DC current, using an
HP 4263A or HP 4284A impedance analyzer
DC Resistance Range:
0.03
Ω
to 53.7
Ω,
measured at
+ 25 °C ± 5 °C
Rated Current Range:
3.00 A to 0.06 A
Dielectric Withstanding Voltage:
500 V
RMS
, 60 Hz, 5 s
STANDARD ELECTRICAL SPECIFICATIONS
IND.
IND.
SCHEMATIC DCR MAX. MAX. RATED DC CURRENT
SATURATING CURRENT
MODEL
(μH)
TOL.
LETTER
(Ω)
(A)
(1)
(A)
(2)
LPE6562ER221NU
220
± 30 %
A
0.28
0.90
N/A
LPE6562ER331NU
330
± 30 %
A
0.34
0.81
N/A
LPE6562ER471NU
470
± 30 %
A
0.40
0.74
N/A
LPE6562ER681NU
680
± 30 %
A
0.48
0.67
N/A
LPE6562ER102NU
1000
± 30 %
A
0.59
0.61
N/A
LPE6562ER152NU
1500
± 30 %
A
0.72
0.55
N/A
LPE6562ER222NU
2200
± 30 %
A
0.87
0.50
N/A
LPE6562ER332NU
3300
± 30 %
A
1.07
0.45
N/A
LPE6562ER472NU
4700
± 30 %
A
1.27
0.41
N/A
LPE6562ER682NU
6800
± 30 %
A
1.53
0.38
N/A
LPE6562ER103NU
10 000
± 30 %
A
1.86
0.34
N/A
LPE6562ER153NU
15 000
± 30 %
A
2.27
0.31
N/A
LPE6562ER223NU
22 000
± 30 %
A
8.67
0.16
N/A
LPE6562ER333NU
33 000
± 30 %
A
10.6
0.14
N/A
LPE6562ER473NU
47 000
± 30 %
A
12.7
0.13
N/A
LPE6562ER683NU
68 000
± 30 %
A
15.2
0.12
N/A
LPE6562ER104NU
100 000 ± 30 %
A
18.5
0.11
N/A
LPE6562ER154NU
150 000 ± 30 %
A
37.7
0.08
N/A
LPE6562ER224NU
220 000 ± 30 %
A
45.6
0.07
N/A
LPE6562ER334NU
330 000 ± 30 %
A
53.7
0.06
N/A
LPE6562ER100MG
10
± 20 %
B
0.03
3.09
5.055
LPE6562ER150MG
15
± 20 %
B
0.04
2.79
4.160
LPE6562ER220MG
22
± 20 %
B
0.05
2.26
3.460
LPE6562ER330MG
33
± 20 %
B
0.08
1.81
2.840
LPE6562ER470MG
47
± 20 %
D
0.12
1.48
2.390
LPE6562ER680MG
68
± 20 %
C
0.19
1.20
1.990
LPE6562ER101MG
100
± 20 %
D
0.29
0.98
1.650
LPE6562ER151MG
150
± 20 %
E
0.45
0.78
1.350
LPE6562ER221MG
220
± 20 %
E
0.54
0.71
1.115
LPE6562ER331MG
330
± 20 %
E
0.84
0.57
0.912
LPE6562ER471MG
470
± 20 %
E
1.24
0.47
0.765
LPE6562ER681MG
680
± 20 %
E
1.89
0.38
0.637
LPE6562ER102MG
1000
± 20 %
E
2.91
0.31
0.526
LPE6562ER152MG
1500
± 20 %
E
4.50
0.25
0.430
LPE6562ER222MG
2200
± 20 %
E
6.90
0.20
0.355
LPE6562ER332MG
3300
± 20 %
E
10.4
0.16
0.290
LPE6562ER472MG
4700
± 20 %
E
15.7
0.13
0.243
Notes
(1)
DC current that will create a maximum temperature rise of 30 °C when applied at + 25 °C ambient.
(2)
DC current that will typically reduce the initial inductance by 20 %.
•
UNGAPPED MODELS:
Highest possible inductance with the lowest DCR and highest Q capability. Beneficial in filter, impedance matching and
line coupling devices.
GAPPED MODELS:
Capable of handling large amounts of DC current, tighter inductance tolerance with better temperature stability than ungapped
models. Beneficial in dc-to-dc converters or other circuits carrying DC currents or requiring inductance stability over a temperature range.
DESCRIPTION
LPE
6562
MODEL SIZE
1000 μH
INDUCTANCE VALUE
± 30 %
INDUCTANCE TOLERANCE
A
CORE
ER
PACKAGE CODE
e2
JEDEC LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
L
P
E
6
5
SIZE
6
2
E
R
1
0
2
N
TOL.
T
CORE
PRODUCT FAMILY
PACKAGE CODE
INDUCTANCE VALUE
Note
• Series is also available with SnPb terminations by using package code RY for tape and reel (in place of ER) or SM for bulk (in place of EB).
Document Number: 34066
Revision: 29-Jan-09
For technical questions, contact:
magnetics@vishay.com
www.vishay.com
1
GAPPED MODELS (B)
UNGAPPED MODELS (A)
LPE-6562
Vishay Dale
Surface Mount Transformers/Inductors,
Gapped and Ungapped, Custom Configurations Available
SCHEMATIC
(top view)
Schematic
A
5
4
3
2
1
5
6
7
8

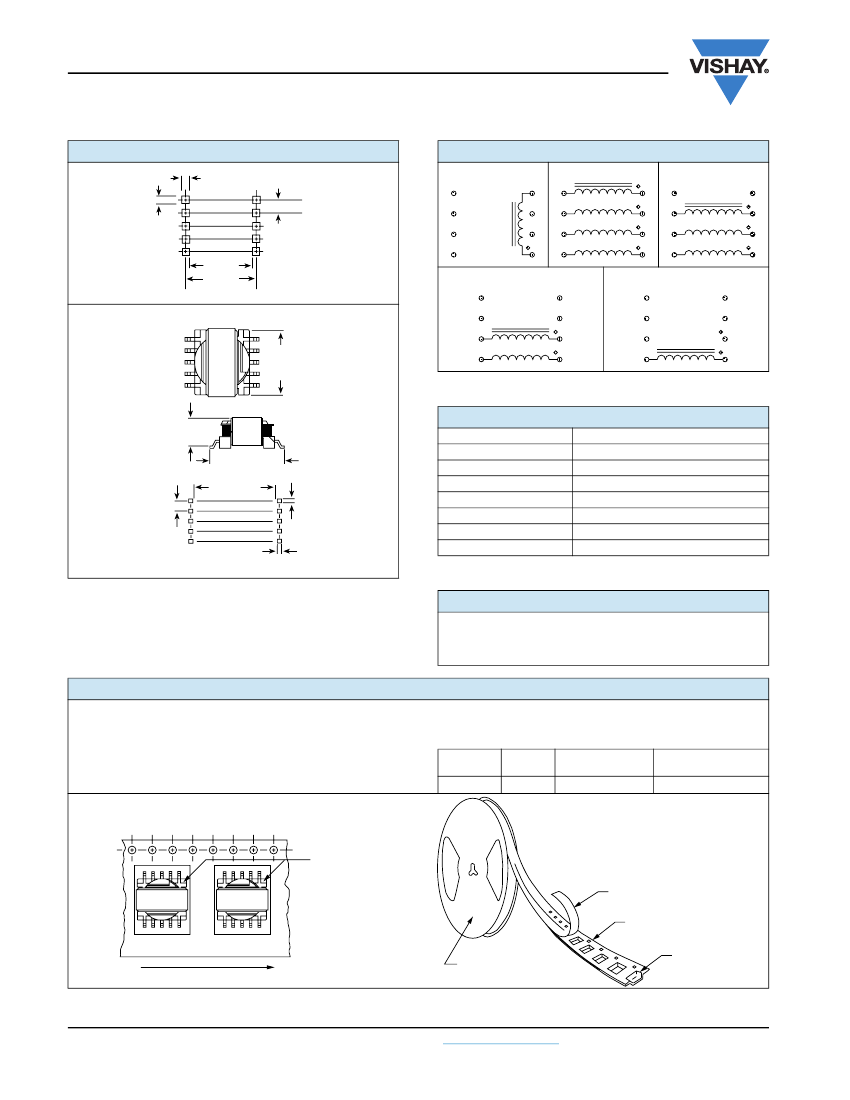

DIMENSIONS
in inches [millimeters]
Pad Layout
0.092 [2.34] Pad Dimensions
Typical, 10 places
0.100 [2.54]
0.058
[1.47]
0.545
[13.84]
0.603
[15.32]
Reference Only
Typical
4 places
6
7
8
Schematic
B
4
3
2
1
5
6
7
8
Schematic
C
4
3
2
1
Schematic
D
5
6
4
3
2
1
5
6
7
8
Schematic
E
4
3
2
1
Dimensional Outline
6
5
0.606
[15.39]
Max.
1
7
8
10
Note
• Schematic A is for ungapped LPE series
0.335 [8.51]
Max.
0.695 [17.65]
Max.
0.100
[2.54]
Typ.
0.575
[14.60]
ENVIRONMENTAL PERFORMANCE
TEST
CONDITIONS
Thermal Cycling
Withstands - 55 °C to + 125 °C
Operating Temperature
- 55 °C to + 125 °C
(1)
High Humidity
85 %
Soldering Heat
Tested to + 230 °C
Mechanical Shock
Per MIL-STD-202, method 213 (100G)
Vibration
Per MIL-STD-202, method 204 (20G)
Solderability
Per industry standards
Note
(1)
Must be checked in end use application
0.028 [0.71]
0.028 [0.71]
Foot Print Diagram
Notes
• Pad layout guidelines per MIL-STD-275E (printed wiring for
electronic equipment).
• Tolerances: xx ± 0.01" [± 0.25 mm]; xxx ± 0.005" [± 0.12 mm].
• The underside of these components contains metal and thus
should not come in contact with active circuit traces.
PART MARKING
- Vishay Dale
- Date code
- Marking code (suffix of model #)
- Pin 1 indicator
PACKAGING
TAPE SPECIFICATIONS:
Carrier Tape Type: Conductive
Cover Tape Type: Anti-static
Cover Tape Adhesion to Carrier: 40 g ± 30 g
REEL SPECIFICATIONS:
Diameter (flange): 13" [330.2 mm]
Maximum Width (over flanges): 1.197" [30.4 mm]
STANDARDS:
All embossed carrier tape packaging will be
accomplished in compliance with latest revision of EIA-481
“Taping of Surface Mount Components for Automatic
Placement”.
TAPE
COMPONENT
UNITS PER 13"
MODEL
WIDTH
PITCH
REEL
LPE-6562
32 mm
20 mm
300
Tape and Reel Orientation
Pin 1 Indicator
Cover Tape
Carrier Tape
Embossed Cavity
Label Area
USER DIRECTION OF FEED
Note
• Top view shown with cover tape removed
www.vishay.com
2
For technical questions, contact:
magnetics@vishay.com
Document Number: 34066
Revision: 29-Jan-09
