1008 CHIP INDUCTORS
Aerospace Grade Chip Inductors
AE413RAF
■
Low-profile inductors are 60% the height of other 1008 parts.
■
High SRFs and very high Q factors
■
Inductance values from 3.3 nH – 560 nH
This robust version of Coilcraft’s standard 1008HT series
features high temperature materials that pass NASA low
outgassing specifications and allow operation in ambient
temperatures up to 155°C. The leach-resistant base
metalization with tin-lead (Sn-Pb) terminations ensures
the best possible board adhesion.
SRF min
4
(MHz)
7900
5500
4800
3800
2800
3000
2600
2400
2000
1900
1500
1500
1500
1300
1200
1090
1100
960
920
750
800
770
635
555
530
485
Part number
1
AE413RAF3N3_SZ
AE413RAF6N8_SZ
AE413RAF7N2_SZ
AE413RAF12N_SZ
AE413RAF15N_SZ
AE413RAF18N_SZ
AE413RAF22N_SZ
AE413RAF27N_SZ
AE413RAF33N_SZ
AE413RAF39N_SZ
AE413RAF47N_SZ
AE413RAF56N_SZ
AE413RAF68N_SZ
AE413RAF82N_SZ
AE413RAFR10_SZ
AE413RAFR12_SZ
AE413RAFR14_SZ
AE413RAFR15_SZ
AE413RAFR18_SZ
AE413RAFR22_SZ
AE413RAFR24_SZ
AE413RAFR27_SZ
AE413RAFR33_SZ
AE413RAFR39_SZ
AE413RAFR47_SZ
AE413RAFR56_SZ
Inductance
2
(nH)
3.3 @ 250 MHz
6.8 @ 250 MHz
7.2 @ 250 MHz
12 @ 250 MHz
15 @ 250 MHz
18 @ 250 MHz
22 @ 250 MHz
27 @ 250 MHz
33 @ 200 MHz
39 @ 200 MHz
47 @ 200 MHz
56 @ 150 MHz
68 @ 150 MHz
82 @ 150 MHz
100 @ 100 MHz
120 @ 100 MHz
140 @ 100 MHz
150 @ 100 MHz
180 @ 50 MHz
220 @ 50 MHz
240 @ 50 MHz
270 @ 50 MHz
330 @ 25 MHz
390 @ 25 MHz
470 @ 25 MHz
560 @ 25 MHz
Percent
tolerance
5
5
5
5
5
5
5
5,2
5,2
5,2
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2
5,2
5,2
5,2
5,2
5,2
Q min
3
65 @ 1500 MHz
70 @ 1500 MHz
70 @ 1500 MHz
55 @ 700 MHz
55 @ 700 MHz
55 @ 500 MHz
55 @ 500 MHz
55 @ 500 MHz
55 @ 350 MHz
55 @ 350 MHz
55 @ 350 MHz
50 @ 300 MHz
50 @ 300 MHz
40 @ 250 MHz
40 @ 250 MHz
40 @ 200 MHz
40 @ 200 MHz
40 @ 200 MHz
40 @ 200 MHz
34 @ 100 MHz
32 @ 100 MHz
32 @ 100 MHz
32 @ 100 MHz
32 @ 100 MHz
32 @ 100 MHz
32 @ 100 MHz
DCR max
5
(Ohms)
0.025
0.05
0.05
0.065
0.08
0.09
0.11
0.13
0.135
0.17
0.18
0.18
0.23
0.35
0.64
0.55
0.70
0.75
1.02
1.15
1.15
1.25
1.35
1.45
1.65
1.90
Imax
(mA)
1000
1000
1000
1000
1000
1000
950
850
760
700
660
620
550
500
420
350
320
300
250
250
250
250
250
250
240
240
1. When ordering, please specify
tolerance
and
testing
codes:
AE413RAFR56GSZ
Tolerance: F
= 1%
G
= 2%
J
= 5%
Testing:
Z
= Coilcraft Critical Products Environmental Stress
Conditions Testing.
H
= Coilcraft Qual + Coilcraft Hi-Rel Burn-in
P
= Coilcraft Qual + MIL-STD-981 Class S Group A
screening
N
= Coilcraft Qual + MIL-STD-981 Class B Group A
screening
C
= Coilcraft Qual + MIL-STD-981 Class S Group A
screening + MIL-STD-981 Class S Group B qualification
W
= Coilcraft Qual + MIL-STD-981 Class B Group A
screening + MIL-STD-981 Class S Group B qualification
2. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/
HP 4286A impedance analyzer with Coilcraft-provided correlation pieces.
3. Q measured using an Agilent/HP 4291A with an Agilent/HP 16193 test
fixture.
4. SRF measured using an Agilent/HP 8720D network analyzer and a
Coilcraft SMD-D test fixture.
5. DCR measured on a Cambridge Technology micro-ohmmeter and a
Coilcraft CCF840 test fixture.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
®
These parts are preproduction products for electrical evaluation only.
Specification subject to change without notice.
Document AE169-1 Revised 06/01/09
1102 Silver Lake Road
Cary IL 60013
© Coilcraft, Inc. 2009
Phone
800-981-0363
Fax
847-639-1508
E-mail
cp@coilcraft.com
Web
www.coilcraft-cps.com

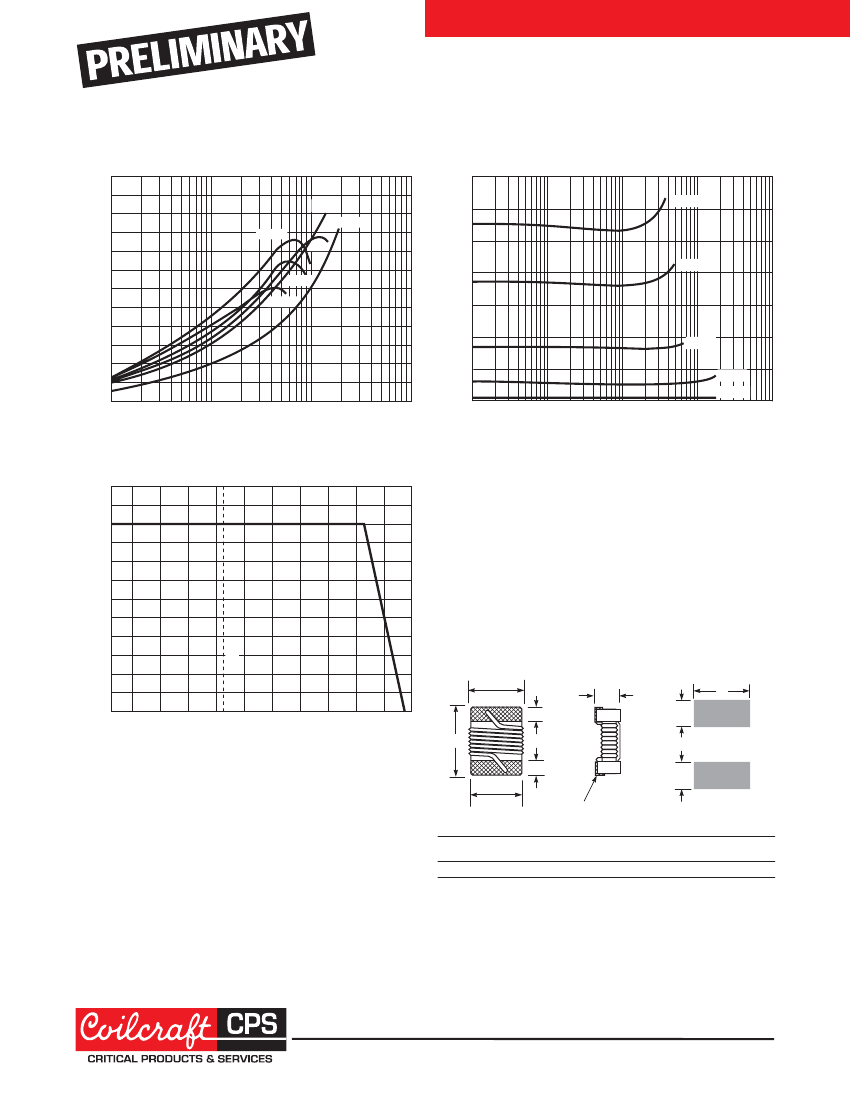

1008 CHIP INDUCTORS
AE413RAF Series (1008)
Typical Q vs Frequency
120
110
100
90
80
100 nH
12 nH
3.3 nH
Typical L vs Frequency
350
300
250
270 nH
Inductance (nH)
22 nH
Q factor
70
60
50
40
30
20
10
0
10
100
1000
10000
47 nH
220 nH
200
150
100
50
0
1
10
100
180 nH
82 nH
27 nH
6.8 nH
1000
10000
Frequency (MHz)
Frequency (MHz)
Core material
Ceramic
Terminations
Tin-lead (63/37) over silver-platinum-glass frit
Ambient temperature
–55°C to +125°C with
Imax
current, +125°C
to +155°C with derated current
Storage temperature
Component: –55°C to +155°C.
Packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +155 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Current Derating
120
110
100
Percent of rated
I
rms
90
80
70
60
50
25°C
40
30
20
10
0
-55 -40
-20
0
20
Enhanced crush-resistant packaging
Plastic tape: 8 mm wide,
0.23 mm thick, 4 mm pocket spacing, 1.14 mm pocket depth
B
overall
40
60
80
100
120
140 160
C
F
I
J
I
Terminal wraparound:
approx 0.010/0,25 both ends
H
Ambient temperature (°C)
A
G
F
E
terminal
Suggested
Recommended
Land
Pattern
I
1,02
J
inches
mm
1,27
A
max
2,67
B
max
2,41
C
max
1,14
E
2,03
F
0,51
G
1,52
H
2,54
0.105 0.095 0.045 0.080 0.020 0.060 0.100 0.040 0.050
All dimensions are without solder applied to the terminations. For
maximum dimensions with solder, add 0.006 inches / 0,152 mm.
®
These parts are preproduction products for electrical evaluation only.
Specification subject to change without notice.
Document AE169-2
Revised 06/01/09
1102 Silver Lake Road
Cary IL 60013
© Coilcraft, Inc. 2009
Phone
800-981-0363
Fax
847-639-1508
E-mail
cp@coilcraft.com
Web
www.coilcraft-cps.com
