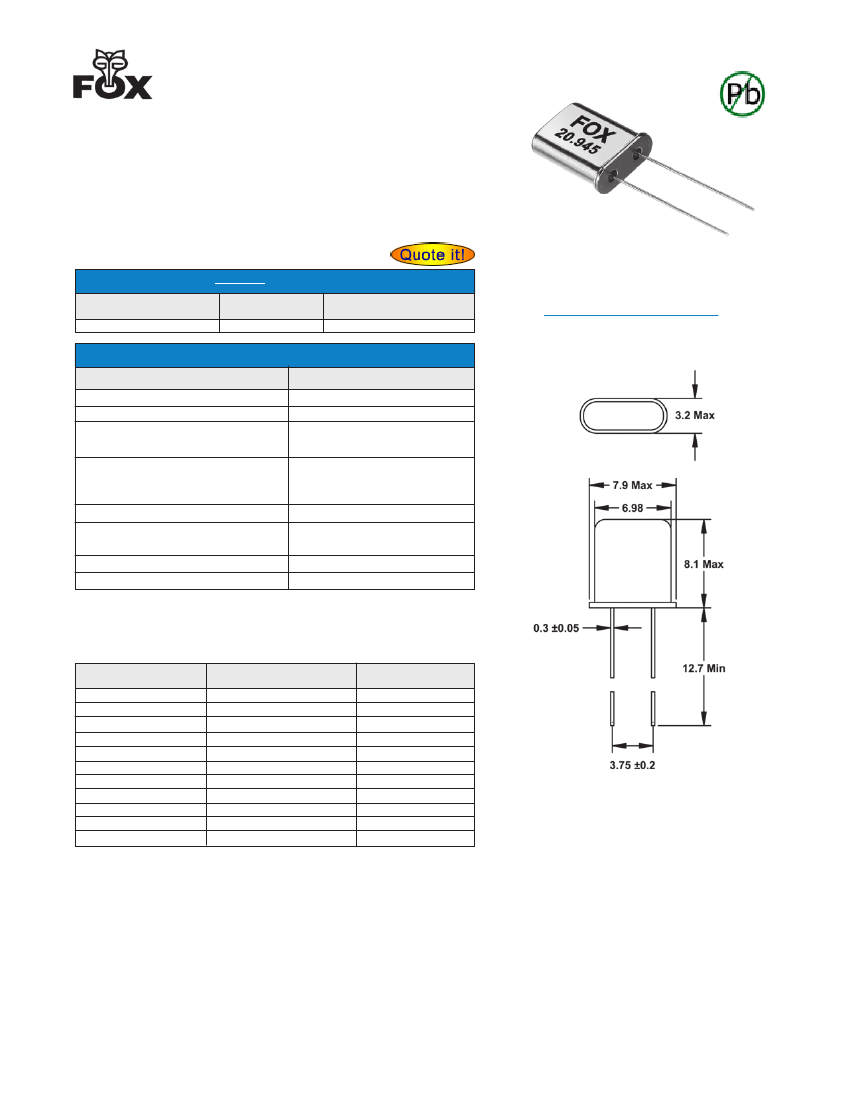

RESISTANCE WELD THRU-HOLE CRYSTAL
MODEL: HC80U
FEATURES
• High Frequency Range
• Fundamental to 50 MHz
• Resistance Weld
OPTIONS
•
•
•
•
Tolerances to < 5 PPM
Stabilities to < 3 PPM
Temperatures to -40ºC ~ -85ºC
SMD Gullwing (HC80UW)
• PART NUMBER
Learn More - Internet Required
Part Number
282-Frequency-xxxxx
Model Number
HC80U
Frequency Range (MHz)
3.579545 ~ 200.000
Learn more about:
Part Marking Identification
Internet required
• STANDARD SPECIFICATIONS
1
PARAMETERS
Frequency Range
Frequency Tolerance @ 25ºC
Frequency Stability, ref @ 25ºC
Over Operating Temp Range
Temperature Range
Operating
(T
OPR
)
Storage
(T
STG
)
Shunt Capacitance
(Co)
Load Capacitance
(C
L
)
Drive Level
Aging per year
1
MAX
(unless otherwise noted)
3.579545 ~ 200.000 MHz
±30 PPM
±50 PPM
-20ºC ~ +70ºC
-40ºC ~ +85ºC
7.0 pF
10 pF ~ Series
(Customer Specified)
1.0 mW
±3 PPM
Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer Service for
specific requirements.
All specifications subject to change without notice.
Rev.
6/1/04
Frequency Range
(MHz)
3.579545 ~ 4.000
4.000+ ~ 5.000
5.000+ ~ 6.000
6.000+ ~ 7.000
7.000+ ~ 8.000
8.000+ ~ 10.000
10.000+ ~ 11.000
11.000+ ~ 50.000
25.000 ~ 65.000
60.000 ~ 130.000
130.000+ ~ 200.000
Operating Mode
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
3rd OT
5th OT
7th OT
Max ESR
Ω
300
250
180
120
100
90
60
40
60
100
150
All dimensions are in millimeters.
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1(239)693-0099 FAX +1(239)693-1554
http://www.foxonline.com
© 2004 FOX ELECTRONICS
