DTA143 TM/TE/TUA/TCA/TSA
PNP Small Signal Transistor
Small Signal Product
Features
◇
Built-in bias resistors enable the configuration of an inverter
circuit without connecting external input resistor
(see equivalent circuit).
◇
The bias resistors consist of thin-film resistors with
complete isolation to allow negative biasing of the input.
They also have the advantage of almost completely
eliminating parasitic effects.
◇
Only the on/off conditions need to be set for
operation, marking device design easy.
◇
Green compound (Halogen free) with suffix "G" on
packing code and prefix "G" on date code.

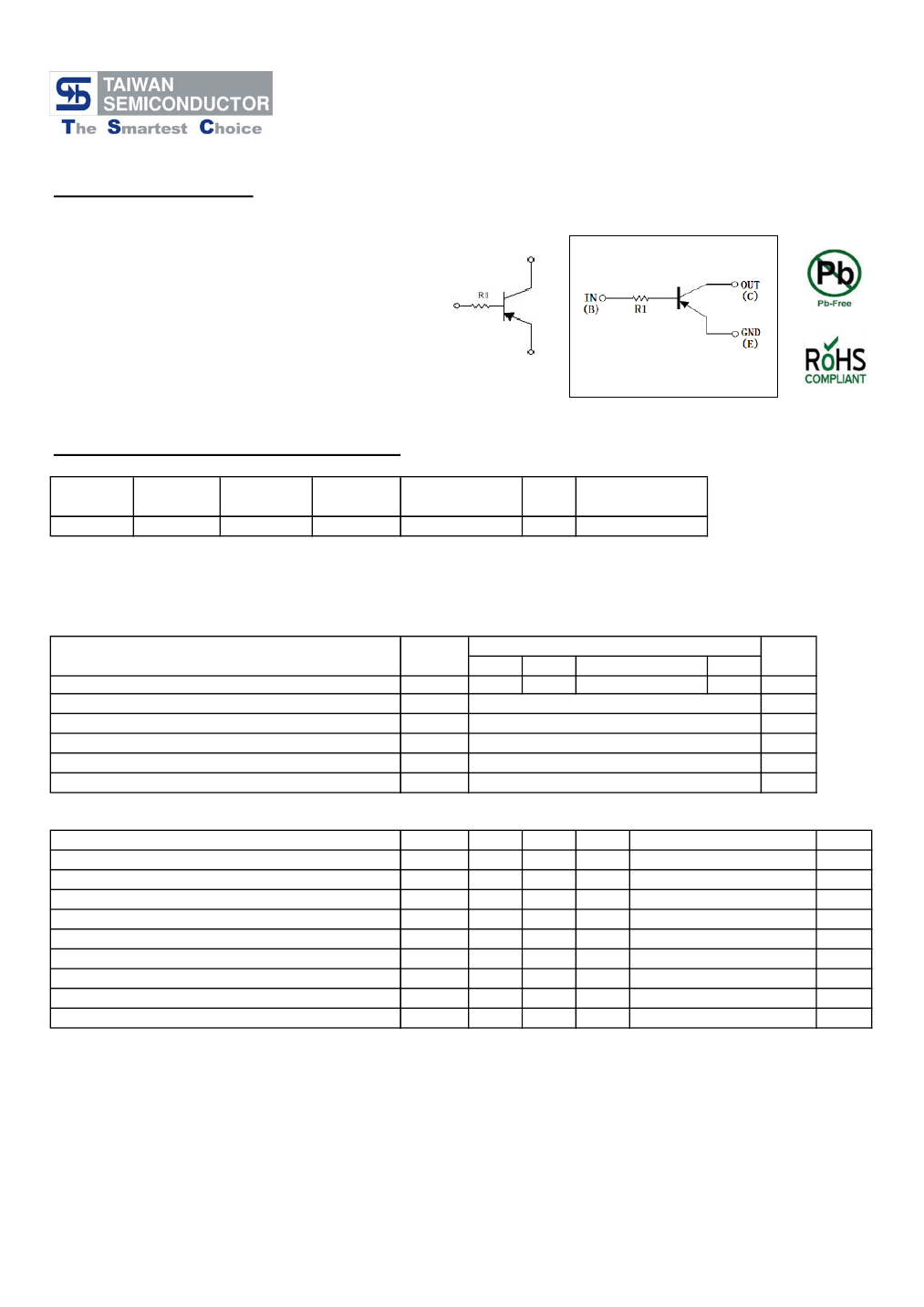

Equivalent Circuit

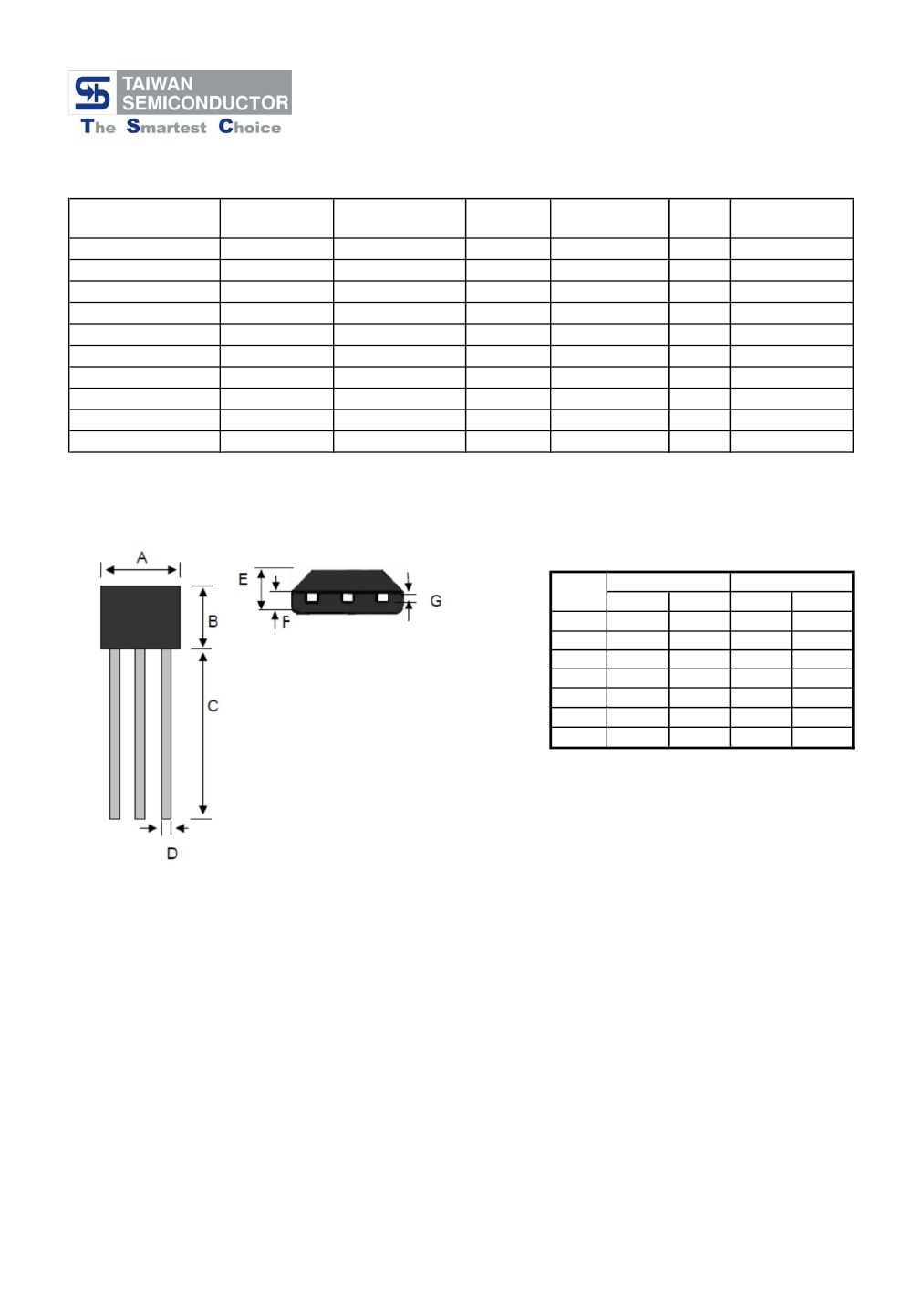

Ordering Information (example)
Part No.
DTA143 TM
Package
SOT-723
Packing
8K / 7" Reel
Packing code
RM
Packing code
(Green)
RMG
Marking
93
Manufacture code
M0
Note : Detail please see "Ordering Information(detail, example)" below.
Maximum Ratings and Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified.
Value
TM
100
TE
150
TUA / TCA
200
-50
-50
-5
-100
-55 to + 150
TSA
300
Parameter
Power Dissipation
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Junction and Storage Temperature Range
Symbol
P
D
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
C
T
J
, T
STG
Unit
mW
V
V
V
mA
°C
Notes : 1. Valid provided that electrodes are kept at ambient temperature
Parameter
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cut-Off Current
Emitter Cut-Off Current
DC Current Gain
Input Resistance
Resistance Ratio
Transition Frequency
Symbol
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
V
CE(sat)
h
FE
R
1
f
T
Min
-50
-50
-5
Typ
Max
Condtion
Ic= -50μA , I
E
=0
Ic= -1mA , I
B
=0
I
E
= -50μA , I
C
=0
Unit
V
V
V
μA
μA
V
KΩ
-0.5
-0.5
-0.3
100
3.29
4.7
250
600
6.11
V
CB
= -50V , I
E
=0
V
EB
= -4V , I
C
=0
I
C
= -5mA , I
B
= -0.25mA
V
CE
= -5V , I
C
= -1mA
V
CE
= -10V , I
E
=5mA , f=100MHz
MHz
