K6F8008V2M-FF55 datasheet, PDF

Datasheet> All Categories > storage> storage> K6F8008V2M-FF55

K6F8008V2M-FF55: DescriptionStandard SRAM, 1MX8, 55ns, CMOS, PBGA48, 8 X 12 MM, 0.75 MM PITCH, FBGA-48; Categorystorage storage; File Size200KB，10 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

K6F8008V2M-FF55 Overview

Standard SRAM, 1MX8, 55ns, CMOS, PBGA48, 8 X 12 MM, 0.75 MM PITCH, FBGA-48

K6F8008V2M-FF55 Parametric

Parameter Name	Attribute value
Maker	SAMSUNG
Parts packaging code	BGA
package instruction	TFBGA,
Contacts	48
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	55 ns
JESD-30 code	R-PBGA-B48
length	12 mm
memory density	8388608 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	48
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	1MX8
Package body material	PLASTIC/EPOXY
encapsulated code	TFBGA
Package shape	RECTANGULAR
Package form	GRID ARRAY, THIN PROFILE, FINE PITCH
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	BALL
Terminal pitch	0.75 mm
Terminal location	BOTTOM
width	8 mm

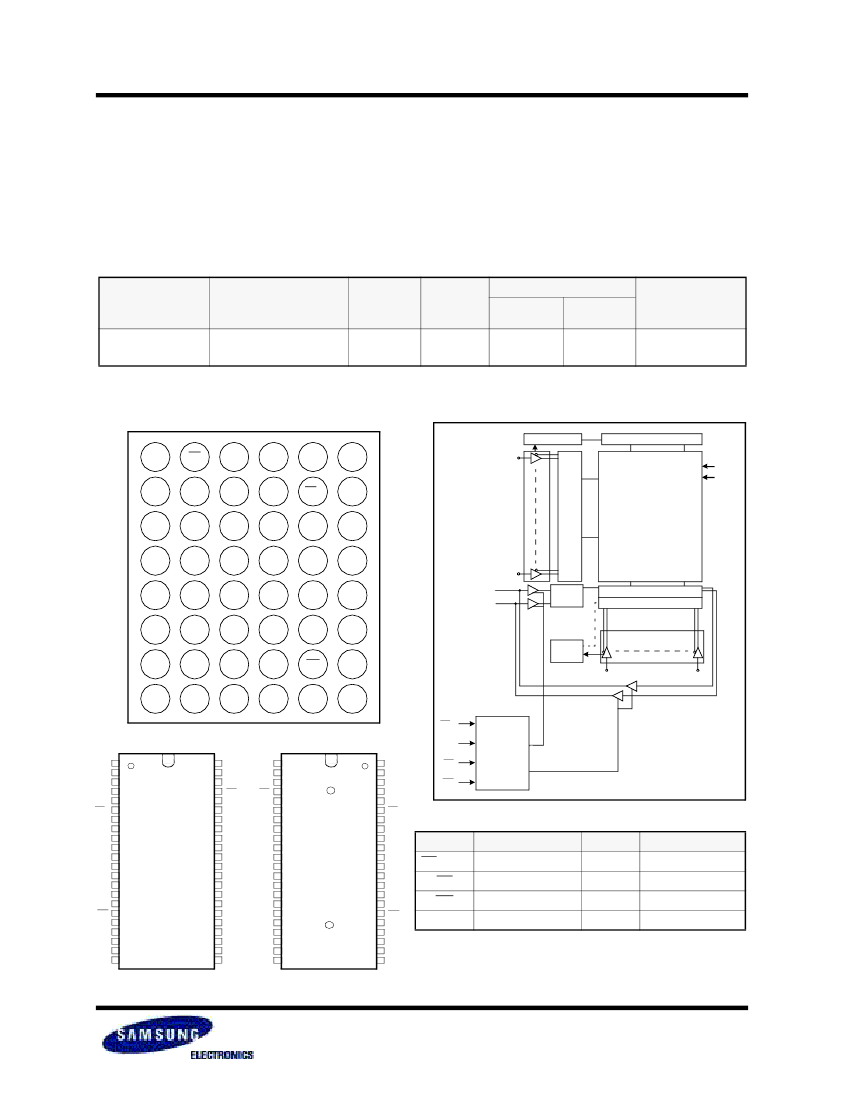

Preview

Download Datasheet

View All

K6F8008V2M Family

Document Title

1M x8 bit Super Low Power and Low Voltage Full CMOS Static RAM

CMOS SRAM

Revision History

Revision No. History

0.0

1.0

Initial draft

Finalize

- Adopt new code.

- Improve V

, V

OUT

max. on ABSOLUTE MAXIMUM RATINGS’from

’

3.6V to V

+0.5V.

- Improve V

on DC AND OPERATING CHARACTERISTICS’from

’

2.2 to 2.4V.

Revise

- Change for tWHZ: 25 to 20ns for 70ns product

- Change for tDW: 20 to 25ns for 55ns product

25 to 30ns for 70ns product

Draft Date

August 25, 1999

February 24, 2000

Remark

Preliminary

Final

2.0

April 26, 2000

Final

The attached datasheets are provided by SAMSUNG Electronics. SAMSUNG Electronics CO., LTD. reserve the right to change the specifications and

products. SAMSUNG Electronics will answer to yourquestions about device. If you have any questions, please contact the SAMSUNG branch offices.

Revision 2.0

April 2000

K6F8008V2M-FF55 Related Products

	K6F8008V2M-FF55	K6F8008V2M-RF70	K6F8008V2M-RF55	K6F8008V2M-TF55	K6F8008V2M-TF70	K6F8008V2M-FF70
Description	Standard SRAM, 1MX8, 55ns, CMOS, PBGA48, 8 X 12 MM, 0.75 MM PITCH, FBGA-48	Standard SRAM, 1MX8, 70ns, CMOS, PDSO44, 0.400 INCH, REVERSE, TSOP2-44	Standard SRAM, 1MX8, 55ns, CMOS, PDSO44, 0.400 INCH, REVERSE, TSOP2-44	Standard SRAM, 1MX8, 55ns, CMOS, PDSO44, 0.400 INCH, TSOP2-44	Standard SRAM, 1MX8, 70ns, CMOS, PDSO44, 0.400 INCH, TSOP2-44	Standard SRAM, 1MX8, 70ns, CMOS, PBGA48, 8 X 12 MM, 0.75 MM PITCH, FBGA-48
Parts packaging code	BGA	TSOP2	TSOP2	TSOP2	TSOP2	BGA
package instruction	TFBGA,	TSOP2-R,	TSOP2-R,	TSOP2,	TSOP2,	TFBGA,
Contacts	48	44	44	44	44	48
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	unknown
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	55 ns	70 ns	55 ns	55 ns	70 ns	70 ns
JESD-30 code	R-PBGA-B48	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PBGA-B48
length	12 mm	18.41 mm	18.41 mm	18.41 mm	18.41 mm	12 mm
memory density	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	48	44	44	44	44	48
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TFBGA	TSOP2-R	TSOP2-R	TSOP2	TSOP2	TFBGA
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	GRID ARRAY, THIN PROFILE, FINE PITCH	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	GRID ARRAY, THIN PROFILE, FINE PITCH
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	BALL	GULL WING	GULL WING	GULL WING	GULL WING	BALL
Terminal pitch	0.75 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.75 mm
Terminal location	BOTTOM	DUAL	DUAL	DUAL	DUAL	BOTTOM
width	8 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	8 mm
Maker	SAMSUNG	SAMSUNG	SAMSUNG	-	SAMSUNG	SAMSUNG
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	-
Peak Reflow Temperature (Celsius)	-	240	240	240	240	-
Maximum time at peak reflow temperature	-	30	30	30	30	-
Base Number Matches	-	1	1	1	1	-
