4116T-2-2222DCBL: DescriptionThin Film Molded DIP; File Size193KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet View All

4116T-2-2222DCBL Overview

Thin Film Molded DIP

Preview

Download Datasheet

View All

VE S CO

AV R M

AI SIO PL

LA N IA

BL S NT

Features

RoHS compliant* (see How to Order

“Termination” option)

■

Custom circuits available per factory

■

For information on thin film applications,

download Bourns’ Thin Film Application

Note.

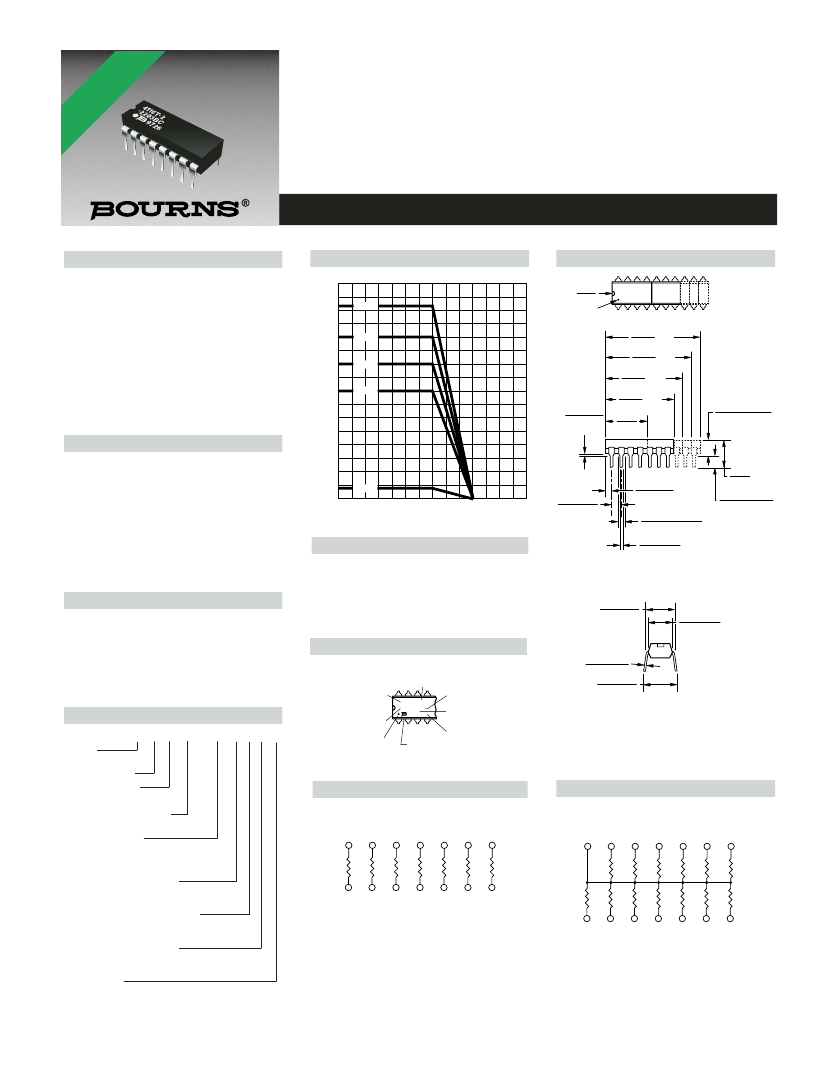

4100T - Thin Film Molded DIP

Product Characteristics

Resistance Range ........50 to 100K ohms

Resistance Tolerance

..........................±0.1 %, ±0.5 %, ±1 %

Temperature Coefficient

..................±100 ppm/°C, ±50 ppm/°C,

±25 ppm/°C

Temperature Range

.................................-55 °C to +125 °C

Insulation Resistance

..................10,000 megohms minimum

TCR Tracking .........................±5 ppm/°C

Maximum Operating Voltage............50 V

Environmental Characteristics

TESTS PER MIL-STD-202........

∆R

MAX.

Thermal Shock .............................. 0.1 %

Low Temperature Operation ....... 0.25 %

Short Time Overload ..................... 0.1 %

Resistance to Soldering Heat ....... 0.1 %

Moisture Resistance ..................... 0.1 %

Mechanical Shock....................... 0.25 %

Life ................................................ 0.5 %

High Temperature Storage ............ 0.2 %

Low Temperature Storage............. 0.1 %

Physical Characteristics

Lead Frame Material

..........................Copper, solder coated

Body Material Flammability

...........................Conforms to UL94V-0

Body Material ..................Novolac Epoxy

Package Power Temp. Derating Curve

(

)

3.00

2.75

2.50

2.25

2.00

1.75

1.50

1.25

1.00

4108T

125

150

AMBIENT TEMPERATURE (

C )

4120T

Product Dimensions

.635

(.025)

PIN #1 REF.

27.05

MAX.

(1.065)

24.51

MAX.

(.965)

21.97

MAX.

(.865)

19.43

MAX.

(.765)

11.81

(.465)

MAX.

4118T

4116T

4114T

WATTS

.89

.25

(.035

.010)

TYP.

4.57 + .12/ - .28

(.180 + .005/ - .011)

2.54

.25

(.100

.010*)

TYP.

NON-ACCUM.

2.03

.12

(.080

.005)

1.65 + .12/ - .07

(.065 + .005/ - .003)

.438

.050

TYP.

(.019

.002)

8.40

MAX.

(.331)

3.43 + .38/ - .25

(.135 + .015/ - .010)

Package Power Ratings at 70 °C

4108T ......................................1.09 watts

4114T ......................................2.00 watts

4116T ......................................2.25 watts

4118T ......................................2.50 watts

4120T ......................................2.80 watts

Typical Part Marking

Represents total content. Layout may vary.

PART

NUMBER

CIRCUIT

TC CODE

4116T-2-

-2203BC

YYWW

7.87

.25

(.310

.010)

TO OUTSIDE

WHEN PINS

ARE PARALLEL

.254

.050

(.010

.002)

8.64

.50

(.340

.020)

6.71

.10

(.264

.004)

How To Order

RESISTANCE

CODE (4 DIGIT)

PIN ONE

INDICATOR

ABSOLUTE

TOLERANCE CODE

DATE CODE

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

41 16 T - 2 - 2222 F A B __

Model

(41 = Molded Dip)

Number of Pins

Physical Config.

•T = Thin Film

Electrical Configuration

•2 = Bussed

•1 = Isolated

Resistance Code

•First 3 digits are significant

•Fourth digit represents the

number of zeros to follow.

Absolute Tolerance Code

•B = ±0.1%

•F = ±1%

•D = ±0.5%

Temperature Coefficient Code

•A = ±100ppm/°C •C = ±25ppm/°C

•B = ±50ppm/°C

Ratio Tolerance (Optional)

•A = ±0.05% to R1 •B = ±0.1% to R1

•D = ±0.5% to R1

Terminations

• L = Tin-plated (RoHS compliant version)

• Blank = Tin/Lead-plated

Consult factory for other available options.

MANUFACTURER'S

TRADEMARK

Isolated Resistors (1 Circuit)

Available in 8, 14, 16, 18, and 20 Pin

Bussed Resistors (2 Circuit)

Available in 8, 14, 16, 18, and 20 Pin

These models incorporate 4, 7, 8, 9, or

10 thin-film resistors of equal value,

each connected between a separate pin.

Power Rating per Resistor..........0.2 watt

Resistance Range .......50 to 100K ohms

These models incorporate 7, 13, 15, 17,

or 19 thin-film resistors of equal value,

each connected by a common pin.

Power Rating per Resistor........0.12 watt

Resistance Range .........50 to 50K ohms

REV. 09/07

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.
