Features
■
■
■
■
RoHS compliant* (see How to Order
“Termination” option)
Low profile provides compatibility with
DIPs
Also available in medium profile (4300S -
.250 ”) and high profile (4300K - .350 ”)
Marking on contrasting background
■
Custom circuits available per factory
*R

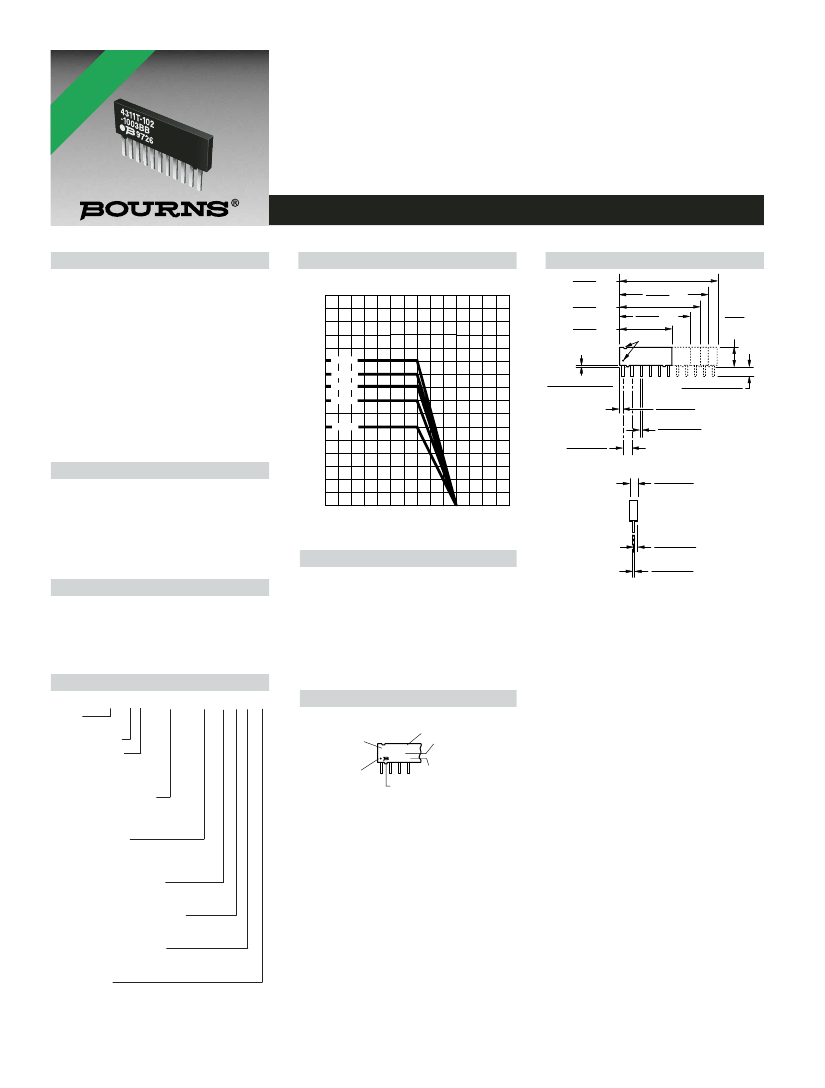

4300T, S, K Series - Thin Film Molded SIP
Product Characteristics
Resistance Range
Bussed ...................49.9 to 100K ohms
Isolated ......................20 to 200K ohms
Series.........................20 to 100K ohms
Resistance Tolerance
.........................±0.1 %, ±0.5 %, ±1 %
Temperature Coefficient
..................±100 ppm/°C, ±50 ppm/°C,
±25 ppm/°C
Temperature Range ....-55 °C to +125 °C
Insulation Resistance
..................10,000 megohms minimum
TCR Tracking .........................±5 ppm/°C
Maximum Operating Voltage............50 V
Environmental Characteristics
Thermal Shock and
Power Conditioning ...................... 0.1 %
Short Time Overload ..................... 0.1 %
Terminal Strength ........................ 0.25 %
Resistance to Soldering Heat ....... 0.1 %
Moisture Resistance ..................... 0.1 %
Life .............................................. 0.50 %
Physical Characteristics
Body Material Flammability
...........................Conforms to UL94V-0
Lead Frame Material
..........................Copper, solder coated
Body Material ..................Novolac epoxy
How To Order
Package Power Temp. Derating Curve
(Low Profile, 4300T)
(
)
1.75
1.50
4311T
WATTS
1.25
1.00
.75
.50
.25
4310T
4309T
4308T
4306T
Product Dimensions
27.53
MAX.
(1.084)
22.45
MAX.
(.884)
14.83 MAX.
(.584)
24.99
MAX.
(.984)
19.92
MAX.
(.784)
PIN #1 REF.
4.95
(.195)
MAX.
.381 + .127/ - .000
(.015 + .005/ - 000)
2.54
±
.07
(.100
±
.003*)
TYP.
NON-ACCUM.
3.43 + .38/ - .25
(.135 + .015/ - .010)
1.02
±
.12
(.040
±
.005)
.483
±
.050
TYP.
(.020
±
.002)
2.16
±
.10
(.085
±
.004)
25
70
150
125
AMBIENT TEMPERATURE (
°
C )
0
Package Power Ratings at 70°C
T
S
K
4304 .......... ............ 0.60...... 0.80 watts
4306 ...... 0.75.......... 0.90...... 1.20 watts
4308 ...... 1.00.......... 1.20...... 1.60 watts
4309 ...... 1.13 ................................watts
4310 ...... 1.25.......... 1.50...... 2.00 watts
4311 ...... 1.38 ................................watts
1.02
±
.05
(.0425
±
.002)
.254
±
.050
(.010
±
.002)
Governing dimensions are in metric. Dimensions in parentheses
are inches and are approximate.
*Terminal centerline to centerline measurements made at point of
emergence of the lead from the body.
43 11 T - 101 - 2222 F A B __
Model
(43 = Molded SIP)
Number of Pins
Physical Config.
•T = Low Profile Thin Film
•S = Med. Profile Thin Film
•K = High Profile Thin Film
Electrical Configuration
•101 = Bussed
•102 = Isolated
•106 = Series
Resistance Code
•First 3 digits are significant
•Fourth digit represents the
number of zeros to follow.
Absolute Tolerance Code
•B = ±0.1%
•F = ±1%
•D = ±0.5%
Temperature Coefficient Code
•A = ±100ppm/°C •C = ±25ppm/°C
•B = ±50ppm/°C
Ratio Tolerance (Optional)
•A = ±0.05% to R1 •D = ±0.5% to R1
•B = ±0.1% to R1
Terminations
• L = Tin-plated (RoHS compliant version)
• Blank = Tin/Lead-plated
Consult factory for other available options.
Typical Part Marking
Represents total content. Layout may vary.
PART
NUMBER
4311T-101-
1003BB
YYWW
CIRCUIT
RESISTANCE
CODE
DATE CODE
PIN ONE
INDICATOR
MANUFACTURER'S
TRADEMARK
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
For information on thin film applications,
download Bourns’ Thin Film Application
Note.
4300T, S, K Series - Thin Film Molded SIP
Isolated Resistors (102 Circuit)
Available in 6, 8, 10 Pin
Bussed Resistors (101 Circuit)
Available in 6, 8, 9, 10, 11 Pin
Series Circuit (106 Circuit)
Available in 6, 8, 9, 10, 11 Pin
1
6
8
10
1
11
1
11
These models incorporate 3, 4, or 5
isolated thin-film resistors of equal value,
each connected between a
separate pin.
Power Rating per Resistor
T ...............................................0.18 watt
S ...............................................0.20 watt
K ...............................................0.25 watt
Resistance Range… ...20 to 200K ohms
These models incorporate 5, 7, 8, 9, or
10 thin-film resistors of equal value, each
connected between a separate pin.
These models incorporate 5, 7, 8, 9, or
10 thin-film resistors of equal value, each
connected in a series.
Power Rating per Resistor
T ...............................................0.10 watt
S ...............................................0.12 watt
K ...............................................0.15 watt
Resistance Range…49.9 to 100K ohms
Power Rating per Resistor
T ...............................................0.10 watt
S ...............................................0.12 watt
K ...............................................0.15 watt
Resistance Range .......20 to 100K ohms
REV. 09/07
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
