BT258B-600R datasheet, PDF - EEWORLD Datasheet

BT258B-600R: DescriptionSilicon Controlled Rectifier, 8 A, 600 V, SCR; CategoryAnalog mixed-signal IC Trigger device; File Size145KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

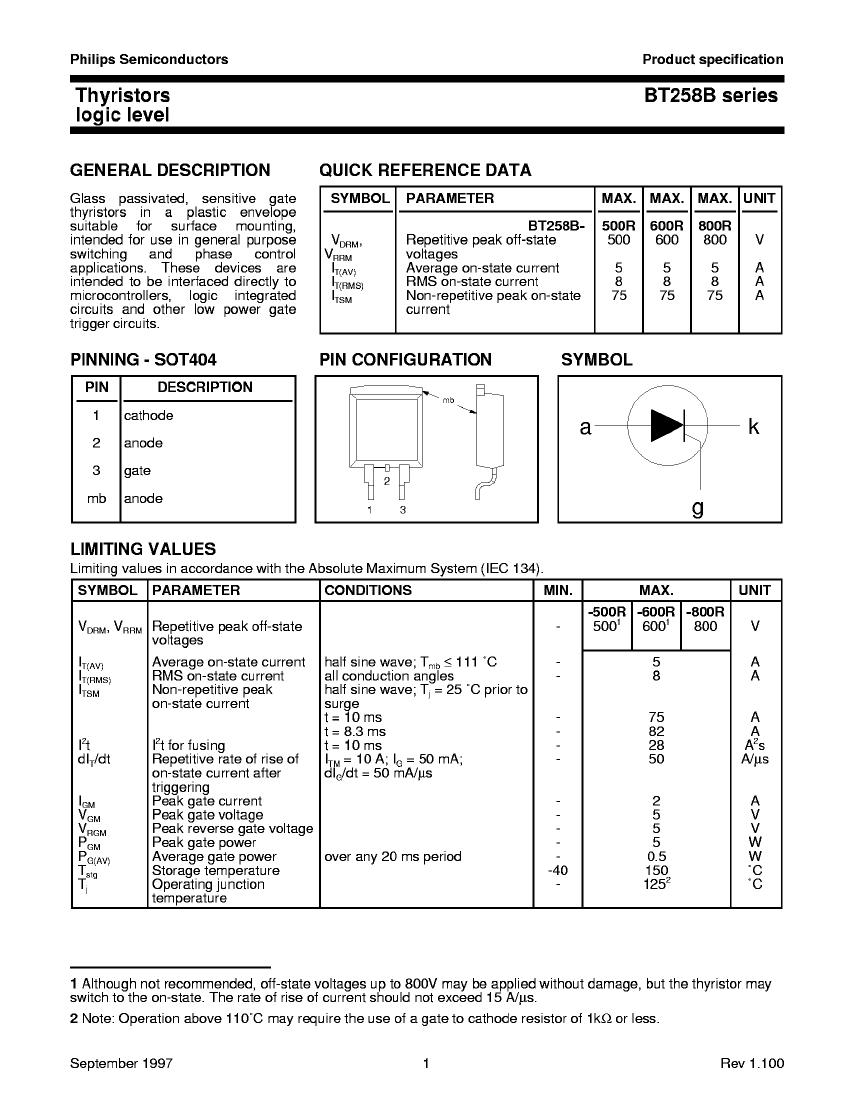

BT258B-600R Overview

Silicon Controlled Rectifier, 8 A, 600 V, SCR

Parameter Name	Attribute value
Maker	NXP
Reach Compliance Code	unknown
Other features	SENSITIVE GATE
Shell connection	ANODE

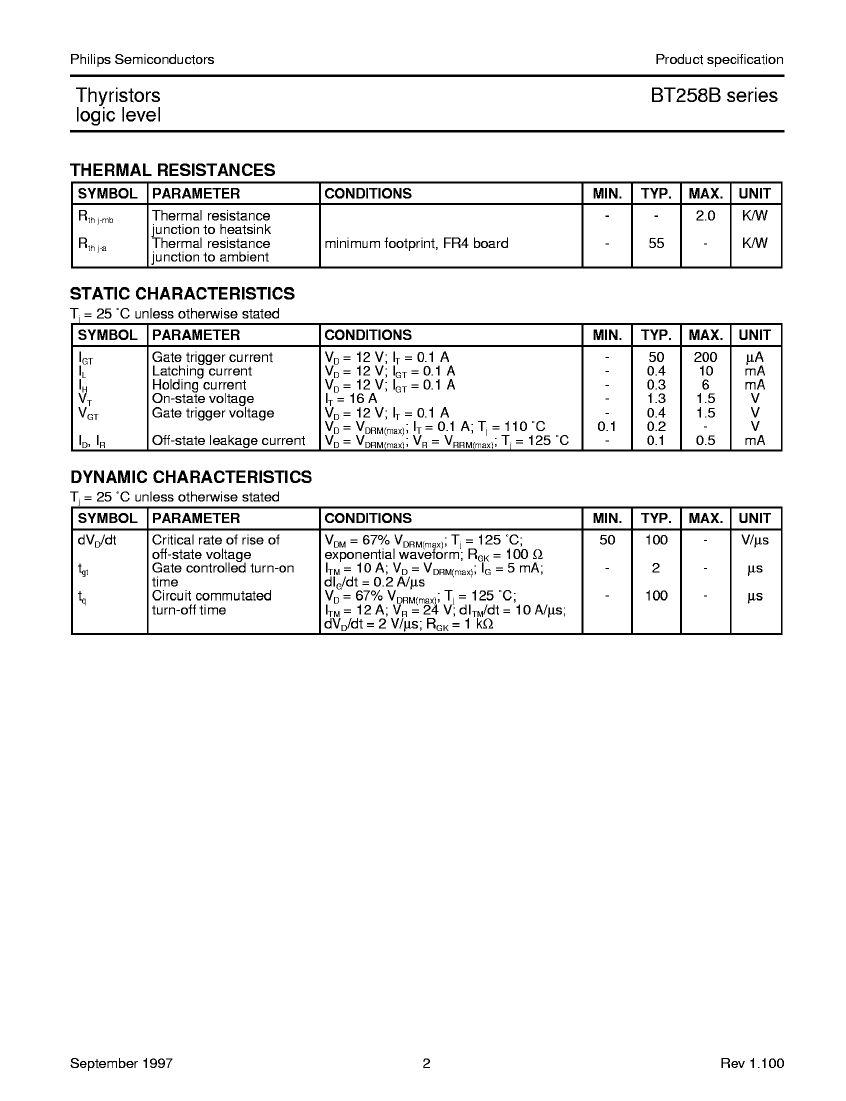

Nominal circuit commutation break time	100 µs
Configuration	SINGLE

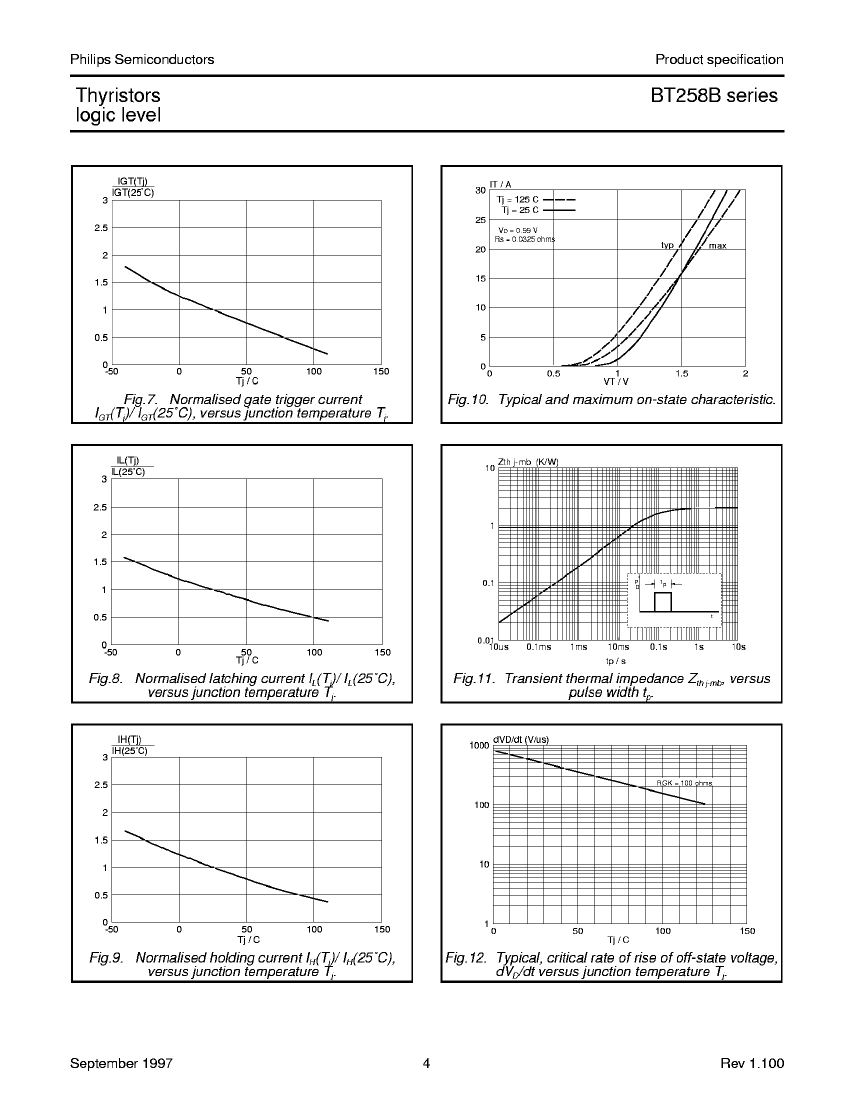

Critical rise rate of minimum off-state voltage	50 V/us
Maximum DC gate trigger current	0.2 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	6 mA
JESD-30 code	R-PSSO-G2
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C

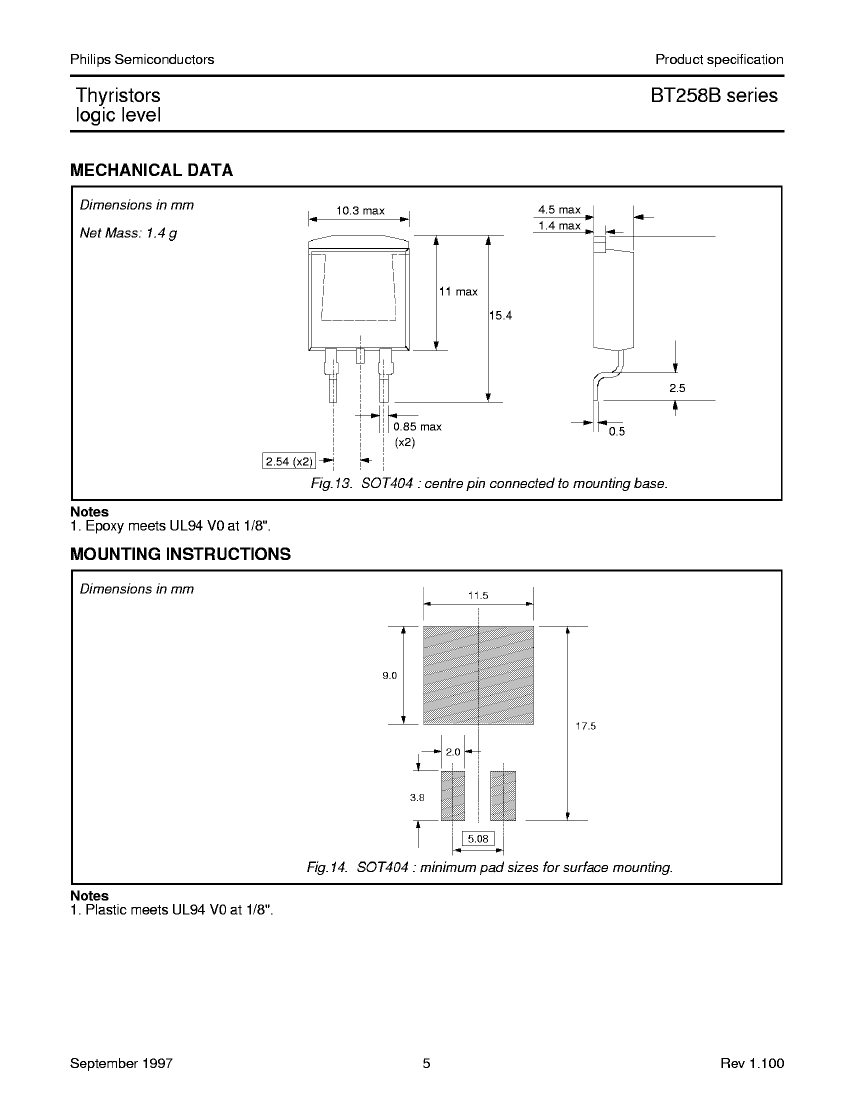

Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified

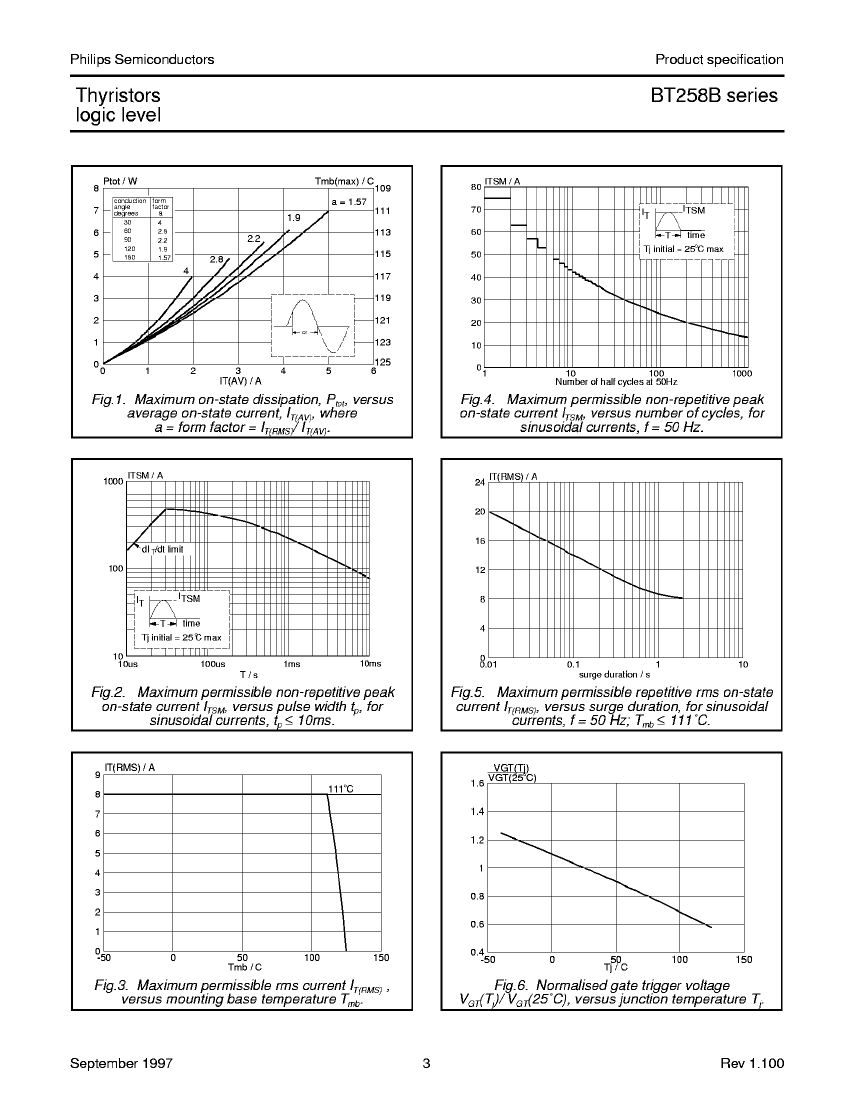

Maximum rms on-state current	8 A
Maximum repetitive peak off-state leakage current	500 µA
Off-state repetitive peak voltage	600 V
Repeated peak reverse voltage	600 V
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
Trigger device type	SCR

	BT258B-600R	BT258B-800R	BT258B-500R
Description	Silicon Controlled Rectifier, 8 A, 600 V, SCR	Silicon Controlled Rectifier, 8 A, 800 V, SCR	Silicon Controlled Rectifier, 8 A, 500 V, SCR
Maker	NXP	NXP	NXP
Reach Compliance Code	unknown	unknown	unknown
Other features	SENSITIVE GATE	SENSITIVE GATE	SENSITIVE GATE
Shell connection	ANODE	ANODE	ANODE
Nominal circuit commutation break time	100 µs	100 µs	100 µs
Configuration	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	50 V/us	50 V/us	50 V/us
Maximum DC gate trigger current	0.2 mA	0.2 mA	0.2 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V
Maximum holding current	6 mA	6 mA	6 mA
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
Number of components	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	8 A	8 A	8 A
Maximum repetitive peak off-state leakage current	500 µA	500 µA	500 µA
Off-state repetitive peak voltage	600 V	800 V	500 V
Repeated peak reverse voltage	600 V	800 V	500 V
surface mount	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE
Trigger device type	SCR	SCR	SCR
package instruction	-	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2
