RF AMPLIFIER
MODEL
TM3007
Features
!
!
!
!
Low Noise Figure: <2.7 dB Typical
Output Power: +14 dBm Typical
Operating Temp. - 55 ºC to + 85 ºC
Environmental Screening Available
Available as:
TM3007, 4 Pin TO-8 (T4)
TN3007, 4 Pin Surface Mount (SM3)
FP3007, 4 Pin Flatpack (FP4)
BX3007, Connectorized Housing (H1)
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point ...... +40 dBm (Typ.)
Second Order Two Tone Intercept Point ....... +36 dBm (Typ.)
Third Order Two Tone Intercept Point ........... +26 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
Noise Figure (dB)
Power
Vdc
mA
TYPICAL
Ta= 25 ºC
50 - 700 MHz
14.5
+14
-19.5
<1.75:1
<1.5:1
<2.7
+15
27
MIN/MAX
Ta = -55 ºC to +85 ºC
50 - 700 MHz
13 Min.
+13 Min.
-18 Max.
2:0:1 Max.
2:0:1 Max.
3.0 Max.
+15
30 Max.
Maximum Ratings
Ambient Operating Temperature .............. -55ºC to + 100 ºC
Storage Temperature ............................... -62ºC to + 125 ºC
Case Temperature ................................................. + 125 ºC
DC Voltage ......................................................... + 18 Volts
Continuous RF Input Power ................................. + 13 dBm
Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)
Maximum Peak Power .................... 0.5 Watt (3
µsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.

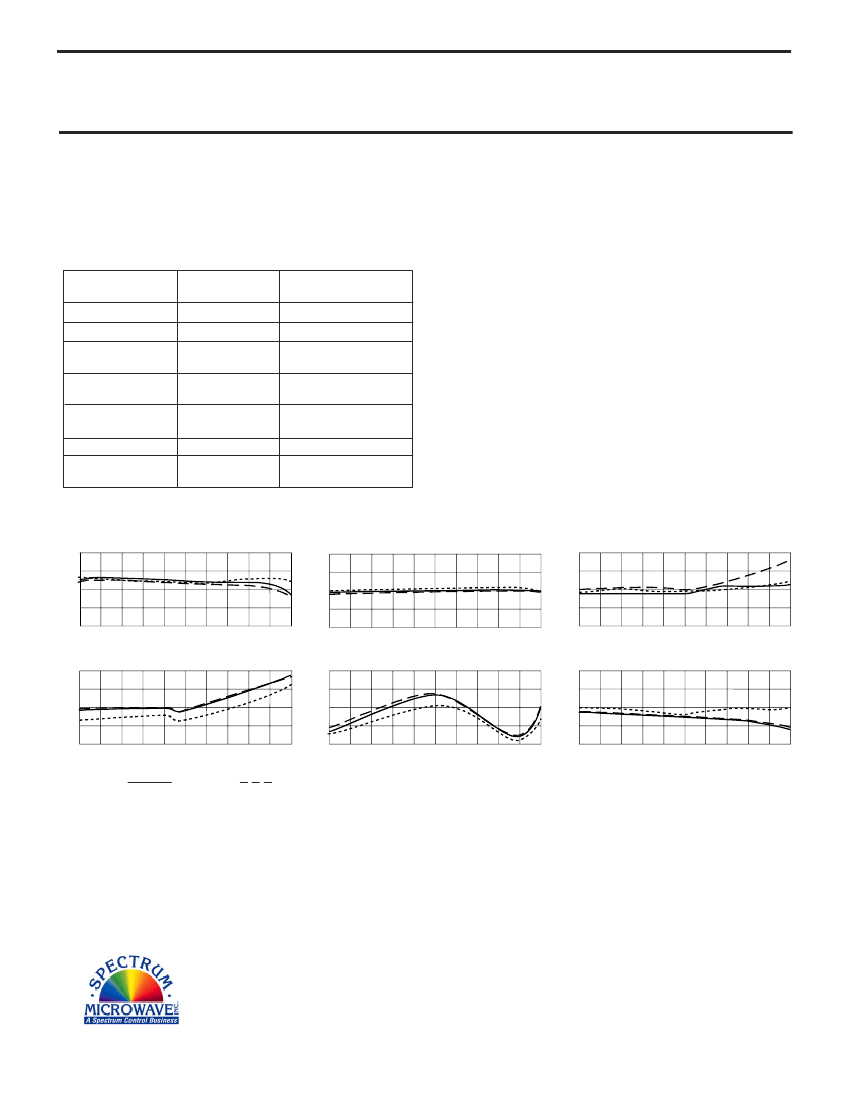

Typical Performance Data
Gain (dB)
16
15
14
13
12
Start 50 MHz
Stop 700 MHz
0
- 10
- 20
- 30
- 40
Reverse Isolation (dB)
Noise Figure (dB)
3
2
1
Start 50 MHz
Stop 700 MHz
Start 50 MHz
Stop 700 MHz
1 dB Comp. (dBm)
16
15
14
13
12
Start 50 MHz
Stop 700 MHz
2.0
1.5
1.0
Start 50 MHz
Input VSWR
2.0
1.5
1.0
Stop 700 MHz
Start 50 MHz
Output VSWR
Stop 700 MHz
Legend
+ 25 ºC
+ 85 ºC - - - - - - -55 ºC
