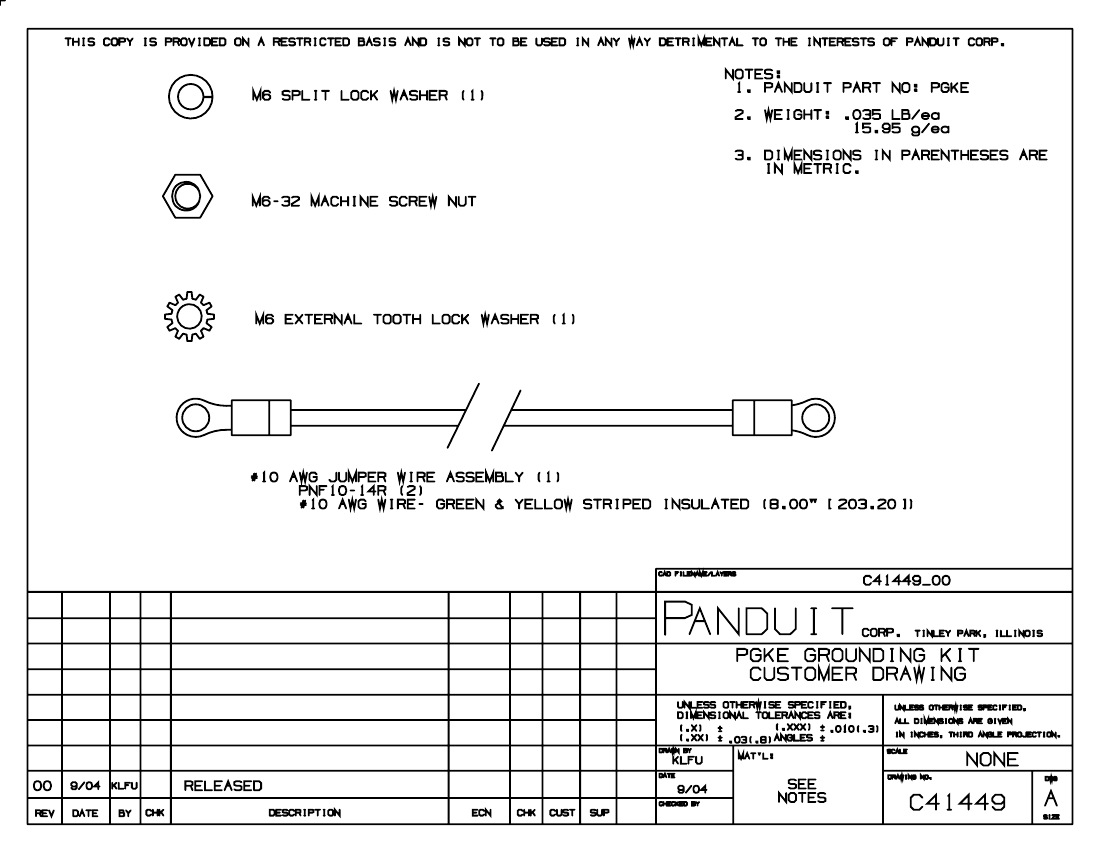

M6 SPLIT LOCK WASHER (1)
NOTES:
1. PANDUIT PART NO: PGKE
2. WEIGHT: .035 LB/ea
15.95 g/ea
3. DIMENSIONS IN PARENTHESES ARE
IN METRIC.
M6-32 MACHINE SCREW NUT
M6 EXTERNAL TOOTH LOCK WASHER (1)
#10 AWG JUMPER WIRE ASSEMBLY (1)
PNF10-14R (2)
#10 AWG WIRE- GREEN & YELLOW STRIPED INSULATED (8.00" [203.20])
CAD FILENAME/LAYERS
C41449_00
ANDUIT
P
CORP.
TINLEY PARK, ILLINOIS
PGKE GROUNDING KIT
CUSTOMER DRAWING
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE:
(.XXX) +
.010(.3)
(.X) +
-
-
(.XX) +
.03(.8)
ANGLES +
-
-
DRAWN BY
UNLESS OTHERWISE SPECIFIED,
ALL DIMENSIONS ARE GIVEN
IN INCHES, THIRD ANGLE PROJECTION.
SCALE
KLFU
DATE
MAT'L:
NONE
DWG
00
REV
9/04
DATE
KLFU
BY
CHK
RELEASED
DESCRIPTION
ECN
CHK
CUST
SUP
9/04
CHECKED BY
SEE
NOTES
DRAWING NO.
C41449
A
SIZE
