FDC-37P: DescriptionD Subminiature Connector, 37 Contact(s), Male, 0.108 inch Pitch, IDC Terminal, Hole .112-.124, Plug; CategoryThe connector The connector; File Size450KB，6 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric Compare View All

FDC-37P Overview

D Subminiature Connector, 37 Contact(s), Male, 0.108 inch Pitch, IDC Terminal, Hole .112-.124, Plug

FDC-37P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hirose
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PANEL MOUNTABLE
body width	0.494 inch
subject depth	0.858 inch
body length	2.729 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	650VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	FD
Plug contact pitch	0.108 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .112-.124
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	DICHROMATE
Shell material	STEEL
Housing size	4/C
Terminal length
Termination type	IDC
Total number of contacts	37
UL Flammability Code	94V-0
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG

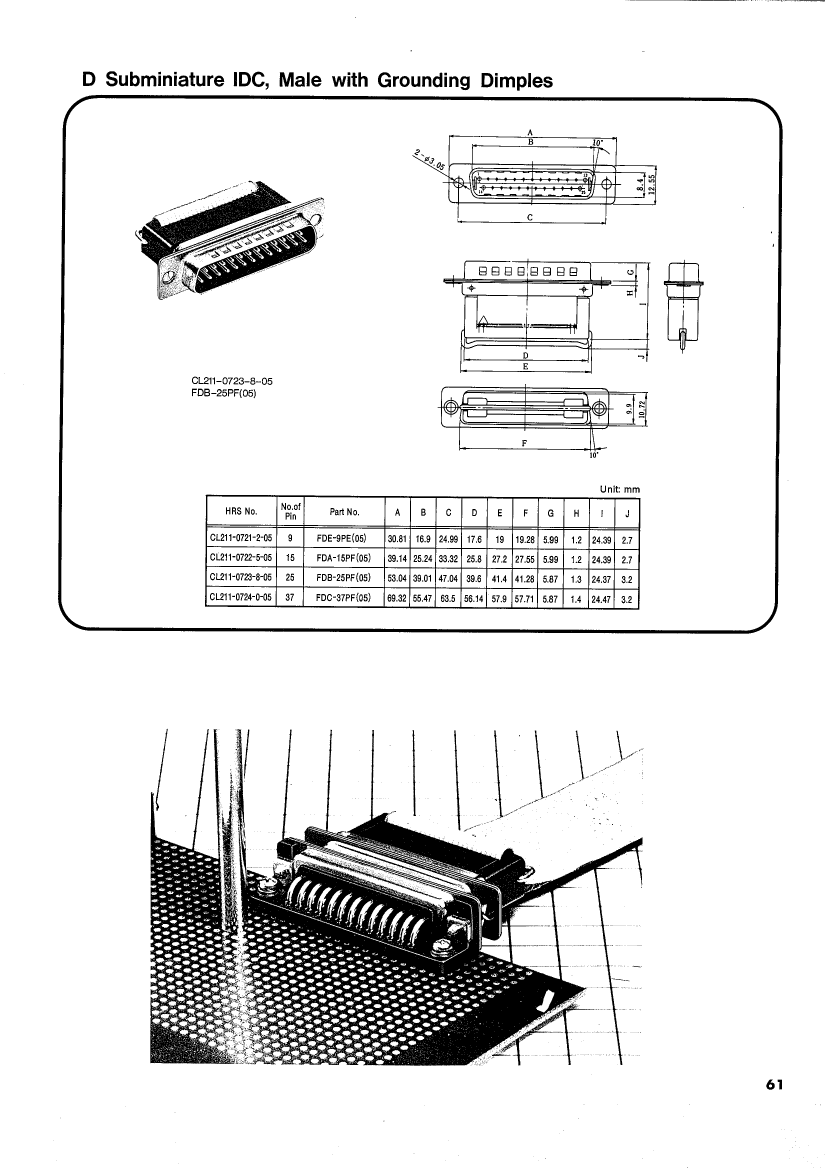

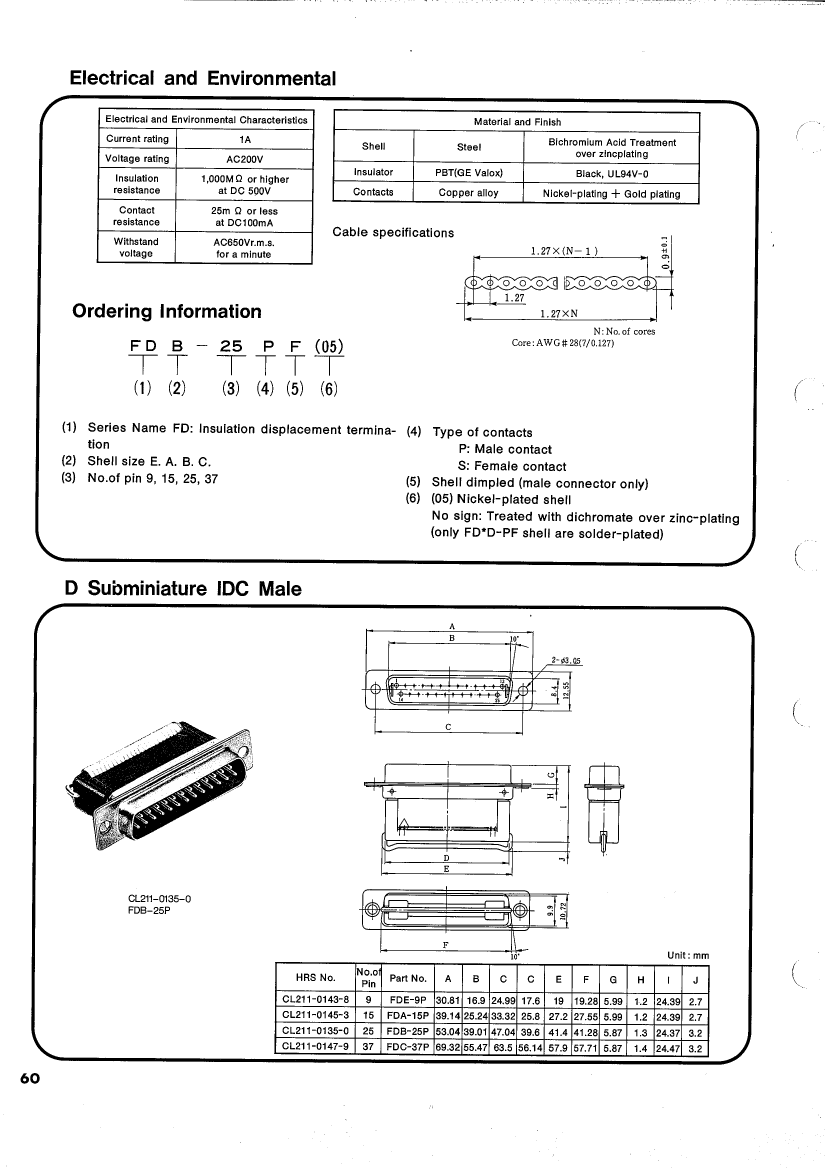

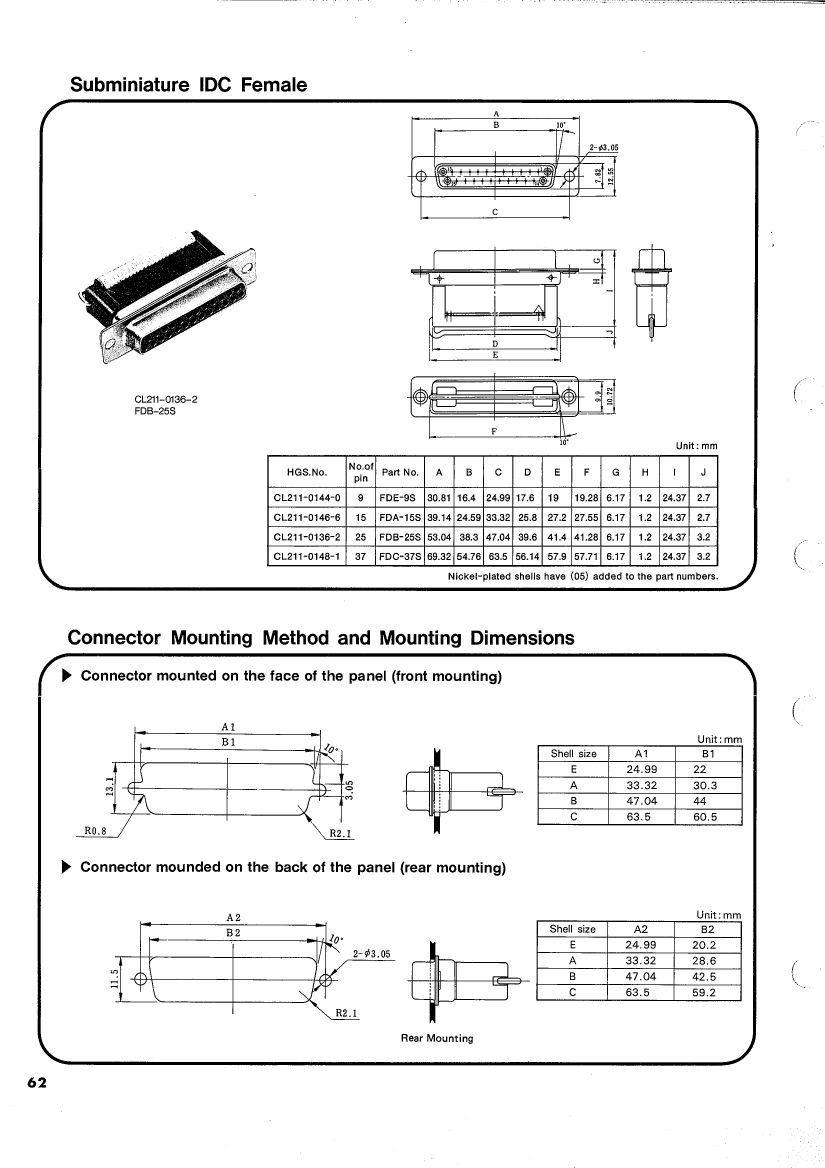

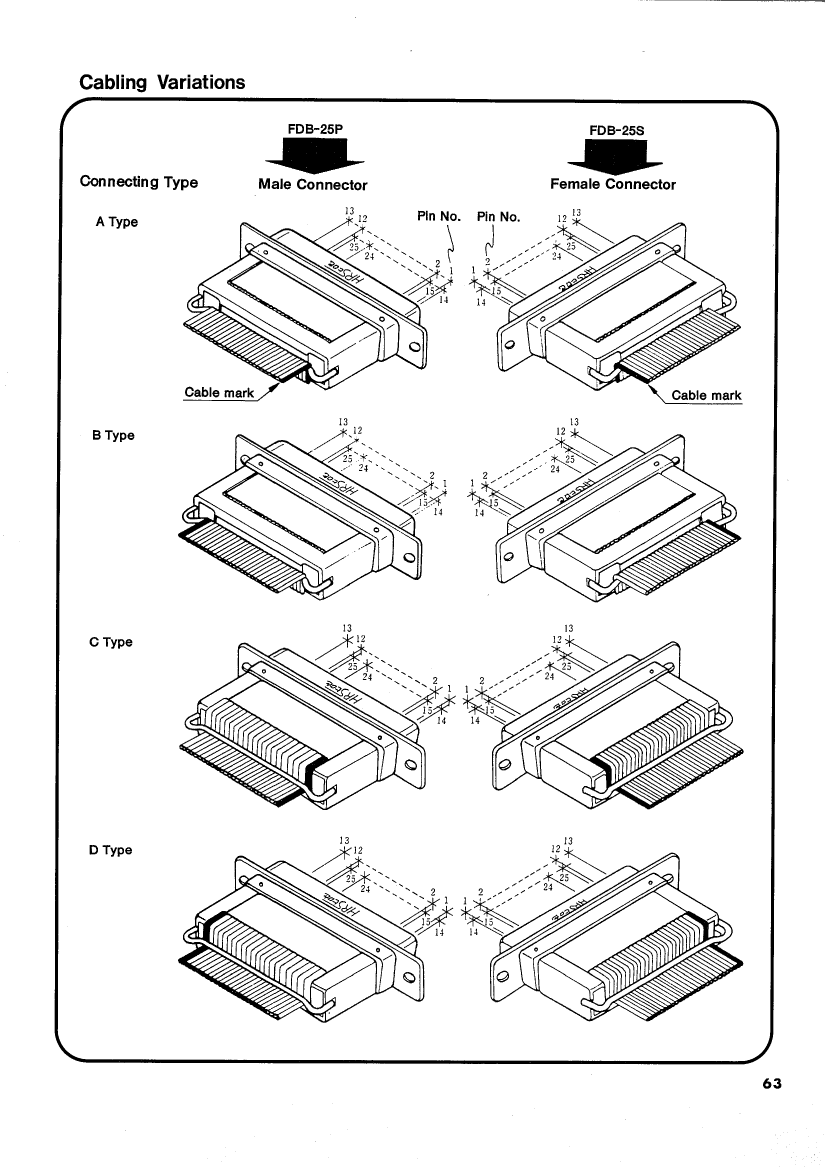

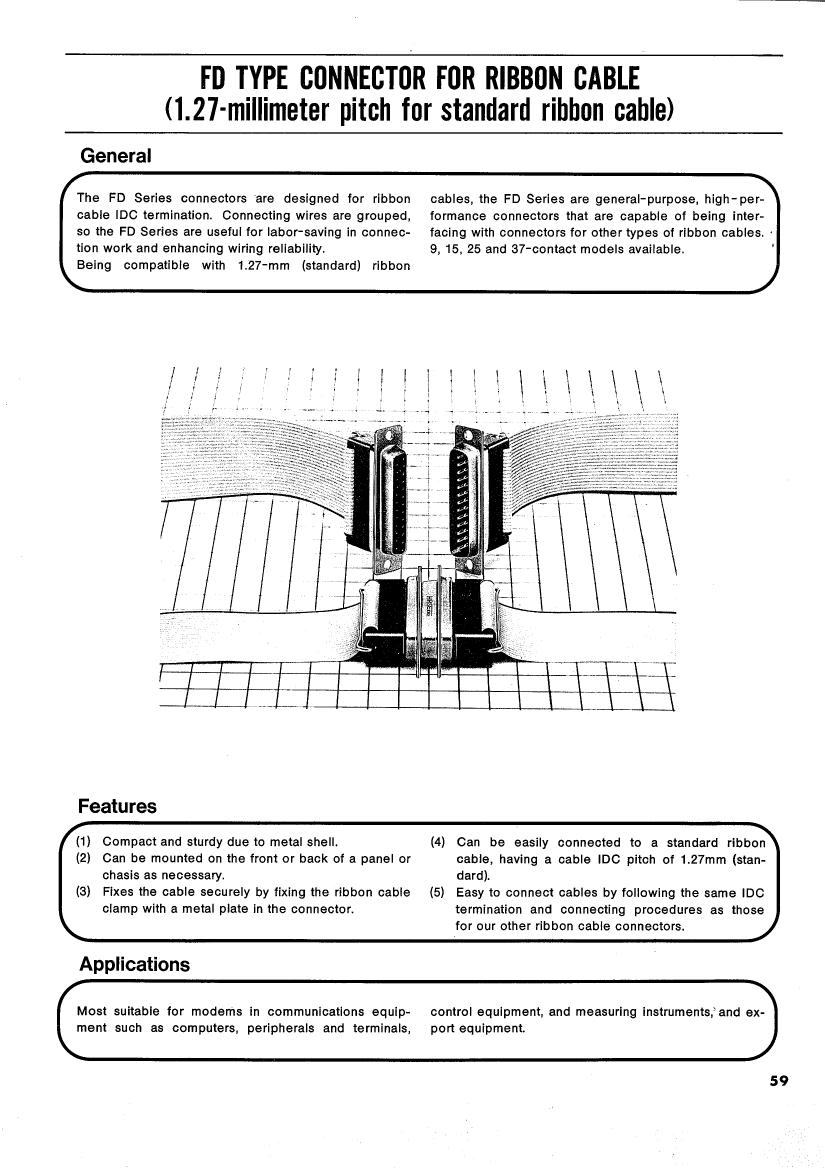

FDC-37P Preview

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

FDC-37P Related Products

	FDC-37P	FDA-15S	FDC-37S	FDA-15P	FDB-25P	FDE-9P	FDB-25S	FDE-9S
Description	D Subminiature Connector, 37 Contact(s), Male, 0.108 inch Pitch, IDC Terminal, Hole .112-.124, Plug	D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, IDC Terminal, Hole .112-.124, Socket	D Subminiature Connector, 37 Contact(s), Female, 0.108 inch Pitch, IDC Terminal, Hole .112-.124, Socket	D Subminiature Connector, 15 Contact(s), Male, 0.108 inch Pitch, IDC Terminal, Hole .112-.124, Plug	D Subminiature Connector, 25 Contact(s), Male, 0.108 inch Pitch, IDC Terminal, Hole .112-.124, Plug	D Subminiature Connector, 9 Contact(s), Male, 0.108 inch Pitch, IDC Terminal, Hole .112-.124, Plug	D Subminiature Connector, 25 Contact(s), Female, 0.108 inch Pitch, IDC Terminal, Hole .112-.124, Socket	D Subminiature Connector, 9 Contact(s), Female, 0.108 inch Pitch, IDC Terminal, Hole .112-.124, Socket
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Hirose	Hirose	Hirose	Hirose	Hirose	Hirose	Hirose	Hirose
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
Other features	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.858 inch	0.823 inch	0.843 inch	0.831 inch	0.854 inch	0.831 inch	0.843 inch	0.823 inch
body length	2.729 inch	1.541 inch	2.729 inch	1.541 inch	2.088 inch	1.213 inch	2.088 inch	1.213 inch
Body/casing type	PLUG	SOCKET	SOCKET	PLUG	PLUG	PLUG	SOCKET	SOCKET
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED	GOLD	NOT SPECIFIED	GOLD	GOLD	GOLD	GOLD OVER NICKEL	GOLD
Contact point gender	MALE	FEMALE	FEMALE	MALE	MALE	MALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	650VAC V	650VAC V	650VAC V	650VAC V	650VAC V	650VAC V	650VAC V	650VAC V
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	FD	FD	FD	FD	FD	FD	FD	FD
Plug contact pitch	0.108 inch	0.108 inch	0.108 inch	0.108 inch	0.108 inch	0.108 inch	0.108 inch	0.108 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	DICHROMATE	DICHROMATE	DICHROMATE	DICHROMATE	DICHROMATE	DICHROMATE	DICHROMATE	DICHROMATE
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	4/C	2/A	4/C	2/A	3/B	1/E	3/B	1/E
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	37	15	37	15	25	9	25	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maximum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
Minimum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
Contact completed and terminated	-	GOLD	-	GOLD	GOLD	GOLD	GOLD OVER NICKEL	GOLD
JESD-609 code	-	e4	-	e4	e4	e4	e4	e4
