STD MOUNTING
FLOAT MOUNTING
LAY OUT OF 50P CONNECTOR
ORDERING INFORMATION
SEE NOTE
D B V
SERIES
SHELL SIZE
E,A,B,C,D
OPTIONS
BLANK-STANDARD
F-FLOAT MOUNTING
V-FEM. SCREW LOCK HEX. (UNC)
VIEW OF MATING FACE
25
P
0
64
C
T
X
B
XXX
LF
LEAD FREE
SPECIAL CODES
INSULATOR COLOUR
BLANK- NATURAL
B - BLACK
DIMPLES
X-ON MALE CONNECTORS ONLY
SHELL PLATING
BLANK-ZINC
T-STD. TIN / Cu
OPTIONS
N-THREADED FEM. SCREW LOCK M3
L-CLINCH NUT (M3)
"This LF product meets European Union Directives and other country
regulations as described in GS-22-008"
Packaging as per GS-14-920
W-RIVETED FEM. SCREW LOCK ROUND UNC
O-CLINCH NUT (UNC)
NO.OF CONTACTS
09,15,25,37,50
CONTACTS
P - PIN
S - SOCKET
BLANK-STANDARD
H-SHIELDING TERMINATION FINGERS
G-HARPOON
M-METAL BRACKET
C-WITHOUT BRACKET
CONTACT PLATING
TECHNICAL SPECIFICATIONS
TERMINATION TYPE
0 / BLANK - SOLDER BUCKET
SHELLS
CONTACTS DIA ON ACTIVE AREA
CONTACTS MATERIAL
CONTACT PLATING
: TIN/CADMIUM/ZINC PLATED STEEL
: Ø1 MM.
: COPPER ALLOY
: GOLD OVER NICKEL (ACTIVE ZONE)
: TINLEAD OVER NICKEL (TERMINATION ZONE)
: 2
MIN.MATTE TIN TOP OVER 1.27 MIN.
BLANK-0.2
Au
64 - Au FLASH
65 - 0.75 Au
67 - 0.4 Au
FOR LEAD FREE PLATING
NICKEL UNDER PLATE(ON TERMINATION ZONE)
INSULATOR MATERIAL
SELF EXTINGUISHING THERMOPLASTIC-
TO UL CLASS 94 V0
THE HOUSING WILL WITHSTAND EXPOSURE TO
260-265°C IF WE USE PROTECTIVE ADHESIVE
(Kapton or Teflon)OR PROTECTIVE METALLIC DEVICE
OPERATING TEMPERATURE
OPERATING CURRENT
CONTACT RESISTANCE
INSULATION RESISTANCE
MAXIMUM VOLTAGE
MECHANICAL ENDURANCE
DAMP HEAT
WIRE SIZE
-55°C +125°C
5 A PER CONTACT
<10m
>5000 M
1000 V.r.m.s
200 MATINGS .
21 DAYS.
2
0.6 MM (AWG 20) MAX.
Mini K Vandanath
Elias C Thomas
George V Joseph
K Somasundaram
20/03/1999
20/03/1999
28/12/2004
28/12/2004
D-SUB
REFER TECHNICAL SPECIFICTIONS
LINEAR
ANGULAR ±1°
A2

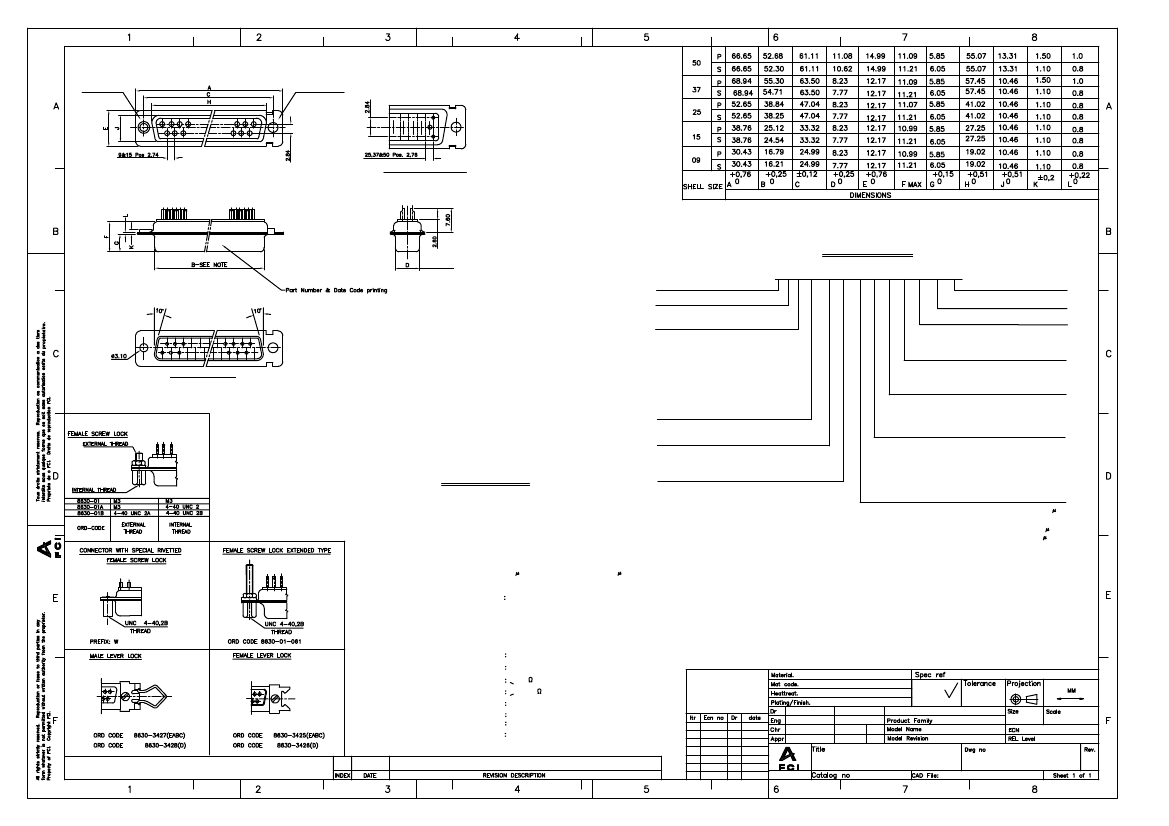

D- SUB SOLDER BUCKET CONNECTOR
e
28/12/2004
LEAD FREE DETAILS ADDED
e
I04-0127 GVJ 28/12/04
(WITH ASSEMBLY OPTIONS)
D SERIES
C-D-SUB-0064
e
PDM: Rev:E
STATUS:
Released
Printed: Sep 28, 2005
.
