DV74ALS14D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DV74ALS14D

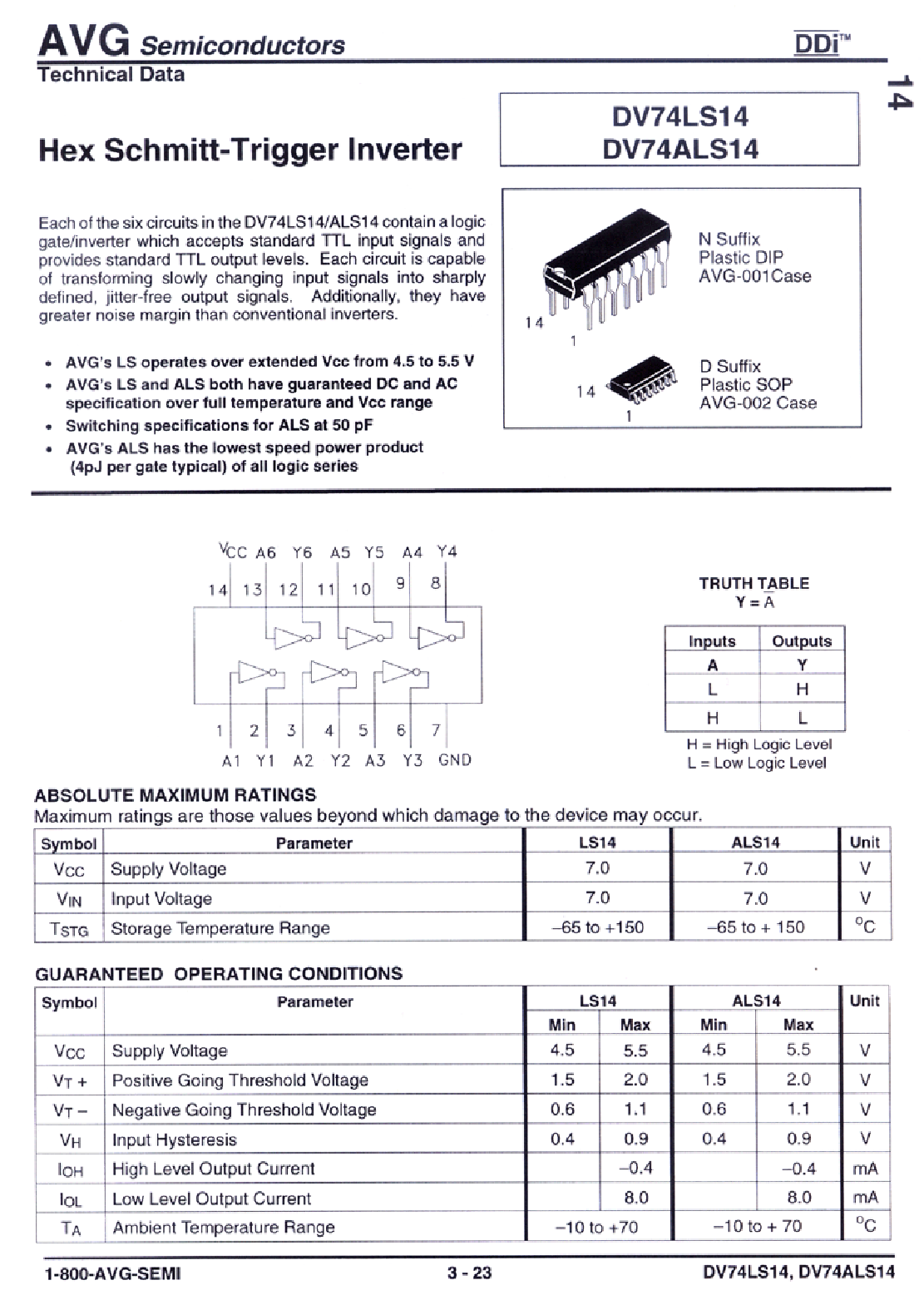

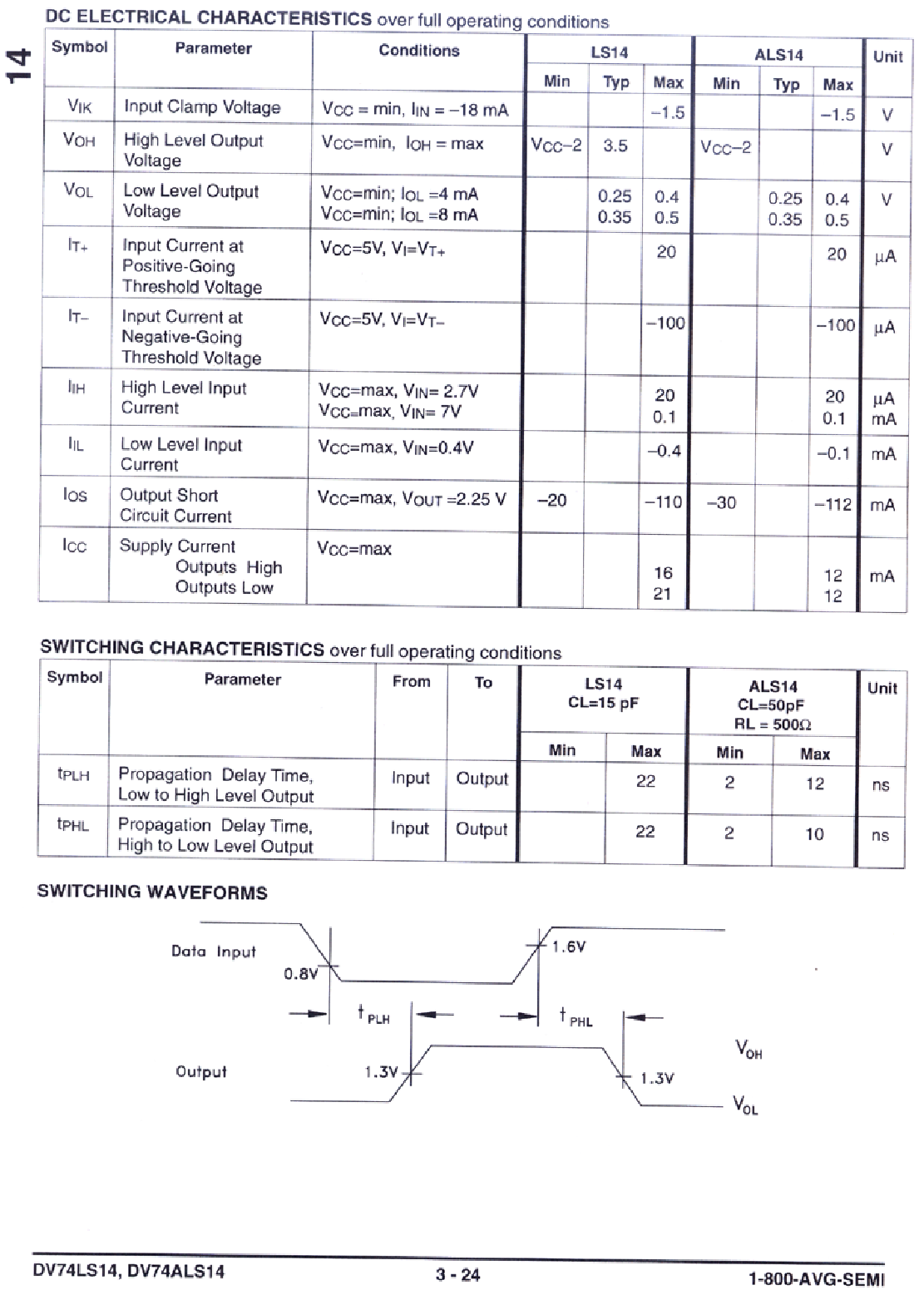

DV74ALS14D: DescriptionInverter, ALS Series, 6-Func, 1-Input, TTL, PDSO14, PLASTIC, SOP-14; Categorylogic logic; File Size303KB，2 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74ALS14D Overview

Inverter, ALS Series, 6-Func, 1-Input, TTL, PDSO14, PLASTIC, SOP-14

DV74ALS14D Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	SOP, SOP14(UNSPEC)
Contacts	14
Reach Compliance Code	unknown
series	ALS
JESD-30 code	R-PDSO-G14
length	8.65 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.008 A
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14(UNSPEC)
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Maximum supply current (ICC)	12 mA
Prop。Delay @ Nom-Sup	12 ns
propagation delay (tpd)	12 ns
Certification status	Not Qualified
Schmitt trigger	YES
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

Preview

Download Datasheet

View All

DV74ALS14D Related Products

	DV74ALS14D	DV74LS14D	DV74ALS14N
Description	Inverter, ALS Series, 6-Func, 1-Input, TTL, PDSO14, PLASTIC, SOP-14	Inverter, LS Series, 6-Func, 1-Input, TTL, PDSO14, PLASTIC, SOP-14	Inverter, ALS Series, 6-Func, 1-Input, TTL, PDIP14, PLASTIC, DIP-14
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC	SOIC	DIP
package instruction	SOP, SOP14(UNSPEC)	SOP, SOP14(UNSPEC)	DIP, DIP14(UNSPEC)
Contacts	14	14	14
Reach Compliance Code	unknown	unknown	unknown
series	ALS	LS	ALS
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14
length	8.65 mm	8.65 mm	18.86 mm
Load capacitance (CL)	50 pF	15 pF	50 pF
Logic integrated circuit type	INVERTER	INVERTER	INVERTER
MaximumI(ol)	0.008 A	0.008 A	0.008 A
Number of functions	6	6	6
Number of entries	1	1	1
Number of terminals	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	DIP
Encapsulate equivalent code	SOP14(UNSPEC)	SOP14(UNSPEC)	DIP14(UNSPEC)
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
power supply	5 V	5 V	5 V
Maximum supply current (ICC)	12 mA	21 mA	12 mA
Prop。Delay @ Nom-Sup	12 ns	22 ns	12 ns
propagation delay (tpd)	12 ns	22 ns	12 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	YES	YES	YES
Maximum seat height	1.75 mm	1.75 mm	4.69 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
width	3.9 mm	3.9 mm	7.62 mm
