DSR15V600-G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DSR15V600-G

DSR15V600-G: DescriptionRectifier Diode, 1 Phase, 1 Element, 15A, 600V V(RRM), Silicon, TO-220AC, GREEN, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size74KB，4 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric View All

DSR15V600-G Overview

Rectifier Diode, 1 Phase, 1 Element, 15A, 600V V(RRM), Silicon, TO-220AC, GREEN, PLASTIC PACKAGE-2

DSR15V600-G Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
Parts packaging code	TO-220AC
package instruction	GREEN, PLASTIC PACKAGE-2
Contacts	3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	LOW NOISE, SOFT FACTOR IS 1
application	EFFICIENCY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
JESD-609 code	e3
Maximum non-repetitive peak forward current	140 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Maximum repetitive peak reverse voltage	600 V
Maximum reverse recovery time	0.03 µs
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	40

Preview

Download Datasheet

View All

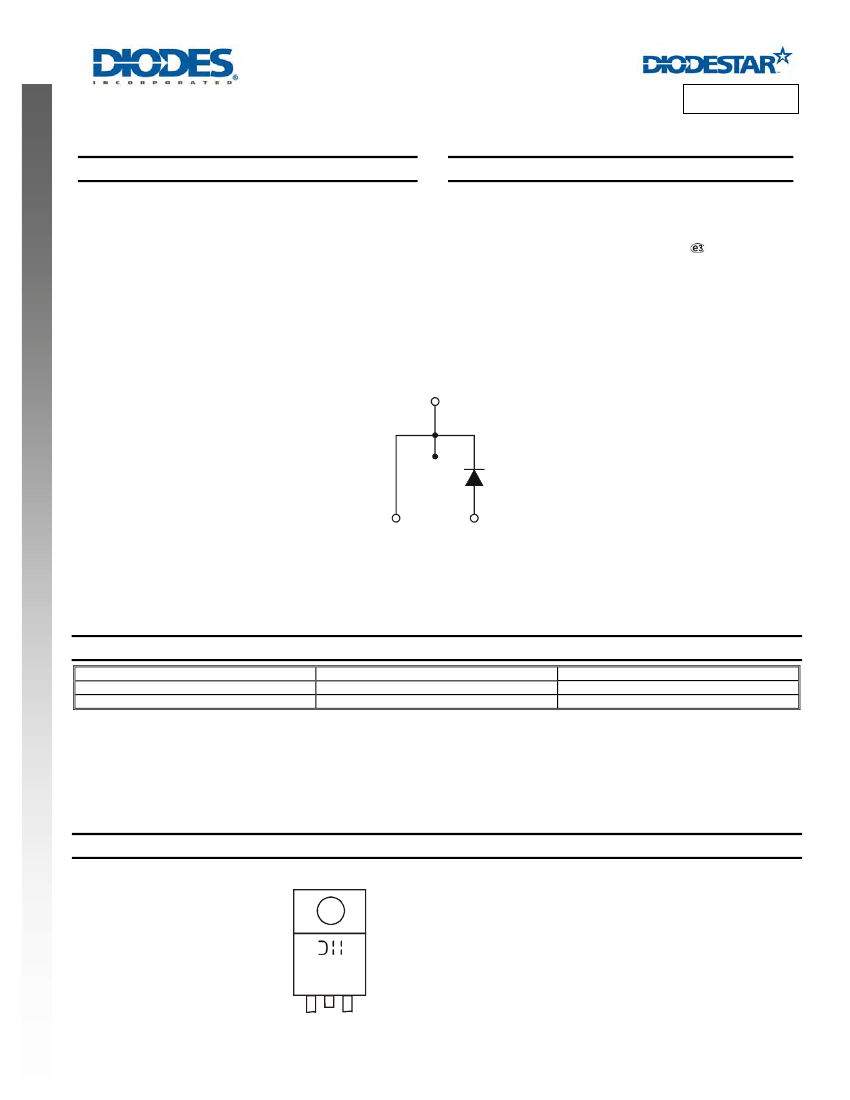

DSR15V600

15A DIODESTAR RECTIFIER

Features

•

DIODESTAR is a Proprietary Process for High Voltage

Rectifiers which Delivers:

•

Ultra-Fast Reverse Recovery (t

< 30ns) Giving a Rapid

Switching Response

•

Soft Recovery for Low EMI Noise

•

Excellent High Temperature Stability

•

High Forward Surge Capability

Enables High Efficiency as the Boost Diode in PFC Circuits

Lead Free Finish, RoHS Compliant (Note 1)

Mechanical Data

•

Case: TO-220AC

Case Material: Molded Plastic, UL Flammability Classification

Rating 94V-0

Terminals: Matte Tin Finish annealed over Copper leadframe.

Solderable per MIL-STD-202, Method 208

NEW PRODUCT

•

Base

Cathode

Anode

Package Pin Out

Configuration

Ordering Information

(Note 2)

Part Number

DSR15V600

DSR15V600-G

Notes:

Case

TO-220AC

Packaging

50 pieces/tube

1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes.

2. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.

3. For Green Molding Compound version part numbers, add “-G” suffix to part number above. Examples: DSR15V600-G

Marking Information

DSR15V600

YYWW

DSR15V600 = Product Type Marking Code

AB = Foundry and Assembly Code

YYWW = Date Code Marking

YY = Last two digits of year (ex: 10 = 2010)

WW = Week (01 - 53)

DSR15V600

Document number: DS35012 Rev. 3 - 2

1 of 4

www.diodes.com

July 2011

DSR15V600

IMPORTANT NOTICE
