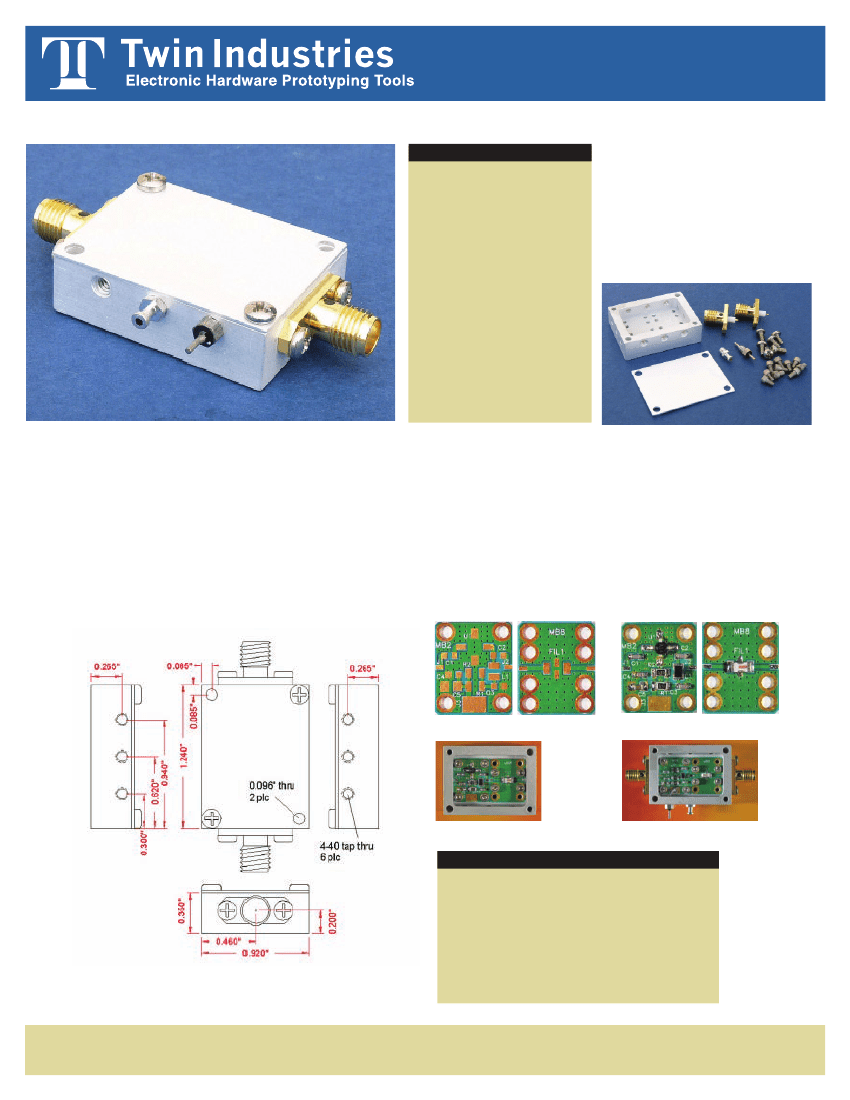

MicroAmp MH-2 Housing
For Dual MB Circuit Boards
FEATURES
• Rapid prototyping
of 2-port microwave
circuits
• Compatible with all
MB series circuit boards
• Cascade two boards
into one housing
• SMA female connectors
• Ground terminal and
bias feed-through
• Cover and mounting
hardware provided
The MicroAmp MH-2 housing will accommodate two MB series circuit board to create a completely shielded 2-port circuits. Boards are
available for microwave amplifiers, filters, log detectors, frequency multipliers, dividers, and operational amplifiers that can be cascaded
together in a single housing to create more complex circuits. After assembling the desired MB circuit boards, simply drop them board into
the housing cavity and screw the boards in place using #1-72 socket head cap screws with a 0.050" hex key. Join the two circuits together
using a small bridge wire, foil ribbon, zero-ohm resistor, or capacitor. Then insert the SMA connectors into the side walls and secure them
with #2-56 mounting screws and solder the center pins to the circuit board pads. The ground turret terminal and 1000 pf bias feed-through
are then installed into the housing side wall and the bias connection is soldered in place from the circuit boards to the feed-through pin using
a small gauge wire. Install the feed-through carefully with just enough torque (2 in-lbs max) to secure it in place. A cover attaches to the top
of the housing with #2-56 screws to complete the shielded assembly. The finished housing can be mounted to a baseplate using the corner
through holes.
1. Select Circuit Board
2. Assemble Board
3. Install into Housing
4. Add Connectors and Bias
MH-2 KIT CONTENTS
1 ea. Housing
1 ea. Cover
2 ea. SMA female connectors
1 ea. Feed-through bias pin
1 ea. Ground turret terminal
6 ea. #2-56 x 3/16" pan head screws
10 ea. #1-72 x 1/8" socket head cap screws
O U T L INE DRAWING
For additional product information, please visit
www.twinind.com
Contact information: 925-866-8946
(phone)
925-866-8937
(fax)
Sales@twinind.com
