SMAJ22CA-13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMAJ22CA-13

SMAJ22CA-13: DescriptionTrans Voltage Suppressor Diode, 400W, 22V V(RWM), Bidirectional, 1 Element, Silicon, PLASTIC, SMA, 2 PIN; CategoryDiscrete semiconductor diode; File Size341KB，6 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric View All

SMAJ22CA-13 Overview

Trans Voltage Suppressor Diode, 400W, 22V V(RWM), Bidirectional, 1 Element, Silicon, PLASTIC, SMA, 2 PIN

SMAJ22CA-13 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Diodes Incorporated
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	EXCELLENT CLAMPING CAPABILITY
Maximum breakdown voltage	26.9 V
Minimum breakdown voltage	24.4 V
Breakdown voltage nominal value	25.65 V
Maximum clamping voltage	35.5 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PDSO-C2
JESD-609 code	e0
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	400 W
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	235
polarity	BIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	22 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	10

SMAJ22CA-13 Preview

Green

SMAJ5.0(C)A – SMAJ200(C)A

400W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Features



400W Peak Pulse Power Dissipation

Glass Passivated Die Construction

Unidirectional and Bidirectional Versions Available

Excellent Clamping Capability

Fast Response Time

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Mechanical Data



Case: SMA

Case Material: Molded Plastic. UL Flammability Classification

Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Lead-Free Plating (Matte Tin Finish).

Solderable per MIL-STD-202, Method 208

Polarity Indicator: Cathode Band (Bi-directional devices do not

have a polarity indicator.)

Weight: 0.064 grams (Approximate)

Top View

Bottom View

Ordering Information

(Note 4)

Part Number

SMAJXXX(C)A-13-F

*x = Device Voltage, Example: SMAJ170A-13-F

Notes:

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.

Case

SMA

Packaging

5000/Tape & Reel

Marking Information

xx = Product Type Marking Code

(See Electrical Characteristics Table)

= Manufacturers’ Code Marking

YWW = Date Code Marking

Y = Last Digit of Year (ex: 4 for 2014)

WW = Week Code (01 to 53)

YWW

SMAJ5.0(C)A – SMAJ200(C)A

Document number: DS19005 Rev. 17 - 2

1 of 6

www.diodes.com

October 2014

SMAJ5.0(C)A – SMAJ200(C)A

Maximum Ratings

(@T

= +25°C unless otherwise specified.)

Characteristic

Peak Pulse Power Dissipation

(Non-repetitive current pulse derated above T

= +25°C)

(Note 5)

Peak Forward Surge Current, 8.3ms Single Half Sine Wave

Superimposed on Rated Load

(Notes 5, 6 & 7)

Steady State Power Dissipation @ T

= +75°C

Instantaneous Forward Voltage @ I

= 35A

(Notes 5, 6, & 7)

Notes:

Symbol

FSM

(AV)

Value

400

1.0

3.5

Unit

5. Valid provided that terminals are kept at ambient temperature.

6. Measured with 8.3ms single half sine-wave. Duty cycle = 4 pulses per minute maximum.

7. Unidirectional units only.

Thermal Characteristics

Characteristic

Operating Temperature Range

Storage Temperature Range

Symbol

STG

Value

-55 to +150

-55 to +175

Unit

°C

SMAJ5.0(C)A – SMAJ200(C)A

Document number: DS19005 Rev. 17 - 2

2 of 6

www.diodes.com

October 2014

SMAJ5.0(C)A – SMAJ200(C)A

Electrical Characteristics

(@T

= +25°C unless otherwise specified.)

Part Number

Add C For

Bidirectional

(Note 8)

SMAJ5.0(C)A

SMAJ6.0(C)A

SMAJ6.5(C)A

SMAJ7.0(C)A

SMAJ7.5(C)A

SMAJ8.0(C)A

SMAJ8.5(C)A

SMAJ9.0(C)A

SMAJ10(C)A

SMAJ11(C)A

SMAJ12(C)A

SMAJ13(C)A

SMAJ14(C)A

SMAJ15(C)A

SMAJ16(C)A

SMAJ17(C)A

SMAJ18(C)A

SMAJ20(C)A

SMAJ22(C)A

SMAJ24(C)A

SMAJ26(C)A

SMAJ28(C)A

SMAJ30(C)A

SMAJ33(C)A

SMAJ36(C)A

SMAJ40(C)A

SMAJ43(C)A

SMAJ45(C)A

SMAJ48(C)A

SMAJ51(C)A

SMAJ54(C)A

SMAJ58(C)A

SMAJ60(C)A

SMAJ64(C)A

SMAJ70(C)A

SMAJ75(C)A

SMAJ78(C)A

SMAJ85(C)A

SMAJ90(C)A

SMAJ100(C)A

SMAJ110(C)A

SMAJ120(C)A

SMAJ130(C)A

SMAJ150(C)A

SMAJ160(C)A

SMAJ170(C)A

SMAJ200(C)A

Notes:

Reverse

Standoff

Voltage

RWM

(V)

5.0

6.0

6.5

7.0

7.5

8.0

8.5

9.0

100

110

120

130

150

160

170

200

Breakdown

Test

Voltage

Current

@ I

(Note 9)

Min (V) Max (V) I

(mA)

6.40

7.25

6.67

7.37

7.22

7.98

7.78

8.60

8.33

9.21

1.0

8.89

9.83

1.0

9.44

10.4

1.0

10.0

11.1

1.0

11.1

12.3

1.0

12.2

13.5

1.0

13.3

14.7

1.0

14.4

15.9

1.0

15.6

17.2

1.0

16.7

18.5

1.0

17.8

19.7

1.0

18.9

20.9

1.0

20.0

22.1

1.0

22.2

24.5

1.0

24.4

26.9

1.0

26.7

29.5

1.0

28.9

31.9

1.0

31.1

34.4

1.0

33.3

36.8

1.0

36.7

40.6

1.0

40.0

44.2

1.0

44.4

49.1

1.0

47.8

52.8

1.0

50.0

55.3

1.0

53.3

58.9

1.0

56.7

62.7

1.0

60.0

66.3

1.0

64.4

71.2

1.0

66.7

73.7

1.0

71.1

78.6

1.0

77.8

86.0

1.0

83.3

92.1

1.0

86.7

95.8

1.0

94.4

104

1.0

100

111

1.0

111

123

1.0

122

135

1.0

133

147

1.0

144

159

1.0

167

185

1.0

178

197

1.0

189

209

1.0

224

248

1.0

Max. Reverse

Leakage @ V

RWM

(Note 10)

(µA)

800

500

200

100

5.0

1.0

Max. Clamping

Voltage @ I

(V)

9.2

10.3

11.2

12.0

12.9

13.6

14.4

15.4

17.0

18.2

19.9

21.5

23.2

24.4

26.0

27.6

29.2

32.4

35.5

38.9

42.1

45.4

48.4

53.3

58.1

64.5

69.4

72.7

77.4

82.4

87.1

93.6

96.8

103

113

121

126

137

146

162

177

193

209

243

259

275

324

Max. Peak Pulse

Current

(A)

43.5

38.8

35.7

33.3

31.0

29.4

27.7

26.0

23.5

22.0

20.1

18.6

17.2

16.4

15.3

14.5

13.7

12.3

11.2

10.3

9.5

8.8

8.3

7.5

6.9

6.2

5.7

5.5

5.2

4.9

4.6

4.3

4.1

3.9

3.5

3.3

2.2

2.9

2.7

2.5

2.3

2.0

1.9

1.6

1.5

1.4

1.2

Marking Code

BI-

UNI-

8. Suffix C denotes Bi-directional device.

9. V

measured with I

current pulse = 10 ~ 15 ms.

10. For Bidirectional devices having V

RWM

of 10V and under, the I

is doubled.

SMAJ5.0(C)A – SMAJ200(C)A

Document number: DS19005 Rev. 17 - 2

3 of 6

www.diodes.com

October 2014

SMAJ5.0(C)A – SMAJ200(C)A

100

10,000

= 25°C

PEAK PULSE DERATING IN % OF

PEAK POWER OR CURRENT

, TOTAL CAPACITANCE (pF)

Unidirectional

1,000

Bidirectional

100

10 X 1000 Waveform

as defined by REA

100

125 150

175 200

, AMBIENT TEMPERATURE (°C)

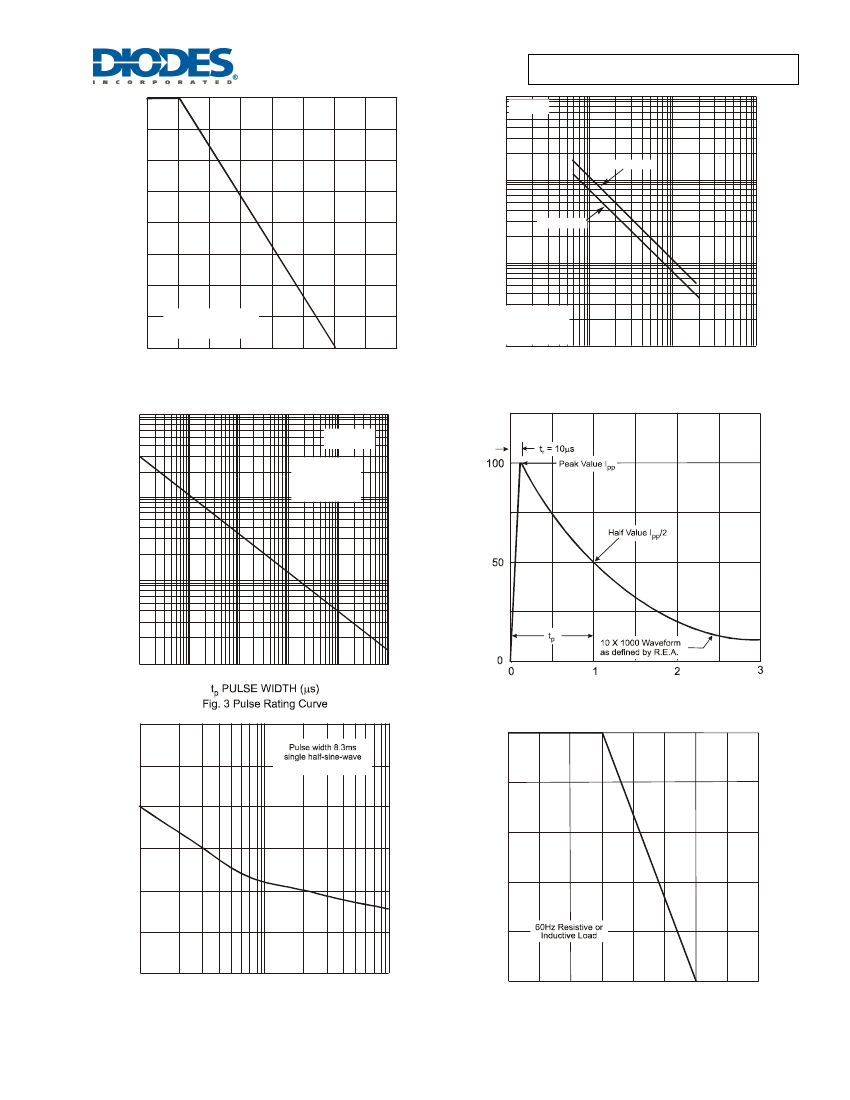

Fig. 1 Pulse Derating Curve

100

, PEAK PULSE CURRENT (%I

)

= 25 °C

Measured at

f = 1MHz

1.0Vrms signal

Bias = 0Vdc

100

, STANDOFF VOLTAGE (V)

Fig. 2 Typical Total Capacitance

1,000

, PEAK PULSE POWER (kW)

Non repetitive

pulse waveform

shown in Fig. 4

1.0

0.1

1.0

100

1,000

10,000

t, TIME (ms)

Fig. 4 Pulse Waveform

FSM

, PEAK FORWARD SURGE CURRENT (A)

(AV),

STEADY STATE POWER DISSIPATION (W)

1.0

0.8

0.6

0.4

0.2

50 100

NUMBER OF CYCLES AT 60Hz

Fig. 5 Maximum Non-Repetitive Surge Current

0.0

75 100 125 150 175 200

, LEAD TEMPERATURE ( °C)

Fig. 6 Steady State Power Derating Curve

SMAJ5.0(C)A – SMAJ200(C)A

Document number: DS19005 Rev. 17 - 2

4 of 6

www.diodes.com

October 2014

SMAJ5.0(C)A – SMAJ200(C)A

Package Outline Dimensions

Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.

SMA

Dim

Min

Max

2.29

2.92

4.00

4.60

1.27

1.63

0.15

0.31

4.80

5.59

0.05

0.20

0.76

1.52

2.01

2.30

All Dimensions in mm

Suggested Pad Layout

Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.

Dimensions Value (in mm)

4.00

1.50

2.50

6.50

1.70

SMAJ5.0(C)A – SMAJ200(C)A

Document number: DS19005 Rev. 17 - 2

5 of 6

www.diodes.com

October 2014

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
