CSHD3-40TRLEADFREE datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> CSHD3-40TRLEADFREE

Preview

CSHD3-40TRLEADFREE: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DPAK-3; CategoryDiscrete semiconductor diode; File Size493KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CSHD3-40TRLEADFREE Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DPAK-3

CSHD3-40TRLEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Parts packaging code	TO-252
package instruction	DPAK-3
Contacts	3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PSSO-G2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	75 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

CSHD3-40

SURFACE MOUNT SILICON

SCHOTTKY RECTIFIER

3.0 AMP, 40 VOLT

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CSHD3-40 is a

high quality, highly reliable silicon Schottky rectifier

designed for use in all types of commercial, industrial,

entertainment, computer and automotive applications.

MARKING: FULL PART NUMBER

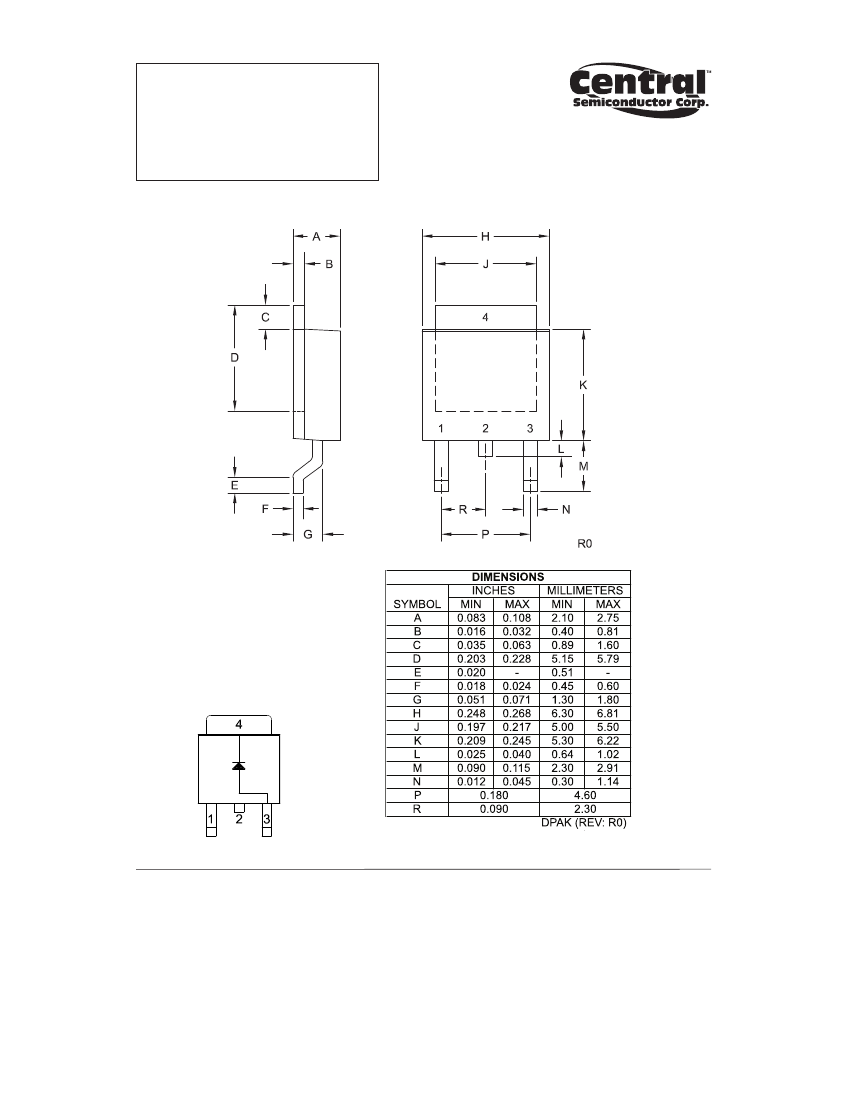

DPAK CASE

MAXIMUM RATINGS:

(TC=25°C unless otherwise noted)

SYMBOL

Peak Repetitive Reverse Voltage

VRRM

Average Rectified Forward Current (TC=120°C)

IO

Peak Forward Surge Current, tp=10ms

Peak Repetitive Reverse Surge Current, tp=2.0μs

Critical Rate of Rise of Reverse Voltage

Operating and Storage Junction Temperature

Thermal Resistance

ELECTRICAL

SYMBOL

IR

VF

IFSM

IRRM

dv/dt

TJ, Tstg

Θ

JC

40

3.0

75

1.0

10,000

-65 to +150

5.5

UNITS

V

A

V/μs

°C

°C/W

CHARACTERISTICS:

(TC=25°C unless otherwise noted)

TEST CONDITIONS

MAX

VR=40V

100

VR=40V, TC=125°C

10

IF=3.0A

IF=3.0A, TC=125°C

0.65

0.60

UNITS

μA

mA

V

R9 (21-January 2013)
