MVUPS560E3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MVUPS560E3

MVUPS560E3: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 60V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, POWERMITE 3, 2 PIN; CategoryDiscrete semiconductor diode; File Size201KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MVUPS560E3 Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 60V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, POWERMITE 3, 2 PIN

MVUPS560E3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Microsemi
package instruction	ROHS COMPLIANT, PLASTIC, POWERMITE 3, 2 PIN
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
application	EFFICIENCY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PSSO-G2
JESD-609 code	e3
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	60 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	40

Preview

Download Datasheet

View All

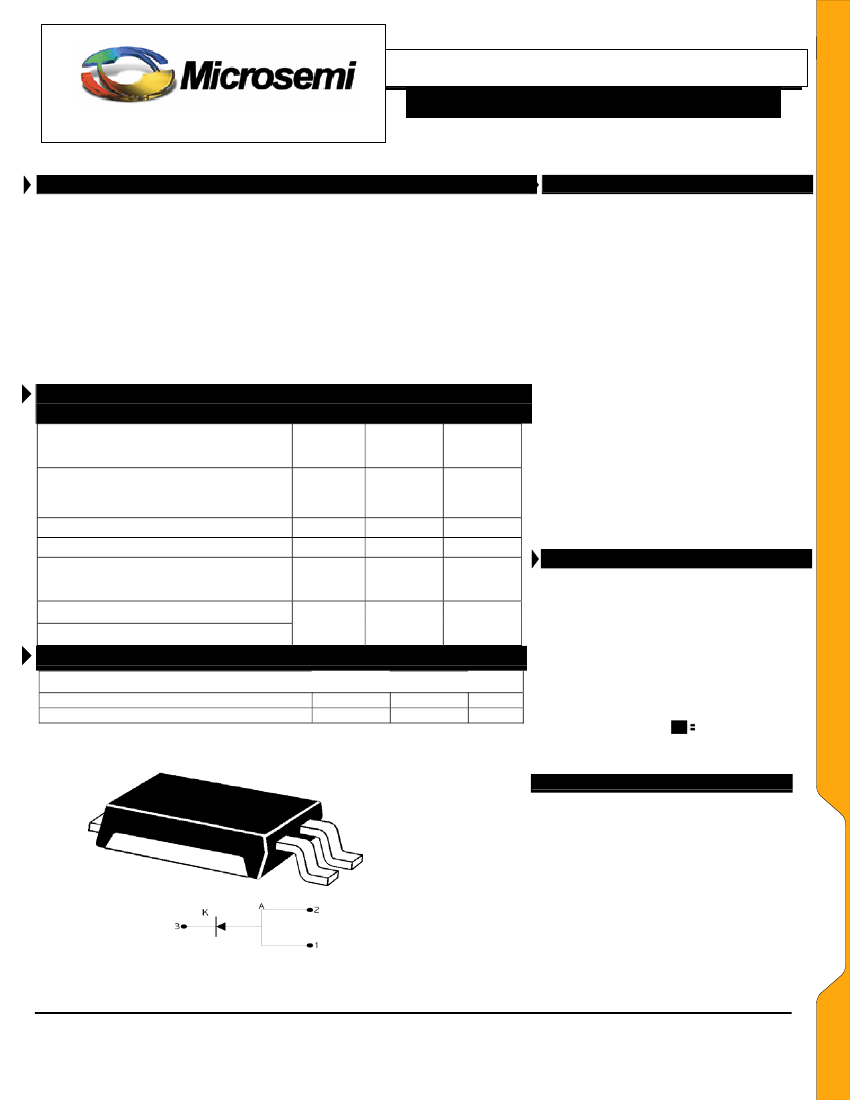

UPS560e3

5 A Schottky Barrier Rectifier

DESCRIPTION

KEY FEATURES

WWW .

Microsemi

This UPS560e3 in the Powermite3

package is a high efficiency Schottky

rectifier that is also RoHS compliant offering high current/power capabilities

previously found only in much larger packages. They are ideal for SMD

applications that operate at high frequencies. In addition to its size

advantages, the Powermite3

package includes a full metallic bottom that

eliminates the possibility of solder flux entrapment during assembly and a

unique locking tab act as an efficient heat path to the heat-sink mounting.

Its innovative design makes this device ideal for use with automatic insertion

equipment.

IMPORTANT:

For the most current data, consult

MICROSEMI’s

website:

http://www.microsemi.com

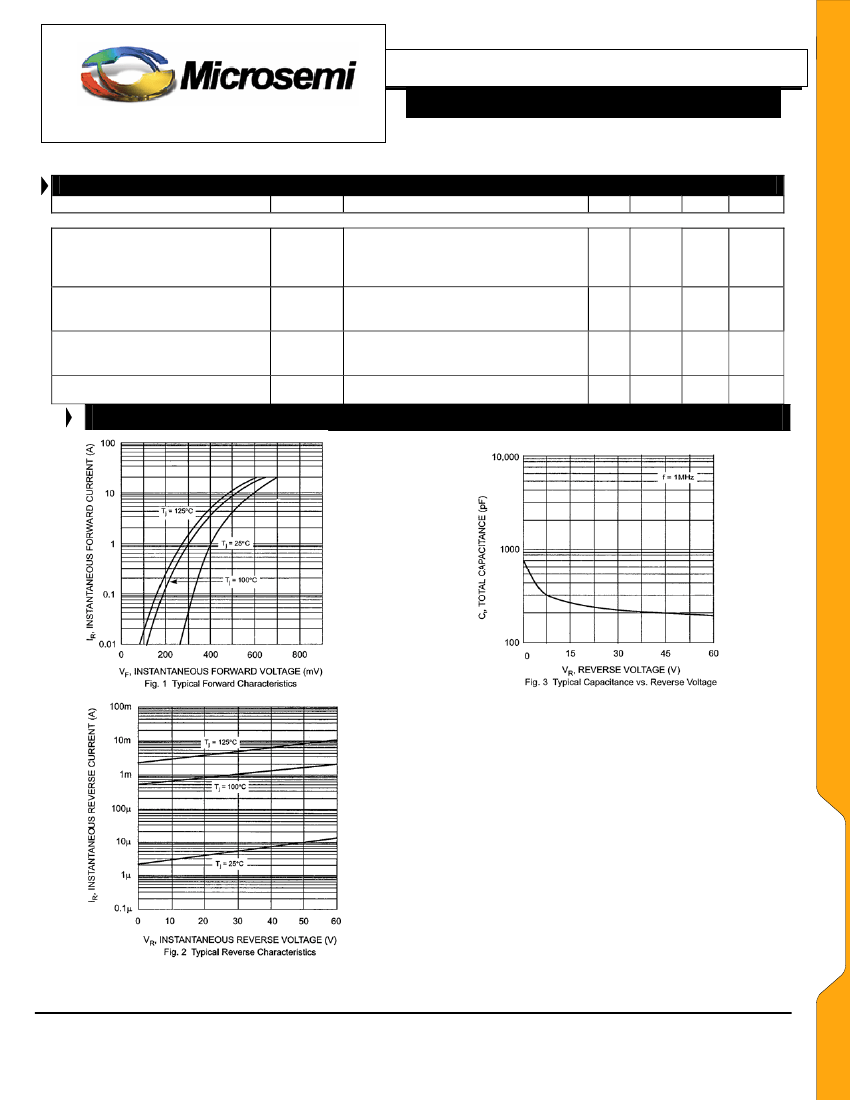

ABSOLUTE MAXIMUM RATINGS AT 25º C

(UNLESS OTHERWISE SPECIFIED)

Rating

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Rectified Output Current

Non-Repetitive Peak Forward Surge Current

8.3ms Single half sine wave Superimposed

on Rated Load@ T

=90 ºC

Storage Temperature

Junction Temperature

Symbol

RRM

RWM

R (RMS)

FSM

STG

Value

Unit

100

-55 to +150

-55 to +125

ºC

Very low thermal resistance package

RoHS Compliant with e3 suffix part

number

Guard-ring-die construction for transient

protection

Efficient heat path with Integral locking

bottom metal tab

Low forward voltage

Full metallic bottom eliminates flux

entrapment

Compatible with automatic insertion

Low profile-maximum height of 1mm

Options for screening in accordance with

MIL-PRF-19500 for JAN, JANTX, and

JANTXV are available by adding MQ, MX,

or MV prefixes respectively to part

numbers. For example, designate

MXUPS560e3 for a JANTX (consult

factory for Tin-Lead plating).

Optional 100% avionics screening

available by adding MA prefix for 100%

temperature cycle, thermal impedance

and 24 hours HTRB (consult factory for

Tin-Lead plating)

APPLICATIONS/BENEFITS

Switching and Regulating Power

Supplies.

Silicon Schottky (hot carrier) rectifier for

minimal reverse voltage recovery

Elimination of reverse-recovery

oscillations to reduce need for EMI

filtering

Charge Pump Circuits

Reduces reverse recovery loss with low

Small foot print

190 X 270 mils (1:1 Actual size)

See mounting pad details on pg 3

MECHANICAL & PACKAGING

THERMAL CHARACTERISTICS

Thermal Resistance

Junction-to-case (bottom)

Junction to ambient (1)

θJC

θJA

3.2

ºC/ Watt

(1) When mounted on FR-4 PC board using 2 oz copper with recommended minimum foot print

Powermite 3™

•

Note: 1 Short duration test pulse used to minimize self – heating effect.

•

CASE: Void-free transfer molded

thermosetting epoxy compound meeting

UL94V-0

FINISH: Annealed matte-Tin plating over

copper and readily solderable per MIL-

STD-750 method 2026 (consult factory

for Tin-Lead plating)

POLARITY: See figure (left)

MARKING: S560•

WEIGHT: 0.072 gram (approx.)

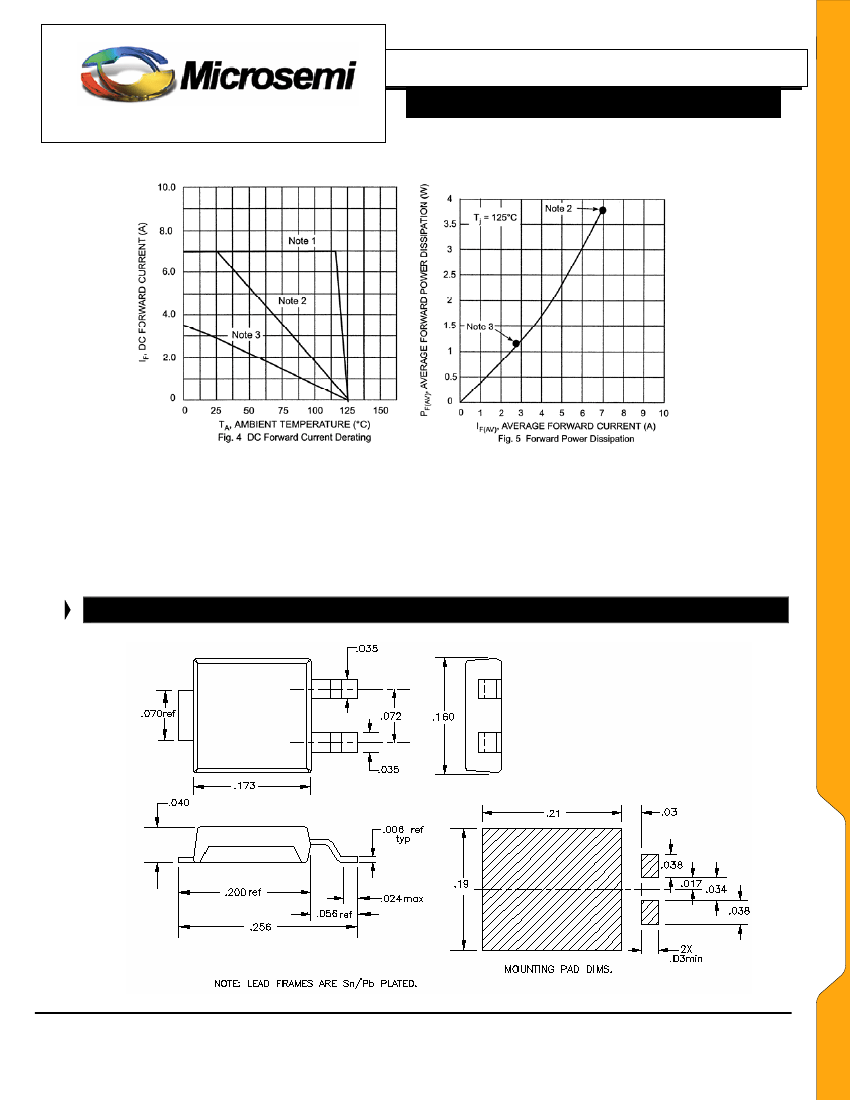

Package dimension on last page

Tape & Reel option: 16 mm tape per

Standard EIA-481-B, 5000 on 13” reel

UPS560E3

2007

6-26-2007 REV D

Microsemi

Page 1

MVUPS560E3 Related Products

	MVUPS560E3	MXUPS560E3	MQUPS560E3
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 60V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, POWERMITE 3, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 60V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, POWERMITE 3, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 60V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, POWERMITE 3, 2 PIN
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	Microsemi	Microsemi	Microsemi
package instruction	ROHS COMPLIANT, PLASTIC, POWERMITE 3, 2 PIN	ROHS COMPLIANT, PLASTIC, POWERMITE 3, 2 PIN	R-PSSO-G2
Contacts	2	2	2
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
application	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
JESD-609 code	e3	e3	e3
Maximum non-repetitive peak forward current	100 A	100 A	100 A
Number of components	1	1	1
Phase	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum output current	5 A	5 A	5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	60 V	60 V	60 V
surface mount	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	MATTE TIN	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	40	40	40
