D15P13A6GL00: DescriptionD Subminiature Connector, 15 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D15P13A6GL00 Overview

D Subminiature Connector, 15 Contact(s), Male, Solder Terminal

D15P13A6GL00 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	D
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN/ZINC CHROMIUM
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

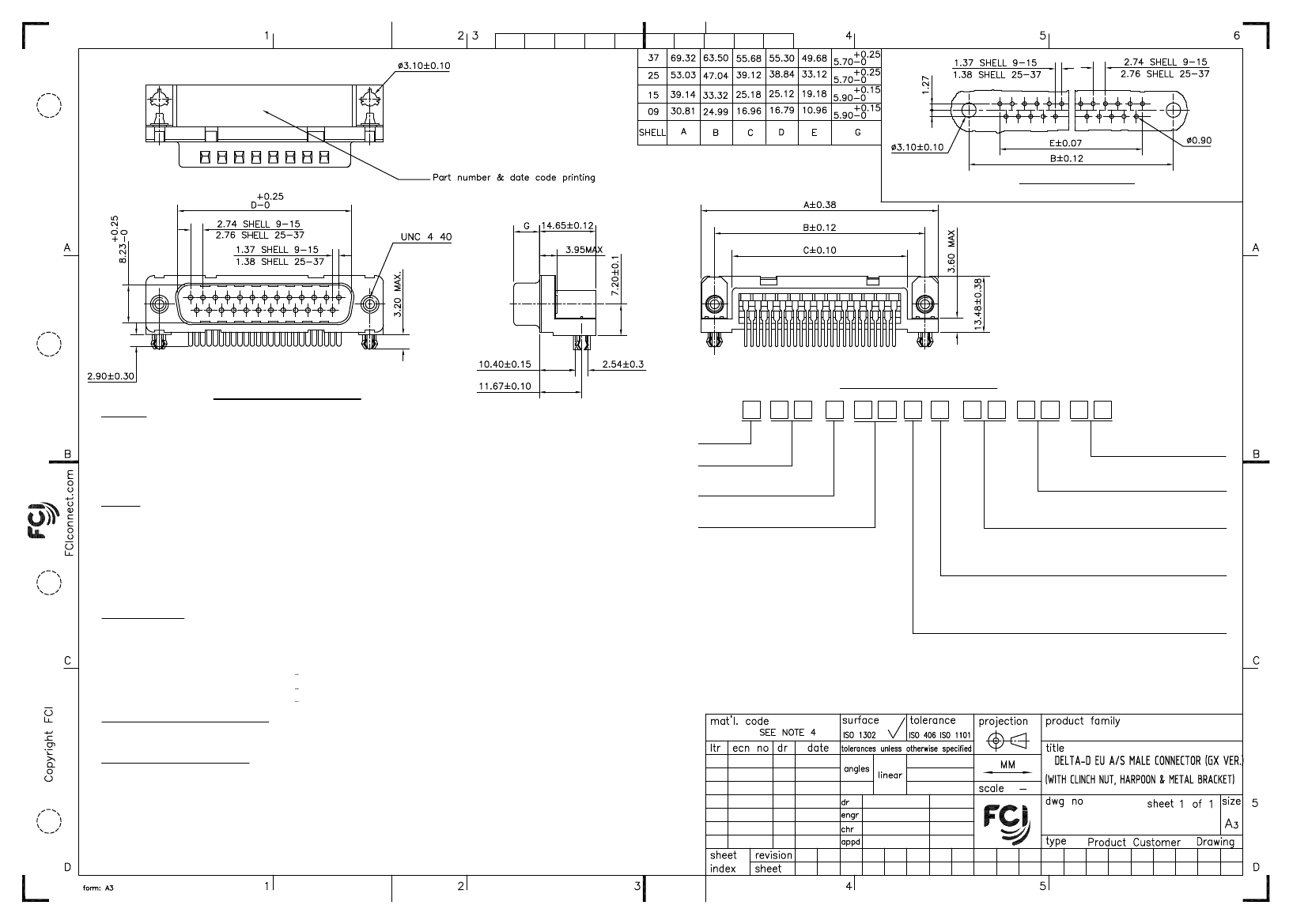

PCB DRILLING DETAILS

Thickness 1.60±0.20mm

TECHNICAL SPECIFICATIONS

MATERIAL

SHELL

INSULATORS

STEEL TIN /Zinc Cr 3PLATED.

SELF EXTINGUISHING BLACK POLYESTER UL CLASS 94V0

THE HOUSING WILL WITHSTAND EXPOSURE TO 260-265°C

IF WE USE PROTECTIVE ADHESIVE (type Kapton or Teflon)

OR PROTECTIVE METALLIC DEVICE

CONTACTS

COPPER ALLOY

ORDERING INFORMATION

SERIES

NO.OF CONTACTS

09,15,25 & 37

TYPE OF CONTACTS

P-PIN

SPECIAL CODE

00->STANDARD

MOUNTING OPTIONS

GX->HARPOON+INSERT UNC 4 40+METAL BRACKET

GL->HARPOON+INSERTM3+METAL BRACKET

PLATING

4->FLASH Au+Sn Pb

6->0.76

Au+Sn/Sn Pb

HEIGHT OF TERMINATION

A-2.90mm

LEAD FREE

PLATING

ACTIVE ZONE

TERMINATION ZONE

FOR LEAD FREE PLATING

GOLD OVER NICKEL

TIN LEAD OVER NICKEL

MIN.MATTE TIN TOP OVER

1.27

MIN.NICKEL UNDER PLATE(ON TERMINATION ZONE)

METAL BRACKET

HARPOON

CLINCH NUT

BRASS,TIN/Zinc Cr 3 PLATED.

BRASS,TIN PLATED.

BRASS,TIN/Zinc Cr 3 PLATED.

TYPE OF TERMINATION

13-ANGLED SPILL

PITCH 2.54mm

FOOT PRINT 10.40mm

ELECTRICAL DATA

MAX.CURRENT RATING

TEST VOLTAGE

RATED VOLTAGE

CONTACT RESISTANCE

SHELL RESISTANCE

INSULATION RESISTANCE

1000V

300V

< 25m

Ω

< 5m

Ω

> 5000M

Ω

"This LF product meets European Union Directives and other country

regulations as described in GS-22-008"

The housing will withstand exposure to 260°C peak temperature for 3.5 seconds

in a wave solder application with a 1.6mm minimum thick circuit board.

Packaging as per GS-14-920

ENVIRONMENTAL CHARACTERISTICS.

OPERATING TEMPERATURE RANGE

-55°C +125°C

DELTA-D

I06-0074

GVJ

2006/06/08

.00±0.1

0°±1°

GEORGE.V.JOSEPH

K_V_SIVADAS

.000±.00X

1998/12/22

2006/06/22

MECHANICAL CHARACTERISTICS

MATING/UNMATING CYCLES (MIN)

INSERTION/EXTRACTION FORCE PER CONTACT

200 (FLASH Au);

500 (0.76µ Au)

5 N Max./ 0.3 N Min.

C-DD-0087

PDM: Rev:B

STATUS:

Released

Printed: Jan 18, 2011

D15P13A6GL00 Related Products

	D15P13A6GL00	D37P13A4GL00	D37P13A6GL00	D37P13A4GX00	D25P13A6GL00	D09P13A6GL00
Description	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal	D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, M3, Plug	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	unknown
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD (30) OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
insulator material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
JESD-609 code	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	2/A	4/C	4/C	4/C	3/B	1/E
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	37	37	37	25	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99
Manufacturer's serial number	D	-	D	D	D	D
