ULQ2003R datasheet, PDF - EEWORLD Datasheet

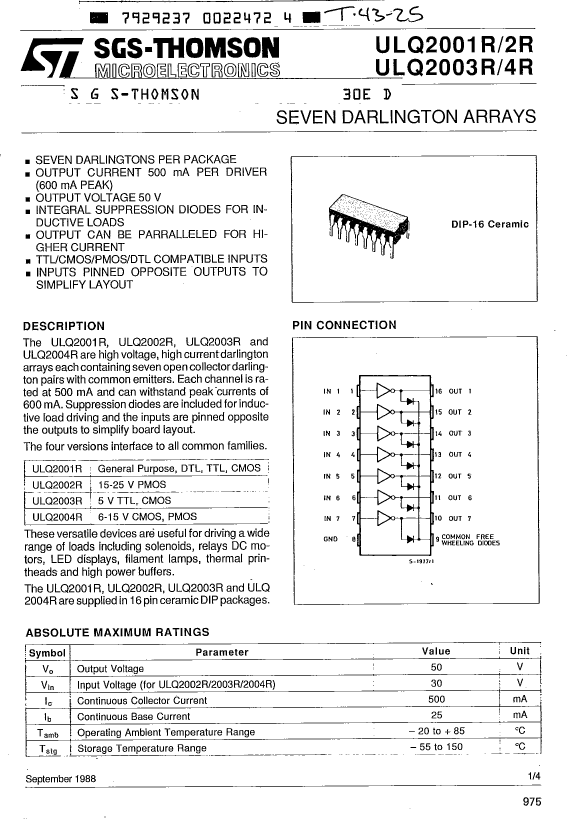

ULQ2003R: Description0.5A, 7 CHANNEL, NPN, Si, POWER TRANSISTOR; CategoryDiscrete semiconductor The transistor; File Size190KB，4 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

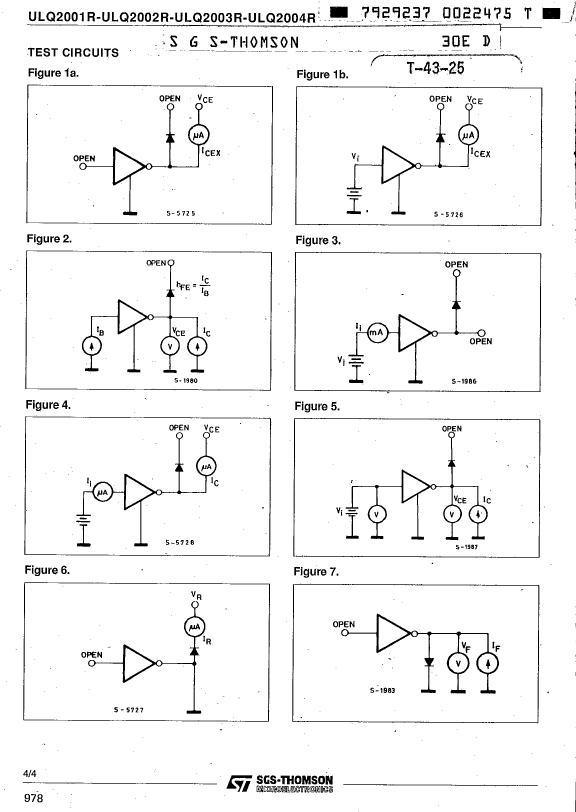

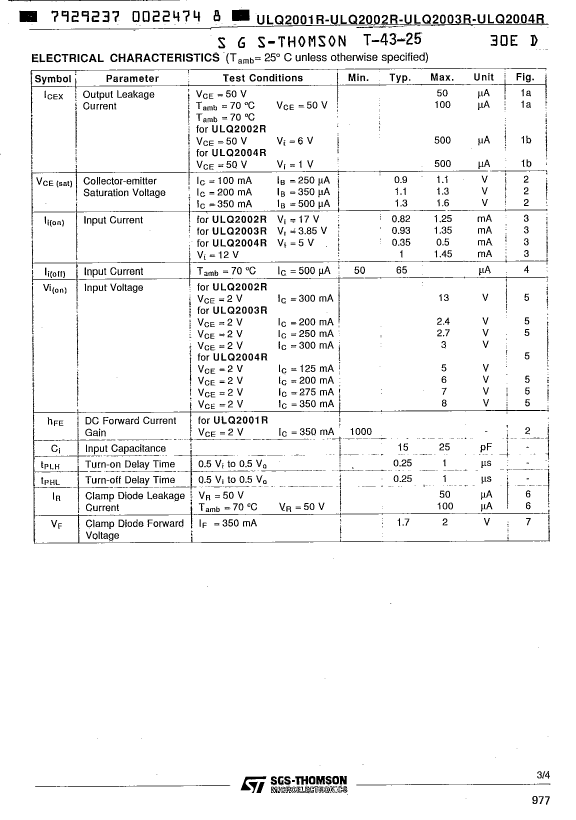

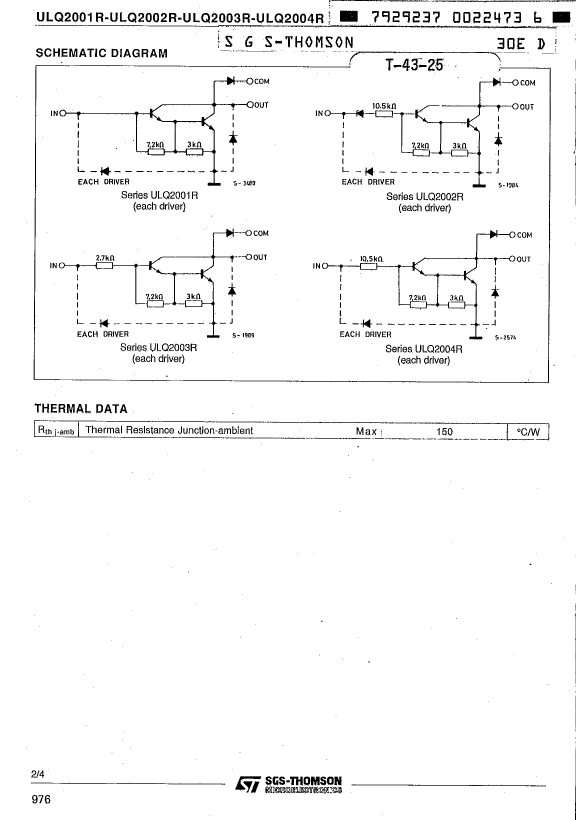

ULQ2003R Overview

0.5A, 7 CHANNEL, NPN, Si, POWER TRANSISTOR

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
package instruction	IN-LINE, R-CDIP-T16
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum collector current (IC)	0.5 A
Configuration	COMPLEX
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
Number of components	7
Number of terminals	16
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON

	ULQ2003R	ULQ2004R	ULQ2002R
Description	0.5A, 7 CHANNEL, NPN, Si, POWER TRANSISTOR	0.5A, 7 CHANNEL, NPN, Si, POWER TRANSISTOR	0.5A, 7 CHANNEL, NPN, Si, POWER TRANSISTOR
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	_compli
ECCN code	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.5 A	0.5 A	0.5 A
Configuration	COMPLEX	COMPLEX	COMPLEX
JESD-30 code	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16
JESD-609 code	e0	e0	e0
Number of components	7	7	7
Number of terminals	16	16	16
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Maker	STMicroelectronics	-	STMicroelectronics
package instruction	IN-LINE, R-CDIP-T16	-	IN-LINE, R-CDIP-T16
