RF AMPLIFIER
MODEL
TM3071
Features
!
!
!
!
Higher Gain: 20 dB Typical
Output Power: +19.5 dB Typical
Operating Temp.: - 55 ºC to + 85 ºC
Environmental Screening Available
Available as
:
TM3071, 4 Pin TO-8 (T4)
TN3071, 4 Pin Surface Mount (SM3)
FP3071, 4 Pin Flatpack (FP4)
BX3071, Connectorized Housing (H1)
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point ....... +51 dBm (Typ.)
Second Order Two Tone Intercept Point ........ +45 dBm (Typ.)
Third Order Two Tone Intercept Point ............ +34 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
Noise Figure (dB)
Power
Vdc
mA
TYPICAL
Ta= 25 ºC
10-500 MHz
20
+19.5
-22
<1.75:1
<1.5:1
4.0
+15
75
MIN/MAX
Ta = -55 ºC to +85 ºC
10-500 MHz
19 Min.
+18.5 Min.
-19 Max.
2.0:1 Max.
2.0:1 Max.
5.5 Max.
+15
85 Max.
Maximum Ratings
Ambient Operating Temperature .............. -55ºC to + 100 ºC
Storage Temperature ............................... -62ºC to + 125 ºC
Case Temperature ................................................. + 125 ºC
DC Voltage ......................................................... + 18 Volts
Continuous RF Input Power ................................. + 13 dBm
Short Term RF Input Power .... 100 Milliwatts (1 Minute Max.)
Maximum Peak Power .................... 0.5 Watt (3
µsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.

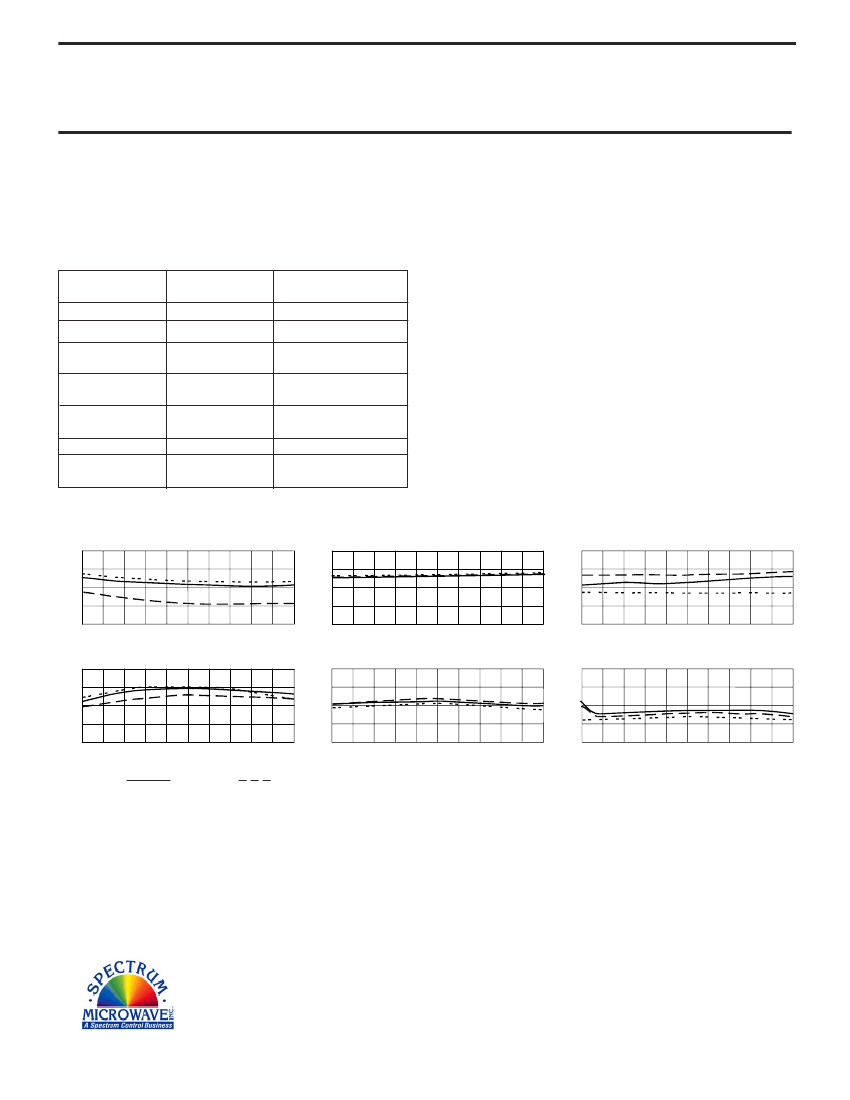

Typical Performance Data
21
20
19
18
17
Start 10 MHz
Stop 500 MHz
Gain (dB)
0
- 15
- 30
- 45
- 60
Reverse Isolation (dB)
6
5
4
3
2
Noise Figure (dB)
Start 10 MHz
Stop 500 MHz
Start 10 MHz
Stop 500 MHz
+21
+20
+19
+18
+17
Start 5 MHz
1 dB Comp. (dBm)
2.0
1.5
1.0
Input VSWR
2.0
1.5
1.0
Output VSWR
Stop 500 MHz
Start 10 MHz
Stop 500 MHz
Start 10 MHz
Stop 500 MHz
Legend
+ 25 ºC
+ 85 ºC - - - - - - -55 ºC
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
05/21/04
www.spectrummicrowave.com
Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
