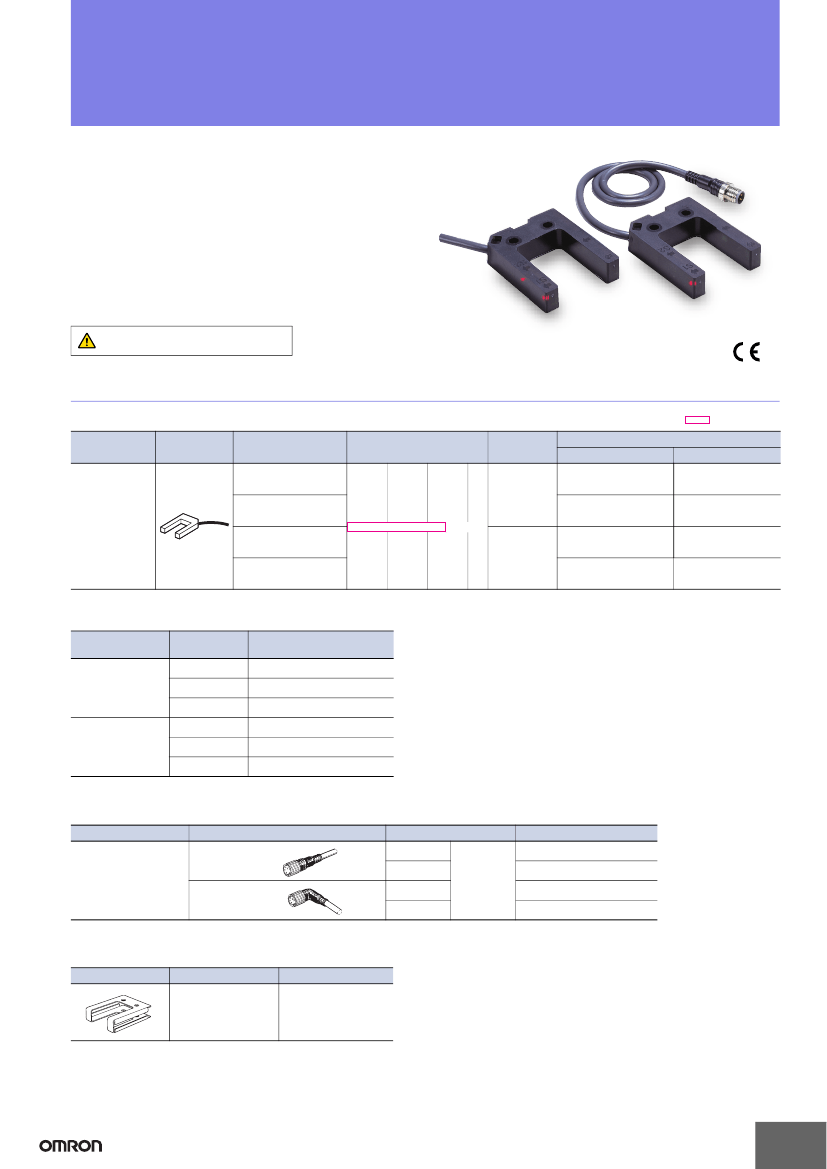

E3Z-G
Ratings and Specifications
Number of optical axes
Item
Model
NPN output
PNP output
25 mm
Opaque, 1.5-mm dia. min.
Infrared LED (940 nm)
12 to 24 VDC±10%, ripple (p-p): 10% max.
25 mA max.
40 mA max.
Load power supply voltage: 26.4 VDC max.
Load current: 100 mA max. (Residual voltage: 1 V max.)
Open collector output (NPN or PNP depending on model)
Light-ON/Dark-ON selectable
Reversed power supply polarity protection, Output short-circuit protection, and Mutual interference pre-
vention
Operate or reset: 1 ms max.
Incandescent lamp: 3,000 lx max.
Sunlight: 10,000 lx max.
Operating:
−25
to 55°C, Storage:
−40
to 70°C (with no icing or condensation)
Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
20 MΩ min. at 500 VDC between lead wires and case
1,000 VAC, 50/60 Hz for 1 min between lead wires and case
Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Destruction: 500 m/s
2
3 times each in X, Y, and Z directions
IP64 (IEC 60529)
Pre-wired cable (standard length: 2 m and 0.5 m)/Pre-wired Connector (standard length: 300 mm)
Operation indicator (orange)
Pre-wired
(with 2-m cable)
Pre-wired Connectors
Case
Approx. 65 g
Approx. 30 g
ABS (Acrylonitril Butadiene Styrene)
Instruction manual
1
E3Z-G61/E3Z-G61-M3J
E3Z-G81/E3Z-G81-M3J
2
E3Z-G62/E3Z-G62-M3J
E3Z-G82/E3Z-G82-M3J
Sensing distance
(distance between arms of groove)
Standard sensing object
Light source (wavelength)
Power supply voltage
Current consumption
Control output
Protection circuits
Response time
Ambient illumination
(Receiver side)
Ambient temperature range
Ambient humidity range
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Degree of protection
Connection method
Indicator
Weight
(packed
state)
Material
Accessories
2
E3Z-G
Plugs (Sensor I/O Connectors)
M8 connector
Wire color
4
3
2
1
1
2
3
4
e-CON connector
432 1
Pin arrangement
Classifi-
cation
Wire
color
Brown
White
Blue
Black
Connector
pin No.
1
2
3
4
Application
1-axis
2-axis
models
models
Power supply (+V)
Output 2 (S2)
---
Power supply (0 V)
Output
Output 1 (S1)
Brown
White
Blue
Black
E39-ECON@M
12 3 4
432 1
XS3F-M421-402-A
XS3F-M421-405-A
XS3F-M422-402-A
XS3F-M422-405-A
E39-ECONW@M
DC
Note: Pin 2 of 1-axis models is not used.
Safety Precautions
Refer to
Warranty and Limitations of Liability.
WARNING
This product is not designed or rated for ensuring
safety of persons either directly or indirectly.
Do not use it for such purposes.
Precautions for Correct Use
•
Do not use the product in atmospheres or environments that
exceed product ratings.
•
The degree of protection for this Product is IP64 (IEC).
The degree of protection for other models in the E3Z Series is
IP67.

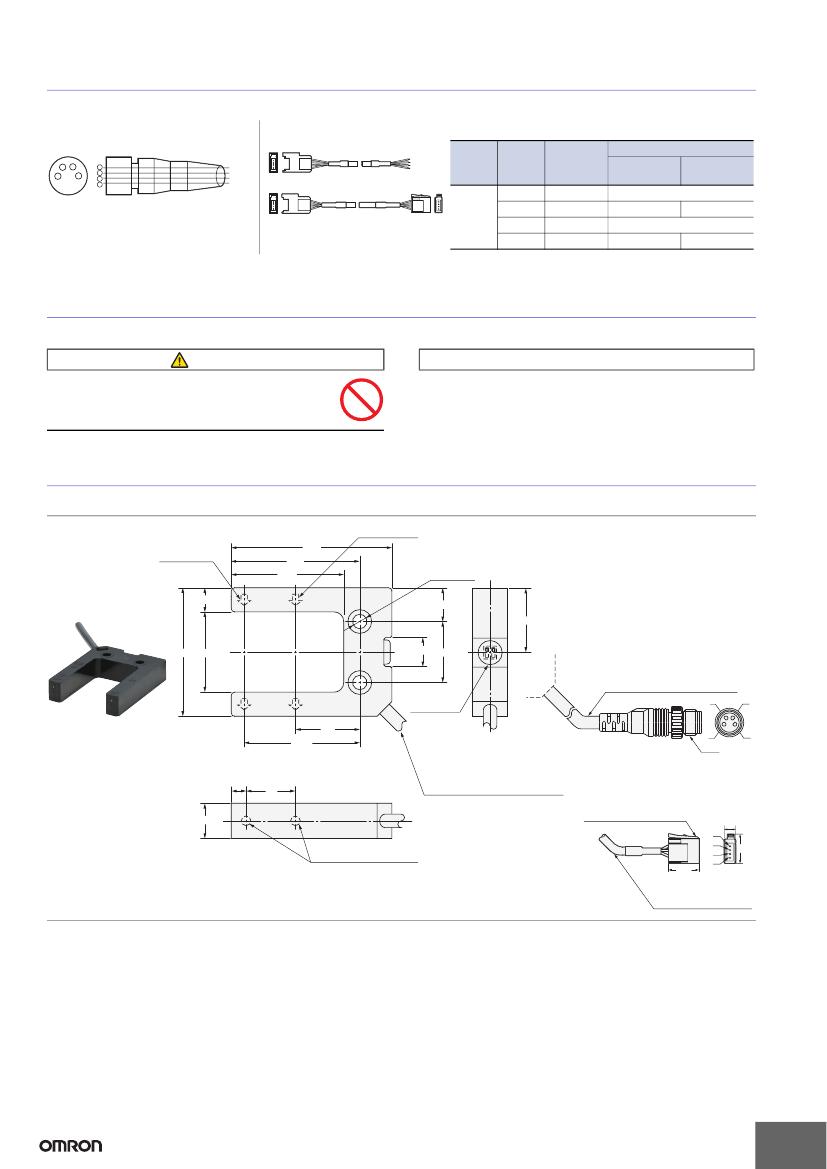

Dimensions
Sensors
E3Z-G61
E3Z-G62
Optical axis S1 *
40
35
7.5
Optical axis S2 *
50
(Unit: mm)
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.
Two, 4.5 dia.
10.5
20
40
25
9
Pre-wired Connector Models
(E3Z-G@@@-M3J)
4 dia. vinyl-insulated round cable with 3 or
4 conductors, Standard length: 0.3 m
19
Operation
mode selector
20
S1
S2
2
4
1
3
36
4
20
4-dia. vinyl-insulated round cable
with 3 or 4 conductors (Conductor
cross section: 0.2 mm
2
(AWG24),
Insulator diameter: 1.1 mm),
Standard lengths: 2 m, 0.5 m
M8
e-CON Pre-wired Connector Model
Connector: 37104-3122-000FL
(made by Sumitomo 3M)
5.9
1
2
3
4
11
Operation Indicator (orange)
* On the other side
Note: Both 1 and 2-axis models
have S1; only 2-axis models
have S2.
*S1 output: Black
*S2 output: White
15
15.6
4 dia. vinyl-insulated round
cable with 3 or 4 conductors,
Standard length: 0.3 m, 0.5m,
and 2m
Accessories (Order Separately)
Mounting Brackets
Refer to
E39-L
for details.
Sensor I/O Connectors
Refer to
XS3F and E3Z (E39-ECON
@
)
for details.
4
