DM7830F datasheet, PDF - EEWORLD Datasheet

DM7830F: DescriptionIC LINE RECEIVER, CDIP14, Line Driver or Receiver; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size47KB，2 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

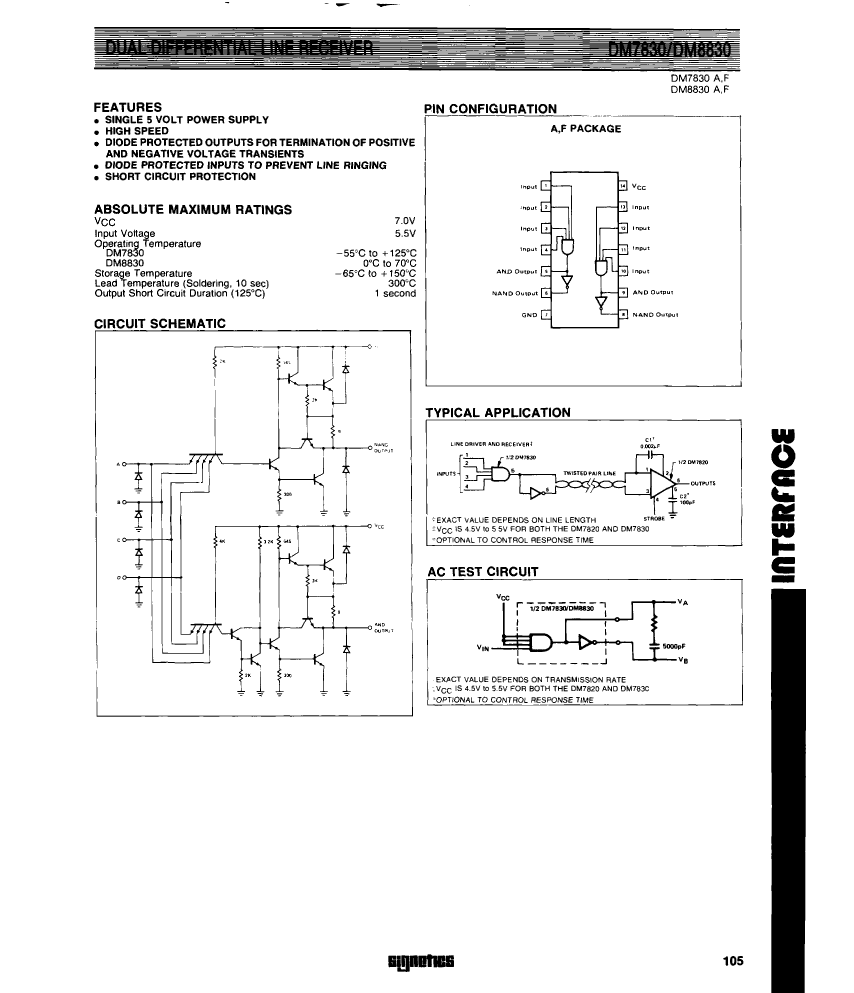

DM7830F Overview

IC LINE RECEIVER, CDIP14, Line Driver or Receiver

Parameter Name	Attribute value
Maker	NXP
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	EAR99
Input properties	STANDARD
Interface integrated circuit type	LINE RECEIVER
Interface standards	GENERAL PURPOSE
JESD-30 code	R-GDIP-T14
Number of functions	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified

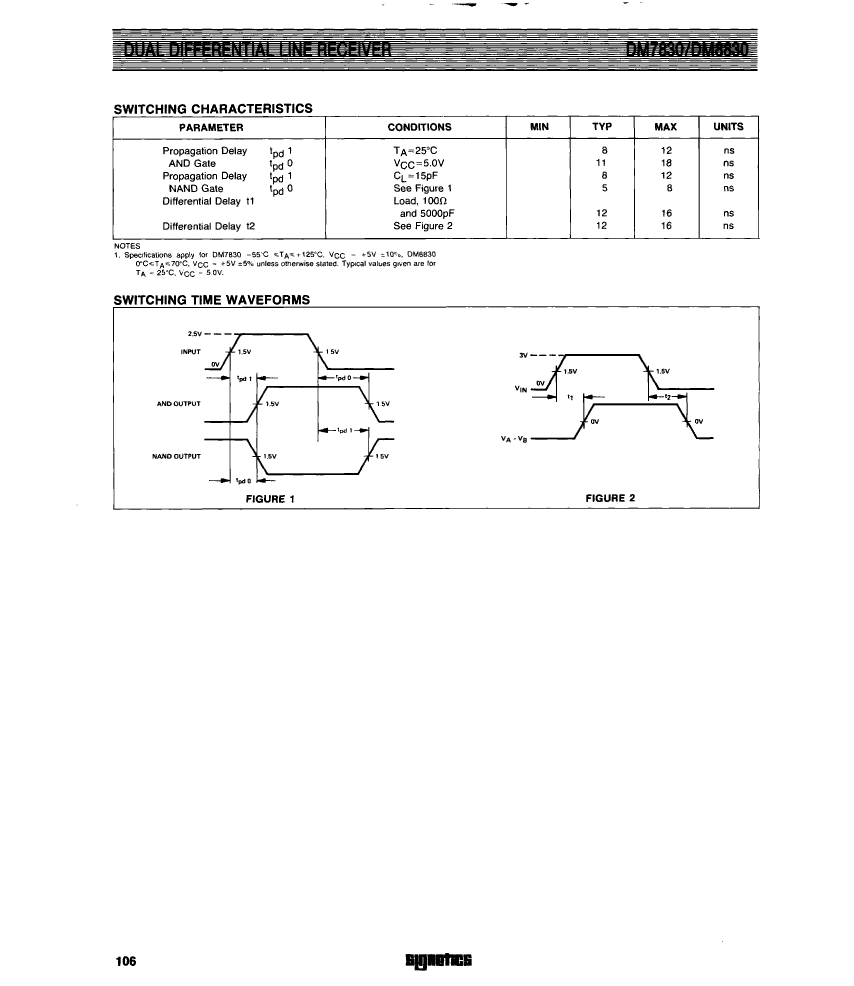

Maximum receive delay	18 ns
Number of receiver bits	2
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL

	DM7830F	DM8830F
Description	IC LINE RECEIVER, CDIP14, Line Driver or Receiver	IC LINE RECEIVER, CDIP14, Line Driver or Receiver
package instruction	DIP,	DIP,
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Input properties	STANDARD	STANDARD
Interface integrated circuit type	LINE RECEIVER	LINE RECEIVER
Interface standards	GENERAL PURPOSE	GENERAL PURPOSE
JESD-30 code	R-GDIP-T14	R-GDIP-T14
Number of functions	2	2
Number of terminals	14	14
Maximum operating temperature	125 °C	70 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum receive delay	18 ns	18 ns
Number of receiver bits	2	2
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
Temperature level	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL
