AT28C1024-20VC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> AT28C1024-20VC

AT28C1024-20VC: DescriptionEEPROM, 64KX16, 200ns, Parallel, CMOS,; Categorystorage storage; File Size260KB，10 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

AT28C1024-20VC Overview

EEPROM, 64KX16, 200ns, Parallel, CMOS,

AT28C1024-20VC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Atmel (Microchip)
package instruction	DIE, TAB(UNSPEC)
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum access time	200 ns
Other features	AUTOMATIC WRITE
command user interface	NO
Data polling	YES
JESD-30 code	R-XUUC-N40
memory density	1048576 bit
Memory IC Type	EEPROM
memory width	16
Humidity sensitivity level	1
Number of functions	1
Number of terminals	40
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX16
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIE
Encapsulate equivalent code	TAB(UNSPEC)
Package shape	RECTANGULAR
Package form	UNCASED CHIP
page size	64 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Programming voltage	5 V
Certification status	Not Qualified
Maximum standby current	0.0004 A
Maximum slew rate	0.1 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
switch bit	YES

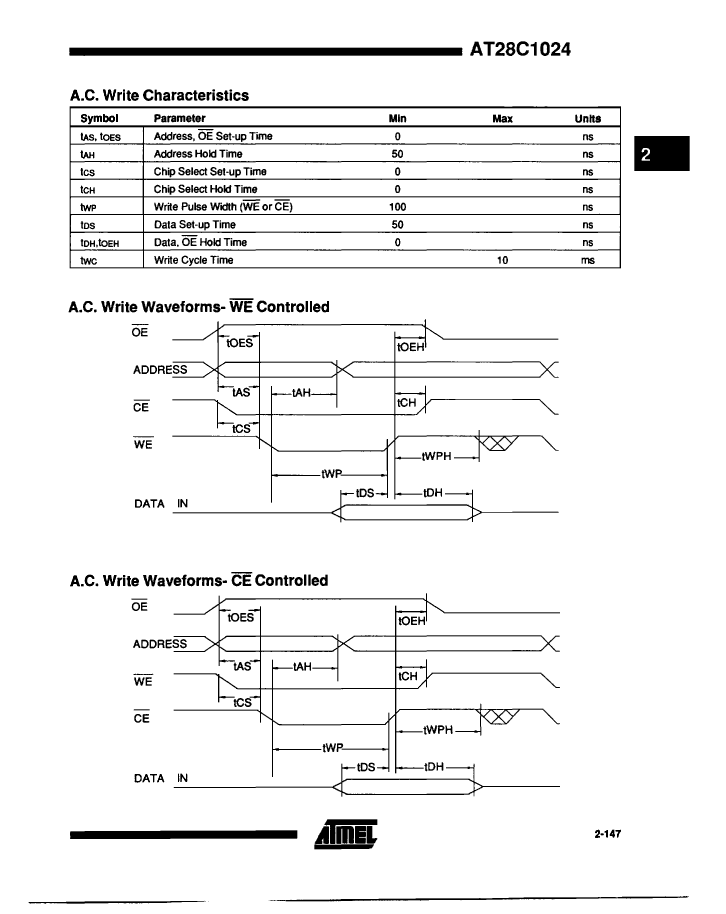

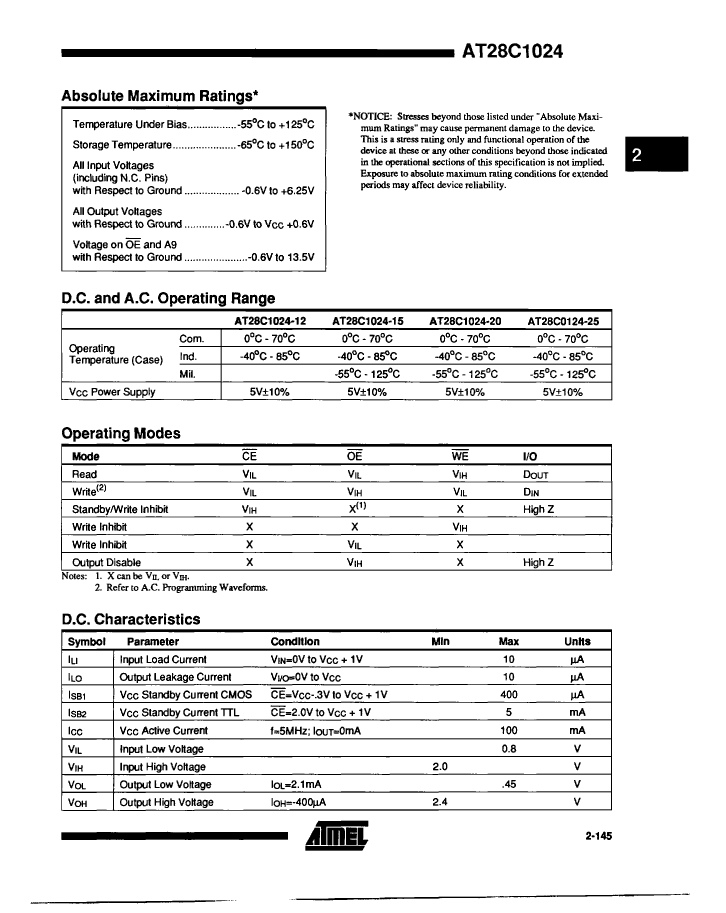

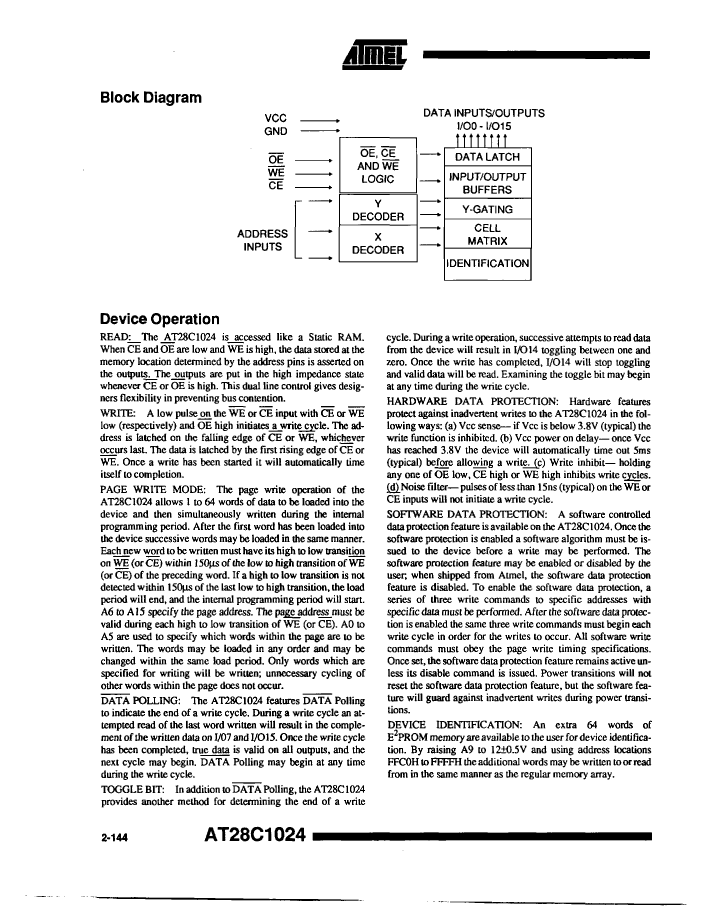

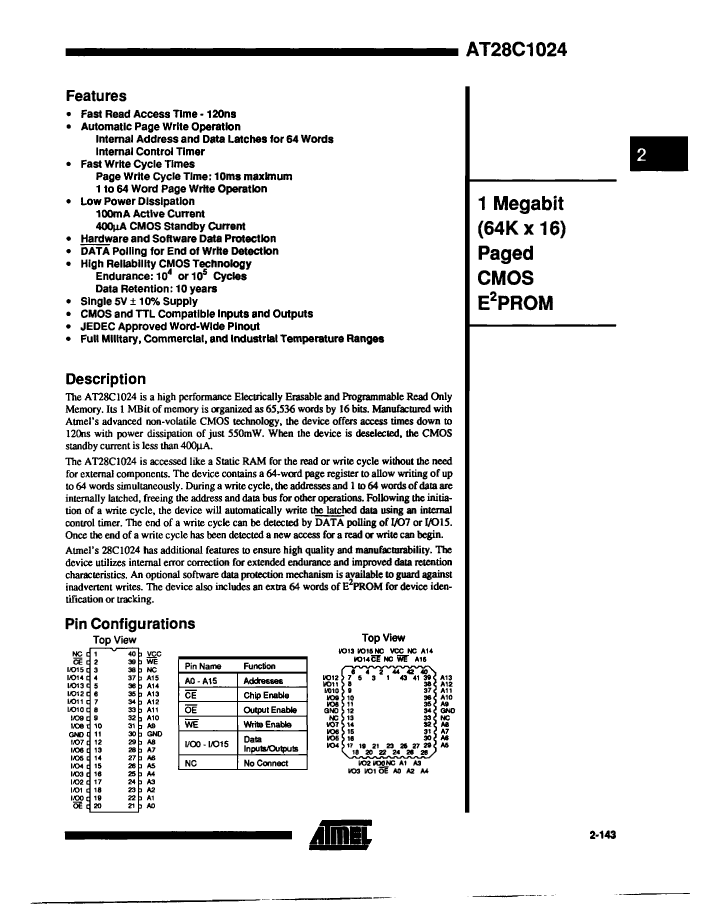

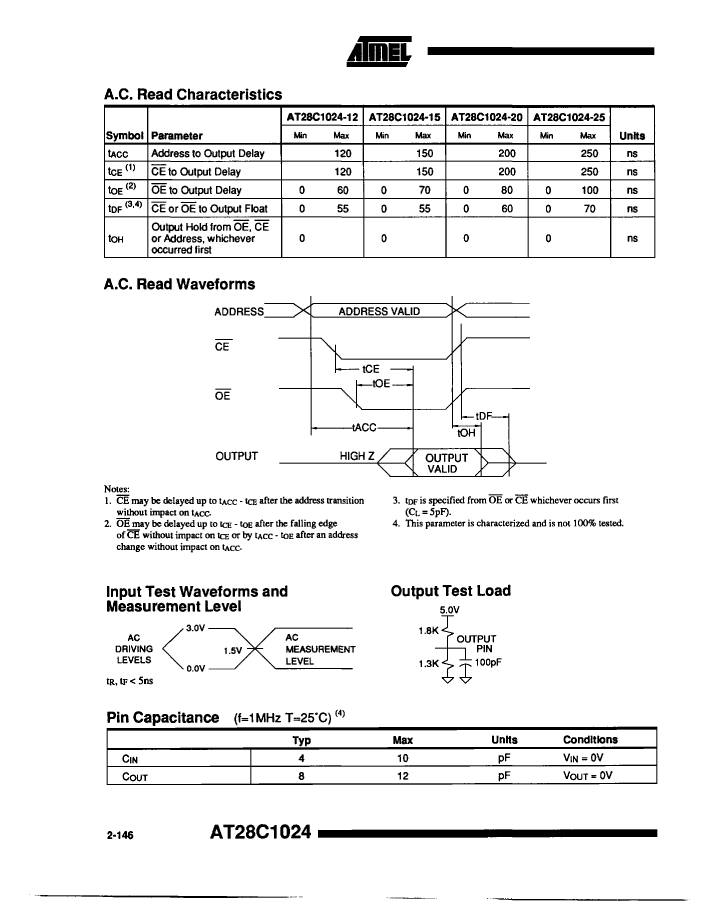

Preview

Download Datasheet

View All

AT28C1024-20VC Related Products

	AT28C1024-20VC	AT28C1024-15VM	AT28C1024-15VC	AT28C1024-25VC	AT28C1024-20VM	AT28C1024-25VI	AT28C1024-25VM	AT28C1024-15VI	AT28C1024-20VI
Description	EEPROM, 64KX16, 200ns, Parallel, CMOS,	EEPROM, 64KX16, 150ns, Parallel, CMOS,	EEPROM, 64KX16, 150ns, Parallel, CMOS,	EEPROM, 64KX16, 250ns, Parallel, CMOS,	EEPROM, 64KX16, 200ns, Parallel, CMOS,	EEPROM, 64KX16, 250ns, Parallel, CMOS,	EEPROM, 64KX16, 250ns, Parallel, CMOS,	EEPROM, 64KX16, 150ns, Parallel, CMOS,	EEPROM, 64KX16, 200ns, Parallel, CMOS,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIE, TAB(UNSPEC)	DIE, TAB(UNSPEC)	DIE, TAB(UNSPEC)	DIE, TAB(UNSPEC)	DIE, DIP40,.6	DIE, TAB(UNSPEC)	DIE, TAB(UNSPEC)	DIE, TAB(UNSPEC)	DIE, TAB(UNSPEC)
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	3A001.A.2.C	EAR99	EAR99	3A001.A.2.C	EAR99	3A001.A.2.C	EAR99	EAR99
Maximum access time	200 ns	150 ns	150 ns	250 ns	200 ns	250 ns	250 ns	150 ns	200 ns
Other features	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE	AUTOMATIC WRITE
command user interface	NO	NO	NO	NO	NO	NO	NO	NO	NO
Data polling	YES	YES	YES	YES	YES	YES	YES	YES	YES
JESD-30 code	R-XUUC-N40	R-XUUC-N40	R-XUUC-N40	R-XUUC-N40	R-XUUC-N40	R-XUUC-N40	R-XUUC-N40	R-XUUC-N40	R-XUUC-N40
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	16	16	16	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	40	40	40	40	40	40	40	40	40
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	125 °C	70 °C	70 °C	125 °C	85 °C	125 °C	85 °C	85 °C
Minimum operating temperature	-	-55 °C	-	-	-55 °C	-40 °C	-55 °C	-40 °C	-40 °C
organize	64KX16	64KX16	64KX16	64KX16	64KX16	64KX16	64KX16	64KX16	64KX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIE	DIE	DIE	DIE	DIE	DIE	DIE	DIE	DIE
Encapsulate equivalent code	TAB(UNSPEC)	TAB(UNSPEC)	TAB(UNSPEC)	TAB(UNSPEC)	DIP40,.6	TAB(UNSPEC)	TAB(UNSPEC)	TAB(UNSPEC)	TAB(UNSPEC)
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP
page size	64 words	64 words	64 words	64 words	64 words	64 words	64 words	64 words	64 words
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	225	225	225	225	NOT SPECIFIED	225	225	225	225
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Programming voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.0004 A	0.0004 A	0.0004 A	0.0004 A	0.0004 A	0.0004 A	0.0004 A	0.0004 A	0.0004 A
Maximum slew rate	0.1 mA	0.1 mA	0.1 mA	0.1 mA	0.1 mA	0.1 mA	0.1 mA	0.1 mA	0.1 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
switch bit	YES	YES	YES	YES	YES	YES	YES	YES	YES
Maker	Atmel (Microchip)	-	-	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)
Humidity sensitivity level	1	1	1	1	-	1	1	1	1
