DDU7-8497-4: DescriptionActive Delay Line, 1-Func, 10-Tap, True Output, DIP-14; Categorylogic logic; File Size144KB，1 Pages; ManufacturerData Delay Devices

Download Datasheet Parametric View All

DDU7-8497-4 Overview

Active Delay Line, 1-Func, 10-Tap, True Output, DIP-14

DDU7-8497-4 Parametric

Parameter Name	Attribute value
Maker	Data Delay Devices
Parts packaging code	DIP
package instruction	QIP,
Contacts	14
Reach Compliance Code	compliant
JESD-30 code	R-XDIP-P14
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	10
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	QIP
Package shape	RECTANGULAR
Package form	IN-LINE
programmable delay line	NO
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

(Military Type)

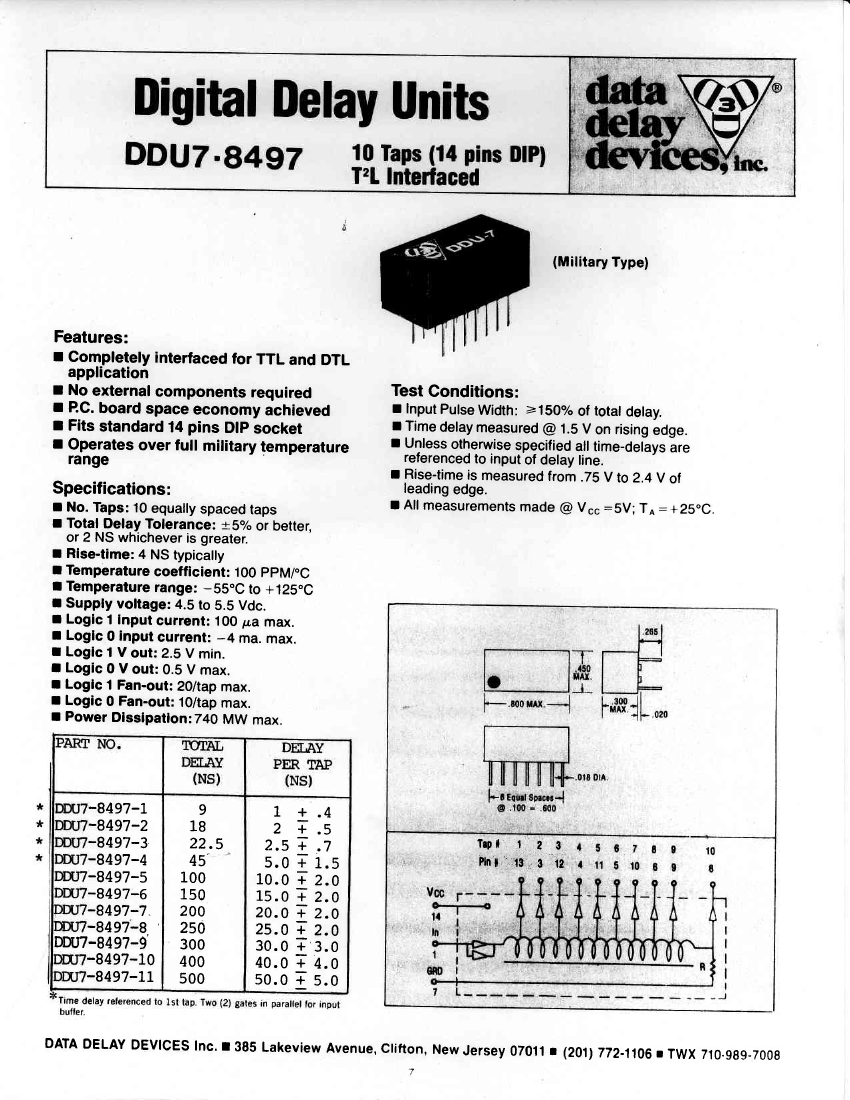

Features:

r Completelyinterfacedfor TTL and DTL

application

r No externalcomponentsrequired

r P.C.

board spaceeconomyachieved

r Fits standard14 pins Dlp socket

I Operatesover full militarytemperature

range

Specifications:

r No.Taps: equally

10

spaced

taps

TestConditions:

r lnput

Pulse

Width:>15C./o totaldelav.

of

r Timedelay

measured 1.5V on rising

LOge.

@

I Unless

otherwise

specified

alltime-delavs

are

referenced input'of

to

delayline.

r Rise-time measured

is

from.75V to 2.4 V of

leading

edge.

I A l l m e a s u r e m emta d e V c c= 5 V ; T a : + 2 5 . C .

n s @

I TotalDelayTolerance:-r5o/o better.

or

or 2 NS whichever greater.

is

I Rise-time:4 typicaily

NS

I Temperature

coefficient:100ppMfC

I Temperature

range:-55.C to +125'C

r Supplyvoltage:4.5 5.5Vdc.

to

f Logic1 Inputcurrent:100pa max.

r Loglc 0 input current:-4 ma.max.

r Logic 1 V out: 2.5 V min.

rLogic0Vout:0.SVmax.

r Loglc 1 Fan-out:20/tap

max.

r Logic 0 Fan-out:10/tap

max.

t PowerDlssipailon:740 max.

MW

-8497-L

-8497-2

-8497-3

-8497-4

-8497-5

-8497-6

-8497-7

-8497'-8 '

DD[J7-8497-g

-8497-10

-8497-11

9

18

22.5

45'

100

150

200

250

300

400

500

z T . s

2 . 5T . 7

5 . 0T 1 . s

1 0 . 0+ 2 . 0

2 0 . oT 2 . 0

1 + . 4

Trpt 1 Z g

Fnt'.t!: t tt

r.s.o 2.0

T

2 s . oT 2 . 0

3 0 . 0T ' 3 . 0

4 0o T 4 . 0

.

s 0 . 0T s . 0

OATA

DELAYDEVICES

Inc. r 3gS LakeviewAvenue.Clifton, New Jersey 07011 (201)772-1106

r

r TWX 710.989_7008

7
