DH4CC4LA

Description
Snap Acting/Limit Switch, SPDT, Momentary, 0.05A, 30VDC, 1.6mm, Solder Terminal, Simulated Roller Actuator, Through Hole-straight,
CategoryMechanical and electronic products    switch
File Size99KB,2 Pages
ManufacturerThe Cherry Corporation
Environmental Compliance
Download Datasheet Parametric View All

DH4CC4LA Overview

Snap Acting/Limit Switch, SPDT, Momentary, 0.05A, 30VDC, 1.6mm, Solder Terminal, Simulated Roller Actuator, Through Hole-straight,

DH4CC4LA Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerThe Cherry Corporation
Reach Compliance Codecompliant
ECCN codeEAR99
Actuator stroke1.6 mm
Actuator typeSIMULATED ROLLER
body width2.7 mm
body height6.85 mm
Body length or diameter8.2 mm
Maximum contact current (DC)0.05 A
Contact (DC) maximum rated R load.05A@30VDC
Maximum contact voltage (DC)30 V
JESD-609 codee4
Manufacturer's serial numberDH
Installation featuresTHROUGH HOLE-STRAIGHT
Maximum operating force0.49 N
Maximum operating temperature70 °C
Minimum operating temperature-25 °C
Maximum pre-travel1.3 mm
surface mountNO
Switch actionMOMENTARY
switch functionSPDT
Switch typeSNAP ACTING/LIMIT SWITCH
Terminal surfaceSilver (Ag)
Termination typeSOLDER

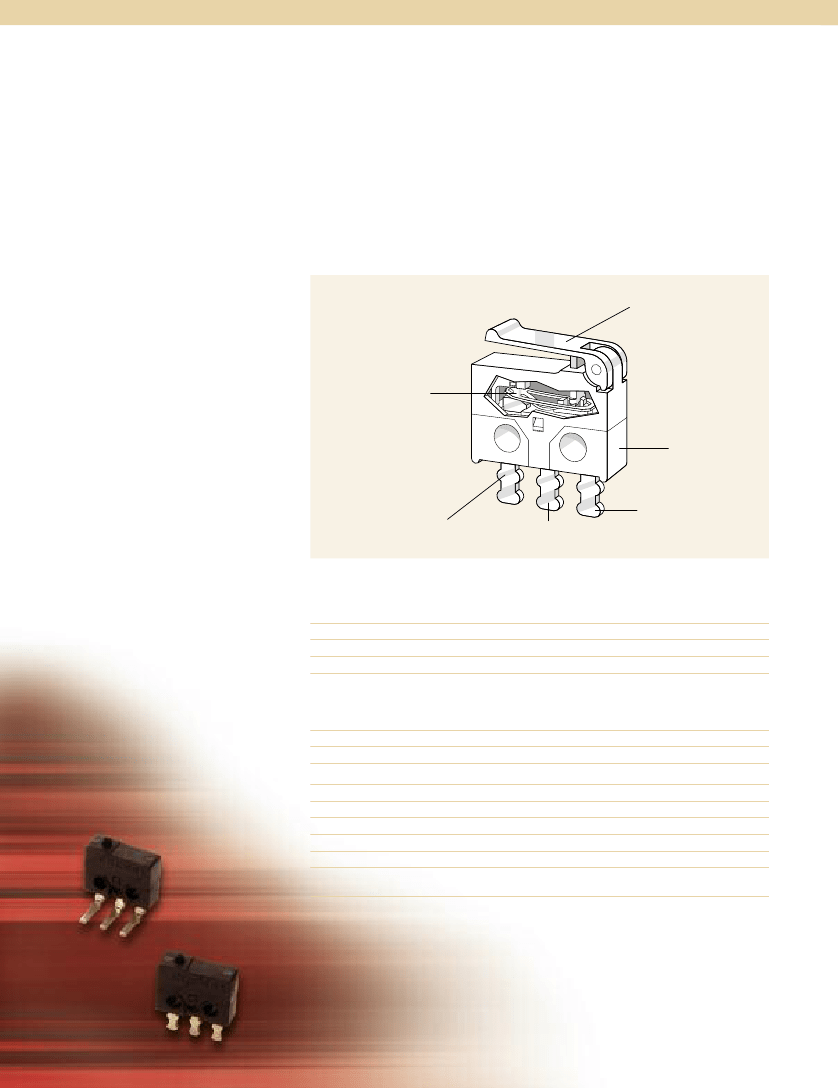

SUBMINIATURE
DH Series
Features
Ultraminiature dimensions,
just 0.323″ x 0.106″ x 0.244″
(8.2mm x 2.7mm x 6.2mm)
Specially designed for low switching
currents and voltages
Available with or without integrated
auxiliary actuator
Can be fitted to circuit boards in
upright position or horizontally
with formed terminals
Gold-plated
silver alloy contacts
Stainless steel
Thermoplastic
polyester base
Common terminal
NC terminal
NO terminal
Electrical Ratings
Switch
Series
Electrical Rating
DH2
DH3
DH4
5 to 500mA@30VDC
50 to 300mA@30VDC
5 to 50mA@30VDC
Specifications
Electrical
Temperature Rating:
Flammability Rating:
Materials
-25°C to +70°C
UL94V-O
PPS
PBT
PBT
Stainless Steel
Silver-Plated Brass
Silver-Plated Brass
(DH3)
Gold-Plated Brass
(DH4)
Base:
Button:
Cover:
Auxiliary Actuator:
Terminals:
Contacts:
PBT = Polybutyleneterephthalate • PPS = Polyphenylene Sulphide
