CMPS5062BK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> CMPS5062BK

CMPS5062BK: DescriptionSilicon Controlled Rectifier, 0.8A I(T)RMS, 510mA I(T), 200V V(DRM), 200V V(RRM), 1 Element, PLASTIC PACKAGE-3; CategoryAnalog mixed-signal IC Trigger device; File Size324KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric View All

CMPS5062BK Overview

Silicon Controlled Rectifier, 0.8A I(T)RMS, 510mA I(T), 200V V(DRM), 200V V(RRM), 1 Element, PLASTIC PACKAGE-3

CMPS5062BK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
package instruction	PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Configuration	SINGLE
Maximum DC gate trigger current	0.2 mA
Maximum DC gate trigger voltage	0.8 V
Maximum holding current	5 mA
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Maximum leakage current	0.05 mA
Number of components	1
Number of terminals	3
Maximum on-state current	510 A
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	0.8 A
Off-state repetitive peak voltage	200 V
Repeated peak reverse voltage	200 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR

Preview

Download Datasheet

View All

CMPS5061

CMPS5062

CMPS5063

CMPS5064

SURFACE MOUNT

SILICON CONTROLLED RECTIFIER

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMPS5061 Series

types are epoxy molded PNPN Silicon Controlled

Rectifiers manufactured in an SOT-23 case, designed

for control systems and sensing circuit applications.

MARKING CODE: CMPS5061:

CMPS5062:

CMPS5063:

CMPS5064:

P2A

P2B

P2C

P2D

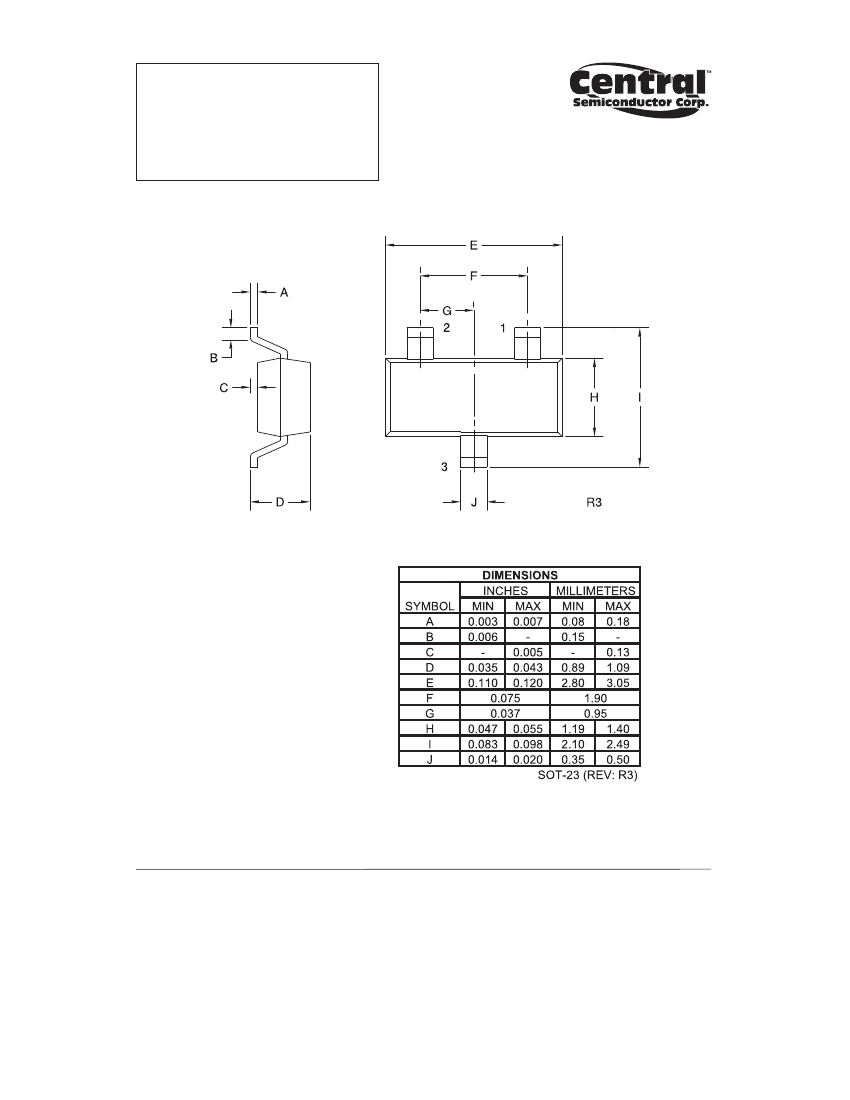

SOT-23 CASE

MAXIMUM RATINGS:

(TA=25°C)

Peak Repetitive Off-State Voltage

Peak Repetitive Reverse Voltage

RMS On-State Current

Average On-State Current

Power Dissipation

Operating Junction Temperature

Storage Temperature

Thermal Resistance

SYMBOL

VDRM

VRRM

IT(RMS)

IT(AV)

Tstg

CMPS5061 CMPS5062

100

200

100

200

CMPS5063 CMPS5064 UNITS

300

400

300

400

°C

°C/W

0.25

0.16

350

-65 to +125

-65 to +150

286

CMPS5061

MIN MAX

1.0

1.7

200

0.8

5.0

2.8 TYP

0.1

ELECTRICAL CHARACTERISTICS:

(TA=25°C)

SYMBOL TEST CONDITIONS

IDRM

VD=Rated VDRM, RGK=1.0KΩ

IRRM

IDRM

IRRM

VTM

IGT

VGT

VGD

ton

VD=Rated VDRM, RGK=1.0KΩ

VD=Rated VDRM, RGK=1.0KΩ,

IT=1.2A

VD=7.0V, RL=100Ω

VD= Rated VDRM, RL=100Ω, TC=125°C

RGK=1.0KΩ

VD= Rated VDRM, IGT=1.0mA,

RGK=1.0KΩ, di/dt=6.0A/μs

TC=125°C

CMPS5062 CMPS5063 CMPS5064

MIN MAX MIN MAX MIN MAX UNITS

1.0

μA

0.1

1.0

1.7

200

0.8

5.0

2.8 TYP

0.1

1.0

1.7

200

0.8

5.0

2.8 TYP

0.1

1.0

1.7

200

0.8

5.0

2.8 TYP

μA

μs

R10 (11-February 2011)
