P54FCT646TLM datasheet, PDF - EEWORLD Datasheet

P54FCT646TLM: DescriptionRegistered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC28, HERMETIC SEALED, LCC-28; Categorylogic logic; File Size196KB，6 Pages; ManufacturerPyramid Semiconductor Corporation; Websitehttp://www.pyramidsemiconductor.com/

Download Datasheet Parametric View All

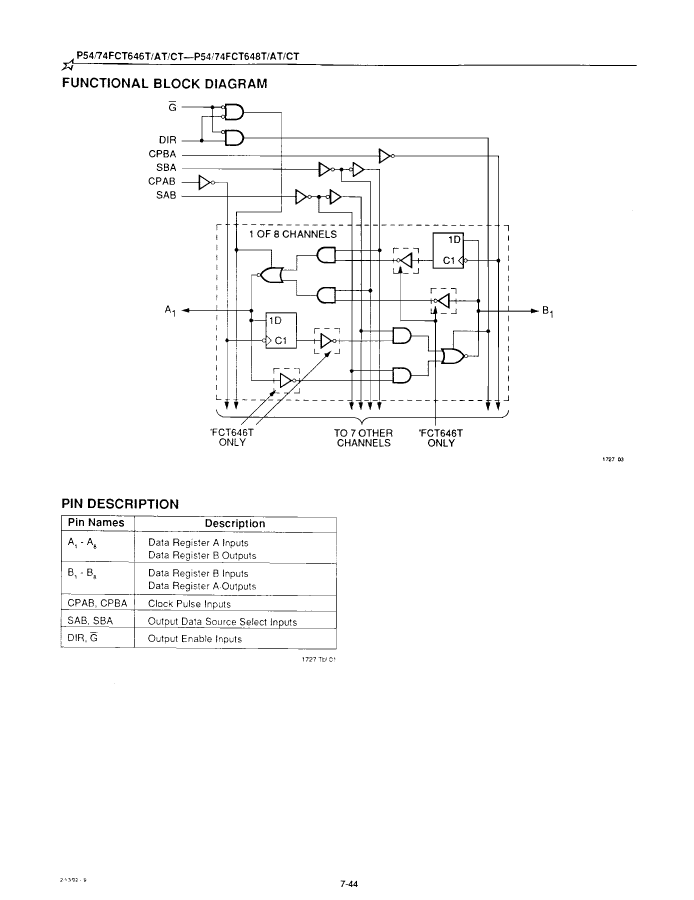

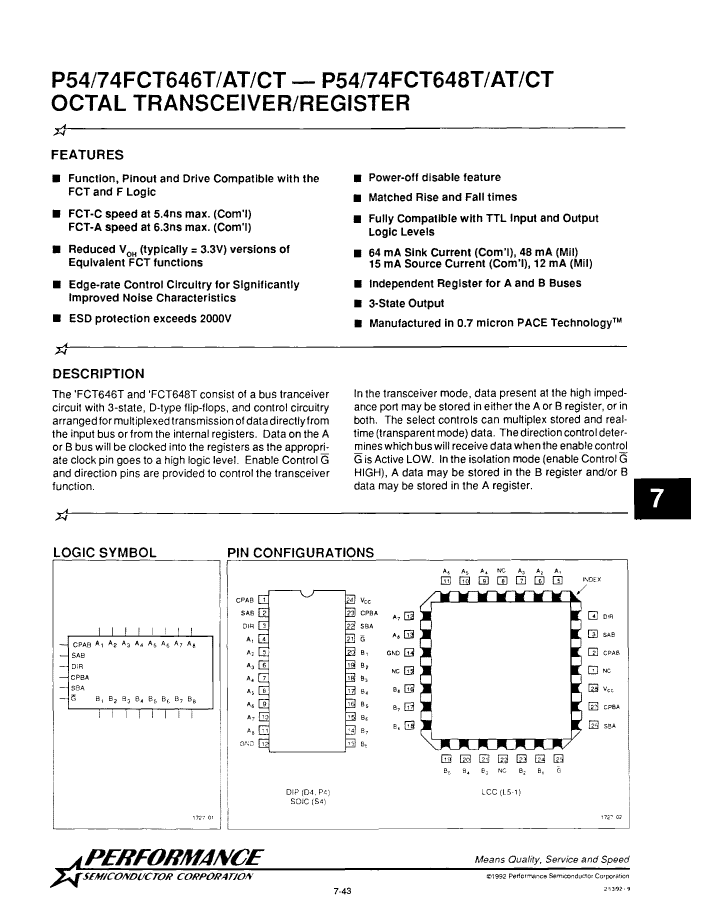

P54FCT646TLM Overview

Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC28, HERMETIC SEALED, LCC-28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Pyramid Semiconductor Corporation
Parts packaging code	QLCC
package instruction	QCCN, LCC28,.45SQ
Contacts	28
Reach Compliance Code	unknown

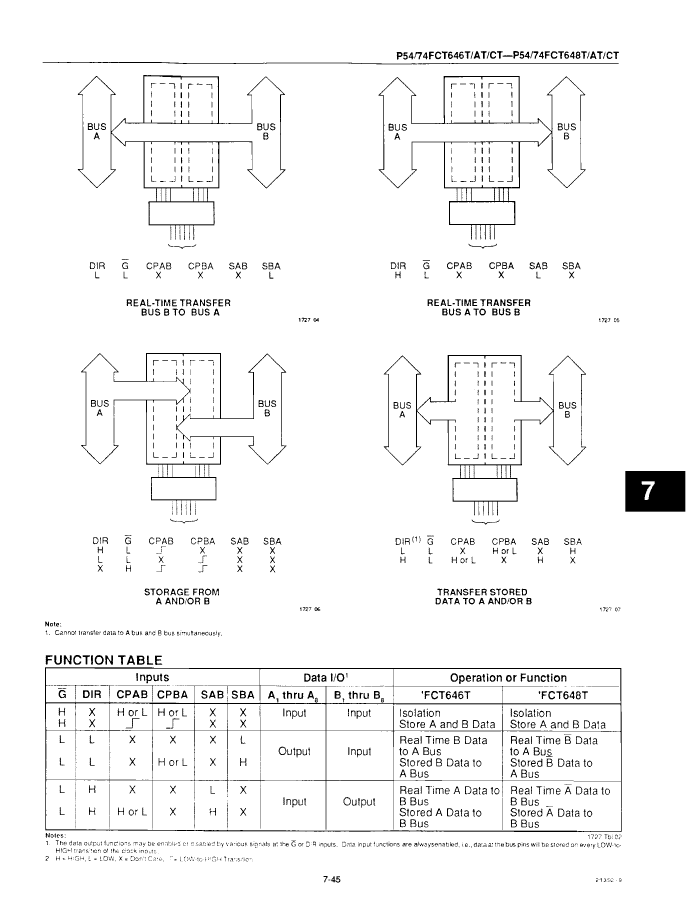

Other features	DIRECTION CONTROL; SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
series	FCT
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.4554 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.048 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	28

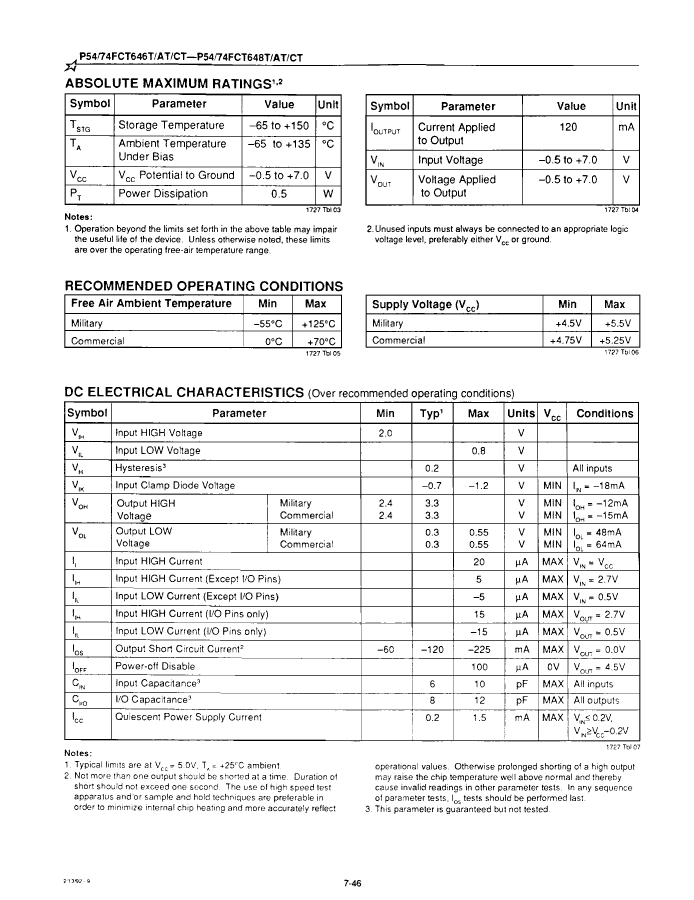

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

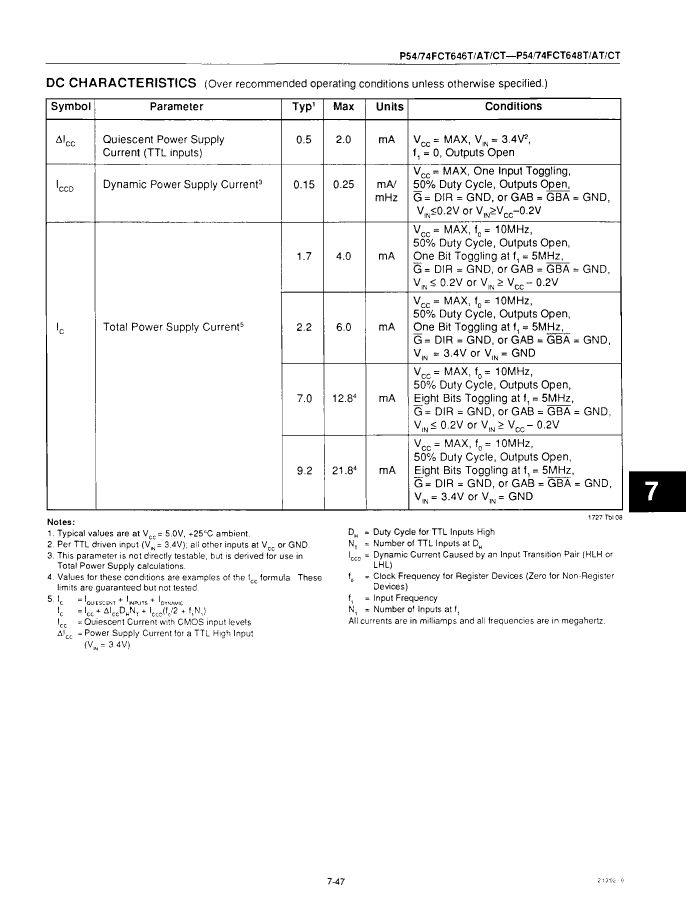

power supply	5 V
Prop。Delay @ Nom-Sup	11 ns
propagation delay (tpd)	10 ns
Certification status	Not Qualified
Maximum seat height	1.905 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
translate	N/A
Trigger type	POSITIVE EDGE
width	11.4554 mm
