Q69X3727 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> Q69X3727

Q69X3727: DescriptionRESISTOR, VOLTAGE DEPENDENT, 560V, 1500J, CHASSIS MOUNT; CategoryPassive components The resistor; File Size143KB，3 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric View All

Q69X3727 Overview

RESISTOR, VOLTAGE DEPENDENT, 560V, 1500J, CHASSIS MOUNT

Q69X3727 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Maker	EPCOS (TDK)
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Circuit maximum DC voltage	560 V
Circuit RMS maximum voltage	420 V
Maximum energy absorption capacity	1500 J
JESD-609 code	e3
Manufacturer's serial number	SIOV
Installation features	CHASSIS MOUNT
Number of terminals	2
Maximum operating temperature	85 °C
Package shape	RECTANGULAR PACKAGE
Rated power dissipation(P)	1.6 W
Resistor type	VARISTOR
surface mount	NO
Terminal surface	TIN
Terminal location	RADIAL
Terminal shape	BINDING POST

Preview

Download Datasheet

View All

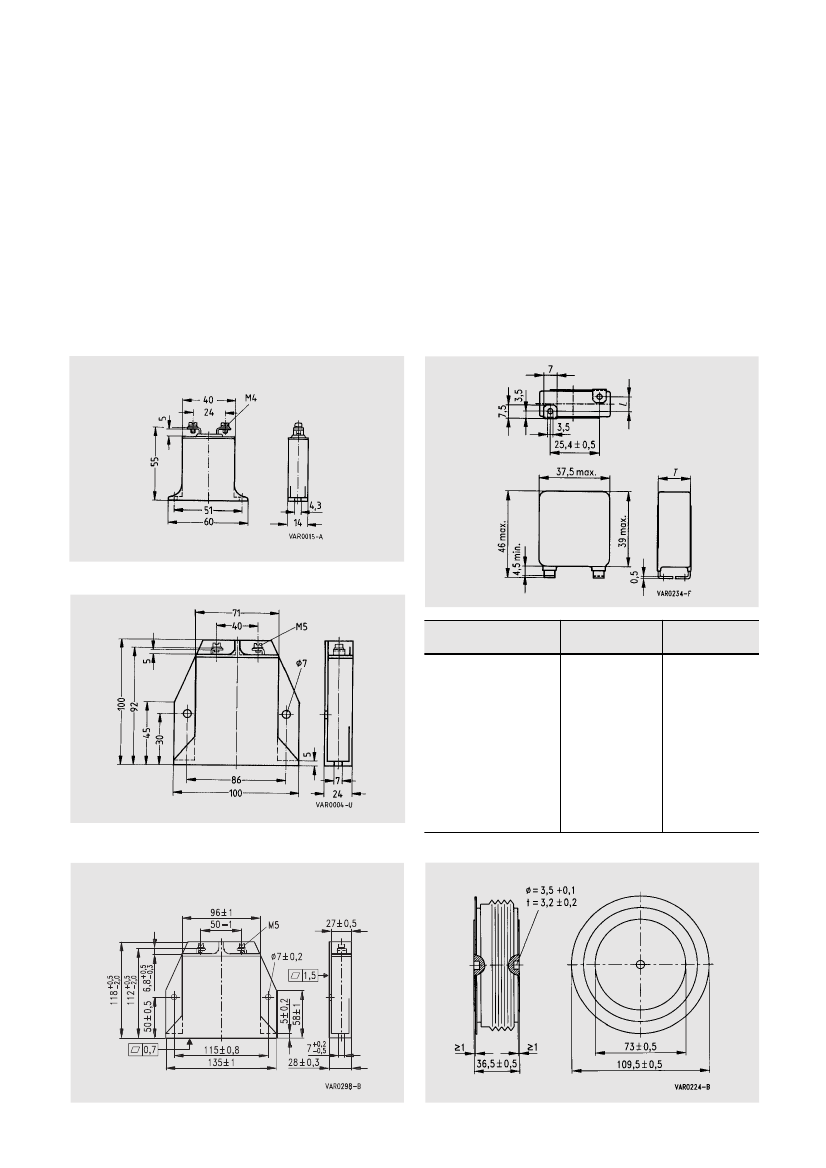

Block- und Laschenvaristoren, PowerDisk

Block and Strap Varistors, PowerDisk

Abmessungen (mm)

Dimensions (mm)

Block Varistoren

Block varistors

SIOV-B32/-B40

Laschen-Varistoren

Strap varistors

SIOV-LS 40

SIOV-B60

Typ

Type

SIOV-LS40K130QP

SIOV-LS40K150QP

SIOV-LS40K230QP

SIOV-LS40K250QP

SIOV-LS40K275QP

SIOV-LS40K320QP

SIOV-LS40K385QP

SIOV-LS40K420QP

SIOV-LS40K440QP

SIOV-LS40K460QP

SIOV-LS40K550QP

SIOV-LS40K680QP

SIOV-LS40K750QP

max.

8,1

8,3

9,0

9,2

9,4

9,9

10,6

10,9

11,1

11,4

12,3

13,5

14,1

± 1,0

–3,5

–3,2

–2,0

–1,8

–1,6

–1,1

–0,4

0,0

0,2

0,4

1,2

2,4

3,0

PowerDisk

SIOV-B80

SIOV-PD80

Siemens Matsushita Components
