8 Channel, 12 Bit D ata Acquisition
System W ith µP Interface
FEATURES
Complete 8 channel, 12-bit data acquisition
system with M UX, S/H, REF, clock and three-
state outputs
Full 8- or 16-bit microprocessor bus interface
Guaranteed linearity over temperature
High throughput rate: 25kHz
Hermetic 28-pin
Low Power: 400mW
DESCRIPTION
The HS9410 Series is a complete 8-channel, micro-
processor-compatible, 12-bit data acquisition system
with all the interface logic to connect directly to
8- or 16-bit microprocessor buses. It is contained in
a 28-pin DIP and includes an 8-channel multiplexer,
a sample-and-hold amplifier, and a 12-bit A/D
converter along with the control logic needed to
perform a complete data acquisition function. System
throughput rate is 25kHz for full rated accuracy.
The analog-to-digital converter section contains
the HS574 12-bit A DC. The HS9410 Series is offered
in a hermetically sealed package for use over a
wide temperature range and for M IL-STD-883
requirements.
H S9410 Series
D ata Converter Line
The HS9410 Series operates from ±15V * and +5V
with a total power consumption of 400mW . To take
advantage of the 28-pin package, the user must
specify an input range of 0 to +10V , ±5V or ±10V
when ordering. Four basic product grades are
available; J and K models are specified over a
temperature range of 0ºC to +70ºC while the S
and T models are specified over an extended
temperature range of –55ºC to +125ºC. Full
screening to M IL-STD-883C and processing in ac-
cordance with M ethod 5008.1 is available with
models specified as “ B.”
* ±12V operation possible; consult factory for further information.

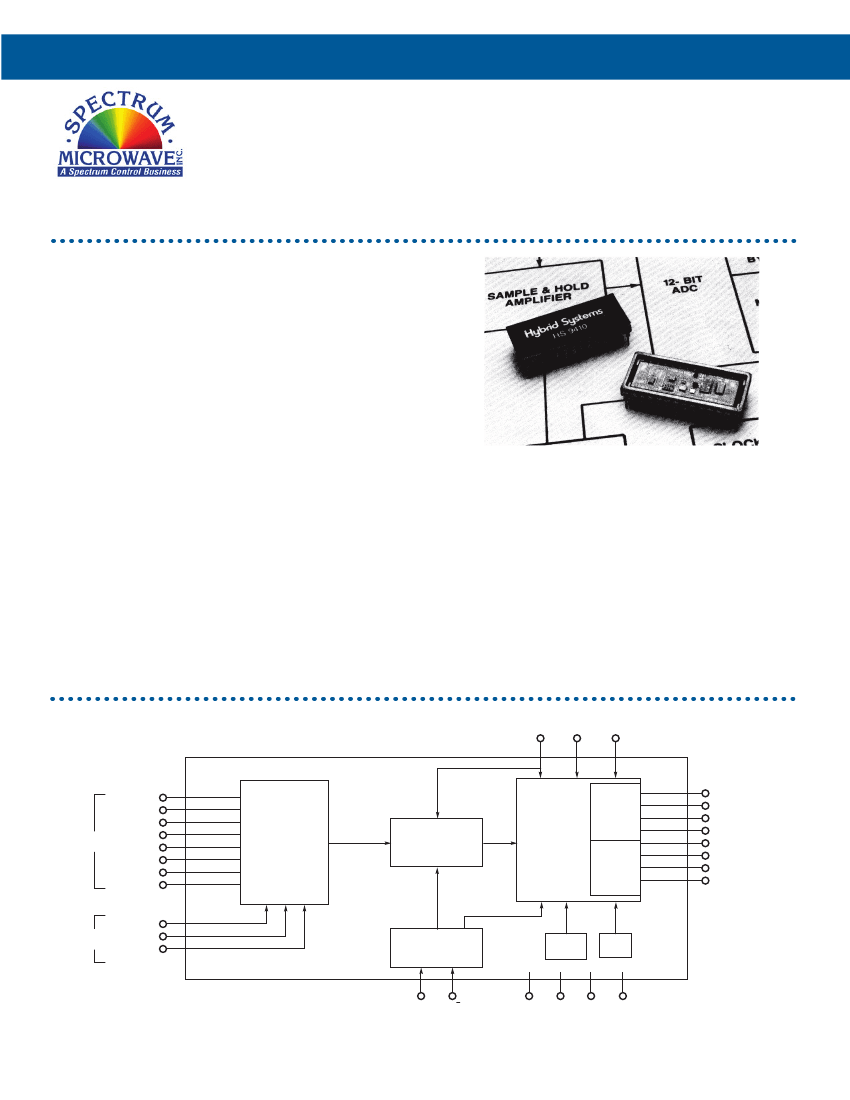

FUNCTIONAL DIAGRAM
STS
(STA TUS)
22
21
GA IN
20
OFFSET
CH 1
CH 2
CH 3
A NA LOG
INPUTS
CH 4
CH 5
CH 6
CH 7
CH 8
11
12
13
14
18
17
16
15
8 CHA NNEL
M ULTIPLEXER
SA M PLE & HOLD
A M PLIFIER
12-BIT
A DC
HIGH
BY TE
OR
LOW
BY TE
M IDDLE
BY TE
2
1
28
27
26
25
24
23
DB 11 (M SB)/DB 3
DB 10 /DB 2
DB 9 /DB 1
DB 8 /DB 0 (LSB)
DB 7
DB 6
DB 5
DB 4
MA0
M UX
A DDRESS
MA1
MA2
10
9
8
CONTROL
LOGIC
CLOCK
REF
HS 9410 SERIES
3
A0
4
R/C
19
V CC
+15V
7
V EE
– 15V
6
V LOGIC
+5V
5
GND
165Cedar Hill Street,Marlborough,MA01752 Tel:508.485.6350 Fax: 508.485.5168
www.SpectrumMicrowave.com
HS9410 SERIES
SPECIFICATIO N S
(Typical@ +25ºC with V
CC
= + V
EE
= –15 V.V
LOGIC
= + 5V, unless otherwise specified)
M ODEL
HS 941XJ
HS 941XK
TRA NSFER CHA RA CTERISTICS
Resolution
Number of Channels
Throughput Rate
12-Bits
8 Single-Ended
25 kHz
HS 941XS
HS941XT
A NA LOG INPUTS
Input Ranges
1
(Specified as a sullix in the model number. See Ordering Guide.)
HS9410
0 to +10V
HS9411
±5V
HS9412
±10V
Input Bias Current per Channel
I
IB
25ºC
±10 nA typ
-55ºCto +125ºC
Input Impedance
ON Channel
10
10
II 100pf
OFF Channel
10
10
II 10pf
DIGITA L INPUTS
Logic Inputs
R/C.A
0
V
IH
min
V
IH
max
V
IL
max
V
IL
min
I
IL
max
I
IL
max
M ultiplexer inputs
V max
V
IL
min
Input Capacitance (A ll Digital Inputs)
M inimum Start Pulse
R/C-Negative
SIGNA L DY NA M ICS
Conversion Time
12-Bit Conversion
8-Bit Conversion
DIGITA L OUTPUTS
Logic Outputs
DB
11
-DB
0
. STS
Logic 0
Logic 1
Leakage (High 2 Slate)
Capacitance
Output Code Configuration
Unipolar
Bipolar
POW ER SUPPLY
V
LOGIC
V CC
V EE
Power Dissipation
Rejection
3
V LOGIC
V CC
V EE
A CCURA CY
Linearity Error (% of F.S.R. max)
Offset
4
Unpolar (% of F.S.R. max)
Bipolar (% of F.S.R. max)
Gain
4
(% of F.S.R. max)
± 250nA max
+2.4V
+5.5V
+0.8V
–0.5V
±5µA max
±5µA max
+0.8V
+4.0V
5pF typ
50ns
+4.0V 2
+4.0V
2
25µs max
9µs max
+0.4V max. I
OL
1.6mA
+2.4V min. I
OH
0.5mA
±5µA typ (DB
11
DB 0 only)
5pF typ
Positive True Binary
Positive True Offset Binary
+4.5 to +5.5 V olts@11mA max
+13.5 to +16.5 V olts@35mA max
–13.5 to –16.5 V olts@15mA max
700mW typ.,1W max.
0.002% /% lyp. 0 005% /% max
0.002% /% lyp. 0 005% /% max
0.002% /% lyp. 0 005% /% max
±0.025
±0.05
±0.25
±0.3
±0.012
±0.025
±0.012
700mW typ.,1W max.
700mW typ.,1W max.
±0.01
±0.25
±0.01
Continued on next page.
HS9410 SERIES
STA BILITY
Linearity (ppm/ºC max)
Unipolar Offset (ppm/ºC max)
Bipolar Offset (ppm/ºC max)
Gain (Scale Factor)(ppm/ºC max)
TEM PERA TURE RA NGE
Operating
Storage
±0.5
±10
±25
±0.5
±5
±20
±0.25
±25
±25
±0.25
±20
±20
0º to +70ºC
–25ºC to +85ºC
–55ºC to +125ºC
–65ºC to +150ºC
-55ºC to +125ºC
-55ºC to +125ºC
NOTES
1 For J and K models, positive analog input voltage should not exceed V CC –4 volts. Exceeding \/CC –4 volts can cause an OFF channel to be turned ON. Negative
input voltages and input voltages for S and T models may go to supply voltages. Input voliages exceeding these values will not result in permanent damage as long
as the absolute maximum ratings are not exceeded. 2. 1 K pullup to + 5V recommended for M A 0 -M A 2 when driven by TTL 3.M aximum change over rated supply
voltage. 4. Externally adjustable to zero. See A pplications Information.
* Specifications same as HS 9410J

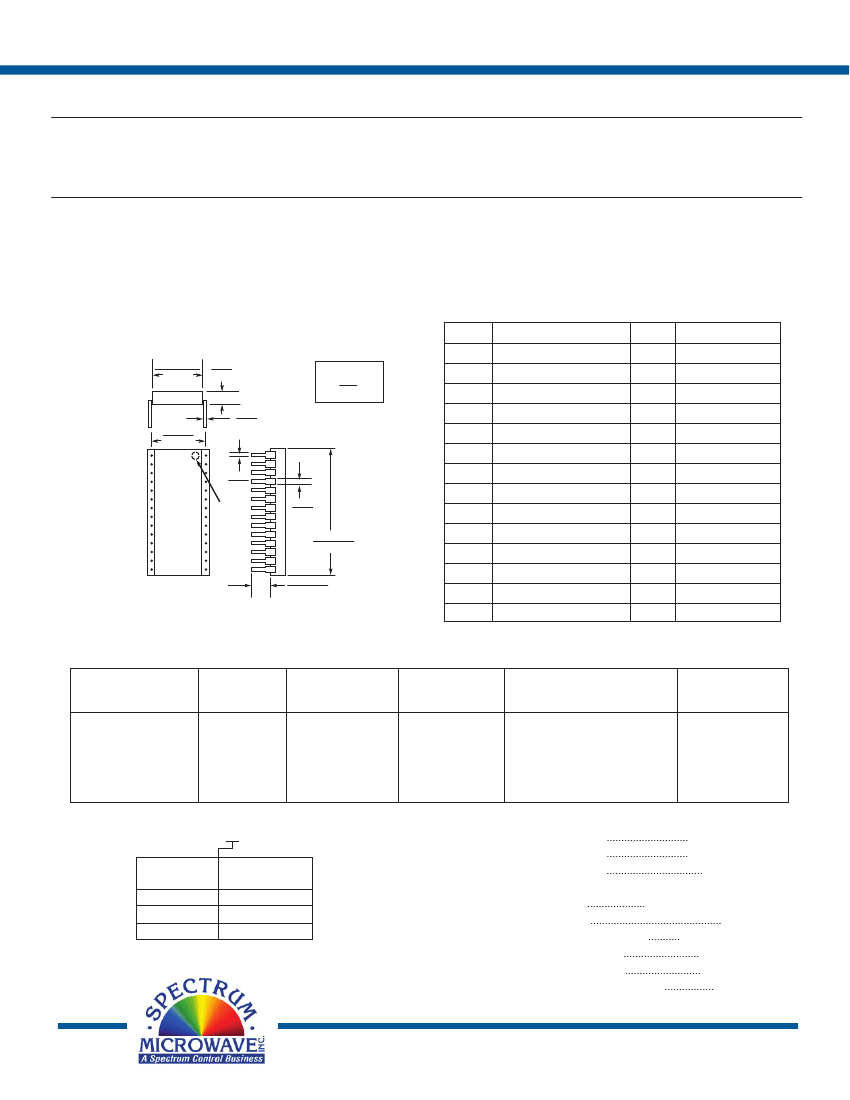

PIN A SSIGNM ENTS
PIN
1
DIM ENSIONS
Inch
mm
0.010
(0.254)
PA CK A GE OUTLINE
Dimensions shown in inches and (mm)
0.620 M A X
(15.75)
0.145
(3.68)
FUNCTION
D8,o/DB2
DBn(M SB)/DB3
Ao
R/C
GROUND
V LOGIC
V EE
M UX A DDRESS A 2
M UX A DDRESS A 1
M UX A DDRESS A 0
INPUT CH 1
INPUT CH 2
INPUT CH 3
INPUT CH 4
PIN
28
27
26
25
24
23
22
21
20
19
18
17
16
15
FUNCTION
DB 9 /DB 1
DB 8 /DB 0
DB 7
DB 6
DB 5
08 4
STS(STA TUS)
GA IN
OFFSET
V cc
INPUT CH 5
INPUT CH 6
INPUT CH 7
INPUT CH 8
2
3
4
5
6
7
0.600
(15.240)
28
0.020
(0.51)
PIN 1
DOT
0.052
(1.32)
0.414 M A X
(35.92)
15
14
0.125 M IN
(3.18)
8
9
10
11
12
13
14
BOTTOM
V IEW
O R D E R I N G I N F O R MAT I O N
M odel
Number1
HS 94XXJ
HS 94XXK
HS 94XXS
HS 94XXT
HS 94XXS/B
HS 94XXT/B
Input
Range
System
A ccuracy
(% FSR)
±0.025
±0.012
±0.025
±0.012
±0.025
±0.012
Full Scale
T.C.
(ppm/ºC)
50.0
20.0
50.0
25.0
50.0
25.0
Temp.
Range
0ºC to +70ºC
0ºC to +70ºC
–55ºC to +125ºC
–55ºC to +125ºC
–55ºC to +125ºC
–55ºC to +125ºC
A BSOLUTE M A XIM UM RA TINGS
NOTES
1.
HS 94XX
M ODEL
SUFFIX
10
11
12
INPUT
RA NGE
0 to +10V
±5V
±10V
V
CC
to Common GND
V
EE
to Common GND
V
LOGIC
Common GND
Control Inputs (A
0+
R/C) to
Common GND
Power Dissipation
0 to +16.5V
0 to –16.5V
0 to +7V
-0.5V toV
LOGIC
+0.5V
1.3W
300ºC, 10Sec
V
CC
+20V
V
EE
–20V
25mA
M IL
Screening
—
—
—
—
883C
883C
SEE
NOTE1
A dd letter suffix as required above
Lead Temperature, Soldering
M aximum Input V oltage
M inimum Input V oltage.
A nalog Input M aximum Current
Microcontroller MCU
