HV66SM-12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> HV66SM-12

HV66SM-12: DescriptionVoltage Controlled Oscillator; CategoryPassive components oscillator; File Size597KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

HV66SM-12 Overview

Voltage Controlled Oscillator

HV66SM-12 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Maximum control voltage	20 V
Minimum control voltage
Installation features	SURFACE MOUNT
offset frequency	50 kHz
Maximum operating frequency	2500 MHz
Minimum operating frequency	1500 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	10 dBm
phase noise	-105 dBc/Hz
physical size	11.43mm x 11.43mm x 4.44mm
power change	2 dB
Maximum supply voltage	15.15 V
Minimum supply voltage	14.85 V
Nominal supply voltage	15 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

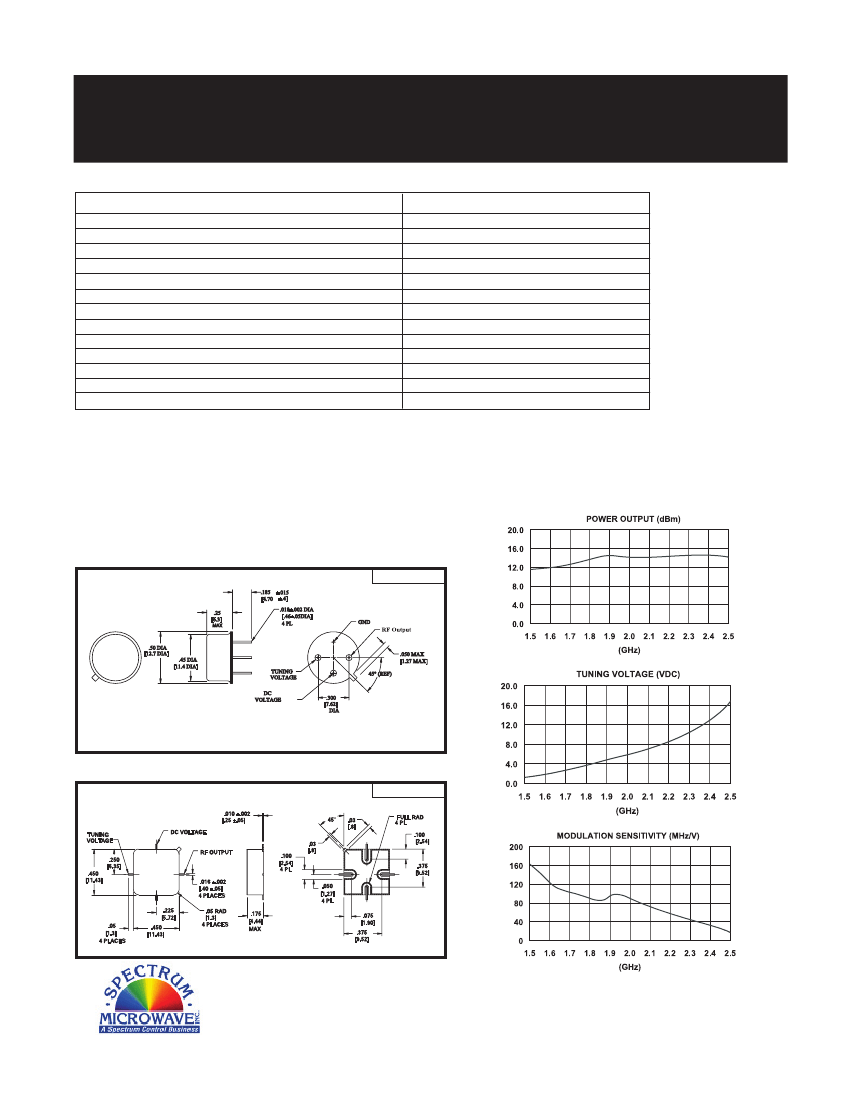

Voltage Controlled Oscillator

Microwave Band

Parameter

Frequency Range

Power Output at 25°C (50 Ohm load)

Power Output Variation vs. Temperature

Frequency Drift vs. Temperature

(2)

Frequency Pulling (12 dB Return Loss)

Frequency Pushing

Tuning Voltage Limits

SSB Phase Noise (50 kHz offset)

Harmonics

(3)

Spurious

Bias Voltage

(4)

Bias Current

(5)

Operating Temperature

Model HV66T-1

Model HV66SM-12

1.5 to 2.5 GHz

Electrical Specifications :

(1)

Specifications

1.5 to 2.5 GHz

+10 dBm, min.

2.0 dB, typical

120 MHz, typical

30 MHz, typical

5.0 MHz/V, typical

0 to +20 VDC

-105 dBc/Hz, typical

-15 dBc, typical

-70 dBc, max.

+15 VDC ±1%

50 mA, typical

-55 to +85

°C

Notes:

1. Specifications guaranteed over the operating temperature range. Those specifications indicated as typical are not

guaranteed. Plots exemplify typical performance at +25°C

2. Total frequency drift over the full temperature range.

3. Worst case harmonics over the frequency range.

4. Alternate bias voltages available.

5. Lower bias current available.

6. Military screening available.

Typical Performance at 25°C

HV66T-1

Outline: TO-8

SPECTRUM

All dimensions are in inches and [mm].

HV66SM-12

Outline: SMV2

SPECTRUM

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, FL 32905 · PH (888) 553-7531 · Fax (888) 553-7532

www.SpectrumMicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, PA 19154 · PH (215) 464-4000 · Fax (215) 464-4001

HV66SM-12 Related Products

	HV66SM-12	HV66T-1
Description	Voltage Controlled Oscillator	Voltage Controlled Oscillator
Reach Compliance Code	unknow	compli
Maximum control voltage	20 V	20 V
Installation features	SURFACE MOUNT	THROUGH HOLE MOUNT
offset frequency	50 kHz	50 kHz
Maximum operating frequency	2500 MHz	2500 MHz
Minimum operating frequency	1500 MHz	1500 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR	VOLTAGE CONTROLLED OSCILLATOR
Output Power	10 dBm	10 dBm
phase noise	-105 dBc/Hz	-105 dBc/Hz
physical size	11.43mm x 11.43mm x 4.44mm	12.7mm x 6.3mm
power change	2 dB	2 dB
Maximum supply voltage	15.15 V	15.15 V
Minimum supply voltage	14.85 V	14.85 V
Nominal supply voltage	15 V	15 V
surface mount	YES	NO
