PART NO.
ECN #
REV
A
REVISIONS
DESCRIPTION
RELEASED
DRAWN
SID
DATE
04/5/12
CHECKD
AMU
DATE
04/5/12
APPRVD
DATE
18/5/12

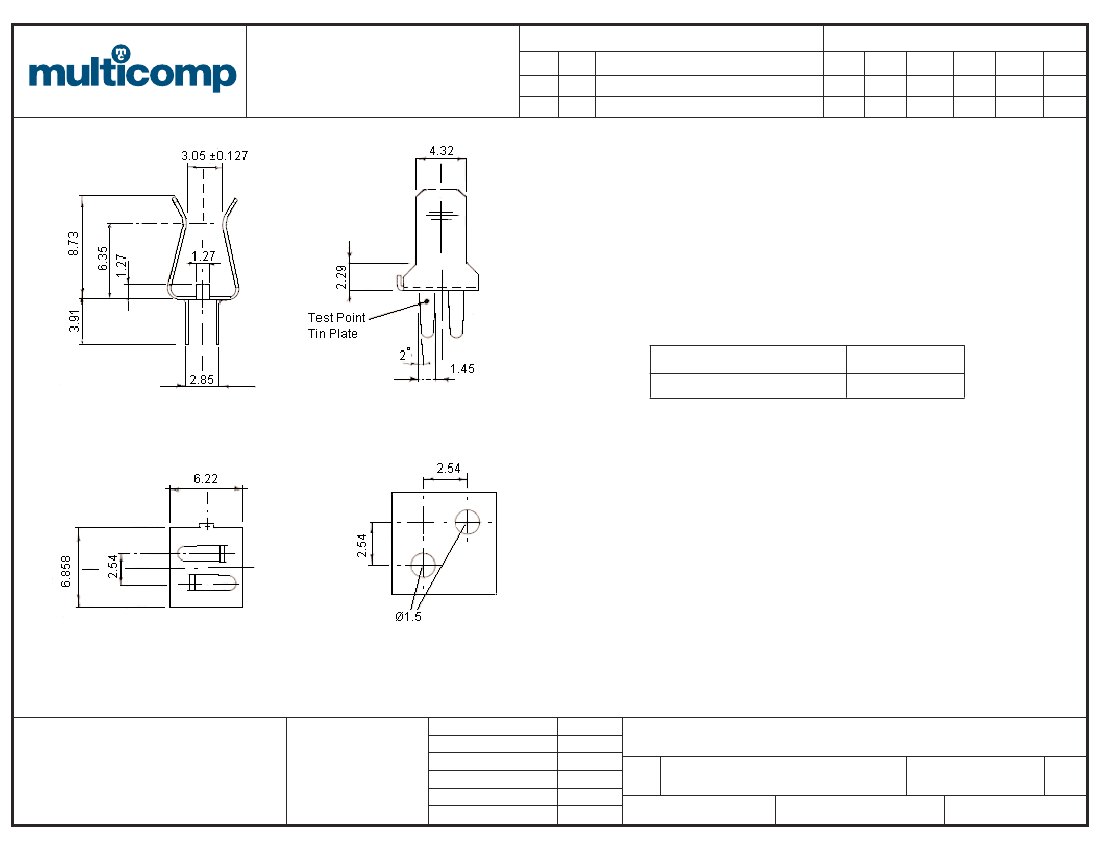

HTC210M
-
Feature:
•
PC board mounted fuse clip with end stops
Specifications:
Material : Hard brass 30 SWG
Finish : Pure tin plated 4 to 10 µ inches
Part Number Table
Description
Fuse Clip, 20 × 5 mm, PK200
Pins shall be capable of direct insertion into a JIG
The base of the clip contacts, the seating plane,
without the need to bend the pins to effect entry
Part Number
HTC210M
Gauge Tolerances : ±0.02
Plate Thickness : 3.783 to 4.037
Dimensions : Millimetres
www.element14.com
www.farnell.com
www.newark.com
Important Notice :
This data sheet and its contents (the "Information") belong to the mem-
bers of the Premier Farnell group of companies (the "Group") or are licensed to it. No
licence is granted for the use of it other than for information purposes in connection with
the products to which it relates. No licence of any intellectual property rights is granted. The
Information is subject to change without notice and replaces all data sheets previously sup-
plied. The Information supplied is believed to be accurate but the Group assumes no
responsibility for its accuracy or completeness, any error in or omission from it or for any
use made of it. Users of this data sheet should check for themselves the Information and
the suitability of the products for their purpose and not make any assumptions based on
information included or omitted. Liability for loss or damage resulting from any reliance on
the Information or use of it (including liability resulting from negligence or where the Group
was aware of the possibility of such loss or damage arising) is excluded. This will not oper-
ate to limit or restrict the Group's liability for death or personal injury resulting from its negli-
gence. Multicomp is the registered trademark of the Group. © Premier Farnell plc 2012.
TOLERANCES:
UNLESS OTHERWISE
SPECIFIED,
DIMENSIONS ARE
FOR REFERENCE
PURPOSES ONLY.
DRAWN BY:
SID
CHECKED BY:
AMU
APPROVED BY:
DATE:
04/05/12
DATE:
04/05/12
DATE:
18/05/12
DRAWING TITLE:
Fuse Clip
SIZE
A
DWG NO.
M10002160
U.O.M.: mm
ELECTRONIC FILE
REV
33188_DWG
SHEET:
1
OF
A
SCALE: NTS
1
