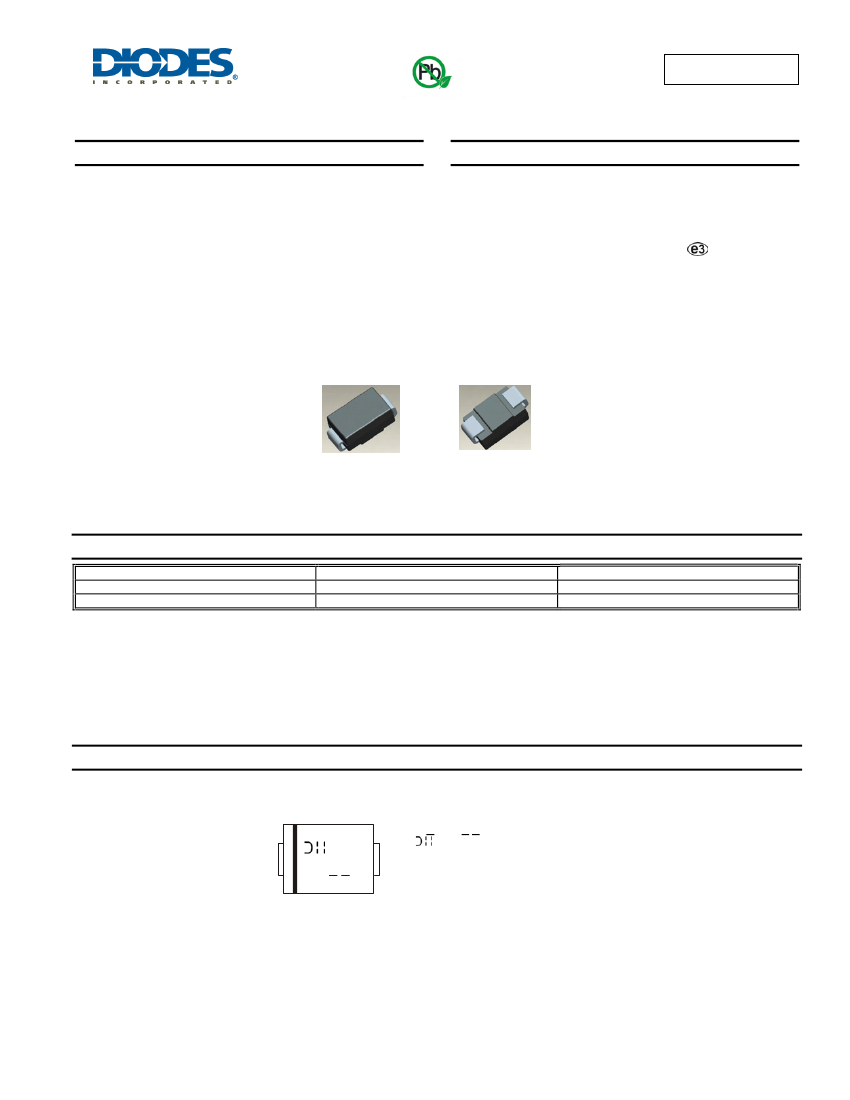

SBR1U150SA
Green
1.0A SBR
®
SURFACE MOUNT SUPER BARRIER RECTIFIER
Features
•
•
•
•
•
•
•
•
Ultra Low Forward Voltage Drop
Excellent High Temperature Capability
Patented Super Barrier Rectifier Technology
Soft, Fast Switching Capability
150ºC Operating Junction Temperature
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
•
Case: SMA
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: Lead Free Plating (Matte Tin Finish.)
Solderable per MIL-STD-202, Method 208
Polarity Indicator: Cathode Band
Weight: 0.064 grams (approximate)
SMA
Top View
Bottom View
Ordering Information
(Note 5)
Part Number
SBR1U150SA-13
SBR1U150SAQ-13
Notes:
Case
SMA
SMA
Packaging
5000/Tape & Reel
5000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Product manufactured with Date Code 0924 (week 24, 2009) and newer are built with Green Molding Compound.
5. For packaging details, go to our website at http://www.diodes.com.
Marking Information
YWW
Sxx
AB
S D B, S V B = Product Type Marking Code
= Manufacturers’ Code Marking
YWW = Date Code Marking
Y = Last digit of year (ex: 7 for 2007)
WW = Week code (01 to 53)
AB = Foundry and Assembly Code
SBR is a registered trademark of Diodes Incorporated.
SBR1U150SA
Document number: DS31341 Rev. 7 - 2
1 of 5
www.diodes.com
September 2012
© Diodes Incorporated
SBR1U150SA
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current (See Figure 1)
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Repetitive Peak Avalanche Power (1μS, +25°C)
Symbol
V
RRM
V
RWM
V
RM
V
R(RMS)
I
O
I
FSM
P
ARM
Value
150
106
1.0
42
6,000
Unit
V
V
A
A
W
Thermal Characteristics
Characteristic
Thermal Resistance Junction to Soldering (Note 6)
Thermal Resistance Junction to Ambient (Note 7)
Thermal Resistance Junction to Ambient (Note 8)
Operating and Storage Temperature Range
Symbol
R
θ
JS
R
θ
JA
R
θ
JA
T
J
, T
STG
Value
3
119
88
-65 to +150
Unit
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 9)
Forward Voltage Drop
Leakage Current (Note 9)
Notes:
Symbol
V
(BR)R
V
F
I
R
Min
150
-
-
-
-
Typ
-
-
-
-
-
Max
-
0.70
0.56
0.1
10
Unit
V
V
mA
mA
Test Condition
I
R
= 100µA
I
F
= 1.0A, T
J
= +25ºC
I
F
= 1.0A, T
J
= +125ºC
V
R
= 150V, T
J
= +25ºC
V
R
= 150V, T
J
= +125ºC
6. Theoretical R
θJS
calculated from the top center of the die straight down to the PCB cathode tab solder junction.
7. FR-4 PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf. T
A
= 25ºC
8. Polymide PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com
9. Short duration pulse test used to minimize self-heating effect.
SBR is a registered trademark of Diodes Incorporated.
SBR1U150SA
Document number: DS31341 Rev. 7 - 2
2 of 5
www.diodes.com
September 2012
© Diodes Incorporated
SBR1U150SA
I
R
, INSTANTANEOUS REVERSE CURRENT (uA)
2.0
1.8
P
D
, POWER DISSIPATION (W)
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
1
2
3
I
F(AV)
, AVERAGE FORWARD CURRENT (A)

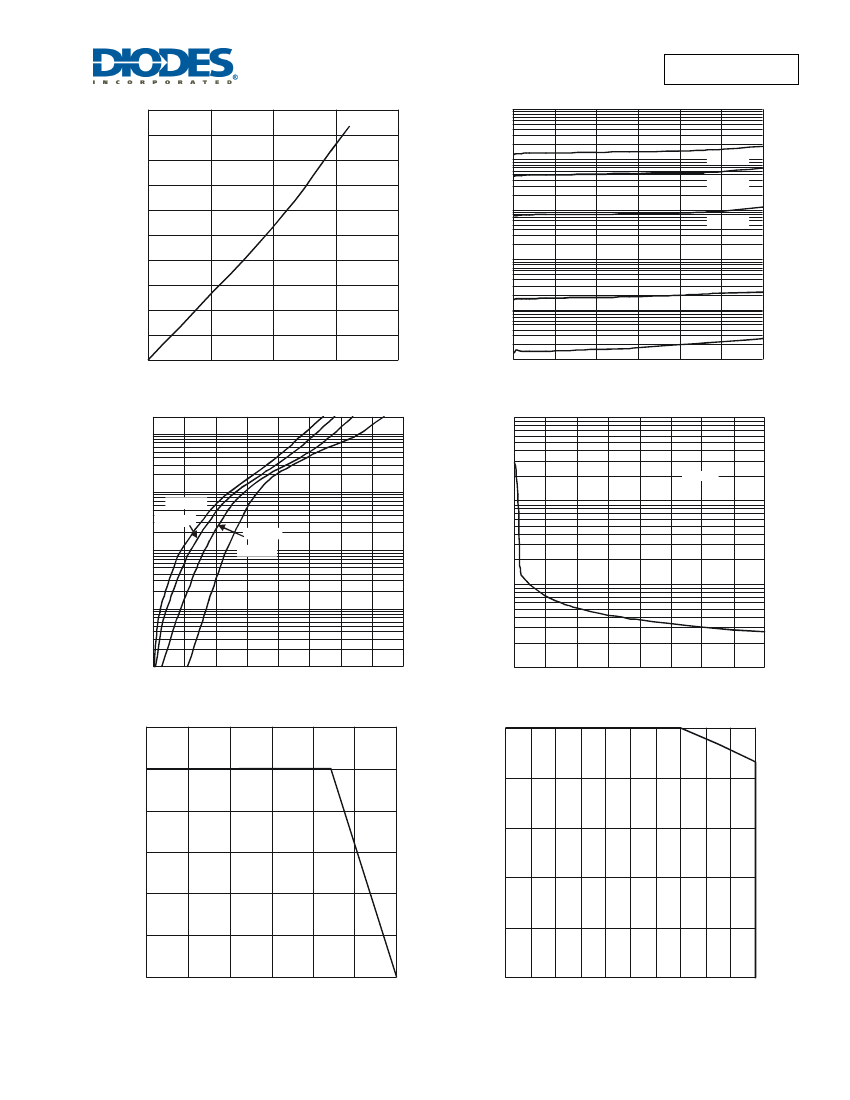

Fig. 1 Forward Power Dissipation
4
10,000
1,000
T
A
= 150°C
T
A
= 125°C
100
T
A
= 85°C
10
1
T
A
= 25°C
0.1
T
A
= -55°C
0
25
50
75
100
125
150
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
10,000
1
C
T
, TOTAL CAPACITANCE (pF)
f = 1MHz
0.1
T
A
= 150°C
T
A
= 125°C
T
A
= 85°C
1,000
0.01
T
A
= 25°C
100
0.001
0.0001
0
100 200 300 400 500 600 700 800
V
F
, INSTANTANEOUS FORWARD VOLTAGE (mV)
Fig. 3 Typical Forward Characteristics
1.2
10
0
10
15
20
25
30
35 40
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage
5
150
Note 7
1.0
0.8
T
A
, DERATED AMBIENT TEMPERATURE (°C)
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
120
90
0.6
60
0.4
0.2
30
0
0
25
50
75
100
125
150
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 5 DC Forward Current Derating Curve
0
50 60
70
80
90 100 110 120 130 140 150
V
R
, DC REVERSE VOLTAGE (V)
Fig. 6 Operating Temperature Derating
SBR is a registered trademark of Diodes Incorporated.
SBR1U150SA
Document number: DS31341 Rev. 7 - 2
3 of 5
www.diodes.com
September 2012
© Diodes Incorporated
SBR1U150SA
120
P
ARM
, AVALANCHE PEAK PULSE POWER
DERATING IN PERCENTAGE (%)
P
M
, MAXIMUM AVALANCHE POWER (W)
10,000
100
80
1,000
60
40
100
20
0
10
0
25
50
75
100
125
150
T
J
, JUNCTION TEMPERATURE (°C)
Fig. 7 Pulse Derating Curve
175
1
10
100
T
P
, PULSE DURATION (µS)
Fig. 8 Maximum Avalanche Power vs. Pulse Duration
0
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
B
A
C
D
J
SMA
Dim
Min
Max
A
2.29
2.92
B
4.00
4.60
C
1.27
1.63
D
0.15
0.31
E
4.80
5.59
G
0.05
0.20
H
0.76
1.52
J
2.01
2.30
All Dimensions in mm
H
E
G
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
X1
X
Y
Dimensions Value (in mm)
C
4.00
G
1.50
X
2.50
X1
6.50
Y
1.70
G
C
SBR is a registered trademark of Diodes Incorporated.
SBR1U150SA
Document number: DS31341 Rev. 7 - 2
4 of 5
www.diodes.com
September 2012
© Diodes Incorporated
SBR1U150SA
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2012, Diodes Incorporated
www.diodes.com
SBR is a registered trademark of Diodes Incorporated.
SBR1U150SA
Document number: DS31341 Rev. 7 - 2
5 of 5
www.diodes.com
September 2012
© Diodes Incorporated
