T495X107K010AGE1K5 datasheet, PDF

Datasheet> All Categories > Passive components> T495X107K010AGE1K5

T495X107K010AGE1K5: DescriptionCAPACITOR, TANTALUM, SOLID, POLARIZED, 10 V, 100 uF, SURFACE MOUNT, 2917; CategoryPassive components; File Size1MB，28 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

T495X107K010AGE1K5 Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 10 V, 100 uF, SURFACE MOUNT, 2917

T495X107K010AGE1K5 Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-55 Cel
negative deviation	10 %
positive deviation	10 %
Rated DC voltage urdc	10 V
Processing package description	Chip, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
terminal coating	MATTE Tin
Installation features	surface mount
Manufacturer Series	T495
size code	2917
capacitance	100 uF
packaging shape	Rectangular PACKAGE
Capacitor type	solid
Terminal shape	J BEND
polarity	polarization
tangent angle	0.08
ripple current	1103mA@100KHz
leakage current	10uA

Preview

Download Datasheet

View All

Tantalum Surface Mount Capacitors – Low ESR

T495 Surge Robust MnO

Overview

The low ESR, surge-robust T495 is designed for

demanding applications that require high surge current

and high ripple current capability. The T495 builds upon

the proven capabilities of our industrial grade tantalum

chip capacitors to offer several advantages such as low

ESR, high ripple current capability, excellent capacitance

stability, and improved resistance to high in-rush currents.

These benefits are achieved through a combination of

proprietary design, materials, and process parameters, as

well as high-stress, low impedance electrical conditioning

performed prior to screening.The T495 is classified as

moisture sensitivity level (MSL) 1 under J STD 020, with

unlimited floorlife time at ≤ 30°C/85% RH.

Benefits

• Meets or exceeds EIA Standard 535BAAC

• Taped and reeled per EIA 481

• High surge current capability

• Optional gold-plated terminations

• High ripple current capability

• 100% surge current test on B, C, D, E, U, V, and X sizes

• 100% steady-state accelerated aging

• Capacitance values of 0.1 to 1,000 μF

• Tolerances of ±10% and ±20%

• Voltage rating of 2.5 – 50 VDC

• Extended range values

• RoHS compliant and lead-free terminations

• Operating temperature range of −55°C to +125°C

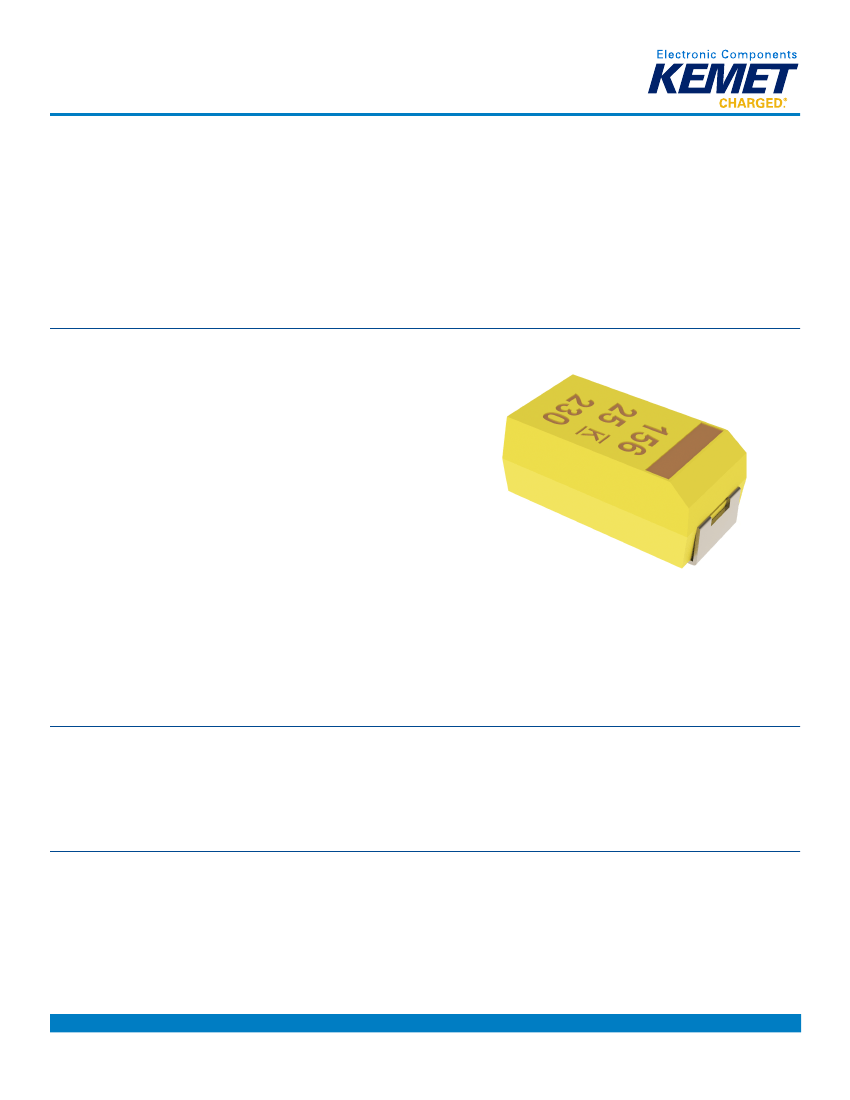

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Applications

Typical applications include decoupling and filtering in automotive end applications, such as DC/DC converters, portable

electronics, telecommunications, and control units requiring high ripple current capability.

Environmental Compliance

RoHS compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder, Gold-plated or Non-magnetic

100% Sn solder.
