TS339CP datasheet, PDF - EEWORLD Datasheet

TS339CP: DescriptionQUAD COMPARATOR, 6500uV OFFSET-MAX, 1500ns RESPONSE TIME, PDSO14, TSSOP-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size133KB，6 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

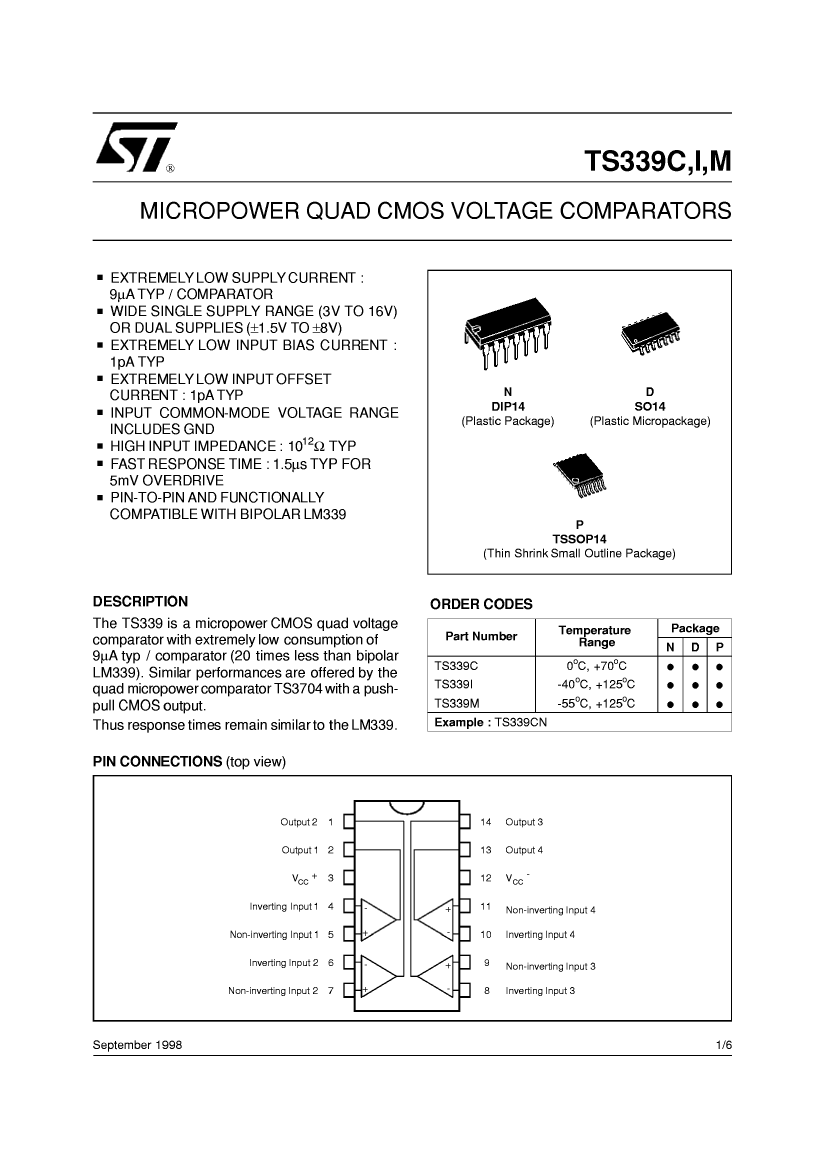

TS339CP Overview

QUAD COMPARATOR, 6500uV OFFSET-MAX, 1500ns RESPONSE TIME, PDSO14, TSSOP-14

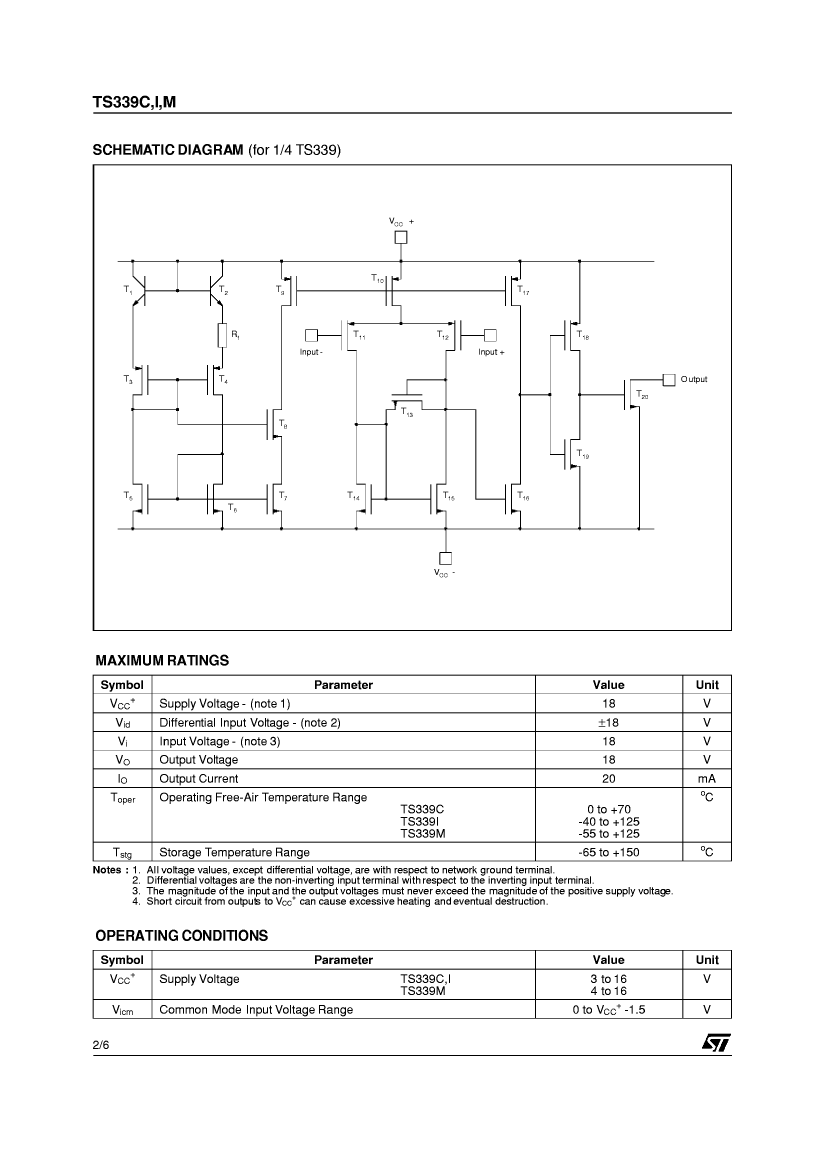

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	TSSOP
package instruction	TSSOP, TSSOP14,.25
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	COMPARATOR

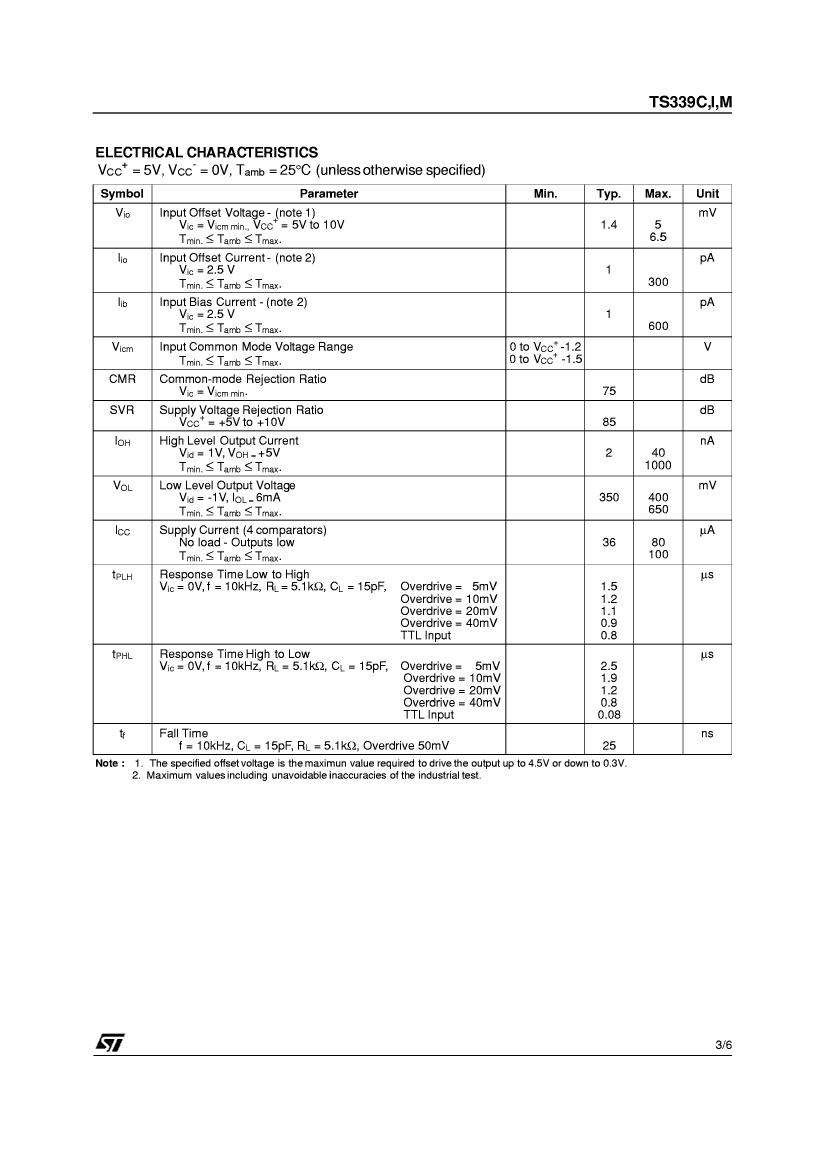

Maximum average bias current (IIB)	0.0006 µA
Maximum input offset voltage	6500 µV
JESD-30 code	R-PDSO-G14
JESD-609 code	e0

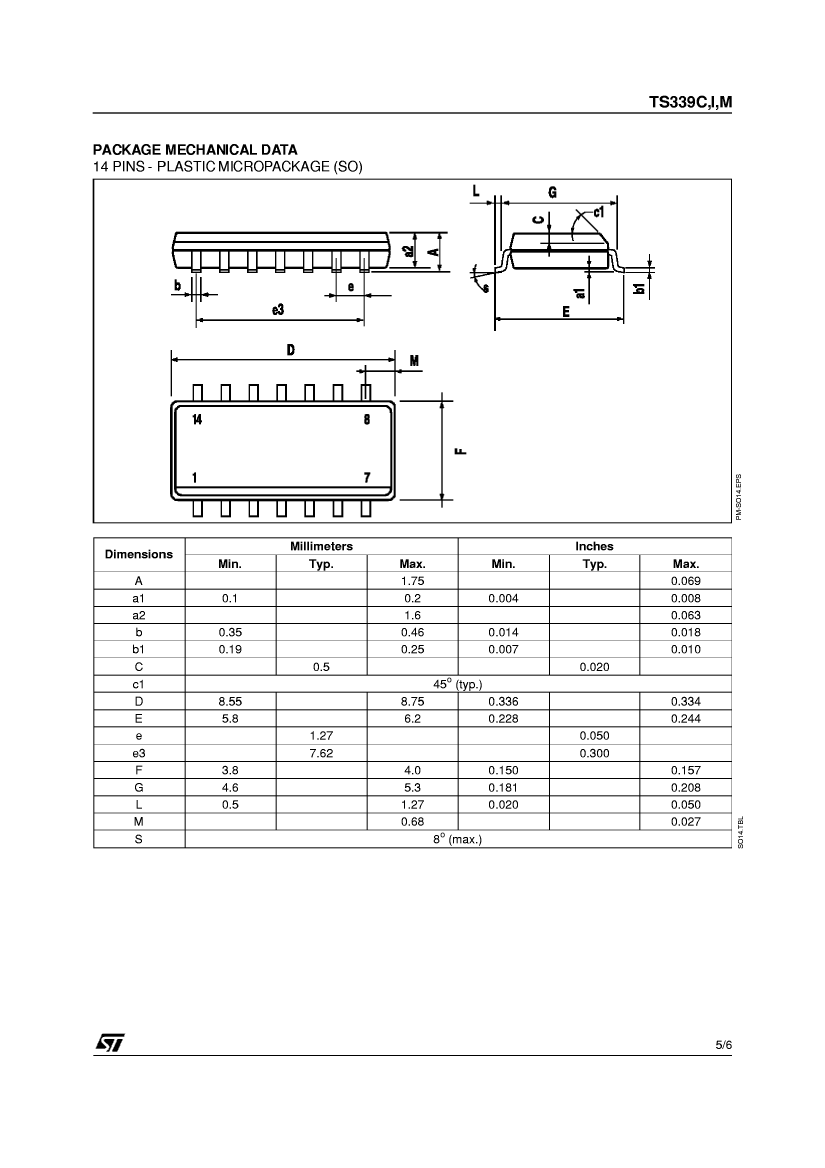

length	5 mm
Negative supply voltage upper limit
Nominal Negative Supply Voltage (Vsup)
Number of functions	4
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output type	OPEN-DRAIN
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	5 V
Certification status	Not Qualified
Nominal response time	1500 ns
Maximum seat height	1.2 mm
Maximum slew rate	0.1 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm

	TS339CP	TS339MP
Description	QUAD COMPARATOR, 6500uV OFFSET-MAX, 1500ns RESPONSE TIME, PDSO14, TSSOP-14	QUAD COMPARATOR, 6500uV OFFSET-MAX, 1500ns RESPONSE TIME, PDSO14, TSSOP-14
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	TSSOP	TSSOP
package instruction	TSSOP, TSSOP14,.25	TSSOP-14
Contacts	14	14
Reach Compliance Code	unknown	compliant
ECCN code	EAR99	EAR99
Amplifier type	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	0.0006 µA	0.0006 µA
Maximum input offset voltage	6500 µV	6500 µV
JESD-30 code	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e0	e0
length	5 mm	5 mm
Number of functions	4	4
Number of terminals	14	14
Maximum operating temperature	70 °C	125 °C
Output type	OPEN-DRAIN	OPEN-DRAIN
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP
Encapsulate equivalent code	TSSOP14,.25	TSSOP14,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Nominal response time	1500 ns	1500 ns
Maximum seat height	1.2 mm	1.2 mm
Maximum slew rate	0.1 mA	0.1 mA
Supply voltage upper limit	18 V	18 V
Nominal supply voltage (Vsup)	3 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL
width	4.4 mm	4.4 mm
