DF13-3P-1.25H(51) datasheet, PDF

Datasheet> All Categories > The connector> The connector> DF13-3P-1.25H(51)

DF13-3P-1.25H(51): DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator, Receptacle; CategoryThe connector The connector; File Size115KB，1 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DF13-3P-1.25H(51) Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator, Receptacle

DF13-3P-1.25H(51) Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Hirose
Reach Compliance Code	unknown
Other features	LOW PROFILE
Board mount options	PEG
body width	0.142 inch
subject depth	0.197 inch
body length	0.331 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	3.0024 N
Insulation resistance	500000000 Ω
Insulator color	BEIGE
insulator material	POLYAMIDE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	DF13
Plug contact pitch	0.049 inch
Plug information	DF13-3S-1.25C
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	GUIDE SLOT(S)
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	1.25 mm
Termination type	SURFACE MOUNT
Total number of contacts	3
UL Flammability Code	94V-0
Evacuation force-minimum value	.3058 N

Preview

Download Datasheet

View All

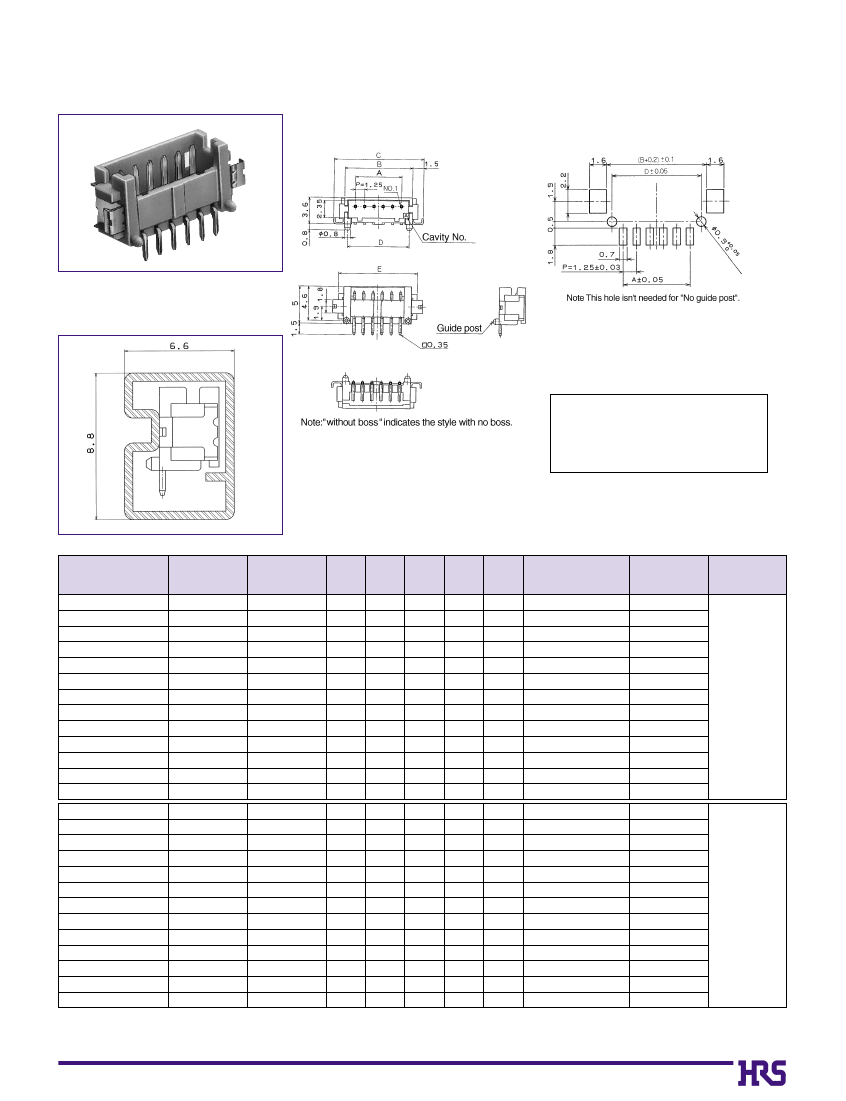

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

sSingle

Row Right Angle Pin Header (SMT)

s(Four-Wall/Correspond

to Emboss Absorption)

BPCB

mounting pattern

BTube

Dimensions

[Specific No.] –

**,

(**)

(20): Tin plated tube packaging

(21): Tin plated embossed tape packaging

(50): Gold plated tube packaging

(51): Gold plated embossed tape packaging

Unit: mm

Part Number

DF13- 2P-1.25H(**)

DF13- 3P-1.25H(**)

DF13- 4P-1.25H(**)

DF13- 5P-1.25H(**)

DF13- 6P-1.25H(**)

DF13- 7P-1.25H(**)

DF13- 8P-1.25H(**)

DF13- 9P-1.25H(**)

DF13-10P-1.25H(**)

DF13-11P-1.25H(**)

DF13-12P-1.25H(**)

DF13-14P-1.25H(**)

DF13-15P-1.25H(**)

DF13A- 2P-1.25H(**)

DF13A- 3P-1.25H(**)

DF13A- 4P-1.25H(**)

DF13A- 5P-1.25H(**)

DF13A- 6P-1.25H(**)

DF13A- 7P-1.25H(**)

DF13A- 8P-1.25H(**)

DF13A- 9P-1.25H(**)

DF13A-10P-1.25H(**)

DF13A-11P-1.25H(**)

DF13A-12P-1.25H(**)

DF13A-14P-1.25H(**)

DF13A-15P-1.25H(**)

Note 1.Please order

Note 2.Please order

CL No.

536-0251-1-**

536-0252-4-**

536-0253-7-**

536-0254-0-**

536-0255-2-**

536-0256-5-**

536-0257-8-**

536-0258-0-**

536-0259-3-**

536-0260-2-**

536-0261-5-**

536-0263-0-**

536-0264-3-**

Number of

Contacts

1.25

2.50

3.75

5.00

6.25

7.50

8.75

10.00

11.25

12.50

13.75

16.25

17.50

4.15

5.40

6.65

7.90

9.15

10.40

11.65

12.90

14.15

15.40

16.65

19.15

20.40

7.15

8.40

9.65

10.90

12.15

13.40

14.65

15.90

17.15

18.40

19.65

22.15

23.40

3.35

4.60

5.85

7.10

8.35

9.60

10.85

12.10

13.35

14.60

15.85

18.35

19.60

5.65

6.90

8.15

9.40

10.65

11.90

13.15

14.40

15.65

16.90

18.15

20.65

21.90

Tube Packaging

Quantity

67pcs

Emboss

Width

Remarks

With

boss

–

1.25 4.15 7.15

5.65

67pcs

536-0301-8-**

–

2.50 5.40 8.40

6.90

536-0302-0-**

–

3.75 6.65 9.65

8.15

536-0303-3-**

–

5.00 7.90 10.90

9.40

536-0304-6-**

–

6.25 9.15 12.15

10.65

536-0305-9-**

–

7.50 10.40 13.40

11.90

536-0306-1-**

–

8.75 11.65 14.65

13.15

536-0307-4-**

–

10.00 12.90 15.90

14.40

536-0308-7-**

–

11.25 14.15 17.15

15.65

536-0309-0-**

–

12.50 15.40 18.40

16.90

536-0310-9-**

–

13.75 16.65 19.65

18.15

536-0311-1-**

–

16.25 19.15 22.15

20.65

536-0313-7-**

–

17.50 20.40 23.40

21.90

536-0314-0-**

the tube packaging product, multiplying the tube packaging quantity.

the embossed tape packaging product according to reel number. (1000 pcs. per reel)

Without

boss

B189

DF13-3P-1.25H(51) Related Products

	DF13-3P-1.25H(51)	DF13-11P-1.25H(21)	DF13
Description	Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator, Receptacle	Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator, Receptacle	Board Connector, Male, Right Angle; Straight, Solder; Surface Mount Terminal, Socket
Maker	Hirose	Hirose	Hirose
Reach Compliance Code	unknown	unknown	unknown
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE, MAX CONTACTS(SERIES)=15, MAX ROWS(SERIES)=1
Body/casing type	RECEPTACLE	RECEPTACLE	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	DF13	DF13	DF13
Plug information	DF13-3S-1.25C	DF13-11S-1.25C	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE; STRAIGHT
Installation type	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.25 mm	1.25 mm	1.25 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SOLDER; SURFACE MOUNT
UL Flammability Code	94V-0	94V-0	94V-0
Is it Rohs certified?	conform to	conform to	-
Board mount options	PEG	PEG	-
body width	0.142 inch	0.142 inch	-
subject depth	0.197 inch	0.197 inch	-
body length	0.331 inch	0.724 inch	-
Contact to complete cooperation	GOLD	TIN	-
Contact completed and terminated	GOLD	TIN	-
Contact material	NOT SPECIFIED	NOT SPECIFIED	-
contact mode	RECTANGULAR	RECTANGULAR	-
Contact resistance	30 mΩ	30 mΩ	-
Contact style	SQ PIN-SKT	SQ PIN-SKT	-
Dielectric withstand voltage	500VAC V	500VAC V	-
Durability	50 Cycles	30 Cycles	-
maximum insertion force	3.0024 N	3.0024 N	-
Insulation resistance	500000000 Ω	500000000 Ω	-
Insulator color	BEIGE	BEIGE	-
insulator material	POLYAMIDE	POLYAMIDE	-
JESD-609 code	e4	e3	-
Plug contact pitch	0.049 inch	0.049 inch	-
Installation option 1	LOCKING MECH	LOCKING MECH	-
Number of connectors	ONE	ONE	-
PCB row number	1	1	-
Number of rows loaded	1	1	-
Maximum operating temperature	85 °C	85 °C	-
Minimum operating temperature	-30 °C	-30 °C	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	-
polarization key	GUIDE SLOT(S)	GUIDE SLOT(S)	-
Rated current (signal)	1 A	1 A	-
Guideline	UL	UL	-
reliability	COMMERCIAL	COMMERCIAL	-
Total number of contacts	3	11	-
Evacuation force-minimum value	.3058 N	.3058 N	-
