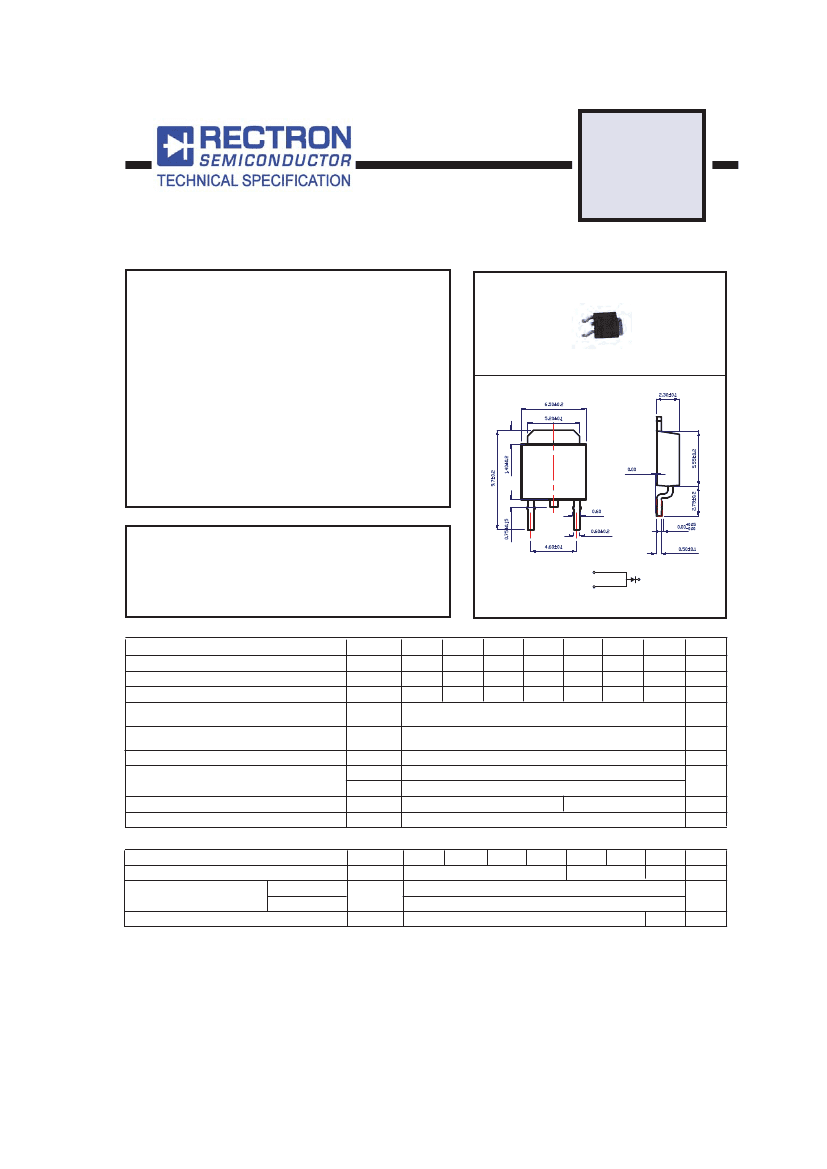

GLASS PASSIVATED SUPER FAST RECTIFIER
VOLTAGE RANGE 50 to 600 Volts CURRENT 10.0 Amperes
FEATURES
*
*
*
*
*
*
*
High reliability
Low leakage
Low forward voltage
High current capability
Super fast switching speed
High surge capability
Good for switching mode circuit
SF101K
THRU
SF107K
D-PAK
MECHANICAL DATA
*
*
*
*
*
Case: Molded plastic
Epoxy: Device has UL flammability classification 94V-O
Lead: MIL-STD-202E method 208C guaranteed
Mounting position: Any
Weight: 0.33 grams
1
2
3
5
1
.
0
+
0
.
-
0
1
.
+
0
.
-
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
PIN 1
PIN 2
PIN 3
HEATSINK
o
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(@ T
A
=25
O
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
o
at T
A
= 55 C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Typical Current Square Time
Typical Thermal Resistance (Note 3)
Typical Junction Capacitance (Note 2)
Operating and Storage Temperature Range
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
I
2
T
R
T
JA
R
T
JC
C
J
T
J
, T
STG
150
-55 to + 150
SF101K
50
35
50
SF102K
100
70
100
SF103K
150
105
150
SF104K
200
140
200
10.0
150
93.3
20
0
SF105K
300
210
300
SF106K
400
280
400
SF107K
600
420
600
UNITS
Volts
Volts
Volts
Amps
Amps
A
2
S
C/ W
pF
0
3.0
130
C
ELECTRICAL CHARACTERISTICS
(@T
A
=25
O
C unless otherwise noted)
CHARACTERISTICS
Maximum Instantaneous Forward Voltage at 2.5A DC
Maximum DC Reverse Current
at Rated DC Blocking Voltage
@T
A
= 25
o
C
@T
A
= 100
o
C
SYMBOL
V
F
I
R
trr
35
SF101K
SF102K
SF103K
0.95
5.0
100
50
uAmps
nSec
2016-03
REV: O11
SF104K
SF105K
SF106K
SF107K
1.50
UNITS
Volts
1.25
Maximum Reverse Recovery Time (Note 1)
NOTES : 1. Test Conditions: I
F
= 0.5A, I
R
= -1.0A, I
RR
= -0.25A
2. Measured at 1 MHz and applied reverse voltage of 4.0 volts.
3. Typical Thermal Resistance : At 9.5mm lead lengths,PCB mounted.
4. "Fully ROHS complaint", "100% Sn plating (Pb-free)"
5. Available in Halogen-free epoxy by adding suffix -HF after the part nbr.
RATING AND CHARACTERISTICS CURVES ( SF101K THRU SF107K )
trr
50
Ω
NONINDUCTIVE
10
Ω
NONINDUCTIVE
+0.5A
(+)
25 Vdc
(approx)
(-)
D.U.T
(-)
0
PULSE
GENERATOR
(NOTE 2)
-0.25A
1
NON-
INDUCTIVE
OSCILLOSCOPE
(NOTE 1)
(+)
NOTES: 1 Rise Time = 7ns max. Input Impedance =
1 megohm. 22pF.
2. Rise Time = 10ns max. Source Impedance =
50 ohms.
-1.0A
1cm
SET TIME BASE FOR 15/1 ns/cm
FIG.1 TEST CIRCUIT DIAGRAM AND REVERSE RECOVERY TIME CHARACTERISTIC
10
AVERAGE FORWARD CURRENT, (A)
INSTANTANEOUS REVERSE CURRENT, (uA)
1000
8
6
4
Single Phase
Half Wave 60Hz
Resistive or
Inductive Load
100
T
A
= 100
O
C
10
T
A
= 25
O
C
2
0
0
1.0
25
50
75
100
125
O
150
175
0.1
0
20
40
60
80
100
120
140
AMBIENT TEMPERATURE, ( C)
PERCENT OF RATED PEAK REVERSE VOLTAGE, (%)
FIG.2 TYPICAL FORWARD CURRENT
DERATING CURVE
FIG.3 TYPICAL REVERSE
CHARACTERISTICS
RATING AND CHARACTERISTICS CURVES ( SF101K THRU SF107K )
INSTANTANEOUS FORWARD CURRENT, (A)
20
10
3.0
SF107CK
PEAK FORWARD SURGE CURRENT, (A)
200
8.3ms Single Half Sine-Wave
(JEDED Method)
T
J
= 25 C
O
100
1.0
0.3
0.1
0.03
0.01
0
0.5
1.0
1.5
SF105K~SF106K
50
30
20
SF101K~SF104K
Pulse Width=300uS
1% Duty Cycle
2.0
2.5
3.0
3.5
10
1
5
10
50
100
INSTANTANEOUS FORWARD VOLTAGE, (V)
NUMBER OF CYCLES AT 60Hz
FIG.4 TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
300
JUNCTION CAPACITANCE, (pF)
FIG.5 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
200
160
140
120
T
J
= 25
O
C
SF101K~SF104K
SF105K~SF107K
100
60
40
20
10
0.1 0.2
0.4
1.0
2
4
10
20
40
100
REVERSE VOLTAGE, (V)
FIG.6 TYPICAL JUNCTION CAPACITANCE
