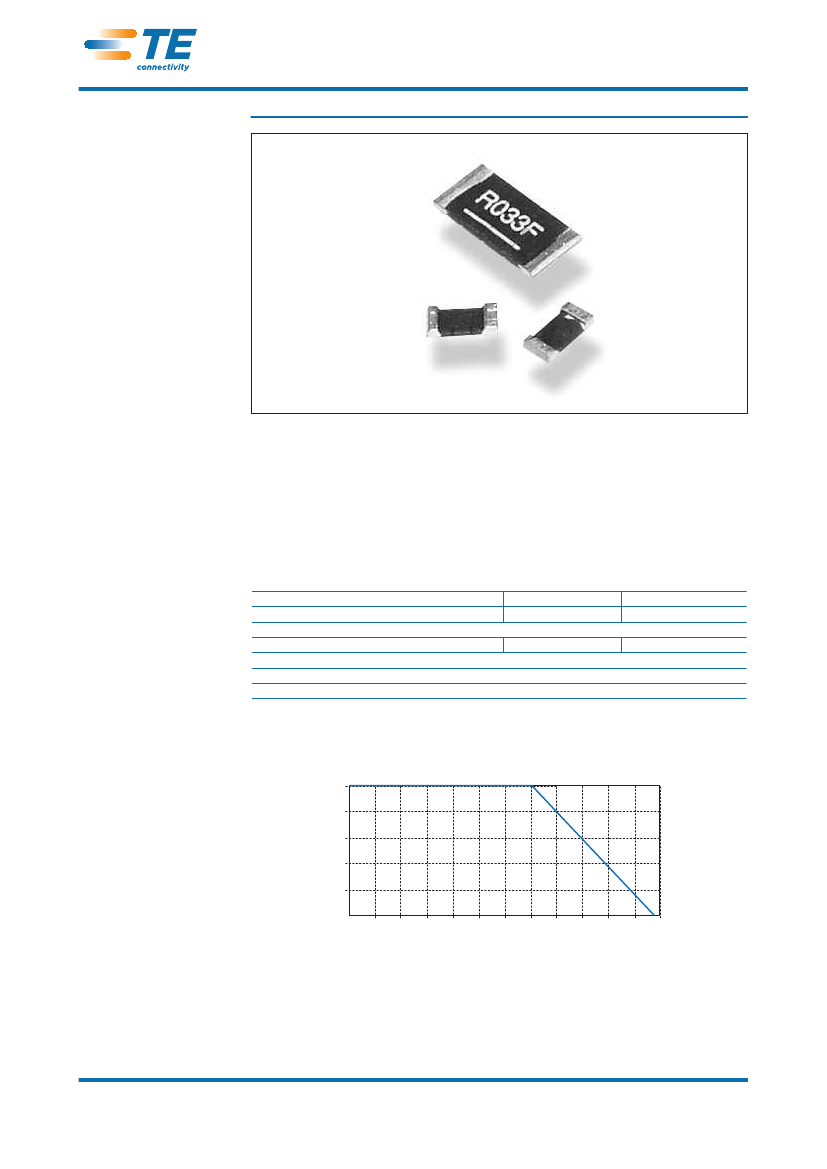

TE Connectivity (TE) is pleased to offer this unique High Power, metal chip resistor for
current sensing positions. It has a special metal resistive element and suitable
barrier layers beneath the solder to prolong terminal life. Following the developments by
semiconductor manufacturers in the production of a range of IC's for battery charge
management and low voltage power supplies, the TLR Series satisfies the demand for a
low ohmic shunt resistor to act as a current sensor. It has particular applications in the
automotive industry for sensing in EMU's.
Characteristics - Electrical
1206
Resistance Value Range:
Resistance Tolerance:
Power Rating:
Operating Temperature:
Inductance:
T.C.R.
1.0 Watt
R001 - R01
2010
R001 - R01
±1% ±3% ±5%
1.0 / 1.5 Watts
-55°C to +170°C
See below chart
See below chart
1.0 / 2.0 / 2.5 / 3.0 Watts
2512
R0005 - R015
Power Derating Curve
100
80
Rated Power (%)
60
40
20
0
-55
-40
20
0
20
40
60
80
100
120
140
160 175
Ambient Temperature (°C)
1773449-3 CIS WR 03/2012
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
SMD Low Ohmic - Current Sense Resistors
Type TLR Series
Inductance Test
12
TLR-R010G
10
TLR-R001
TLR-007
Inductance (nH)
8
TLR-R001G
6
4
2
0
-10
0
10
20
30
40
50
60
70
80
90
100
110
Frequency (MHz)
Dimensions
D
L
W
H
D
Type
TLR2B
TLR2H
TLR3A
L
3.2
5.1
6.4
W
1.6
2.5
3.2
H
0.6
0.6
0.6
D
0.5
0.5
0.8
Reel Qty
2000
2000
2000
Standard Electrical Specifications
Size
1206
Power
Rating (W)
1.0
Value Range
(mΩ)
1.0 - 10
0.5 - 2.0
11 - 15
2512
1.0
6.0 - 7.0
4.0 - 5.0
2.5 - 3.0, 10
TCR
(ppm/°C)
50
50
75
100
150
1,3,5
Resistance
Tolerance (±%)
1,3,5
1773449-3 CIS WR 03/2012
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
SMD Low Ohmic - Current Sense Resistors
Type TLR Series
High Power Rating Electrical Specifications
Size
2010
Power
Rating (W)
1.5
2.0
2.5
2512
3.0
Value Range
(mΩ)
1.0 - 10
0.5 - 10
4.0 - 6.0
0.5 - 0.75
1.0 - 3.0
TCR
(ppm/°C)
50
50
50
100
50
1,3,5
Resistance
Tolerance (±%)
1,3,5
Resistance codes example - 3 Marking
Resistance
Codes
0.5mΩ
M50
0.75mΩ
M75
Resistance codes example - 4 Marking
Resistance
Codes
1mΩ
R001
1.5mΩ
1M50
2mΩ
R002
7mΩ
R007
10mΩ
R010
How to Order
TLR
Common Part
TLR - Ultra Low
Ohm Metal Strip
Chip Resistor
2B
Dimensions
2B - 1206
2H - 2010
3A - 2512
10
*Power Rating
1.0
1.5
2.0
2.5
3.0
-
-
-
-
-
10
15
20
25
30
D
**TCR
D - ±50 PPM/°C
W - ±75 PPM/°C
E - ±100 PPM/°C
K - ±150 PPM/°C
R022
Resistance Code
R0005 - 0.0005Ω
R00075 - 0.00075Ω
R0015 - 0.0015Ω
R002 - 0.002Ω
R022 - 0.022Ω
J
Tolerance
J - ±5%
H - ±3%
F - ±1%
TDG
Packaging
TDG - 2000 / Reel
* See above chart for Power rating availability per case size
** See above chart for TCR availability per Ohmic Value
TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks.
Other logos, product and Company names mentioned herein may be trademarks of their respective owners.
While TE has made every reasonable effort to ensure the accuracy of the information in this datasheet, TE does not guarantee that it is error-free, nor does TE make any other
representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein
at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantabili-
ty or fitness for a particular purpose. The dimensions in this datasheet are for reference purposes only and are subject to change without notice. Specifications are subject to change
without notice. Consult TE for the latest dimensions and design specifications.
