IDT79R3010AE33G datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> IDT79R3010AE33G

IDT79R3010AE33G: DescriptionFloating Point Accelerator, 32-Bit, CMOS, CPGA84, CAVITY DOWN, PGA-84; CategoryThe embedded processor and controller Microcontrollers and processors; File Size572KB，20 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT79R3010AE33G Overview

Floating Point Accelerator, 32-Bit, CMOS, CPGA84, CAVITY DOWN, PGA-84

IDT79R3010AE33G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	PGA
package instruction	CAVITY DOWN, PGA-84
Contacts	84
Reach Compliance Code	not_compliant
ECCN code	3A001.A.3
barrel shifter	NO
boundary scan	NO
Bus compatibility	R3000A; R3001
maximum clock frequency	66.66 MHz
External data bus width	32
JESD-30 code	S-CPGA-P84
JESD-609 code	e0
length	30.6705 mm
Number of terminals	84
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA84,12X12
Package shape	SQUARE
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.207 mm
Maximum slew rate	700 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED
width	30.6705 mm
uPs/uCs/peripheral integrated circuit type	MATH PROCESSOR, FLOATING POINT ACCELERATOR

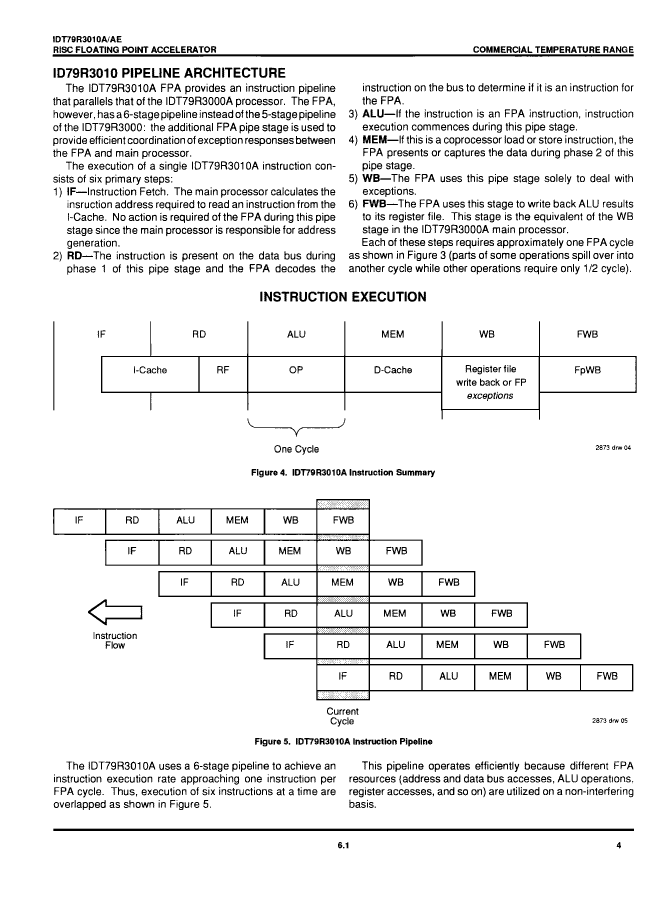

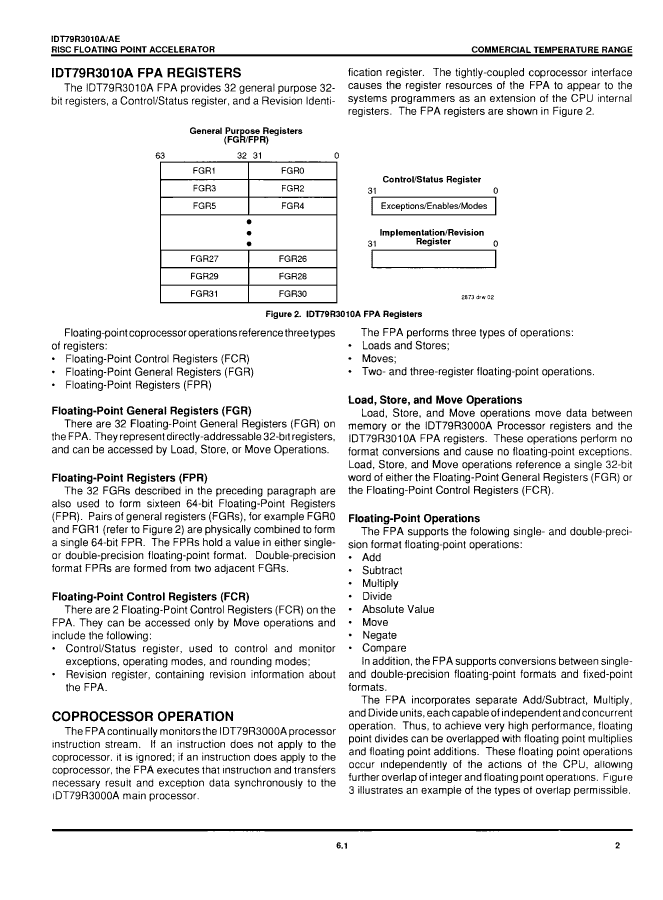

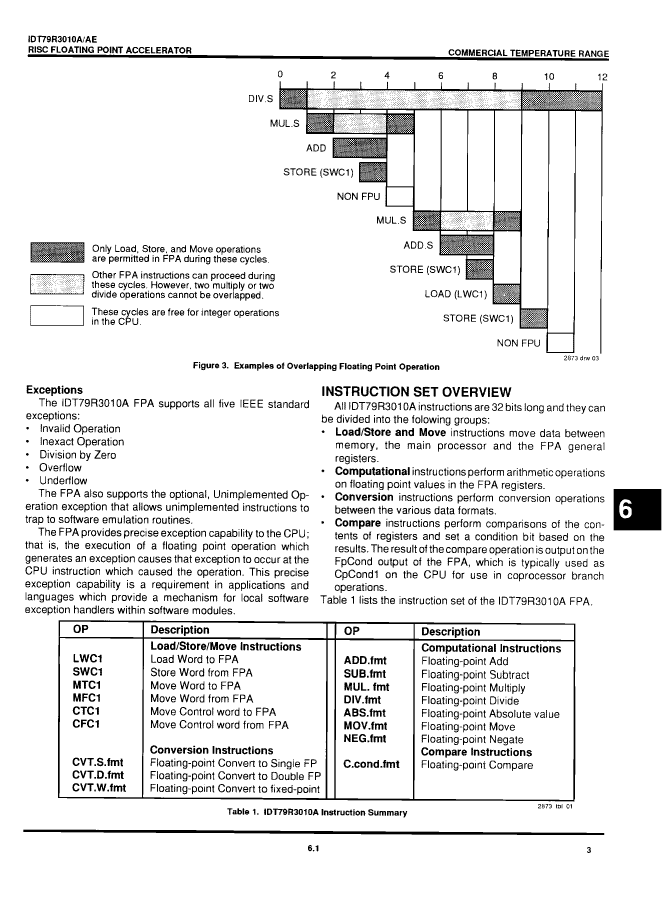

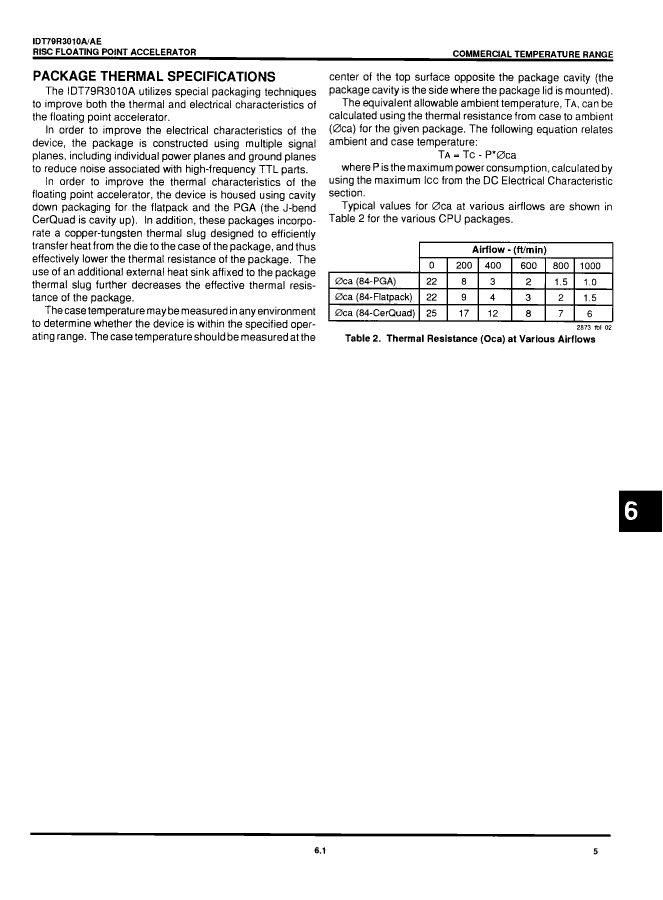

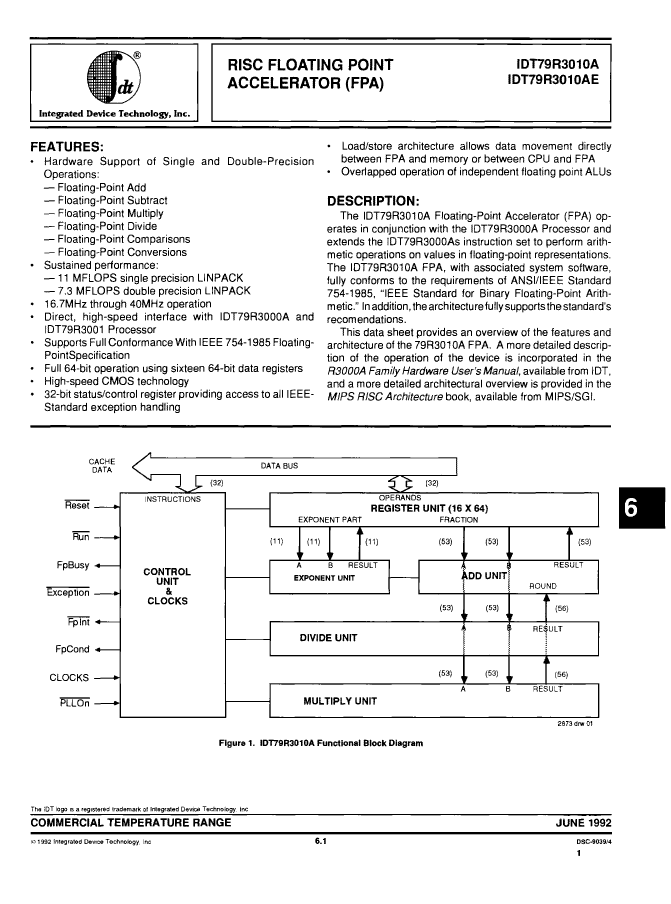

Preview

Download Datasheet

View All

IDT79R3010AE33G Related Products

	IDT79R3010AE33G	IDT79R3010A-20G	IDT79R3010A20G	IDT79R3010AE25G	IDT79R3010AE-25G	IDT79R3010A16G	IDT79R3010A-16G	IDT79R3010AE40G	IDT79R3010AE-40G	IDT79R3010AE-33G
Description	Floating Point Accelerator, 32-Bit, CMOS, CPGA84, CAVITY DOWN, PGA-84	32-BIT, FLOATING POINT ACCELERATOR, CPGA84, CAVITY DOWN, PGA-84	Floating Point Accelerator, 32-Bit, CMOS, CPGA84, CAVITY DOWN, PGA-84	Floating Point Accelerator, 32-Bit, CMOS, CPGA84, CAVITY DOWN, PGA-84	32-BIT, FLOATING POINT ACCELERATOR, CPGA84, CAVITY DOWN, PGA-84	Floating Point Accelerator, 32-Bit, CMOS, CPGA84, CAVITY DOWN, PGA-84	32-BIT, FLOATING POINT ACCELERATOR, CPGA84, CAVITY DOWN, PGA-84	Floating Point Accelerator, 32-Bit, CMOS, CPGA84, CAVITY DOWN, PGA-84	32-BIT, FLOATING POINT ACCELERATOR, CPGA84, CAVITY DOWN, PGA-84	32-BIT, FLOATING POINT ACCELERATOR, CPGA84, CAVITY DOWN, PGA-84
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	PGA	PGA	PGA	PGA	PGA	PGA	PGA	PGA	PGA	PGA
package instruction	CAVITY DOWN, PGA-84	CAVITY DOWN, PGA-84	CAVITY DOWN, PGA-84	CAVITY DOWN, PGA-84	CAVITY DOWN, PGA-84	CAVITY DOWN, PGA-84	PGA, PGA84,12X12	CAVITY DOWN, PGA-84	CAVITY DOWN, PGA-84	CAVITY DOWN, PGA-84
Contacts	84	84	84	84	84	84	84	84	84	84
Reach Compliance Code	not_compliant	unknown	not_compliant	not_compliant	unknown	not_compliant	unknown	not_compliant	unknown	unknown
barrel shifter	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Bus compatibility	R3000A; R3001	R3000A; R3001	R3000A; R3001	R3000A; R3001	R3000A; R3001	R3000A; R3001	R3000A; R3001	R3000A; R3001	R3000A; R3001	R3000A; R3001
maximum clock frequency	66.66 MHz	40 MHz	40 MHz	50 MHz	50 MHz	33.33 MHz	33.33 MHz	80 MHz	80 MHz	66.66 MHz
External data bus width	32	32	32	32	32	32	32	32	32	32
JESD-30 code	S-CPGA-P84	S-CPGA-P84	S-CPGA-P84	S-CPGA-P84	S-CPGA-P84	S-CPGA-P84	S-CPGA-P84	S-CPGA-P84	S-CPGA-P84	S-CPGA-P84
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	30.6705 mm	30.6705 mm	30.6705 mm	30.6705 mm	30.6705 mm	30.6705 mm	30.6705 mm	30.6705 mm	30.6705 mm	30.6705 mm
Number of terminals	84	84	84	84	84	84	84	84	84	84
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	PGA	PGA	PGA	PGA	PGA	PGA	PGA	PGA	PGA
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.207 mm	5.207 mm	5.207 mm	5.207 mm	5.207 mm	5.207 mm	5.207 mm	5.207 mm	5.207 mm	5.207 mm
Maximum slew rate	700 mA	600 mA	600 mA	650 mA	650 mA	525 mA	525 mA	750 mA	750 mA	700 mA
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	30.6705 mm	30.6705 mm	30.6705 mm	30.6705 mm	30.6705 mm	30.6705 mm	30.6705 mm	30.6705 mm	30.6705 mm	30.6705 mm
uPs/uCs/peripheral integrated circuit type	MATH PROCESSOR, FLOATING POINT ACCELERATOR	MATH PROCESSOR, FLOATING POINT ACCELERATOR	MATH PROCESSOR, FLOATING POINT ACCELERATOR	MATH PROCESSOR, FLOATING POINT ACCELERATOR	MATH PROCESSOR, FLOATING POINT ACCELERATOR	MATH PROCESSOR, FLOATING POINT ACCELERATOR	MATH PROCESSOR, FLOATING POINT ACCELERATOR	MATH PROCESSOR, FLOATING POINT ACCELERATOR	MATH PROCESSOR, FLOATING POINT ACCELERATOR	MATH PROCESSOR, FLOATING POINT ACCELERATOR
Encapsulate equivalent code	PGA84,12X12	PGA84,12X12	-	PGA84,12X12	PGA84,12X12	PGA84,12X12	PGA84,12X12	PGA84,12X12	PGA84,12X12	PGA84,12X12
power supply	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V	5 V
