TN6509PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> TN6509PM

TN6509PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size119KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

TN6509PM Overview

RF AMPLIFIER MODEL

TN6509PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	13 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM6509PM

Features

Superior Phase Noise Performance

High Output Power: +23 dBm Typical

High Third Order Intercept: +36 dBm Typical

Operating Temp. -55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM6509PM, 4 Pin TO-8 (T4)

TN6509PM, 4 Pin .450” Sq. Surface Mount (SM3)

PN6509PM, 4 Pin .375” Sq. Surface Mount (SM14)

FP6509PM, 4 Pin .500” Sq. Flatpack (FP4)

BX6509PM, SMA Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +56 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +50 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +36 dBm (Typ.)

Maximum (No Damage) Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power ............. 50 mW (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

5 - 500 MHz

14.5

+23

-18

1.4:1

1.2:1

4.6

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 500 MHz

13.0 Min.

+20 Min.

-15 Max.

2.0:1 Max.

6.0 Max.

+15

95 Max.

MTBF Calculation for Ground Benign Environment

25 ºC

........................................................9,248,445 hrs

Guaranteed @

25 ºC

(500 MHz) Phase Noise Performance

(dBc/Hz)

Guaranteed

Frequency

Typical

10 Hz

-155

-145

-162

-155

100 Hz

1 kHz

-175

-168

-177

10 kHz

-172

100 kHz

-180

-172

1 MHz

-180

-172

*Note: Phase Noise Performance typically tested at midband.

Bandedge performance may vary.

Note: Care should always be taken to effectively ground the case of each unit.

Revision 10/21/2013

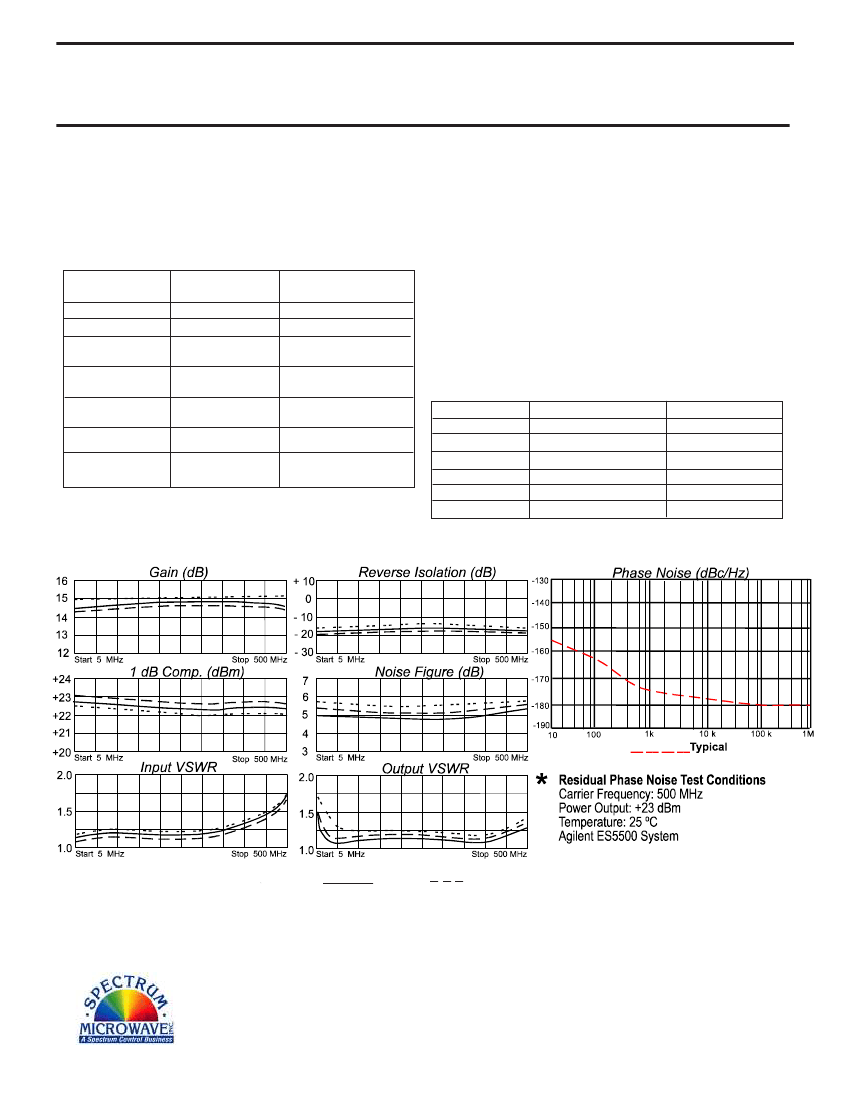

Typical Performance Data

Legend

Linear S-Parameters

+25 ºC

+85 ºC - - - - - - -55 ºC

– – – – S12– – – –

FREQ.

– – – – S11– – – –

– – – – S21– – – –

– – – – S22– – –

Mag

MHz

Deg

Mag

Deg

Mag

Deg

Mag

Deg

======================================================================================

.23

-41

5.86

-163

.08

.27

100

.13

5.46

159

.11

.05

200

.40

5.51

137

.12

.04

300

.58

-31

5.50

114

.14

.04

400

.10

-91

5.53

.15

-1

.08

500

.20

-137

5.45

.17

-9

.17

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

TN6509PM Related Products

	TN6509PM	BX6509PM	FP6509PM	PN6509PM	TM6509PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli	compli
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maker	API Technologies	API Technologies	API Technologies	API Technologies	-
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	-	COMPONENT
Gain	13 dB	13 dB	13 dB	-	13 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	-	13 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz	-	500 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	-	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	-	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C
Maximum voltage standing wave ratio	2	2	2	-	2
