2833136: DescriptionModular Terminal Block, 16A, 1.5mm2; CategoryThe connector terminals; File Size89KB，2 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com

Download Datasheet Parametric Compare View All

2833136 Overview

Modular Terminal Block, 16A, 1.5mm2

2833136 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	POLYAMIDE
Manufacturer's serial number	QT1.5RELG
Installation type	C RAIL
Number of channels	7
Rated current	16 A
Rated voltage	500 V
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Conductor cross section	1.5 mm2
Wire gauge	16 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

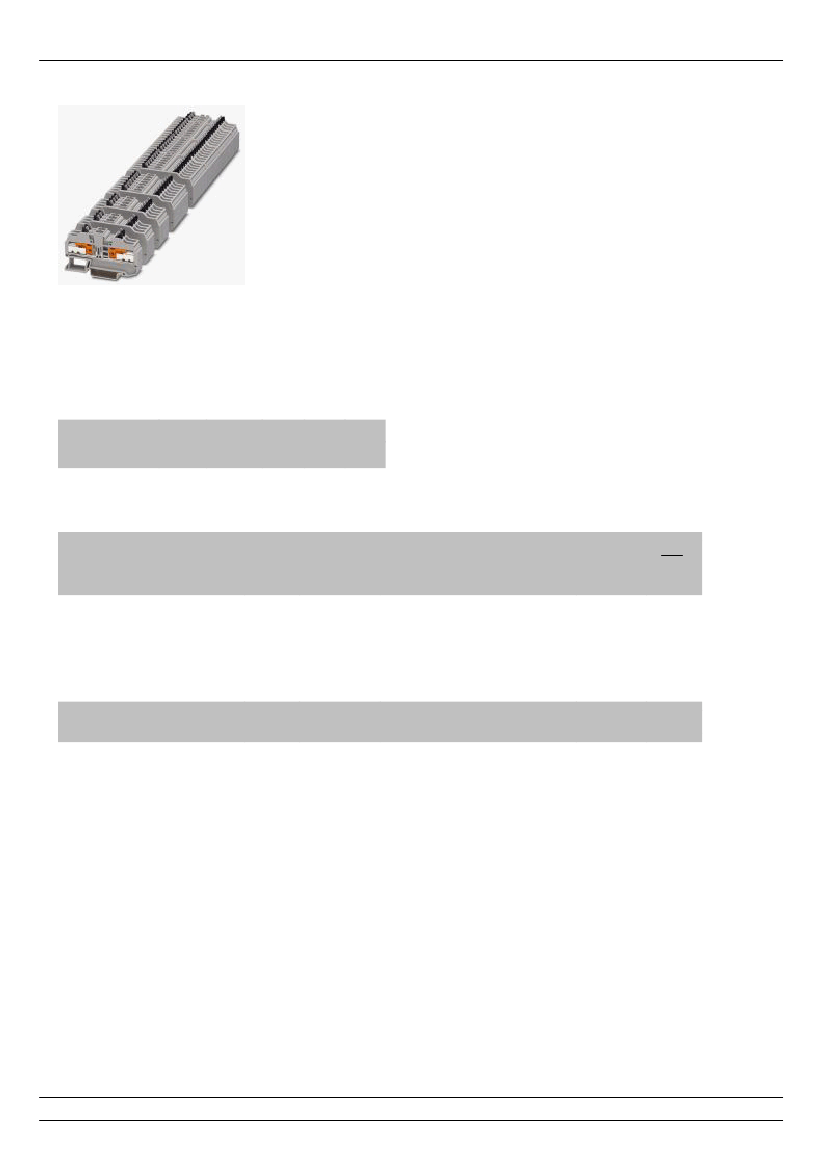

Module no:2833107 LabelId:2833107 Operator:Phoenix

18:04:19, Donnerstag, 28. Juni 2001

QT 1,5 RELG…

Z

Base termination blocks with quick connection for

3

mounting rails

’’...6’’

(IEC)

[mm ]

2

rigid

solid

flexible

stranded AWG

0.5-1.5

20-16

I

[A]

16*

U

[V]

500*

Connection data 0.5-1.5

* Current and voltage are determined by the coupling plug.

Larger cross-sections on request.

Description

Block width

Type

with end

cover

[mm]

2-pos.

3-pos.

4-pos.

7-pos.

Accessories

(9) Screwdriver,

for releasing the

tension spring, length: 180 mm,

Blade dimensions: 0.6 x 3.5 x 100 mm

(11)

Zack strip,

10-section, for center labeling, white

(12)Zack

marker sheet,

100-section,

for external labeling, white

(13)

Endclamp,

to support the base

termination blocks, if mounted vertically, 2

end clamps are required per base

termination block see

Linieninfo)

14.6

20.8

27.0

45.6

QT 1,5 RELG 2

QT 1,5 RELG 3

QT 1,5 RELG 4

QT 1,5 RELG 7

Order No.

Pcs.

Pkt.

Base termination blocks,

complete with end cover,f

or plug ST-REL…, ST-OV…

and ST-OE…

28 33 10 7

28 33 11 0

28 33 12 3

28 33 13 6

10

SZF 1-0,6X3,5

12 04 51 7

1

ZB 6

(see

info)

ZBFM 6…

(see

info)

E/UK

12 01 44 2

100

Phoenix Contact Elektronischer Katalog

Page 1 / 2
