K5
SEALED
ROCKERS
SEALED, ILLUMINATED ROCKER SWITCHES
ATTRACTIVE & RUGGED FOR WET & DUSTY ENVIRONMENTS
The OTTO K5 series is a quality, precision switch designed to
comply with standards established for appliance, marine (ignition
protection) and off-road vehicles along with other demanding
applications where rugged rocker switches are required.
K5 series sealed rocker switches snap into industry-standard
panel cutouts. Choose illuminated and printed legends, thru-panel
drain option and switching compatibility from low level up to 20 amps.
The K5 series offers a choice of LED, incandescent and neon
illumination. Legends can be stamped onto a non-illuminated
button, stamped onto an illuminated lens or laser etched into the
lens and backlit.
Available in standard and low level contact ratings, the K5
rockers will fit a wide range of applications. Expect a minimum
of 25,000 cycles at a full rated load of 20 amps resistive or
15 amps inductive. 100,000 cycles mechanical. A full complement
of switch operation is available including momentary and
maintained action in 2 or 3-position switches in SPST, SPDT,
SPTT, DPST and DPDT circuit arrangements.
OTTO can provide custom colors upon request. Value-added
assemblies with wire leads are also available. Please consult the
factory for assistance.

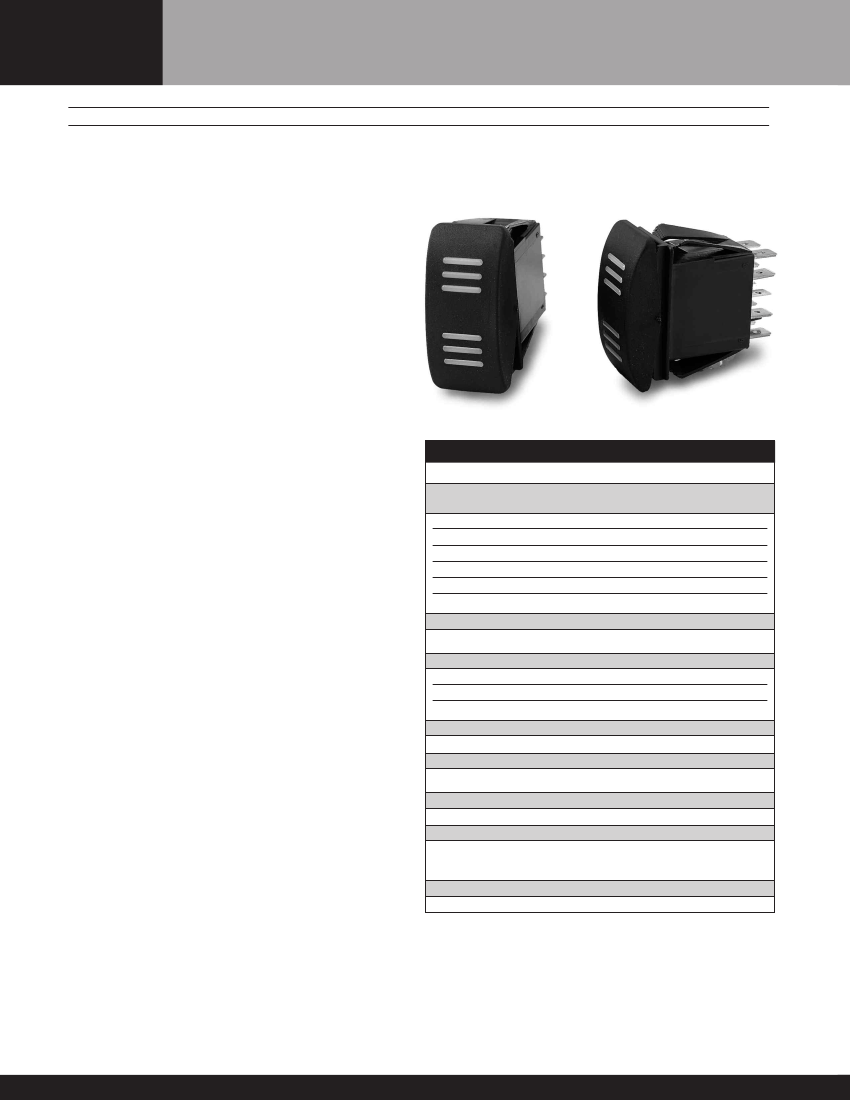

Raised Bars Shown
Standard Characteristics/Ratings:
ELECTRICAL RATINGS:
Load
Resistive
Sea Level
@ 28VDC, 60/400Hz
20A
15A
5A
0.5HP @ 110VAC
1050Vrms except across light terminals
10mA @ 30mV
25,000 cycles
Sea Level
@ 115VAC, 60/400Hz
16A
15A
5A
Features:
• Sealed watertight per IP68S
• Snap-in panel mounting into industry standard
panel cutout
• Optional panel seal gasket
• LED, neon & incandescent lighting
• 0.250" Quick Connect terminals
• Optional one-piece connector
• Optional terminal barriers
• Low level up to 20 amp switch
• Configurable Single Pole Triple Throw (SPTT)
with external jumpers
• Soft Touch rocker style available
• RoHS & WEEE compliant
Inductive
Lamp
Motor
DWV
Low Level
Electrical Life:
LIGHTING:
Light Source
Incandescent
Neon
LED
Mechanical Life:
Seal:
Rating
(VDC) 6V, 12V, 24V
(VAC) 125V, 250V
(VDC) 2V, 6V, 12V, 24V
100,000 cycles
IP68S
Operating Temp Range:
-40°C to +85°C
MATERIALS:
Case:
Button:
Terminals/Contact:
Terminal Hardware:
Thermoplastic
Thermoplastic
Brass, silver alloy with silver plate, gold flash for low level
K5 series recommended Quick Connect terminals:
AMP 60253-2 for 12-16 AWG
AMP 42100-2 for 14-18 AWG
None provided
Mounting Hardware:
104
OTTO Full Line Catalog
Specifications Subject To Change Without Notice

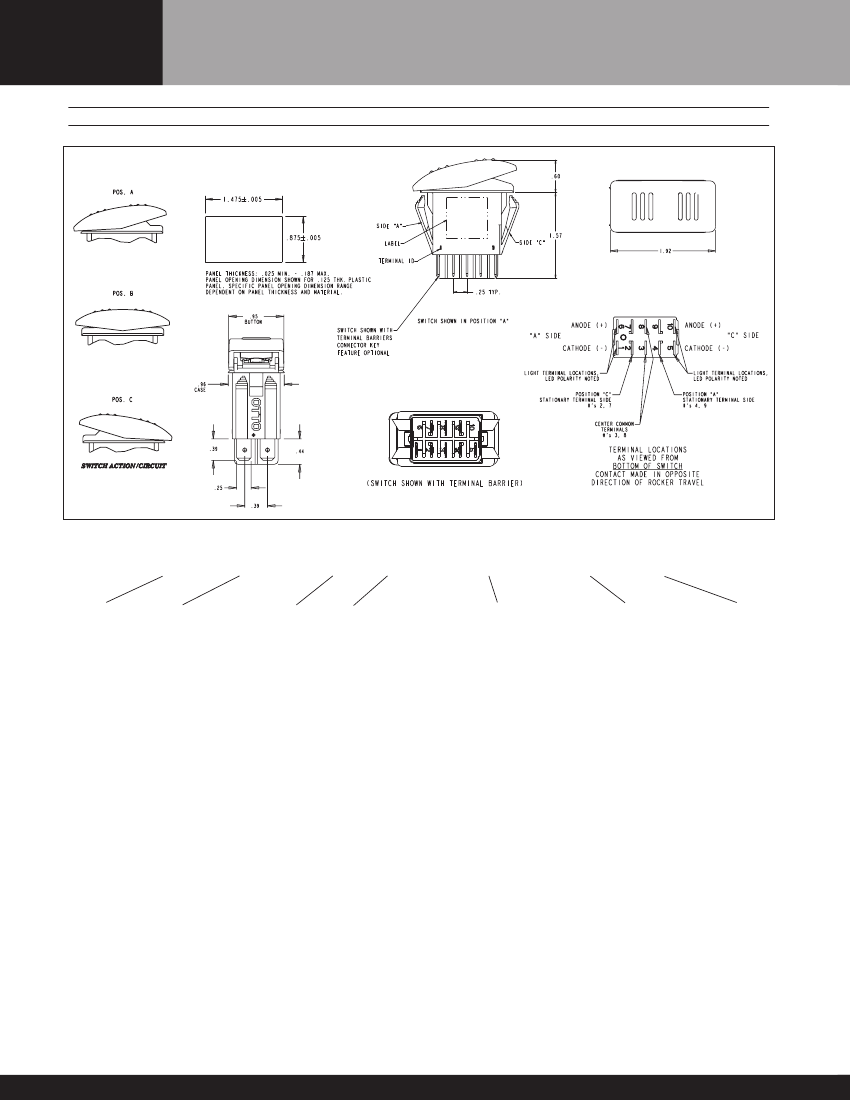

K5
SEALED
ROCKERS
SEALED, ILLUMINATED ROCKER SWITCHES
SNAP-IN PANEL MOUNTING
K5 SERIES
K5
X
X
X
X
XX
X
X
Base Options
A.
With Keying Pin Only
Standard Rating
Silver Plate
B.
Without Barriers
or Pin
Standard Rating
Silver Plate
C.
With Terminal
Barriers Only
Standard Rating
Silver Plate
D.
With Keying Pin Only
Low Level Rating
Gold Plate
E.
Without Barriers
or Pin
Low Level Rating
Gold Plate
F.
With Terminal
Barriers Only
Low Level Rating
Gold Plate
G.
With Keying Pin Only
Standard Rating
No Plate
H.
Without Barrier
or Pin
Standard Rating
No Plate
J.
With Terminal
Barriers Only
Standard Rating
No Plate
Rocker Color*/Style
A.
Black/Plastic Rocker
B.
Black/Soft Touch Rocker
C.
Red/Plastic Rocker
D.
Red/Soft Touch Rocker
E.
White/Plastic Rocker
F.
White/Soft Touch Rocker
*Additional colors available,
contact factory.
Rocker Features
Position
“A”
1.
No Feature
2.
Lens
3.
Raised Bars
4.
Raised Lit Bars
Position
“C”
1.
No Feature
2.
Lens
3.
Raised Bars
4.
Raised Lit Bars
Switch Action/Circuit
Position
“A”
3-4
3-4/8-9
3-4
3-4/8-9
(3-4)
(3-4)/(8-9)
(3-4)
(3-4)/(8-9)
(3-4)
(3-4)/(8-9)
3-4
3-4/8-9
(3-4)
(3-4)/(8-9)
Position Position
“B”
“C”
None
OFF
None
OFF
None
3&2
None
3-2/8-7
None
OFF
None
OFF
None
3-2
None
3-2/8-7
OFF
(3-2)
OFF
(3-2)/(8-7)
OFF
3-2
OFF
3-2/8-7
OFF
3-2
OFF
3-2/8-7
Circuit
SPST
DPST
SPDT
DPDT
SPST
DPST
SPDT
DPDT
SPDT
DPDT
SPDT
DPDT
SPDT
DPDT
Light Source Type
A.
No Illumination
B.
6V Incandescent
C.
12V Incandescent
D.
24V Incandescent
E.
125VAC Neon
F.
250VAC Neon
G.
2V Red LED
H.
2V Green LED
J.
2V Amber LED
K.
6V Red LED
L.
6V Green LED
M.6V
Amber LED
N.
12V Red LED
P.
12V Green LED
Q.
12V Amber LED
R.
24V Red LED
S.
24V Green LED
T.
24V Amber LED
Light Circuit
Circuit
A.
B.
C.
D.
E.
F.
None
Dep. in “A”
Dep. in “C”
Ind. in “A”
Ind. in “C”
Dep. in “A”
Dep. in “C”
G.
Dep. in “A”
Ind. in “C”
H.
Ind. in “A”
Dep. in “C”
J.
Ind. in “A”
Ind. in “C”
Terminal
Connections
None
1(-) & 4(+)
2(+) & 5(-)
1(-) & 6(+)
5(-) & 10(+)
1(-) & 4(+)
2(+) & 5(-)
1(-) & 4(+)
5(-) & 10(+)
1(-) & 6(+)
2(+) & 5(-)
1(-) & 6(+)
5(-) & 10(+)
NOTE: Soft Touch rockers
require same color lenses/
lit bars for both positions.
1A.
2A.
1B.
2B.
1C.
2C.
1D.
2D.
1E.
2E.
1F.
2F.
1G.
2G.
Special Circuits
Position
“A”
1H.
3-4/8-9
1J.
3-4/8-9
1K.
(3-4)/(8-9)
1L.
(3-4)/(8-9)
1M.
3-4/8-9
1N.
(3-4)/(8-9)
1P.
(3-4)/(8-9)
2R.
3-4/8-9
2S.
(3-4)/8-9
Position Position
“B”
“C”
3-2/8-9
OFF
3-2/8-9
None
3-2/8-9
OFF
3-2/8-9
None
3-2/8-9
3-2/7-8
3-2/8-9
3-2/7-8
3-2/8-9
(3-2)/(8-7)
OFF/8-9 OFF/OFF
OFF/8-9
Special
Circuits
ON/ON/OFF
ON/ON/None
(ON)/ON/OFF
(ON)/ON/None
ON/ON/ON
(ON)/ON/ON
(ON)/ON/(ON)
ON/OFF/OFF
ON/ON/OFF
OFF/OFF (ON)/OFF/OFF
ON/ON/OFF
NOTE: Polarity only applies
to LED circuits.
NOTE: ( ) denotes momentary action.
NOTE: All code combinations are not feasible.
Consult factory for product availability.
106
OTTO Full Line Catalog
Specifications Subject To Change Without Notice

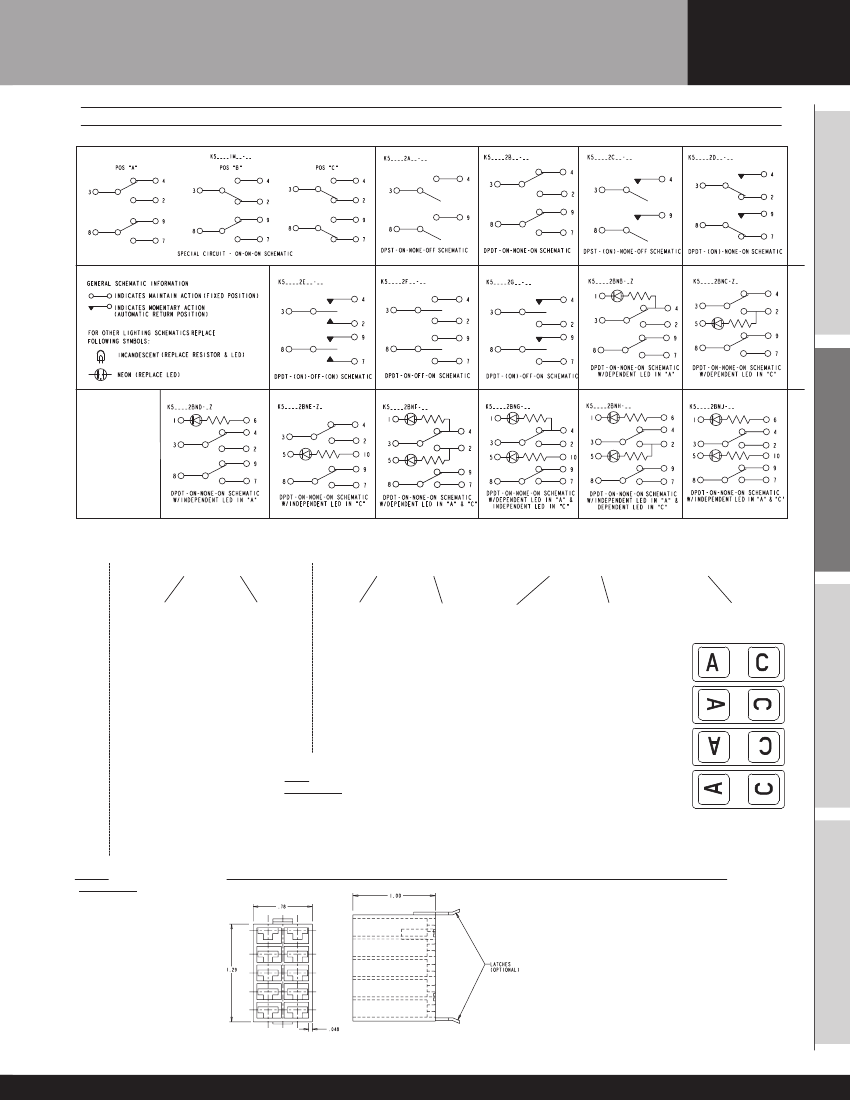

SEALED, ILLUMINATED ROCKER SWITCHES
ATTRACTIVE & RUGGED FOR WET & DUSTY ENVIRONMENTS
K5
SEALED
ROCKERS
ROCKER SWITCHES
PART NUMBER CODE
–
X
X
XX
XX
X
X
X
Lens Color
1.
2.
3.
4.
5.
Z.
Position “A”
Transparent Red
Transparent Green
Transparent Amber
Clear
Translucent White
No Lens
1.
2.
3.
4.
5.
Z.
Position “C”
Transparent Red
Transparent Green
Transparent Amber
Clear
Translucent White
No Lens
Legend Style
Position “A”
ZZ.
No Legend
Position “C”
ZZ.
No Legend
Legend Color
Position “A”
1.
Red
2.
Black
9.
White
B.
Backlight/
Daylight White
D.
Backlight/
Deadfront
Z.
No Legend
Position “C”
1.
Red
2.
Black
9.
White
B.
Backlight/
Daylight White
D.
Backlight/
Deadfront
Z.
No Legend
Legend Orientation
Position
“A”
1.
Std.
Position
“C”

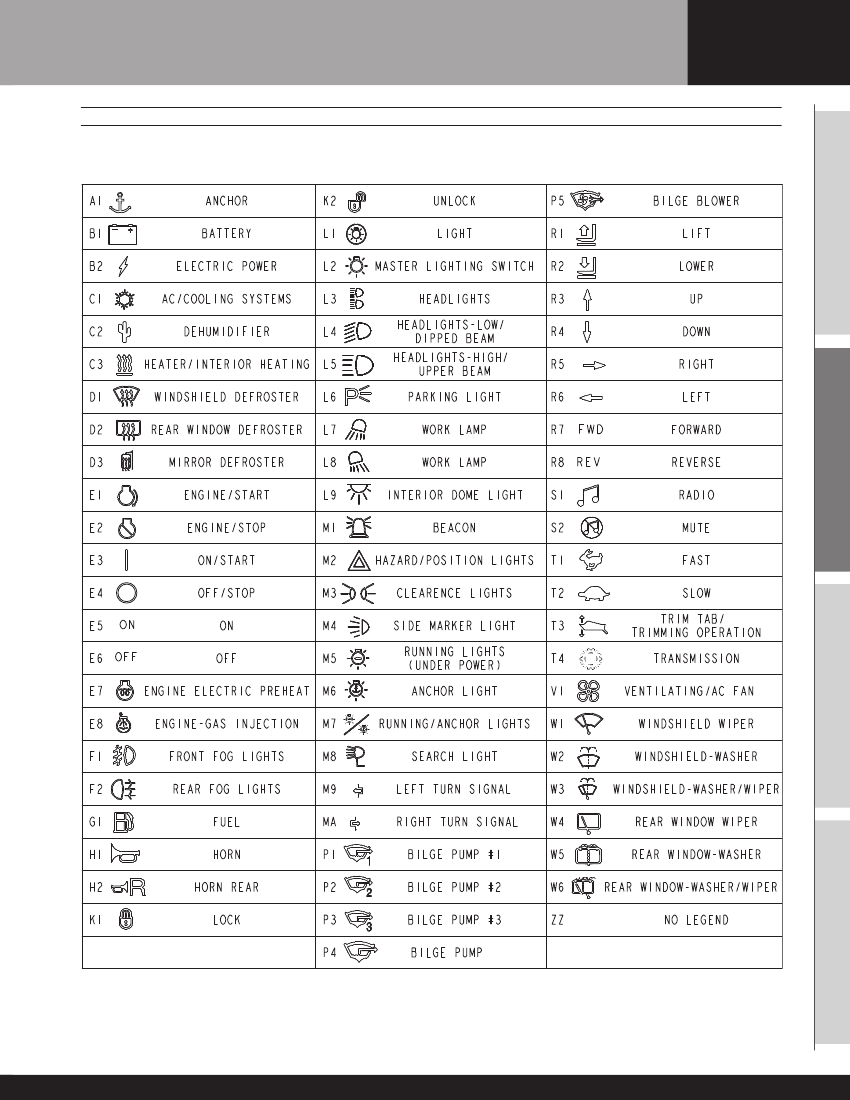

NOTE: For all other legend options,
refer to the legend table, find the two
digit code and enter the code in the
appropriate position(s).
2.
90°
NOTE: It is not recommended to use
green LEDs with translucent white
lenses. This will reduce light intensity.
Use clear lenses with green LEDs for
maximum light intensity.
Only available on Rocker Style “A”
STOP HERE for
lighted switches
without legends.
Example:
K5AA331FNH-44
& Rocker Features “1” and lens
color “Z” for each position.
3.
180°
Recommended for neon lamps.
Special Order: Ultra bright green
LEDs to be used with translucent
white lens.
4.
270°
STOP HERE for
unlighted switches
without legends.
Example:
K5AA331BAA
K5 Connector
P/N 801775-2A Without Latches
P/N 801775-2B With Latches
Recommended Quick Connect Terminals
AMP 60253-2 for 12-16 AWG
AMP 42100-2 for 14-18 AWG
Panel Seal Gasket
P/N 807109
Specifications Subject To Change Without Notice
www.ottoexcellence.com
107
