Standard SRAM, 64KX16, 20ns, CMOS, PDSO44, 0.400 INCH, TSOP2-44
K6R1016V1C-TC20 Parametric
Parameter Name
Attribute value
Is it Rohs certified?
incompatible
Maker
SAMSUNG
Parts packaging code
TSOP2
package instruction
0.400 INCH, TSOP2-44
Contacts
44
Reach Compliance Code
unknown
ECCN code
3A991.B.2.B
Maximum access time
20 ns
I/O type
COMMON
JESD-30 code
R-PDSO-G44
JESD-609 code
e0
length
18.41 mm
memory density
1048576 bit
Memory IC Type
STANDARD SRAM
memory width
16
Number of functions
1
Number of terminals
44
word count
65536 words
character code
64000
Operating mode
ASYNCHRONOUS
Maximum operating temperature
70 °C
Minimum operating temperature
organize
64KX16
Output characteristics
3-STATE
Package body material
PLASTIC/EPOXY
encapsulated code
TSOP2
Encapsulate equivalent code
TSOP44,.46,32
Package shape
RECTANGULAR
Package form
SMALL OUTLINE, THIN PROFILE
Parallel/Serial
PARALLEL
Peak Reflow Temperature (Celsius)
NOT SPECIFIED
power supply
3.3 V
Certification status
Not Qualified
Maximum seat height
1.2 mm
Maximum standby current
0.005 A
Minimum standby current
3 V
Maximum slew rate
0.09 mA
Maximum supply voltage (Vsup)
3.6 V
Minimum supply voltage (Vsup)
3 V
Nominal supply voltage (Vsup)
3.3 V
surface mount
YES
technology
CMOS
Temperature level
COMMERCIAL
Terminal surface
Tin/Lead (Sn/Pb)
Terminal form
GULL WING
Terminal pitch
0.8 mm
Terminal location
DUAL
Maximum time at peak reflow temperature
NOT SPECIFIED
width
10.16 mm
K6R1016V1C-TC20 Preview
K6R1016V1C-C/C-L, K6R1016V1C-I/C-P
Document Title
64Kx16 Bit High-Speed CMOS Static RAM(3.3V Operating)
Operated at Commercial and Industrial Temperature Ranges.
for AT&T
CMOS SRAM
Revision History
Rev. No.
Rev. 0.0
Rev. 1.0
History
Initial release with Preliminary.
Release to Final Data Sheet.
1.1. Delete Preliminary.
1.2. Changed DC characteristics.
Item
I
CC
12ns
15ns
20ns
Added 48-fine pitch BGA.
Changed device part name for FP-BGA.
Item
Previous
Symbol
Z
ex) K6R1016V1C-Z -> K6R1016V1C-F
Changed device ball name for FP-BGA.
Previous
I/O1 ~ I/O8
I/O9 ~ I/O16
1. Added 10ns speed for FP-BGA only.
2. Changed Standby Current.
Item
Previous
Standby Current(Isb1)
0.3mA
3. Added Data Retention Characteristics.
Draft Data
Aug. 5. 1998
Sep. 7. 1998
Remark
Preliminary
Final
Previous
85mA
83mA
80mA
Changed
95mA
93mA
90mA
Sep. 17. 1998
Nov. 5. 1998
Changed
F
Final
Final
Rev. 2.0
Rev. 2.1
Rev. 2.2
Dec. 10. 1998
Changed
I/O9 ~ I/O16
I/O1 ~ I/O8
Mar. 2. 1999
Changed
0.5mA
Final
Rev. 3.0
Final
Rev. 3.1
Rev. 3.2
Added 10ns speed for all packages(44SOJ / 44TSOP2 / 48FPBGA)
Supply Voltage Change
1. Only 10ns Bin : 3.15V ~ 3.6V
2. The Rest Bin : 3.0V ~ 3.6V
V
IH
/V
IL
Change
Item
V
IH
V
IL
Previous
Min
2.0
-0.5
Max
V
CC
+0.5
0.8
Min
2.0
-0.3
Changed
Max
V
CC
+0.3
0.8
Apr. 24. 2000
Aug. 25. 2000
Final
Final
Rev. 3.3
Oct. 2. 2000
Final
The attached data sheets are prepared and approved by SAMSUNG Electronics. SAMSUNG Electronics CO., LTD. reserve the right to change the
specifications. SAMSUNG Electronics will evaluate and reply to your requests and questions on the parameters of this device. If you have any questions,
please contact the SAMSUNG branch office near your office, call or contact Headquarters.
-1-
Revision 3.3
October 2000
K6R1016V1C-C/C-L, K6R1016V1C-I/C-P
FEATURES
• Fast Access Time 10,12,15,20ns(Max.)
• Low Power Dissipation
Standby (TTL)
: 30mA(Max.)
(CMOS) : 5mA(Max.)
0.5mA(Max.) L-ver. only
Operating
*
K6R1016V1C-10: 105mA(Max.)
K6R1016V1C-12: 95mA(Max.)
K6R1016V1C-15: 93mA(Max.)
K6R1016V1C-20: 90mA(Max.)
• Single 3.3V Power Supply
• TTL Compatible Inputs and Outputs
• Fully Static Operation
- No Clock or Refresh required
• Three State Outputs
• 2V Minimum Data Retention: L-ver. only
• Center Power/Ground Pin Configuration
• Data Byte Control: LB: I/O
1
~ I/O
8
, UB: I/O
9
~ I/O
16
• Standard Pin Configuration:
K6R1016V1C-J: 44-SOJ-400
K6R1016V1C-T: 44-TSOP2-400BF
K6R1016V1C-F: 48-Fine pitch BGA with 0.75 Ball pitch
for AT&T
CMOS SRAM
64K x 16 Bit High-Speed CMOS Static RAM(3.3V Operating)
GENERAL DESCRIPTION
The K6R1016V1C is a 1,048,576-bit high-speed Static Random
Access Memory organized as 65,536 words by 16 bits. The
K6R1016V1C uses 16 common input and output lines and has
at output enable pin which operates faster than address access
time at read cycle. Also it allows that lower and upper byte
access by data byte control (UB, LB). The device is fabricated
using SAMSUNG′s advanced CMOS process and designed for
high-speed circuit technology. It is particularly well suited for
use in high-density high-speed system applications. The
K6R1016V1C is packaged in a 400mil 44-pin plastic SOJ or
TSOP2 forward or 48-Fine pitch BGA.
FUNCTIONAL BLOCK DIAGRAM
Clk Gen.
A
0
A
1
A
2
A
3
A
4
A
5
A
6
A
7
A
8
I/O
1
~I/O
8
I/O
9
~I/O
16
ORDERING INFORMATION
K6R1016V1C-C10/C12/C15/C20
Commercial Temp.
Industrial Temp.
K6R1016V1C-I10/I12/I15/I20
Pre-Charge Circuit
Row Select
Memory Array
512 Rows
128x16 Columns
PIN FUNCTION
Pin Name
Data
Cont.
Data
Cont.
Gen.
CLK
A
9
A
10
A
11
A
12
A
13
A
14
A
15
Pin Function
Address Inputs
Write Enable
Chip Select
Output Enable
Lower-byte Control(I/O
1
~I/O
8
)
Upper-byte Control(I/O
9
~I/O
16
)
Data Inputs/Outputs
Power(+3.3V)
Ground
No Connection
I/O Circuit &
Column Select
A
0
- A
15
WE
CS
OE
LB
UB
I/O
1
~ I/O
16
WE
OE
UB
LB
CS
V
CC
V
SS
N.C
-2-
Revision 3.3
October 2000
K6R1016V1C-C/C-L, K6R1016V1C-I/C-P

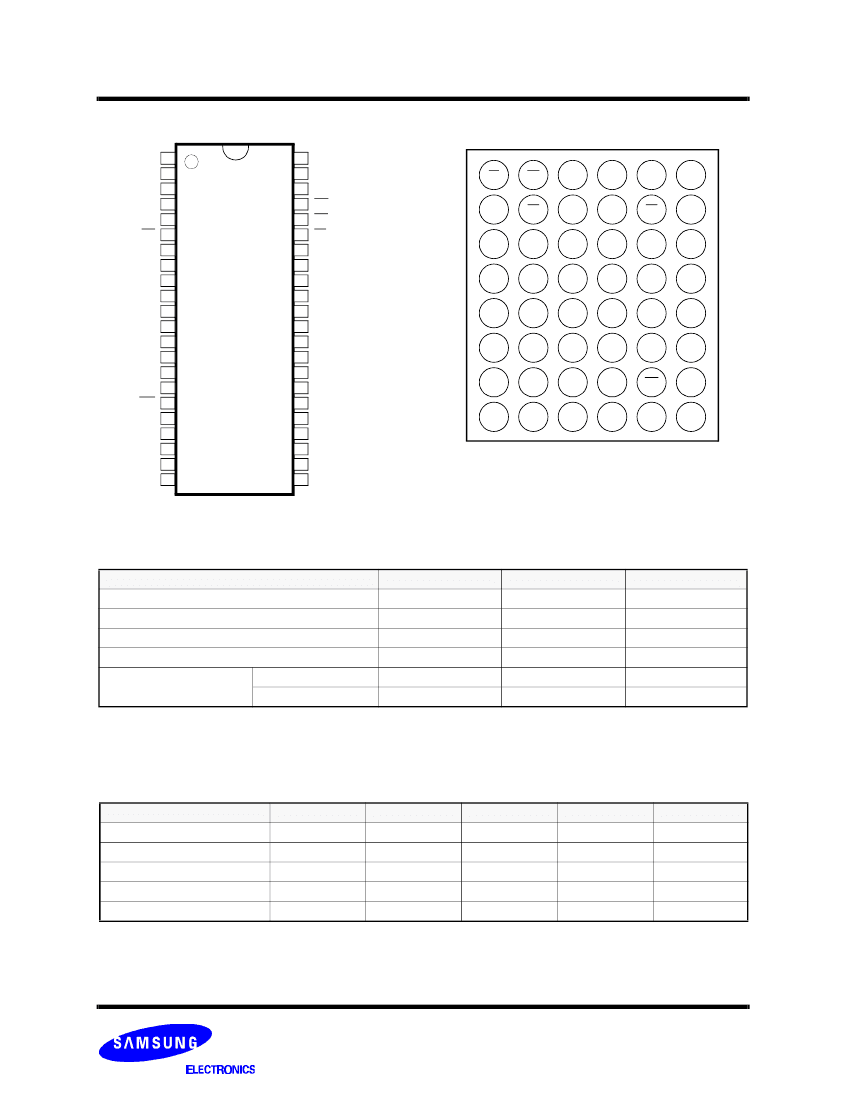

PIN CONFIGURATION(TOP
VIEW)
1
2
3
for AT&T
CMOS SRAM
4
5
6
A
0
A
1
A
2
A
3
A
4
CS
I/O
1
I/O
2
I/O
3
1
2
3
4
5
6
7
8
9
44 A
15
43 A
14
42 A
13
41 OE
40 UB
39 LB
38 I/O
16
37 I/O
15
36 I/O
14
D
Vss
I/O4
N.C
A7
I/O12
Vcc
C
I/O2
I/O3
A5
A6
I/O11
I/O10
B
I/O1
UB
A3
A4
CS
I/O9
A
LB
OE
A0
A1
A2
N.C
I/O
4
10
Vcc 11
Vss 12
I/O
5
13
I/O
6
14
I/O
7
15
I/O
8
16
WE 17
A
5
18
A
6
19
A
7
20
A
8
21
N.C 22
SOJ/
TSOP2
35 I/O
13
34 Vss
33 Vcc
32 I/O
12
31 I/O
11
30 I/O
10
29 I/O
9
28 N.C
27 A
12
26 A
11
25 A
10
24 A
9
23 N.C
H
N.C
A8
A9
A10
A11
N.C
G
I/O8
N.C
A12
A13
WE
I/O16
F
I/O7
I/O6
A14
A15
I/O14
I/O15
E
Vcc
I/O5
N.C
N.C
I/O13
Vss
48-CSP
ABSOLUTE MAXIMUM RATINGS*
Parameter
Voltage on Any Pin Relative to V
SS
Voltage on V
CC
Supply Relative to V
SS
Power Dissipation
Storage Temperature
Operating Temperature
Commercial
Industrial
Symbol
V
IN
, V
OUT
V
CC
P
d
T
STG
T
A
T
A
Rating
-0.5 to 4.6
-0.5 to 4.6
1
-65 to 150
0 to 70
-40 to 85
Unit
V
V
W
°C
°C
°C
*
Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any other conditions above those indicated in the operating sections of this specification is not implied.
Exposure to absolute maximum rating conditions for extended periods may affect reliability.
RECOMMENDED DC OPERATING CONDITIONS
(T
A
= 0 to 70°C)
Parameter
Supply Voltage
Supply Voltage
Ground
Input High Voltage
Input Low Voltage
Symbol
V
CC
(1)
V
CC
(2)
V
SS
V
IH
V
IL
Min
3.15
3.0
0
2.0
-0.3
(4)
Typ
3.3
3.3
0
-
-
Max
3.6
3.6
0
V
CC
+0.3
(3)
0.8
Unit
V
V
V
V
V
(1) For K6R1016V1C-10 only.
(2) For all speed grades except K6R1016V1C-10.
(3) V
IH
(Max) = V
CC +
2.0V a.c(Pulse Width
≤
8ns) for I
≤
20mA
(4) V
IL
(Min) = -2.0V a.c(Pulse Width
≤
8ns) for I
≤
20mA.
-3-
Revision 3.3
October 2000
K6R1016V1C-C/C-L, K6R1016V1C-I/C-P
*
DC
for AT&T
CMOS SRAM
AND OPERATING CHARACTERISTICS*
(
T
A
=0 to 70°C, Vcc=3.3V+0.3V/-0.15V, unless otherwise specfied)
Parameter
Symbol
I
LI
I
LO
I
CC
Test Conditions
V
IN
=V
SS
to V
CC
CS=V
IH
or OE=V
IH
or WE=V
IL
V
OUT
=V
SS
to V
CC
Min. Cycle, 100% Duty
CS=V
IL,
V
IN
= V
IH
or V
IL,
I
OUT
=0mA
10ns
12ns
15ns
20ns
Min
-2
-2
-
-
-
-
-
Normal
L-Ver.
-
-
-
2.4
Max
2
2
105
95
93
90
30
5
0.5
0.4
-
V
V
mA
mA
Unit
µA
µA
mA
Input Leakage Current
Output Leakage Current
Operating Current
Standby Current
I
SB
I
SB1
Min. Cycle, CS=V
IH
f=0MHz, CS
≥V
CC
-0.2V,
V
IN
≥V
CC
-0.2V or V
IN
≤0.2V
I
OL
=8mA
I
OH
=-4mA
Output Low Voltage Level
Output High Voltage Level
V
OL
V
OH
* The above parameters are also guaranteed at industrial temperature range.
CAPACITANCE*
(T
A
=25°C, f=1.0MHz)
Item
Input/Output Capacitance
Input Capacitance
* Capacitance is sampled and not 100% tested.
Symbol
C
I/O
C
IN
Test Conditions
V
I/O
=0V
V
IN
=0V
MIN
-
-
Max
8
6
Unit
pF
pF
AC CHARACTERISTICS
(T
A
=0 to 70°C, Vcc=3.3V+0.3V/-0.15V, unless otherwise noted.)
TEST CONDITIONS*
Parameter
Input Pulse Levels
Input Rise and Fall Times
Input and Output timing Reference Levels
Output Loads
* The above test conditions are also applied at industrial temperature range.
Value
0V to 3V
3ns
1.5V
See below
Output Loads(A)
Output Loads(B)
for t
HZ
, t
LZ
, t
WHZ
, t
OW
, t
OLZ
& t
OHZ
R
L
= 50Ω
+3.3V
D
OUT
V
L
= 1.5V
Z
O
= 50Ω
30pF*
D
OUT
319Ω
353
Ω
5pF*
* Capacitive Load consists of all components of the
test environment.
* Including Scope and Jig Capacitance
-4-
Revision 3.3
October 2000
K6R1016V1C-C/C-L, K6R1016V1C-I/C-P
READ CYCLE*
Parameter
Read Cycle Time
Address Access Time
Chip Select to Output
Output Enable to Valid Output
UB, LB Access Time
Chip Enable to Low-Z Output
UB, LB Enable to Low-Z Output
Output Enable to Low-Z Output
Chip Disable to High-Z Output
Output Disable to High-Z Output
UB, LB Disable to High-Z Output
Output Hold from Address Change
Chip Selection to Power Up Time
Chip Selection to Power DownTime
Symbol
t
RC
t
AA
t
CO
t
OE
t
BA
t
LZ
t
BLZ
t
OLZ
t
HZ
t
OHZ
t
BHZ
t
OH
t
PU
t
PD
K6R1016V1C-10
Min
10
-
-
-
-
3
0
0
0
0
0
3
0
-
Max
-
10
10
5
5
-
-
-
5
5
5
-
-
10
K6R1016V1C-12
Min
12
-
-
-
-
3
0
0
0
0
0
3
0
-
Max
-
12
12
6
6
-
-
-
6
6
6
-
-
12
for AT&T
CMOS SRAM
K6R1016V1C-15
Min
15
-
-
-
-
3
0
0
-
-
-
3
0
-
Max
-
15
15
7
7
-
-
-
7
7
7
-
-
15
K6R1016V1C-20
Min
20
-
-
-
-
3
0
0
-
-
-
3
0
-
Max
-
20
20
9
9
-
-
-
9
9
9
-
-
20
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
* The above parameters are also guaranteed at industrial temperature range.
WRITE CYCLE*
Parameter
Write Cycle Time
Chip Select to End of Write
Address Set-up Time
Address Valid to End of Write
Write Pulse Width(OE High)
Write Pulse Width(OE Low)
UB, LB Valid to End of Write
Write Recovery Time
Write to Output High-Z
Data to Write Time Overlap
Data Hold from Write Time
End Write to Output Low-Z
Symbol
t
WC
t
CW
t
AS
t
AW
t
WP
t
WP1
t
BW
t
WR
t
WHZ
t
DW
t
DH
t
OW
K6R1016V1C-10
Min
10
7
0
7
7
10
7
0
0
5
0
3
Max
-
-
-
-
-
-
-
-
5
-
-
-
K6R1016V1C-12
Min
12
8
0
8
8
12
8
0
0
6
0
3
Max
-
-
-
-
-
-
-
-
6
-
-
-
K6R1016V1C-15
Min
15
9
0
9
9
15
9
0
0
7
0
3
Max
-
-
-
-
-
-
-
-
7
-
-
-
K6R1016V1C-20
Min
20
10
0
10
10
20
10
0
0
8
0
3
Max
-
-
-
-
-
-
-
-
9
-
-
-
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
* The above parameters are also guaranteed at industrial temperature range.
京公网安备 11010802033920号
EEWORLD
