VN2220N3P015 datasheet, PDF - EEWORLD Datasheet

VN2220N3P015: DescriptionSmall Signal Field-Effect Transistor, 0.9A I(D), 200V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-92; CategoryDiscrete semiconductor The transistor; File Size124KB，4 Pages; ManufacturerSupertex

Download Datasheet Parametric View All

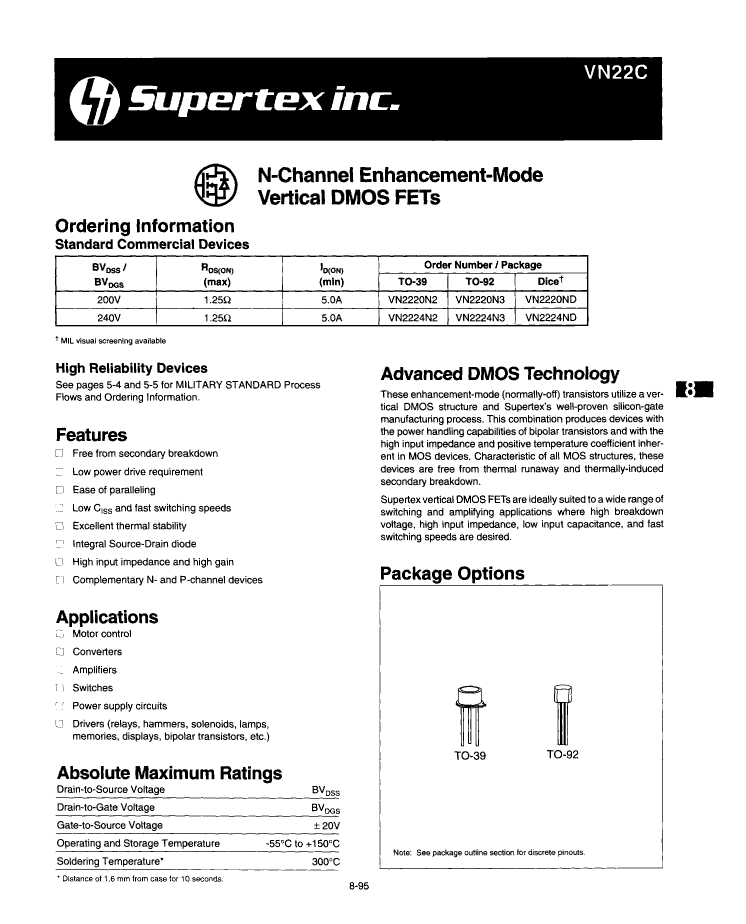

VN2220N3P015 Overview

Small Signal Field-Effect Transistor, 0.9A I(D), 200V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-92

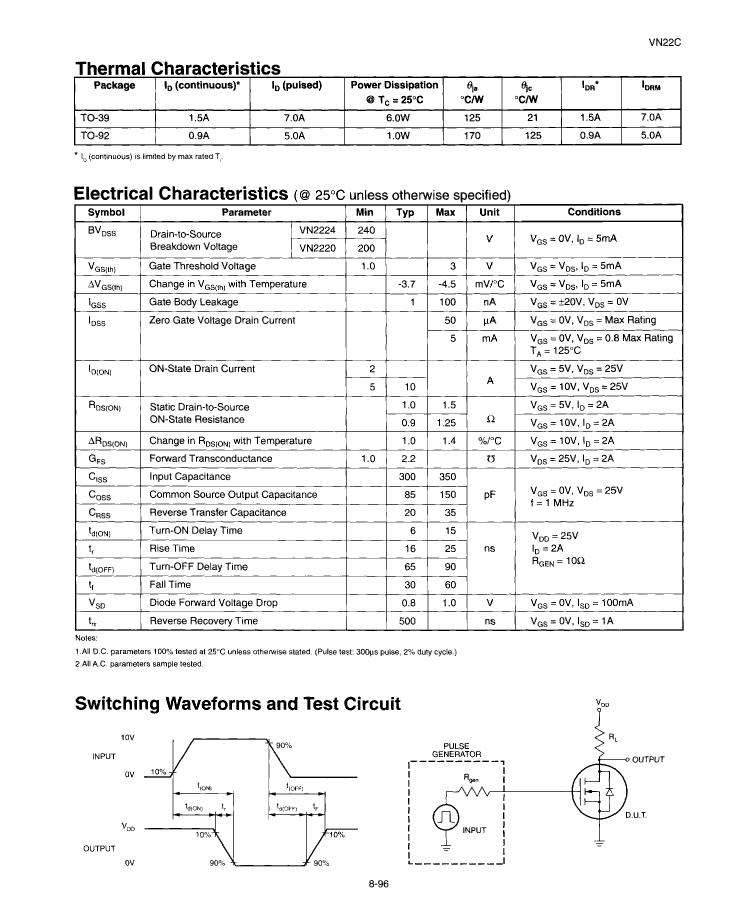

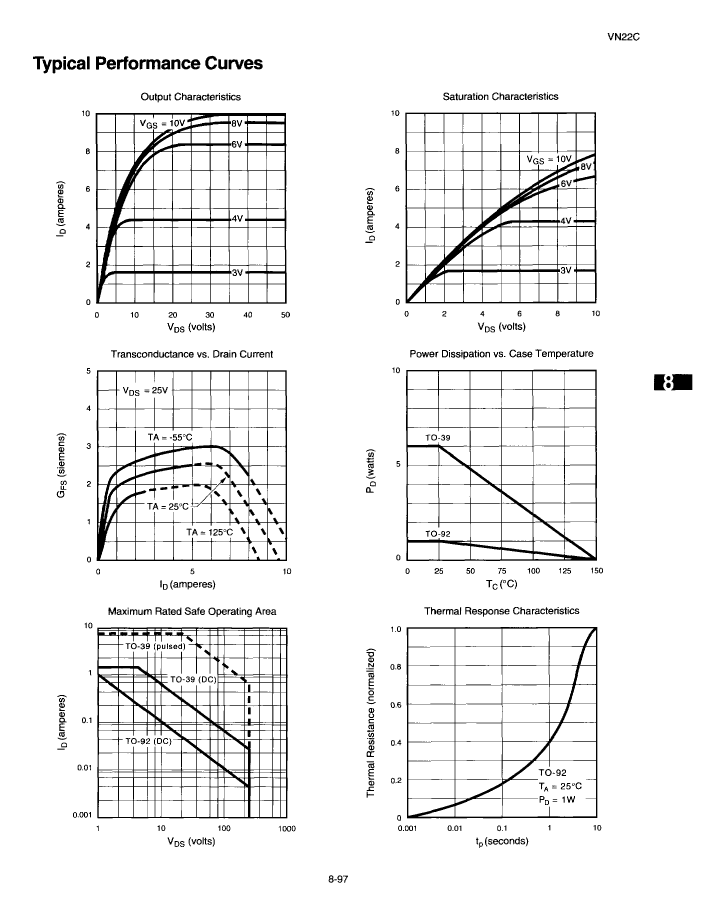

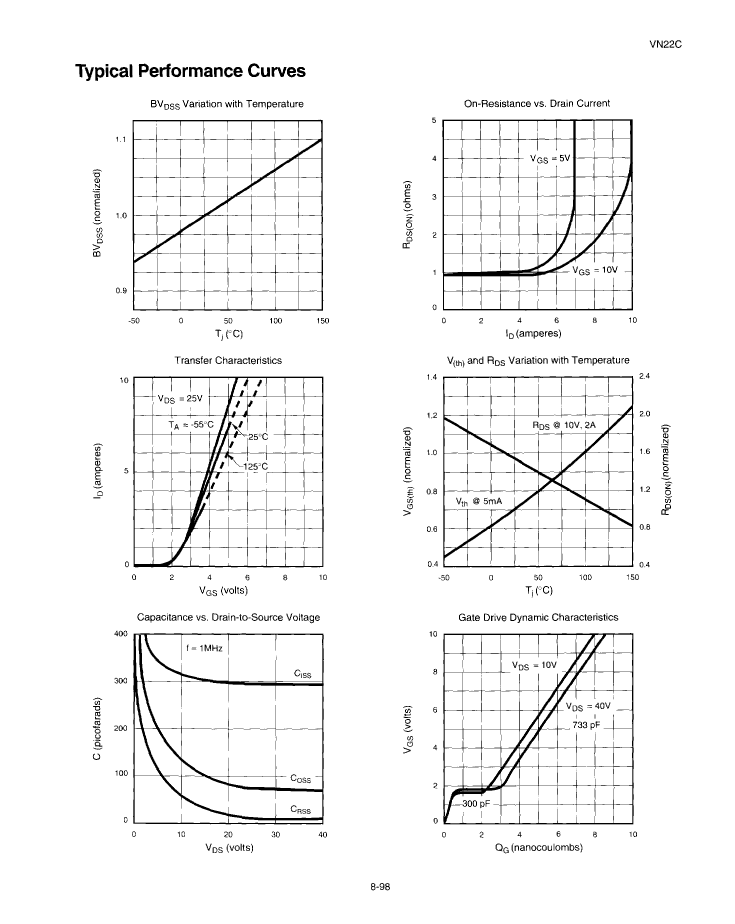

Parameter Name	Attribute value
Maker	Supertex
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V
Maximum drain current (ID)	0.9 A
Maximum drain-source on-resistance	1.5 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	35 pF
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	1 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
