MR106M TRIPLE BALANCED MIXER

RF/LO: 2.0 to 18.0 GHz IF: 10 to 5000 MHz

Standard Product Features:

•

Broadband Performance

6.0 dB Typical Conversion Loss

30 dB Typical Isolation

Broadband IF Coverage

Low Cost

Versatile Package

SPECIFICATIONS

TYPICAL

Min.

Max.

RF/LO Frequency Range (GHz)

-----

IF Frequency Range (3dB Bandwidth) (MHz)

-----

5000

Conversion Loss (dB)

6.0

-----

9.5

VSWR, RF Port

2.2:1

---

-----

LO Port

1.8:1

---

-----

Isolation, LO to RF (dB)

---

LO to IF (dB)

-----

LO Drive Range (dBm)

Input 1 dB Compression Point (dBm)

-----

Input Two-Tone Third Order IP (IP3) (dBm)

+17

+12

-----

Operating Temperature Range (Degrees C)

-----

-54

+95

Storage Temperature (Degrees C)

-----

-65

+125

Note: Custom designs also available. Consult factory for assistance on your specific requirements.

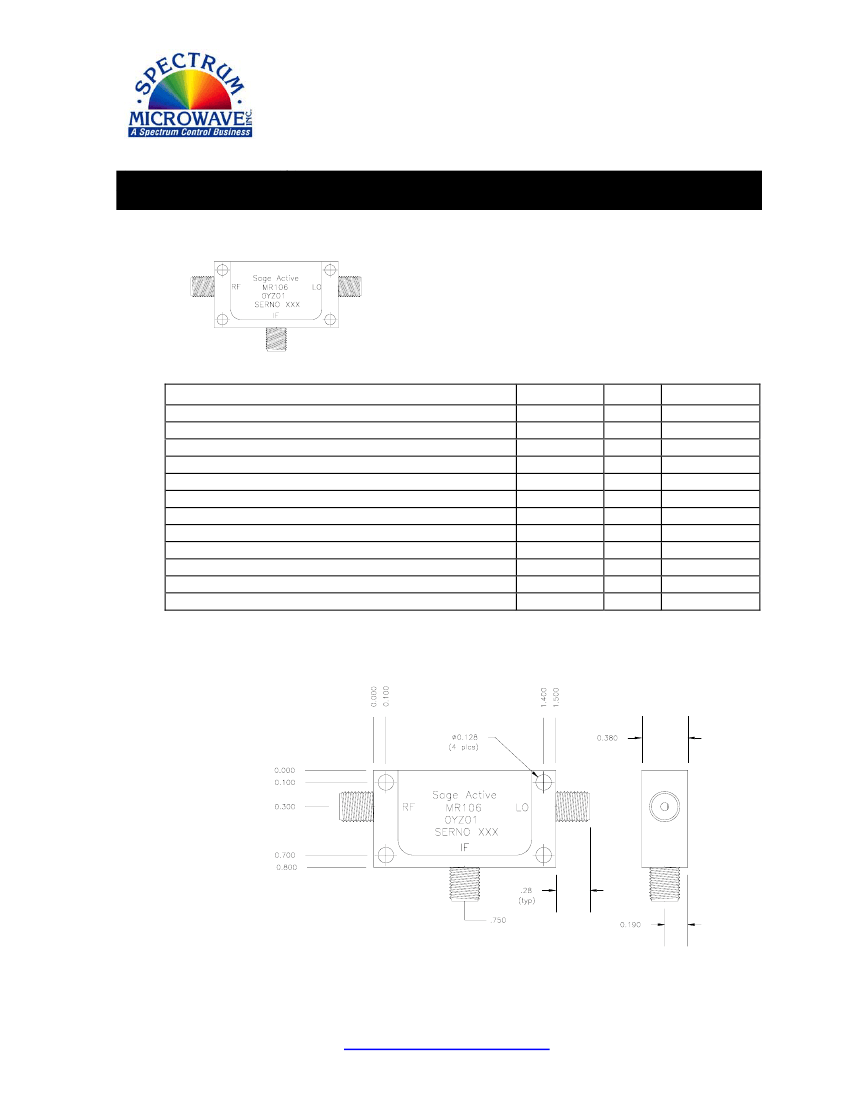

OUTLINE DRAWING

Spectrum Microwave

8 Executive Drive Hudson, NH 03051 Phone: 603-459-1600

www.SpectrumMicrowave.com

Fax: 603-459-1605
